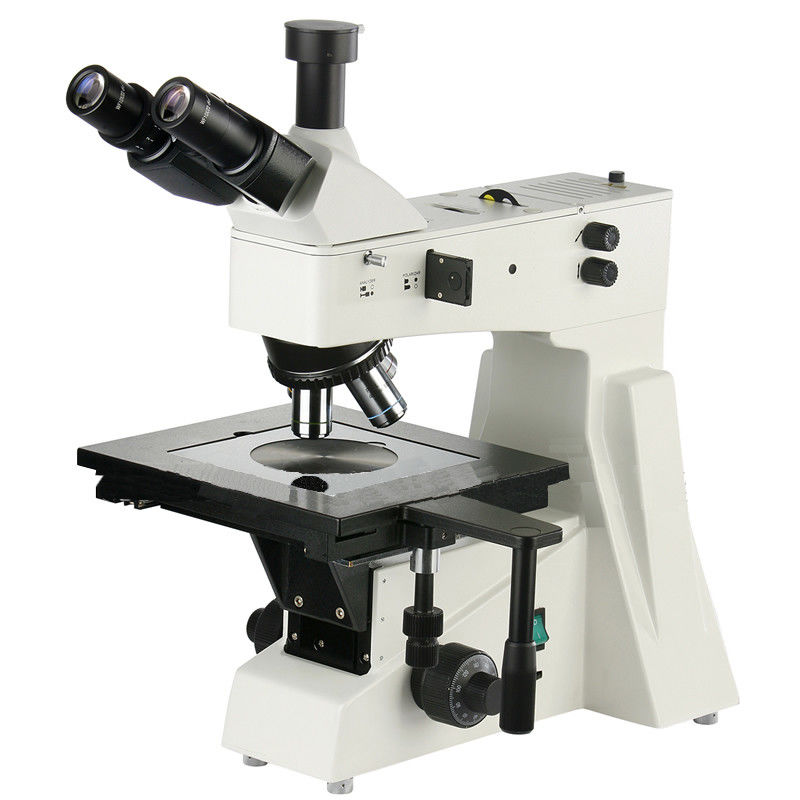

Infinity High Precision Compound Optical Microscope A13.0207 Binocular Trinocular 4 Holes

Infinity High Precision Compound Optical Microscope A13.0207 Binocular Trinocular 4 Holes

  • High Light

    reflected light microscope

    ,

    halogen lamp microscope

  • Application
    Research|Learning|Metallurgical
  • Certification
    CE|Rohs
  • Drawtube
    Binocular
  • Illumination
    Halogen Lamp
  • Magnification
    50X - 800X
  • Theory
    Metallurgical Optical Microscope
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A13.0207
  • Minimum Order Quantity
    1 pc
  • Price
    Negotiation
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

Infinity High Precision Compound Optical Microscope A13.0207 Binocular Trinocular 4 Holes

 Infinity high precision Metallurgical Microscope A13.0207 binocular trinocular 4 Holes

Compound Digital Metallurgical Optical Microscope Halogen Lamp A13.0207


Description:
A13.0207 Up-Right Bright/Dark Field Metallurgical Microscope can be used for bright-field, dark-field, simple polarizing observations. It is the ideal instruments for inspecting semiconductors, packages, electronics substrates, materials. Features
●With long working distance plan achromatic objectives (no cover glass) and wide-field eyepieces, can get clear pictures and wide view field
● With large move range mechanical stages,moving range:8"×8"(204mm×204mm)
● Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 0.8μm
● 6V 30W or 12V 50W halogen lamp, adjustable brightness
● Trinocular, can switch to normally/polarize observation, brightfield/darkfield observation. can send 100% of light to the binocular eyepieces or to the top port



Specifications:


Specification
A13.0207 Metallurigical Microscope
A
B
Head
Trinocular head, inclined 30 can be shot in 100% light flux.
Eyepiece
Wide field WF10X(field number:Φ22mm)
Infinity Plan Achromatic Objective
PL L5X/0.12  WD 26.1mm (Bright field objectives)

PL L10X/0.25  WD 20.2mm (Bright field objectives)

PL L20X/0.40  WD 8.80mm (Bright field objectives)

PL L50X/0.70  WD 3.68mm (Bright field objectives)

PL L80X/0.80  WD 1.25mm (Bright field objectives)

PL L5X/0.12 BD  WD 9.70mm (Bright & Dark field objectives)
PL L10X/0.25 BD    WD 9.30mm(Bright & Dark field objectives)
PL L20X/0.40 BD    WD 7.23mm(Bright & Dark field objectives)
PL L50X/0.70 BD    WD 2.50mm(Bright & Dark field objectives)
PL L80X/0.80    BD WD 1.25mm(Bright & Dark field objectives)
Epi- illumination System
6V30W halogen and brightness enable control

12V50W halogen and brightness enable control

Integrated field diaphragm, aperture diaphragm and (Y,B,G, ground glass) switching device. Push-pull type analyzer and polarizer.
Focus System
Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 0.7 μm
Nosepiece
Quintuple (Backward ball bearing inner locating)
Stage
Mechanical stage,overall size:280mmX270mm,moving range: 204mmX204mm
Optional Accessories
ObjectiveDividing eyepiece(field number:Φ22mm)    0.10mm/Div
A51.0205-G10B
ObjectivePL L40X/0.65Work distance:0.66mmEquipped with bright field objectives
A5M.0235-40
PL L60X/0.85Work distance:0.25mm
A5M.0235-60
PL L100X/0.85Work distance:0.4mm
A5M.0235-100
PL L40X/0.60Work distance:3.0mmEquipped with bright & dark field objectives
A5M.0237-40
PL L60X/0.70Work distance:1.9mm
A5M.0237-60
PL L100X/1.25Work distance:0.35mm
A5M.0237-100
StageMechanical, moving range is 250mmX230mm Move range:154mmX154mm
A54.0205-18
CCD Adapter0.5X
A55.0202-4
1X
A55.0202-2
0.5X with dividing 0.1mm/Div
A55.0202-3
Digital Camera AdapterCANON EF digital SLR camera adapter
A55.0204-01
