Laboratory Trinocular Reflected Metallurgical Optical Microscope A13.0201 With Brightness Control

China Laboratory Trinocular Reflected Metallurgical Optical Microscope A13.0201 With Brightness Control supplier

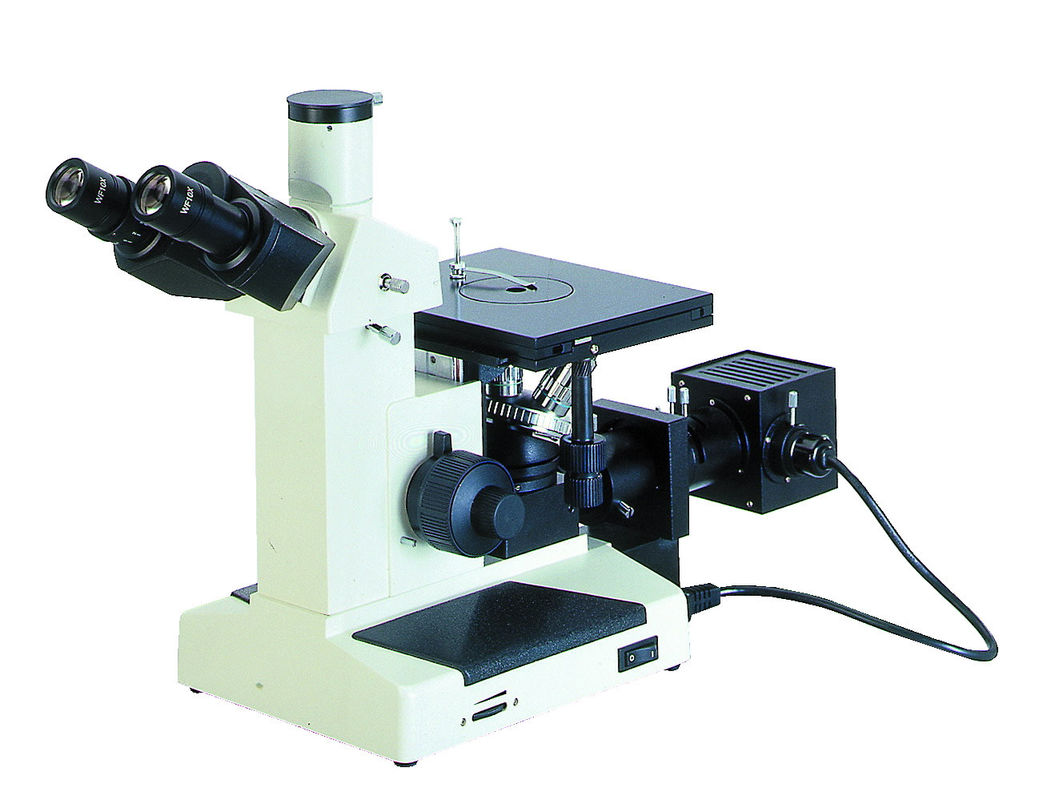

Large Image :  Laboratory Trinocular Reflected Metallurgical Optical Microscope A13.0201 With Brightness Control

Product Details:

Place of Origin: China
Brand Name: CNOEC, OPTO-EDU
Certification: CE, Rohs
Model Number: A13.0201

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Carton Packing, For Export Transportation
Delivery Time: 5~20 Days
Payment Terms: T/T, West Union, Paypal
Supply Ability: 5000 pcs/ Month
Contact Now
Detailed Product Description
Application: Research|Metallurgical Certification: CE
Drawtube: Binocular|Trinocular Illumination: Halogen Lamp|LED
Theory: Metallurgical Optical Microscope



1000X Industry Trinocular Metallurgical Optical Microscope A13.0201





This metallurgical microscope is used for identification and analysis of the structures in different metals and alloys, it is the important instrument for researching metallography in metal physics.

--Plan achromatic objectives with long working distance (no cover glass)
--Coaxial coarse/fine focusing system with tension adjustable and up stop
--6V 20W halogen lamp with brightness control







pecification

A13.0201-A1

A13.0201-A2

A13.0201-B1

A13.0201-B2

Head

Binocular

Trinocular

Binocular

Trinocular

Eyepiece

WF10X(Φ18mm)

Objective

LWD Plan (no cover glass) PL 10x/0.25

Achromatic (no cover glass) 10X/0.25

LWD Plan (no cover glass) PLL20x/0.40

Achromatic (no cover glass) 20X/0.40

LWD Plan (no cover glass) PLL40x/0.60

S-Plan achromatic (no cover glass) SP40X/0.65

LWD Plan (no cover glass) PL 100x/1.25 (Spring, oil)

Achromatic (no cover glass) 100X/1.25 (Spring, oil)

Filter

Frosted filter

Blue filter

Green filter

Yellow filter

Focus System

Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2um

Nosepiece

Quadruple ball bearing inner locating

Stage

Double layer mechanical, size 180x150mm, moving range 15x15mm

Light Source

6V 20W halogen lamp with brightness control



Optional Accessories

Item No.

Eyepiece

Wide field WF16x/11mm

A51.0203-16A

Divding 10x, 0.1mm/Div

A51.0205-10

Objective

Plan long working distance (no cover glass) PL5x/0.12

A5M.0234-05

Plan long working distance (no cover glass) PLL60x/0.75(Spring)

A5M.0234-60

Plan long working distance (no cover glass) PLL100x/0.85(Spring)

A5M.0234-100A

Achromatic (no cover glass) 60x/0.85

A5M.0232-60

Nosepiece

Quintuple (Ball bearing inner locating)

A54.0203-1

Simple Polarizing

Polarizer

A5P.0210-02

Analyzer

A5P.0211-02

Light Source

LED collector, bright and white light

A56.0204-6

CCD adapter

0.4x

A55.0202-01

0.5x

A55.0202-04

1x

A55.0202-02

0.5x with dividing 0.1mm/Div

A55.0202-03

Photo Adapter

2.5x/4x change over photograph attachment with 10x viewing eypiece

A55.0201-01

4x focusing photograph attachment

A55.0201-02

MD adapter

A55.0201-03

PK adapter

A55.0201-04

Digital Camera Adapter

For Canon EF ditigal SLR camera adapter

A55.0204-02

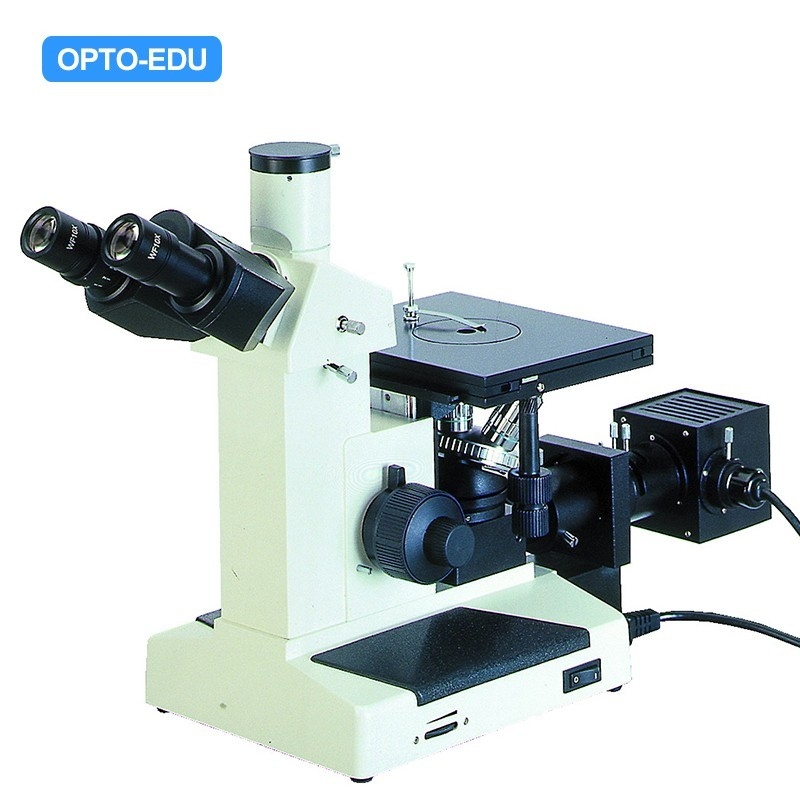

Laboratory Trinocular Reflected Metallurgical Optical Microscope A13.0201 With Brightness Control
