Reflected Illumination Metallurgical Optical Microscope Vertical Metallurgical Microscope For Metal

China Reflected Illumination Metallurgical Optical Microscope Vertical Metallurgical Microscope For Metal supplier
Reflected Illumination Metallurgical Optical Microscope Vertical Metallurgical Microscope For Metal supplier Reflected Illumination Metallurgical Optical Microscope Vertical Metallurgical Microscope For Metal supplier Reflected Illumination Metallurgical Optical Microscope Vertical Metallurgical Microscope For Metal supplier Reflected Illumination Metallurgical Optical Microscope Vertical Metallurgical Microscope For Metal supplier

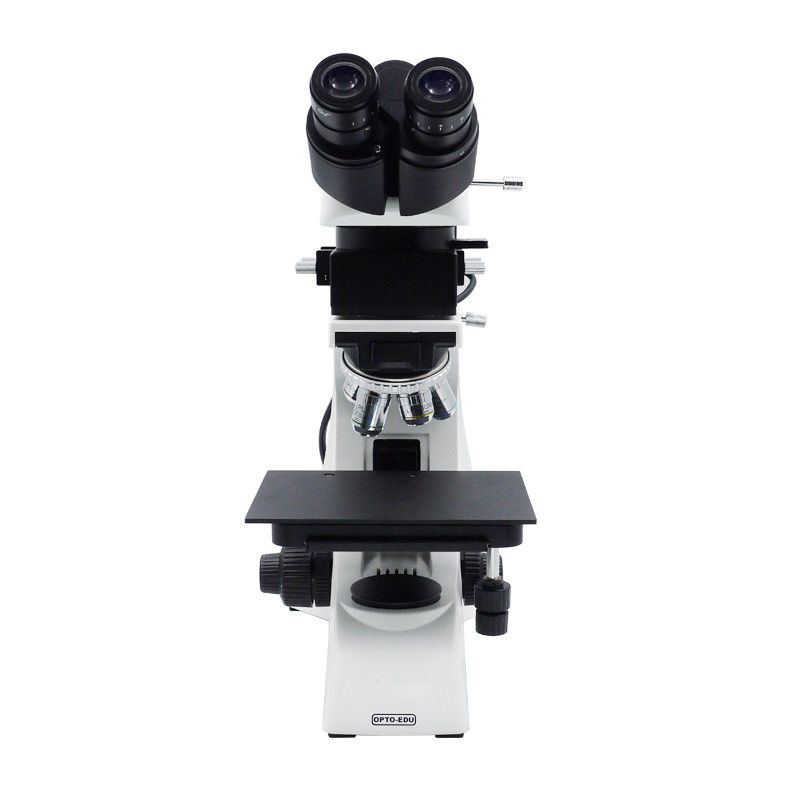

Large Image :  Reflected Illumination Metallurgical Optical Microscope Vertical Metallurgical Microscope For Metal

Product Details:

Place of Origin: China
Brand Name: CNOEC, OPTO-EDU
Certification: CE, Rohs
Model Number: A13.2604

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: FOB $1~1000, Depend on Order Quantity
Packaging Details: Carton Packing, For Export Transportation
Delivery Time: 5~20 Days
Payment Terms: T/T, West Union, Paypal
Supply Ability: 5000 pcs/ Month
Contact Now
Detailed Product Description
Application: Research|Learning|Metallurgical Certification: CE|Rohs
Drawtube: Trinocular Illumination: Halogen Lamp
Magnification: 50x - 1000x Theory: Metallurgical Optical Microscope

Reflected Illumination Metallurgical Optical Microscope Vertical Metallurgical Microscope For Metal


Learning Infinity Plan Microscope Trinocular Compound Microscopes Rohs A13.2604


Description:
A13.2604 Metallurgical Microscope
--Infinity optical system for metallurgical observing
--Stress Free Long working distance objective
--Reflecting & transmitting light source available
--Polarizing Set Included
--Kohler illumination collector with field diaphragm
Specifications:


SpecificationA13.2604 Metallurgical MicroscopeAB
HeadTinocular, inclinded 30°, interpupillary distance 50-75mm
EyepieceWF10X/18mm
WF10X -18 mm (Reticule 0.1mm)
ObjectiveInfinity Plan Metallurgical Objective
(no cover glass)
5x/0.1, WD=6.73mm
10x/0.25, WD=4.19mm
20x/0.4(s), WD=2.14mm
100x/1/25(oil)(s), WD=0.12mm
LWD Infinity Plan Metallurgical Objective (no cover glass)40x/0.65(s), WD=3.90mm
NosepieceQuintuple Backward
StageMechnical Stage for Reflection Illumination, Size: 190×140mm, Travel Range: 78×55mm, Stage Fast Lowing Unit, Stage Up-Down moving range 50mm (Max.)
Mechnical Stage for Transmit llumination, Size: 190×140mm, Travel Range: 78×55mm, Coaxial Coarse and Fine Focusing Knobs
PlateStage Plate: Place The Sample on The Plate
Clip
PolarizingPolarizing /Analyzer Slide
CondenserAbbe N.A. 1.25, with iris diaphragm
FocusingCoaxial coarse and fine focusing knob, coarse focusing range 25mm, fine focusing scale 2um, with tension adjustment
Light SourceReflecting light, 12V 50W halogen lamp
Transmiting light, 6V 20W halogen lamp, Center Adjustable Kohler Collector
CollectorKohler illumination collector with field diaphragm
FilterBlue
Packing1pc/carton, size 75x36x45cm, G/N weight 16/15Kgs
Optional AccessoriesItem No.
EyepieceWF 5x/20mmA51.2602-05
WF12.5x/14mmA51.2602-125
WF16x/13mmA51.2602-1613
ObjectiveInfinity Plan Metallurgical Objective
(no cover glass)
40x/0.65(s),WD=0.45mmA5M.2632-40
LWD Infinity Plan Metallurgical Objective
(no cover glass)
20x/0.4(s),WD=8.35mmA5M.2633-20
50x/0.7(s),WD=1.95mmA5M.2633-50
80x/0.8(s),WD=0.85mmA5M.2633-80
StageGlass Plate for Transmit LightA54.2605
Stage Micrometer 0.01mmA58.2601
AdapterC-Mout 0.5xA55.2601-MT05
C-Mout 1.0xA55.2601-MT10





ItemsA13.2604-B Metallurgical Microscope, Reflect & TransmitBCata. No.
HeadSeidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-76mm, Light Split Switch E100:P0/E20:P80,
Eyepiece Tube Dia.30mm
A53.2623-T
EyepieceWF10x/22mm, Dia.30mm, High Eyepoint, Diopter AdjustableA51.2621-1022
WF10x/22mm, Dia.30mm,With Micrometer X-0.1mm*180 Div / Y-Single Line, Diopter AdjustableA51.2622-1022
NosepieceQuintuple, Backward●●A54.2610-N01
Metallurgical LWD Infinity Plan ObjectivesLPL 5x/0.13, W.D.=16.04mmA5M.2633-5
LPL10x/0.25, W.D.=18.48mmA5M.263310
LPL 20x/0.40, W.D.=8.35mmA5M.2633-20
LPL 50x/0.70, W.D.=1.95mmA5M.2633-50
LPL 80x/0.80, W.D.=0.85mmA5M.2633-80
LPL 100x/0.90(Dry), W.D.=1.00mmA5M.2633-100
Working StageDouble Layer Mechanical Size 182×140mm,
Travel Range 77×52mm
A54.2601-S01T3
CondenserAbbe N.A.1.25 , With Iris DiaphragmA56.2614-C01d
FocusingCoaxial Coarse And Fine Focusing Knobs,
Travel Range: 25mm, Scale: 2µm

IlluminationReflect Light 5W LED
Koehler Illumination, Wide Voltage 100V~240V, Field Diaphragm
A56.2612-5W
Reflect Light 12V50W Halogen
Koehler Illumination, Wide Voltage 100V~240V, Field Diaphragm
A56.2613-12V50W
Transmit Light 5W LED
Koehler Illumination, Wide Voltage 100V~240V, Field Diaphragm
A56.2612-5W
Transmit Light 6V30W Halogen
Koehler Illumination, Wide Voltage 100V~240V, Field Diaphragm
A56.26513-6V30W
PolarizingAnalyzer + Polarizer For Reflect LightA5P.2603-BKR
Analyzer + Polarizer For Transmit LightA5P.2603-BKT
FilterGround Glass SliderA56.2620-F
Blue Filter Switch HandleA56.2620-B
AdapterC-Mount 0.5x, Focus AdjustableA55.2601-05
C-Mount 0.75x, Focus AdjustableA55.2601-75
C-Mount1.0x, Focus AdjustableA55.2601-10
Digital Eyepiece Camera Adapter, Dia. 23.2mm/25mmA55.2610
PackageCarton Size 570*275*450mm, 1 Unit/Ctn
WeightGross Weight 10.5kgs, Net Weigth 8.0kgs
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.

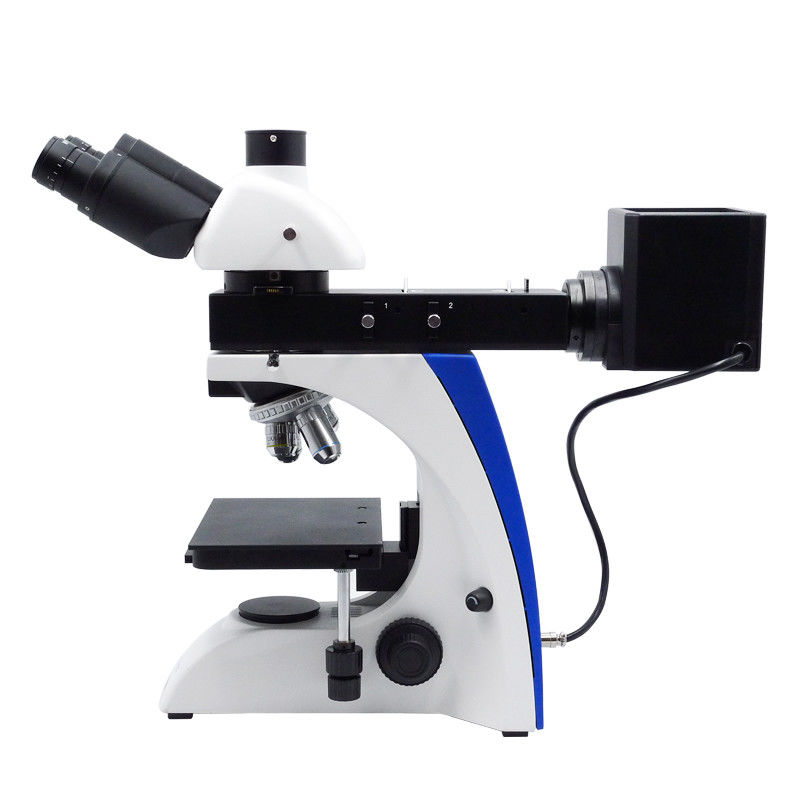

Reflected Illumination Metallurgical Optical Microscope Vertical Metallurgical Microscope For Metal

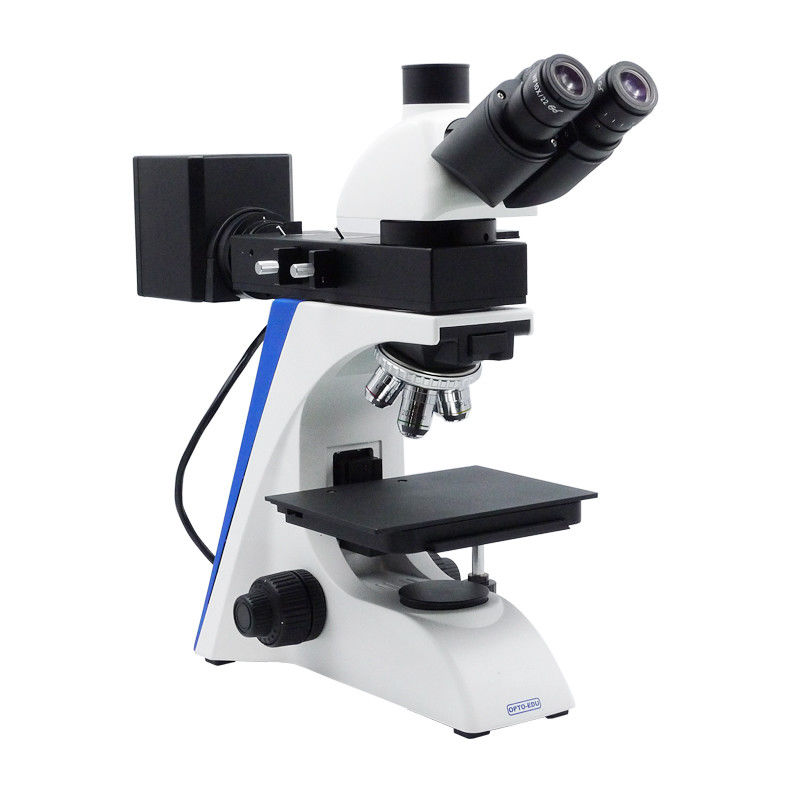

Reflected Illumination Metallurgical Optical Microscope Vertical Metallurgical Microscope For Metal

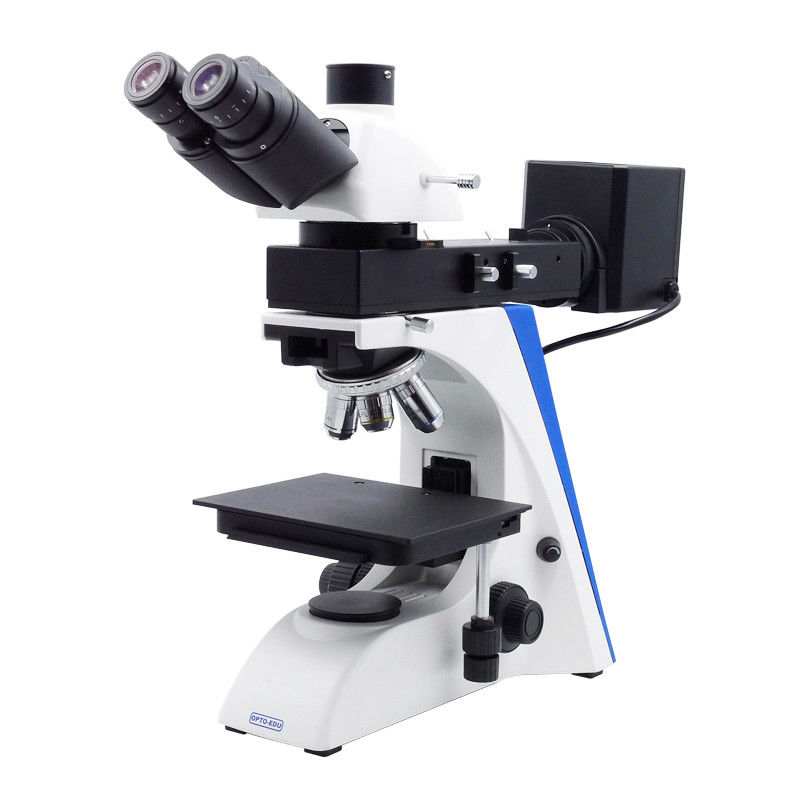

 Reflected Illumination Metallurgical Optical Microscope Vertical Metallurgical Microscope For Metal
