100 - 240V Metallurgical Optical Microscope WF10x / 18mm Eyepiece 3 Holes Nosepiece

China 100 - 240V Metallurgical Optical Microscope WF10x / 18mm Eyepiece 3 Holes Nosepiece supplier

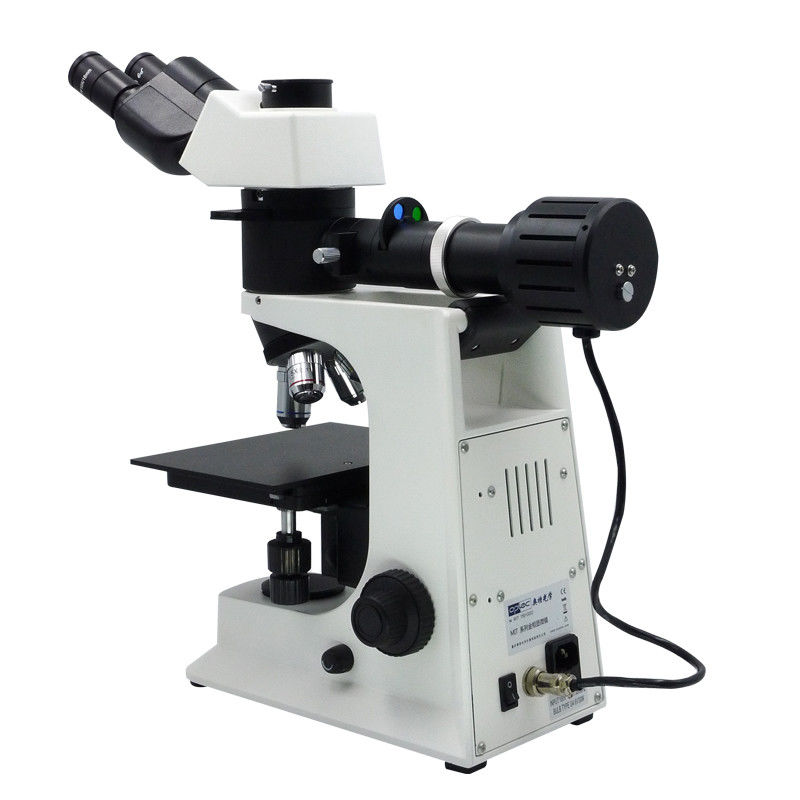

Large Image :  100 - 240V Metallurgical Optical Microscope WF10x / 18mm Eyepiece 3 Holes Nosepiece

Product Details:

Place of Origin: China
Brand Name: CNOEC, OPTO-EDU
Certification: CE, Rohs
Model Number: A13.2605

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: FOB $1~1000, Depend on Order Quantity
Packaging Details: Carton Packing, For Export Transportation
Delivery Time: 5~20 Days
Payment Terms: T/T, West Union, Paypal
Supply Ability: 5000 pcs/ Month
Contact Now
Detailed Product Description
Eyepiece: WF10x/18 Nosepiece: 3 Holes
Objective: LWD Plan 5x,10x,50x Working Stage: Plain Stage
Condenser: Abbe N.A.1.25 Focusing: Coaxial Coarse & Fine
Light Source: Halogen 6V30W Power Supply: 100~240V

OPTO-EDU A13.2605-A 50X-500X Binocular Metallurgical Microscope



A13.2605 metallurgical microscope is designed for material surface observation and mechanical state detection. It can accurately display the color of different metals and easy to use for analysing the internal structure of electronic products. One of the main part of the microscope is metallurgical epi illumination, the light source is reflect 6V30W Halogen Lamp.



Parameter



A13.2605 -A -B
Head Binocular Trinocular
Seidentopf Head, Inclined 30°, Rotatable 360°, Interpupillary Distance 48-75mm, Left Eyepiece Tube Diopter Adjustable +/-5°, Trinocular Head Light Split 0:100/20:80.
Eyepiece WF10x/18mm, 1 pc
WF10x/18mm, With Micrometer 0.1mm Div, 1 pc
Nosepiece Quadruple
Objective Long Working Distance Infinity Plan Objective (no cover glass)
LPL 5x/0.13, W.D.=24.23mm
LPL 10x/0.25, W.D.=18.48mm
LPL 40x/0.65, W.D.=3.90mm
Stage Mechanical Stage Size 200X140mm, 76mmX52mm
Condenser Abbe N.A.1.25, With iris Diaphragm
Focusing Coaxial Coarse and Fine Focusing Knob
Illumination Reflect Light Source 6V30W Halogen Lamp
With Five Holes Filter Disc (Blue, Green, Amber, Grey, Empty)
Power 110V~240V Wide Range Voltage

100 - 240V Metallurgical Optical Microscope WF10x / 18mm Eyepiece 3 Holes Nosepiece

100 - 240V Metallurgical Optical Microscope WF10x / 18mm Eyepiece 3 Holes Nosepiece

100 - 240V Metallurgical Optical Microscope WF10x / 18mm Eyepiece 3 Holes Nosepiece

100 - 240V Metallurgical Optical Microscope WF10x / 18mm Eyepiece 3 Holes Nosepiece

A13.2605 metallurgical microscope, metallurgical microscope use infinity optical system, equip with LWD plan metallurgical objective and plan big field eyepiece, high definition image, high resolution, widely apply to metallographic analysis and research of other opaque specimen, is necessary instrument in metallurgy, machine manufacture, geology mineral resources,electron device industry etc.



(1/2) Analyzer And Polarizer Can Filter Out Stray Light, Enhance Visual Acuity, And Improve Color Contrast And Maximum Visual Comfort;
(3) Five-hole Turret Filter Unit, Change The Artificial Light Source To Approximate Natural Light To Make The Observation More Ralistic;
(4) Aperture Diaphragm Can Adjust The Amount Of Light For Better Observation;
(5) 30W High Brightness Illuminator.





High Precision Reserved Quadruple, Backward Nosepiece, Metallurgical LWD Infinity Plan Objectives: 5x, 10x, 50x; Optional 20x, 80x, 100x



Double Layer Mechanical Stage Size 200×150mm, Travel Range 76×52mm



Product Application



Metallurgical microscope is used to observe the surface of metal samples.It is widely used in electronics, metallurgy, chemical, instrumentation and other industries, and is the first choice of metallographic, lithofacies, ore phase, crystal and other aspects of the experiment and analysis. Apply to factories and mines enterprises, institutions of higher learning and scientific research etc.
