Infinity Polarizing Metallurgical Microscope Optical 3 Holes A13.2605

Infinity Polarizing Metallurgical Microscope Optical 3 Holes A13.2605

  • High Light

    reflected light microscope

    ,

    halogen lamp microscope

  • Eyepiece
    WF10x/18
  • Nosepiece
    3 Holes
  • Objective
    LWD Plan 5x,10x,50x
  • Working Stage
    Plain Stage
  • Condenser
    Abbe N.A.1.25
  • Focusing
    Coaxial Coarse & Fine
  • Light Source
    Halogen 6V30W
  • Power Supply
    100~240V
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A13.2605
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

Infinity Polarizing Metallurgical Microscope Optical 3 Holes A13.2605

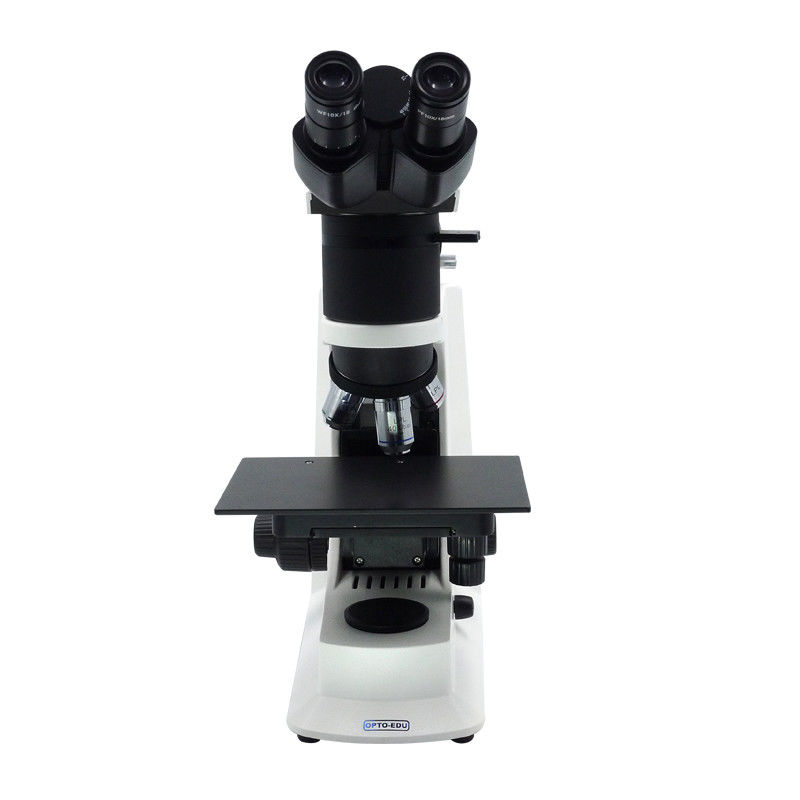

OPTO-EDU A13.2605-A 50X-500X Binocular Metallurgical Microscope



A13.2605 metallurgical microscope is designed for material surface observation and mechanical state detection. It can accurately display the color of different metals and easy to use for analysing the internal structure of electronic products. One of the main part of the microscope is metallurgical epi illumination, the light source is reflect 6V30W Halogen Lamp.

Infinity Polarizing Metallurgical Microscope Optical 3 Holes A13.2605 0
Infinity Polarizing Metallurgical Microscope Optical 3 Holes A13.2605 1

Infinity Polarizing Metallurgical Microscope Optical 3 Holes A13.2605 2

Seidentopf Head
Inclined 30°,Rotatable 360°, Interpupillary Distance 48-75mm, High Eyepoint Eyepiece, Which Is Convenient For

People With Different Sitting Height; The Integrated Design Of The Eyepiece Lens Barrel, Avoids The Loss And

Contamination Of The Eyepiece And Enhances The Integrated Performance Of The Microscope
Infinity Polarizing Metallurgical Microscope Optical 3 Holes A13.2605 3

Nosepiece & Objective
High Precision Reserved Quadruple, Backward Nosepiece, Metallurgical LWD Infinity Plan Objectives: 5x, 10x, 50x; Optional 20x, 80x, 100x
Working Stage
Double Layer Mechanical Stage Size 200×140mm, Travel Range 76×52mm
Infinity Polarizing Metallurgical Microscope Optical 3 Holes A13.2605 4
Infinity Polarizing Metallurgical Microscope Optical 3 Holes A13.2605 5

Powered By Safety Low Voltage Charger
Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use

Items A13.2605 Metallurgical Microscope Specification A B Cata. No.
Head Seidentopf Binocular Head Inclined 30°, Eyetube Rotatable 360°, Interpupilary Distance 48-75mm   A53.2621-B
Seidentopf Trinocular Head Inclined 30°, Eyetube Rotatable 360°, Interpupilary Distance 48-75mm, Light Split Fixed P20/E80   A53.2621-T
Eyepiece WF10x/20mm, High Eyepoint, A51.2602-1018
WF10x/20mm, With Micrometer X-0.1mm*180 Div / Y-Single Line, Diopter Adjustable A51.2605-1018D
Nosepiece Quadruple, Backward ●● ●● A54.2610-N734
Metallurgical LWD Infinity Plan Objectives LPL 5x/0.13, W.D.=16.04mm A5M.2633-5
LPL10x/0.25, W.D.=18.48mm A5M.263310
LPL 20x/0.40, W.D.=8.35mm A5M.2633-20
LPL 50x/0.70, W.D.=1.95mm A5M.2633-50
LPL 80x/0.80, W.D.=0.85mm A5M.2633-80
LPL 100x/0.90(Dry), W.D.=1.00mm A5M.2633-100
Working Stage Double Layer Mechanical Stage Size 200×140mm, Travel Range 76×52mm A54.2601-S04T
Focusing Coaxial Coarse And Fine Focusing Knobs,
Travel Range: 22mm, Scale: 2µm

Illumination Reflect Light Source, 5WLED Warm Lamp, With Five Holes Filter Disc (Blue, Green, Amber, Grey, Empty)
Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use
A56.2613-6V30W
Polarizing Analyzer + Polarizer A5P.2603-BS
Adapter C-Mount 0.5x, Focus Adjustable A55.2601-05
C-Mount 0.75x, Focus Adjustable A55.2601-75
C-Mount1.0x, Focus Adjustable A55.2601-10
Digital Eyepiece Camera Adapter, Dia. 23.2mm/25mm A55.2610
Package Carton Size 570*275*450mm, 1 Unit/Ctn
Weight Gross Weight 10.5kgs, Net Weigth 8.0kgs
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.
