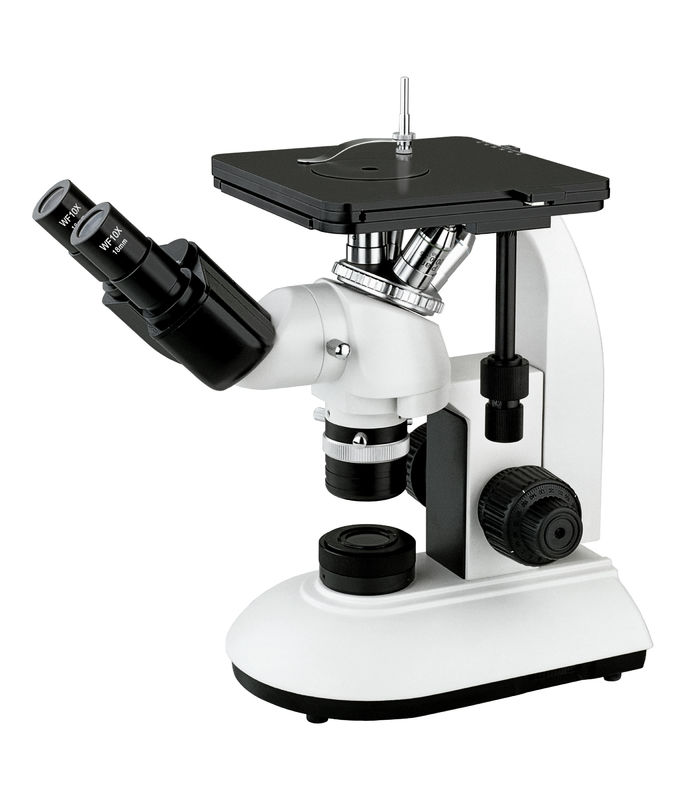

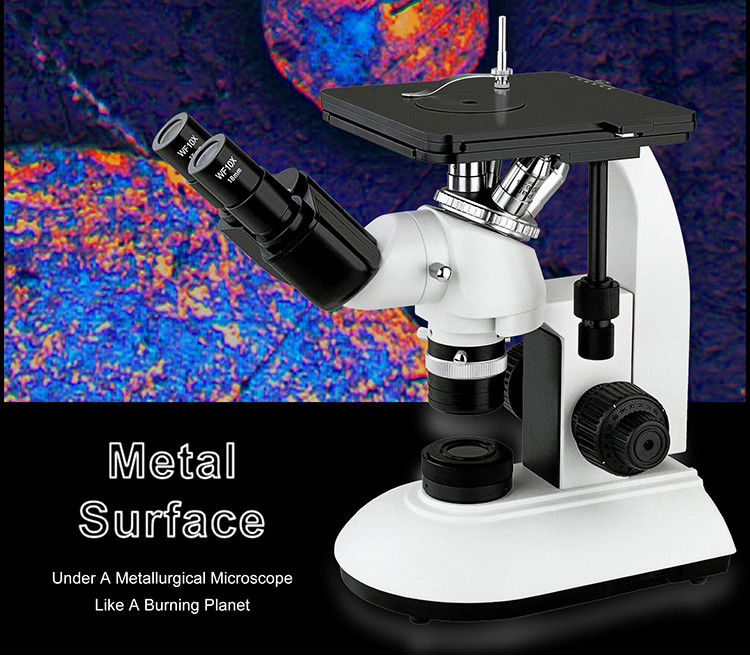

Inverted Metallurgical Optical Microscope WF10x/18mm Eyepiece Quadruple Nosepiece

Inverted Metallurgical Optical Microscope WF10x/18mm Eyepiece Quadruple Nosepiece

Products - Metallurgical Optical Microscope
  • High Light

    reflected light microscope

    ,

    halogen lamp microscope

  • Head
    Head Inclined 45°, Rotatable 360°
  • Eyepiece
    WF10x/18mm
  • Objectives
    Metallurgical LWD Infinity Plan Objectives
  • Nosepiece
    Quadruple
  • Stage
    Stage Size 180x180mm, Travel Range 30x30mm, Round Plate Size Dia.110mm
  • Illuminator
    3W LED Lamp, Wide Voltage: 100V-240V Or 12V 20W Halogen Lamp, Wide Voltage: 100V-240V
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A13.2602
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

Inverted Metallurgical Optical Microscope WF10x/18mm Eyepiece Quadruple Nosepiece

  • Inverted Metallurgical Optical Microscope WF10x/18mm Eyepiece Quadruple Nosepiece
  • Inverted Metallurgical Optical Microscope WF10x/18mm Eyepiece Quadruple Nosepiece
  • Inverted Metallurgical Optical Microscope WF10x/18mm Eyepiece Quadruple Nosepiece
  • Inverted Metallurgical Optical Microscope WF10x/18mm Eyepiece Quadruple Nosepiece
Get Price Contact Now

optical inverted china price of laboratory all kinds of used metallurgical microscope

Inverted Metallurgical Optical Microscope WF10x/18mm Eyepiece Quadruple Nosepiece 0
Inverted Metallurgical Optical Microscope WF10x/18mm Eyepiece Quadruple Nosepiece 1

Inverted Metallurgical Optical Microscope WF10x/18mm Eyepiece Quadruple Nosepiece 2

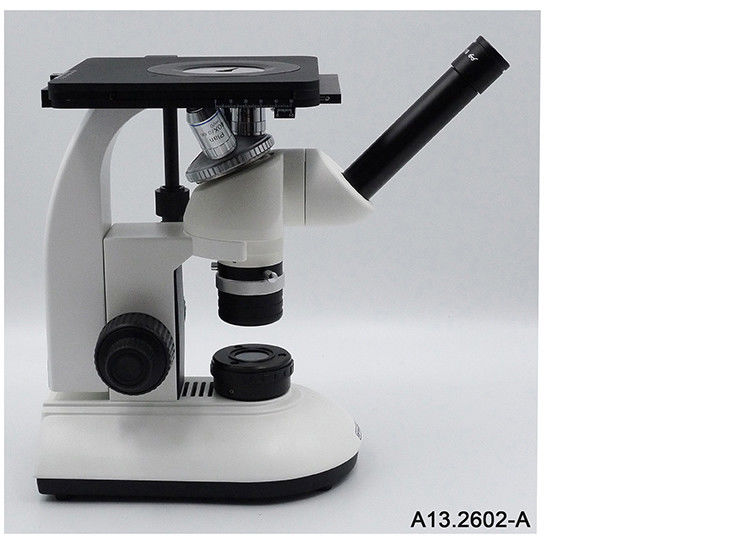

A13.2602-A Monocular Head
Monocular Head Inclined 45°, Rotatable 360°

Inverted Metallurgical Optical Microscope WF10x/18mm Eyepiece Quadruple Nosepiece 3

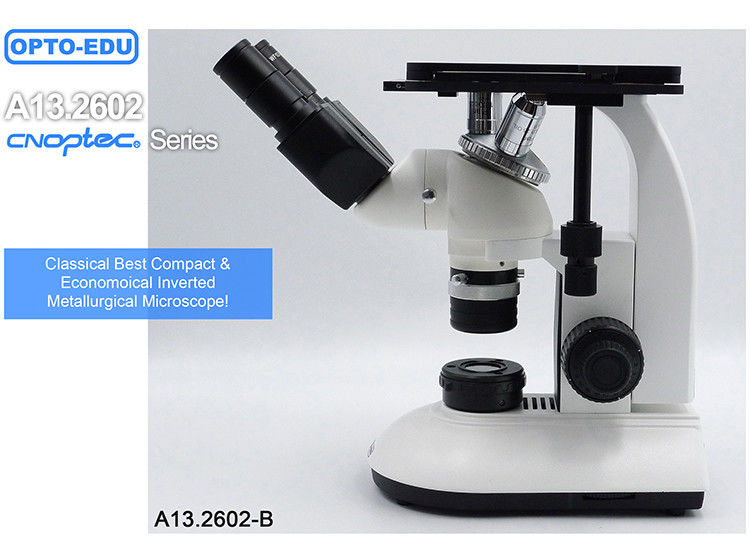

A13.2602-B Seidentopf Binocular Head
Inclined 45°, Rotatable 360°, Interpupillary Distance 48-75mm

Inverted Metallurgical Optical Microscope WF10x/18mm Eyepiece Quadruple Nosepiece 4

Nosepiece & Objective
Quadruple Nosepiece; Metallurgical LWD Infinity Plan Objectives: 5x, 10x, 50x

Inverted Metallurgical Optical Microscope WF10x/18mm Eyepiece Quadruple Nosepiece 5

Light Source
3W LED Standard Lamp; 12V 20W Halogen Lamp Optional

Inverted Metallurgical Optical Microscope WF10x/18mm Eyepiece Quadruple Nosepiece 6

Working Stage
Stage Size 180x180mm, Travel Range 30x30mm, Round Plate Size Dia.110mm

Inverted Metallurgical Optical Microscope WF10x/18mm Eyepiece Quadruple Nosepiece 7

Powered By Safety Low Voltage Charger
Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use


Items A13.2602 Inverted Metallurgical Microscope Specification -A -B Cata. No.
Head Monocular Head Inclined 45°, Rotatable 360° ● 　 A53.2631-M
Seidentopf Binocular Head Inclined 45°, Rotatable 360°, Interpupillary Distance 48-75mm 　 ● A53.2631-B
Eyepiece WF10x/18mm ● ●● A51.2602-1018
WF10x/18mm With Micrometer X-0.1mm*180 Div / Y-Single Line, Diopter Adjustable ○ ○ A51.2605-1018D
Nosepiece Quadruple ● ● A54.2610-N704R
Metallurgical LWD Infinity Plan Objectives LPL 5x/0.13, W.D.=16.04mm ● ● A5M.2633-5
LPL10x/0.25, W.D.=18.48mm ● ● A5M.263310
LPL 20x/0.40, W.D.=8.35mm ○ ○ A5M.2633-20
LPL 50x/0.70, W.D.=1.95mm ● ● A5M.2633-50
LPL 80x/0.80, W.D.=0.85mm ○ ○ A5M.2633-80
LPL 100x/0.90(Dry), W.D.=1.00mm ○ ○ A5M.2633-100
Working Stage Stage Size 180x180mm, Travel Range 30x30mm, Round Plate Size Dia.110mm ● ● A54.2601-MP100
Round Plate With Oval Hole ○ ○ A54.2601-MD400
Light Source 3W LED Lamp,
Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use		 ● ● A56.2612-3W
12V 20W Halogen Lamp, Wide Voltage: 100V-240V ○ ○ A56.2650-20W
Filter Blue, Dia.32mm ● ● A56.2616-32B
Green, Dia.32mm ● ● A56.2616-32G
Grey, Dia.32mm ● ● A56.2616-32N
Micrometer Division 0.01mm ○ ○ A58.2001-901
Package Carton Size 437*268*522mm, 1 Unit/Ctn
Weight Gross Weight 8.0kgs, Net Weight 7.0kgs
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.

Inverted Metallurgical Optical Microscope WF10x/18mm Eyepiece Quadruple Nosepiece 8
Inverted Metallurgical Optical Microscope WF10x/18mm Eyepiece Quadruple Nosepiece 9
Inverted Metallurgical Optical Microscope WF10x/18mm Eyepiece Quadruple Nosepiece 10
Inverted Metallurgical Optical Microscope WF10x/18mm Eyepiece Quadruple Nosepiece 11
Inverted Metallurgical Optical Microscope WF10x/18mm Eyepiece Quadruple Nosepiece 12
Inverted Metallurgical Optical Microscope WF10x/18mm Eyepiece Quadruple Nosepiece 13
