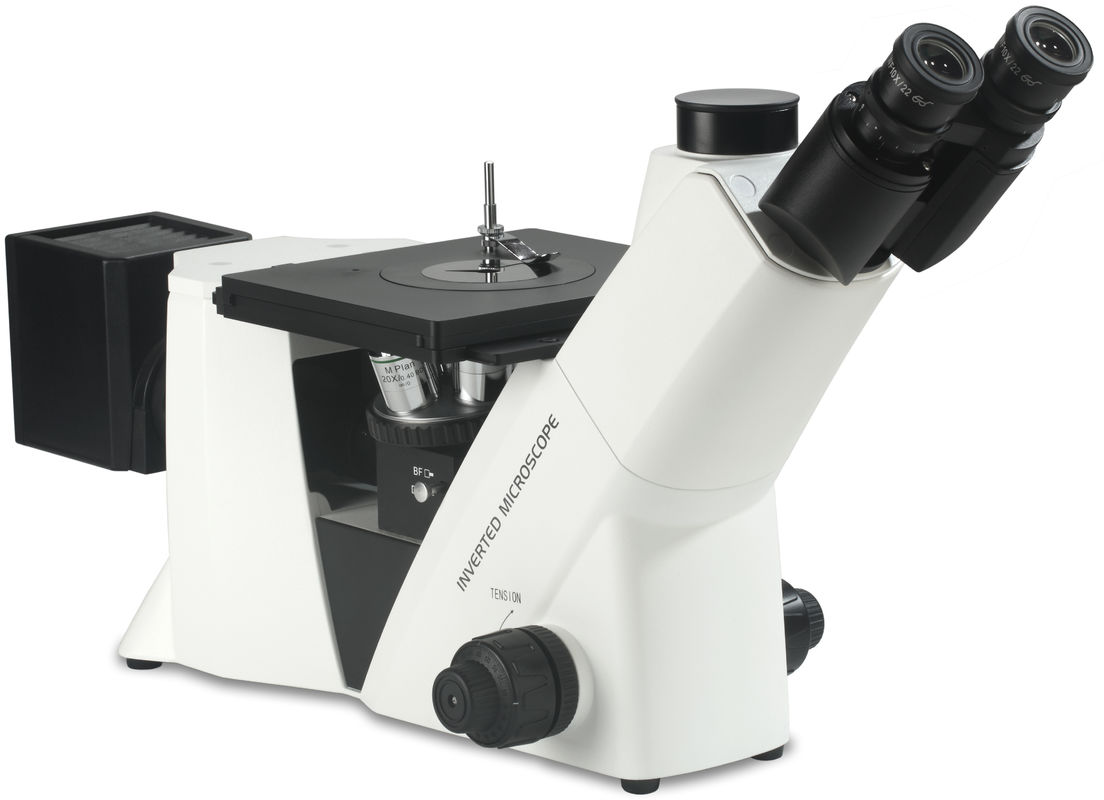

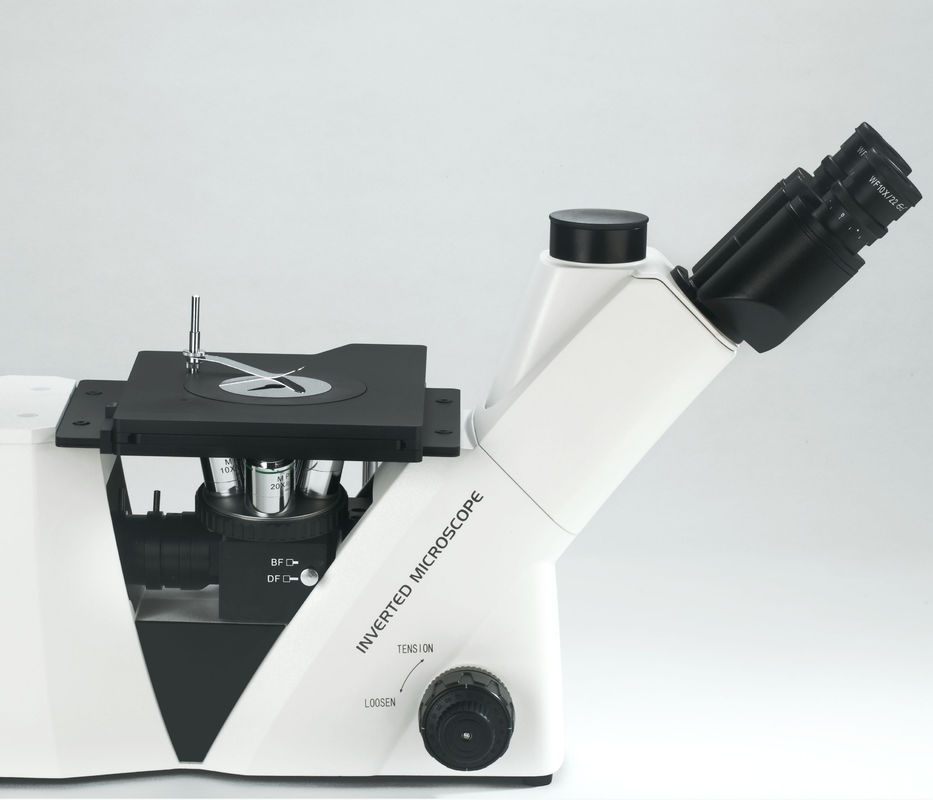

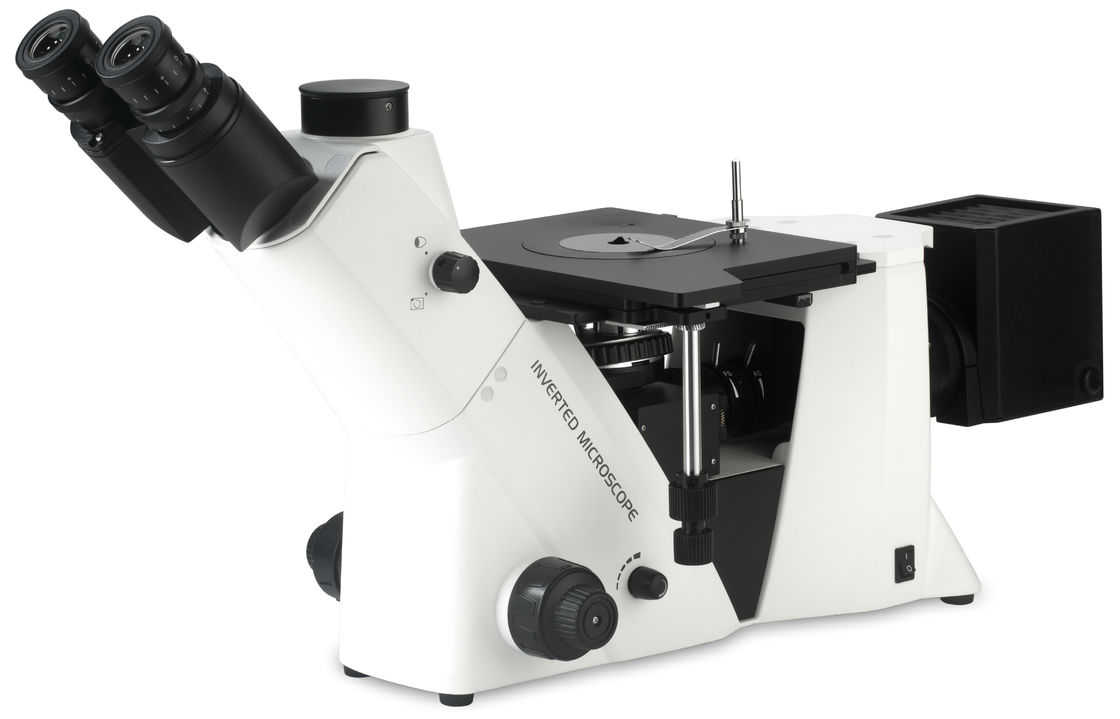

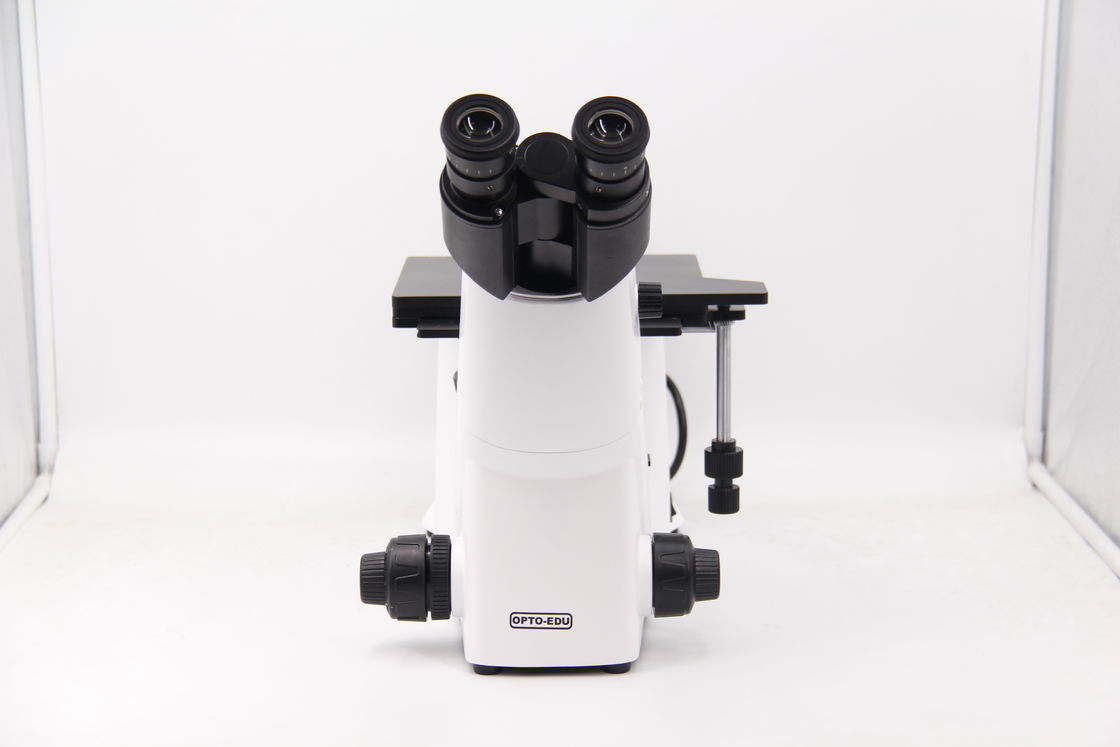

Trinocular Head Metallurgical Optical Microscope 4 Holes Nosepiece Three Layer Mechanical Stage

Trinocular Head Metallurgical Optical Microscope 4 Holes Nosepiece Three Layer Mechanical Stage

Products - Metallurgical Optical Microscope
  • High Light

    reflected light microscope

    ,

    halogen lamp microscope

  • Certificate
    CE, Rohs
  • Magnification
    50x100x200x500x
  • Drawtube
    Trinocular
  • Eyepiece
    WF10x/22
  • Nosepiece
    4 Holes
  • Objective
    LWD Metallurgical Infinity Plan BF 5x10x20x50x
  • Working Stage
    Three Layer Mechanical Stage
  • Focusing
    Coaxial Coarse & Fine
  • Light Source
    12V50W Halogen
  • Power Supply
    100~240V
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A13.2606-A
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

Trinocular Head Metallurgical Optical Microscope 4 Holes Nosepiece Three Layer Mechanical Stage

  • Trinocular Head Metallurgical Optical Microscope 4 Holes Nosepiece Three Layer Mechanical Stage
  • Trinocular Head Metallurgical Optical Microscope 4 Holes Nosepiece Three Layer Mechanical Stage
  • Trinocular Head Metallurgical Optical Microscope 4 Holes Nosepiece Three Layer Mechanical Stage
  • Trinocular Head Metallurgical Optical Microscope 4 Holes Nosepiece Three Layer Mechanical Stage
Get Price Contact Now

trinocular head optical laboratory industrial upright laboratory metallurgical microscope







Items A13.2606 Invered Metallurgical Microscope A13.2606 A13.2606-BD Cata. No.
Head Seidentopf Trinocular Head Inclined 30°, Interpupilary Distance 48~76mm, Light Split Switch E100:P0 / E20:P80 ● ● A53.2643
Eyepiece WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable ● ● A51.2621-1022
WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable,
With Micrometer X-0.1mm*180 Div / Y-Single Line		 ● ● A51.2622-1022
WF15X/16mm, Dia.30mm, High Eyepoint, Diopter Adjustable ○ ○ A51.2621-1516
WF20X/12mm, Dia.30mm, High Eyepoint, Diopter Adjustable ○ ○ A51.2621-2012
Nosepiece Quintuple ● 　 A54.2610-N925
Quadruple(Specially For Bright&Dark Field objectives) 　 ● A54.2610-N924
Metallurgical LWD Infinity Plan BF
(Bright Field) Objectives		 LPL 5x/0.13, W.D.=16.04mm ● 　 A5M.2633-5
LPL10x/0.25, W.D.=18.48mm ● 　 A5M.263310
LPL 20x/0.40, W.D.=8.35mm ● 　 A5M.2633-20
LPL 50x/0.70, W.D.=1.95mm ● 　 A5M.2633-50
LPL 80x/0.80, W.D.=0.85mm ○ 　 A5M.2633-80
LPL 100x/0.90(Dry), W.D.=1.00mm ○ 　 A5M.2633-100
Metallurgical LWD Infinity Plan BD
(Bright & Dark Field) Objectives		 LPL 5x/0.13BD, W.D.=16.04mm 　 ● A5M.2634-5
LPL10x/0.25BD, W.D.=18.48mm 　 ● A5M.2634-10
LPL 20x/0.40BD, W.D.=8.35mm 　 ● A5M.2634-20
LPL 50x/0.70BD, W.D.=1.95mm 　 ● A5M.2634-50
Working Stage Stage Size 210×180mm, Moving Range 50×50mm, Scale 0.1mm, Round Plate Size Dia.110mm ● ● A54.2601-S11T
Round Plate With Oval Hole ○ ○ A54.2601-MD400
Focusing Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 10mm, Fine Focusing Div. 0.002mm, Fine Stroke Per Rotation 0.2mm ● ● 　
Polarizing Analyzer + Polarizer Set ● ● A5P.2602
Illumination Koehler Illumination Halogen 12V/50W, Input Voltage 100V~240V ● ● A56.2613-12V50W
Koehler Illumination 5W LED, Input Voltage 100V~240V ○ ○ A56.2651-5W
Power ECO, Auto Power Off System.
Power Off Automatically Upon User Leaving 10 Minutes,
Power On Automatically Upon User Approaching Detected,
This Function Can Be Shut Down Manually		 ○ ○ A56.2660
Filter Blue, Dia.34mm ● ● A56.2616-34B
Green, Dia.34mm ○ ○ A56.2616-34G
Amber, Dia.34mm ○ ○ A56.2616-34A
Grey, Dia.34mm ○ ○ A56.2616-34N
Adapter SLR Digital Camera Adapter For Canon, 100% Light For Camera Portt ○ ○ A55.2622-BC
SLR Digital Camera Adapter For Nikon, 100% Light For Camera Port ○ ○ A55.2622-BN
C-Mount 0.5x, Focus Adjustable ○ ○ A55.2601-05
C-Mount 0.75x, Focus Adjustable ○ ○ A55.2601-75
C-Mount 1.0x, Focus Adjustable ○ ○ A55.2601-10
Digital Eyepiece Camera Adapter, Dia. 23.2mm/25mm ○ ○ A55.2610
Package Packing Size: 660mmx590mmx325mm
Weight Gross Weight: 17 kgs, Net Weight: 12.5 kgs
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.
