Trinocular WF10x/22 Digital Metallurgical Microscope A13.0212-DIC Infinity Optical System

Trinocular WF10x/22 Digital Metallurgical Microscope A13.0212-DIC Infinity Optical System

  • High Light

    reflected light microscope

    ,

    halogen lamp microscope

  • System
    Infinity Optical System, Total Magnification 100x
  • Head
    Trinocular Head, 30° Inclined, Light Separate Ratio 0:100
  • Eyepiece
    WF10x/18mm, Eyepiece Tube Dia.23.2mm, Parfocal Distance 10mm
  • Nosepiece
    Quintple, Backward Ball Bearing Inner Locating
  • Working Stage
    Metal Base Size 300*240mm, Mechanical Stage 185*140mm, Moving Range 35*30mm
  • DIC
    DIC Slide Match 5x/10x/20x Objectives, Horizontal Adjustable
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A13.0212-DIC
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

Trinocular WF10x/22 Digital Metallurgical Microscope A13.0212-DIC Infinity Optical System



Trinocular, WF10x/22, Quintuple, Infinity Plan Coverless 5x10x20x50x, DIC Slide For 5x10x20x, Reflect 12V50W + Polarizing

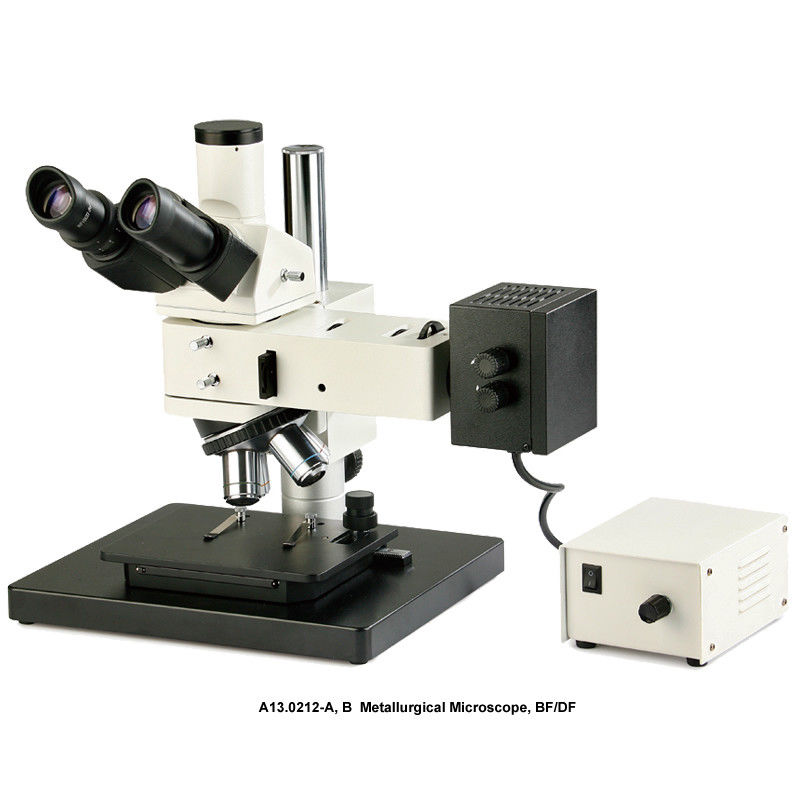

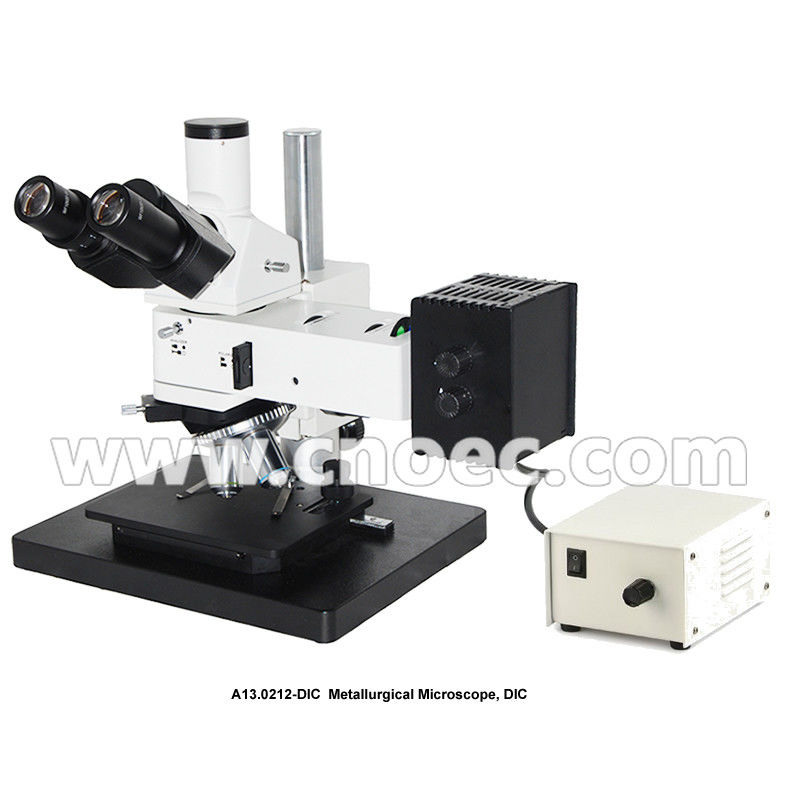

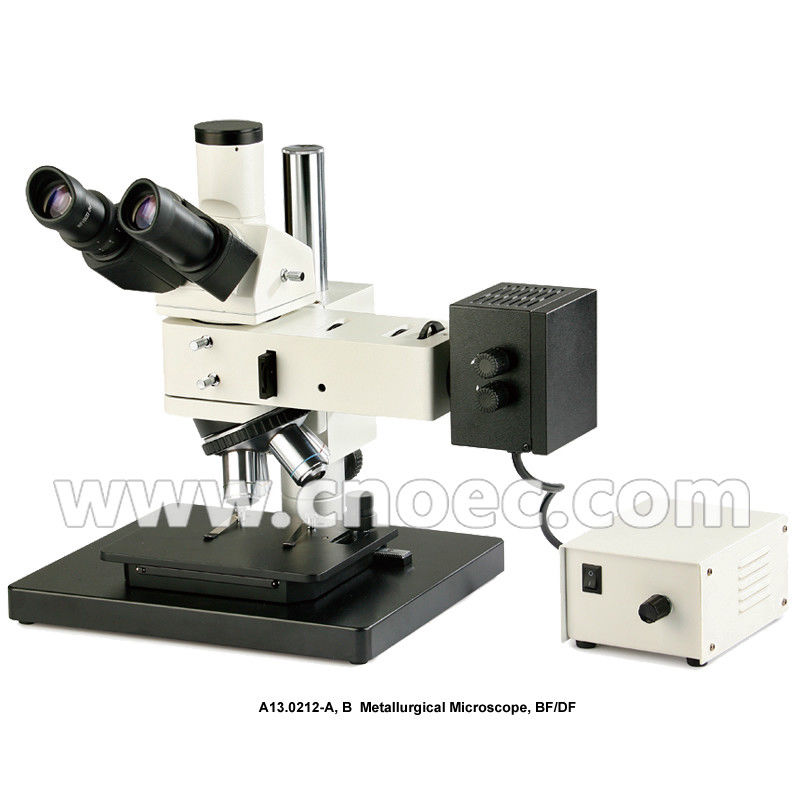

A13.0212 Metallurgical Microscope, BF/DF, DIC
BDDIC
DIC
System Infinity Optical System, Total Magnification 100x
Head
Trinocular Head, 30° Inclined, Light Separate Ratio 0:100
Eyepiece
WF10x/18mm, Eyepiece Tube Dia.23.2mm, Parfocal Distance 10mm
Nosepiece Quintple, Backward Ball Bearing Inner Locating
Objective Infinity LWD Plan Achromatic, Bright Field
PLL5x/0.12, W.D. 26.1mm
PLL10x/0.25, W.D.20.2mm
PLL20x/0.40, W.D.8.80mm
PLL50x/0.70, W.D.3.68mm

o
Infinity LWD Plan Achromatic, Bright Field/Dark Field
PLL5x/0.12BD, W.D. 9.7mm
PLL10x/0.25BD, W.D.9.3mm
PLL20x/0.40BD, W.D.7.23mm
PLL50x/0.70BD, W.D.2.50mm
o

Working Stage Metal Base Size 300*240mm, Mechanical Stage 185*140mm, Moving Range 35*30mm
Focusing Coaxial Coarse & Fine Focus Knob, Tension Adjustable, Minimum Division 0.002mm
DIC DIC Slide Match 5x/10x/20x Objectives, Horizontal Adjustable
Polarizing Push Pull Polarizer And Analyzer
Light Source Epi-Illumination System, Intergrated Field Diaphragm, Aperture Diaphragm, Y/G/B Filter Switching Disc
Halogen Lamp 6V30W, Brightness Adjustable
o
o
Halogen Lamp 12V50W, Brightness Adjustable


Power Wide Range Voltage 85~265V, 50/60Hz

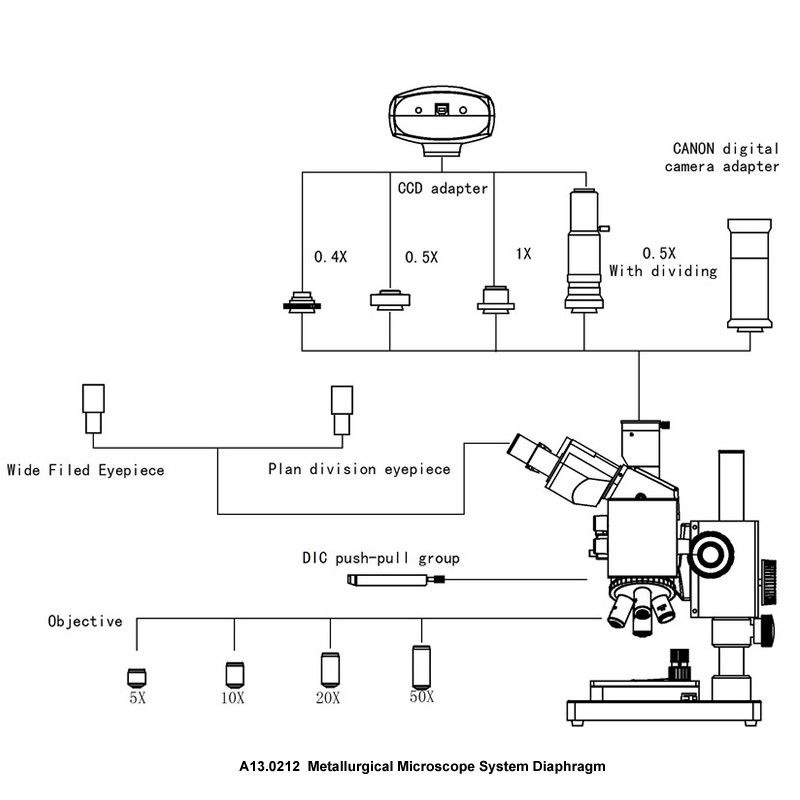

Optional Accessories
Eyepiece WF15x/11mm A51.0203-16A
  WF20x/11mm A51.0203-20A
Objective Infinity Plan Achromatic, Bright Field Objective For Model DIC
PLL40x/0.60, W.D.3.98mm A5M.0235-40
PLL60x/0.75, W.D.3.18mm A5M.0235-60A
PLL80x/0.80, W.D.1.25mm A5M.0235-80
PLL100x/0.85, W.D.0.4mm A5M.0235-100
PLL40x/0.60BD, W.D.3.0mm A5M.0237-40
PLL60x/0.75BD, W.D.1.9mm A5M.0237-60
PLL80x/0.80BD, W.D.0.8mm A5M.0237-80
PLL100x/0.85BD, W.D.0.4mm A5M.0237-100A
Adapter CCD Adapter 0.4x A55.0202-01
CCD Adapter 0.5x A55.0202-04
CCD Adapter 1.0x A55.0202-02
CCD Adapter 0.5x With Dividing 0.1mm/Divv A55.0202-03
Digital SLR Camera Adapter for Canon EF Series A55.0204-02
