A13.2604-B Metallurgical Optical Microscope Trinocular High Precision

China A13.2604-B Metallurgical Optical Microscope Trinocular High Precision supplier
A13.2604-B Metallurgical Optical Microscope Trinocular High Precision supplier A13.2604-B Metallurgical Optical Microscope Trinocular High Precision supplier A13.2604-B Metallurgical Optical Microscope Trinocular High Precision supplier A13.2604-B Metallurgical Optical Microscope Trinocular High Precision supplier

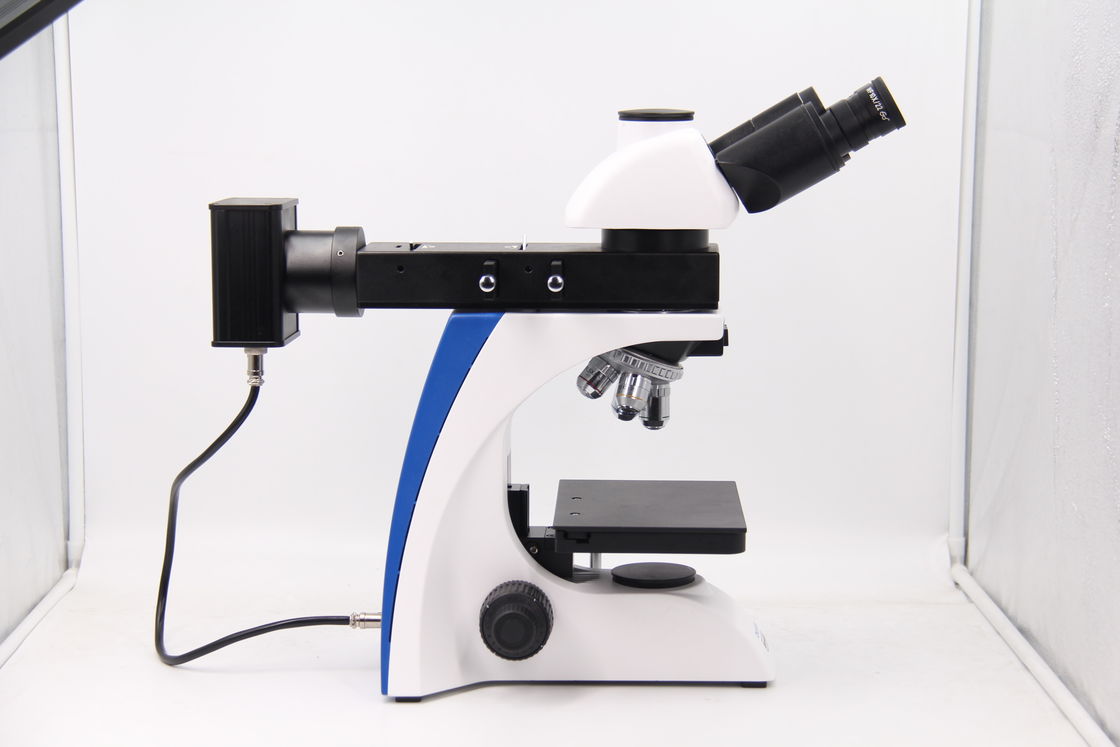

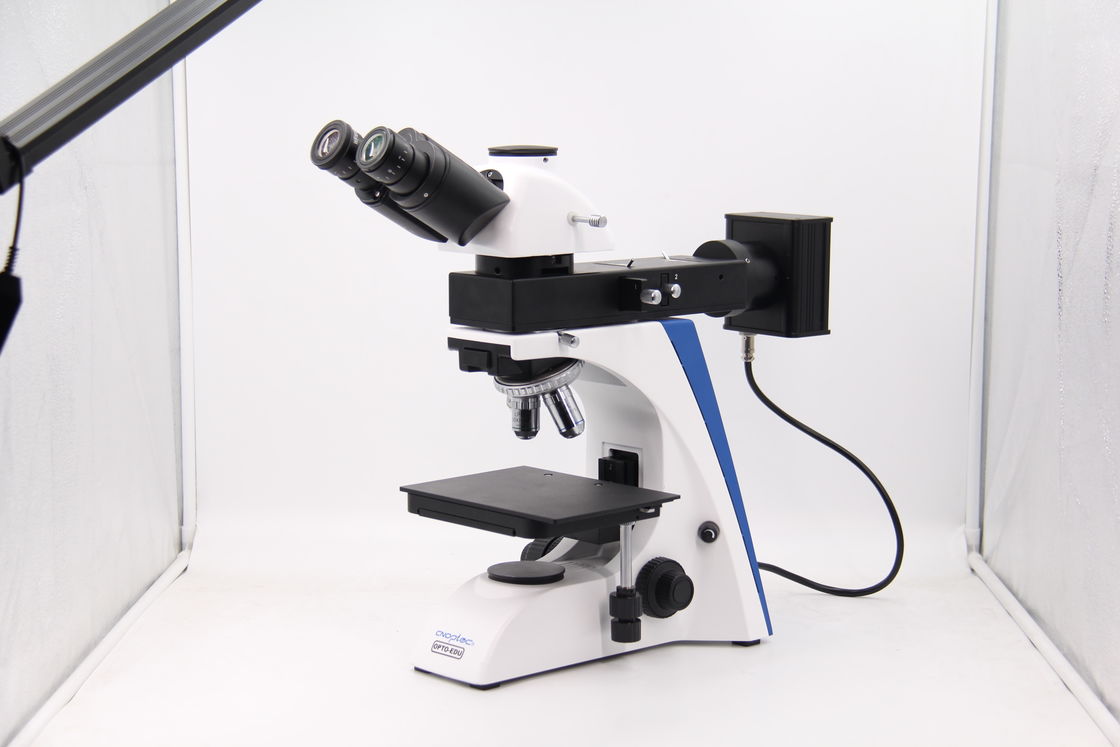

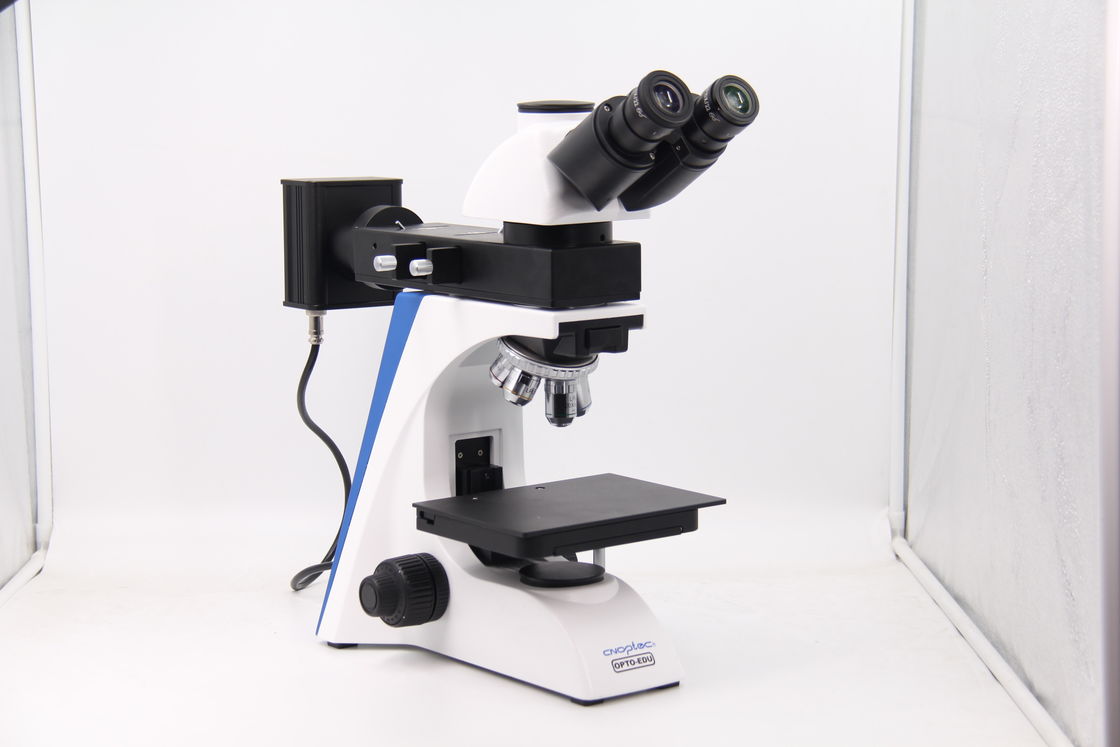

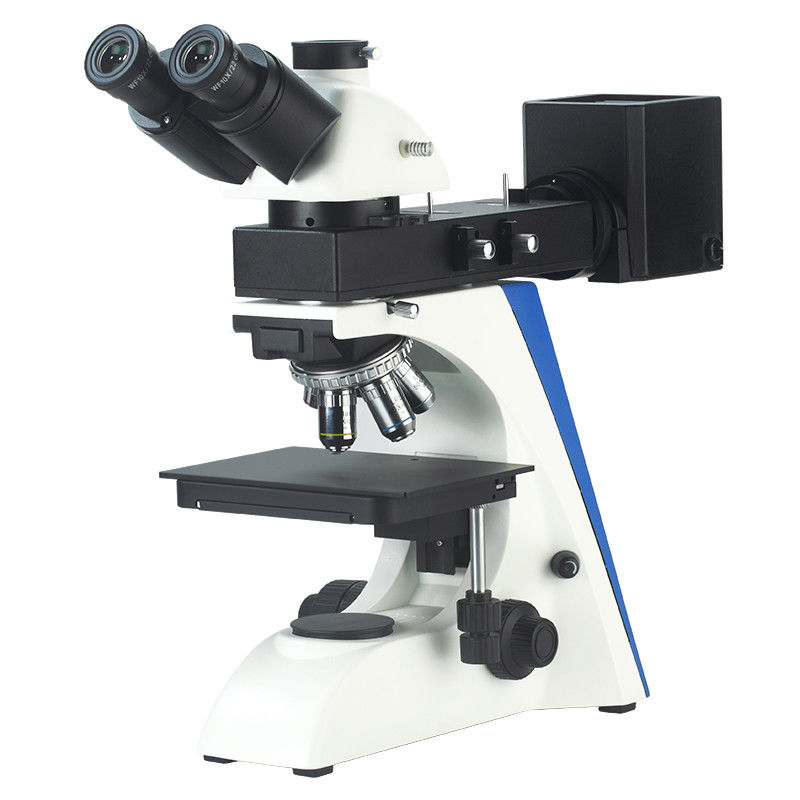

Large Image :  A13.2604-B Metallurgical Optical Microscope Trinocular High Precision

Product Details:

Place of Origin: China
Brand Name: CNOEC, OPTO-EDU
Certification: CE, Rohs
Model Number: A13.2604-A

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: FOB $1~1000, Depend on Order Quantity
Packaging Details: Carton Packing, For Export Transportation
Delivery Time: 5~20 Days
Payment Terms: T/T, West Union, Paypal
Supply Ability: 5000 pcs/ Month
Contact Now
Detailed Product Description
Application: Research|Learning|Metallurgical Certification: CE|Rohs
Drawtube: Trinocular Illumination: Halogen Lamp
Magnification: 50x - 1000x Theory: Metallurgical Optical Microscope



Learning Infinity Plan Microscope Trinocular Compound Microscopes Rohs A13.2604



Description:

A13.2604 Metallurgical Microscope

--Infinity optical system for metallurgical observing
--Stress Free Long working distance objective
--Reflecting & transmitting light source available
--Polarizing Set Included
--Kohler illumination collector with field diaphragm

A13.2604-B Metallurgical Optical Microscope Trinocular High Precision




Items A13.2604-B Metallurgical Microscope, Reflect & Transmit B Cata. No.
Head Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-76mm, Light Split Switch E100:P0/E20:P80,
Eyepiece Tube Dia.30mm
A53.2623-T
Eyepiece WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable A51.2621-1022
WF10x/22mm, Dia.30mm,With Micrometer X-0.1mm*180 Div / Y-Single Line, Diopter Adjustable A51.2622-1022
Nosepiece Quintuple, Backward ●● A54.2610-N01
Metallurgical LWD Infinity Plan Objectives LPL 5x/0.13, W.D.=16.04mm A5M.2633-5
LPL10x/0.25, W.D.=18.48mm A5M.263310
LPL 20x/0.40, W.D.=8.35mm A5M.2633-20
LPL 50x/0.70, W.D.=1.95mm A5M.2633-50
LPL 80x/0.80, W.D.=0.85mm A5M.2633-80
LPL 100x/0.90(Dry), W.D.=1.00mm A5M.2633-100
Working Stage Double Layer Mechanical Size 182×140mm,
Travel Range 77×52mm
A54.2601-S01T3
Condenser Abbe N.A.1.25 , With Iris Diaphragm A56.2614-C01d
Focusing Coaxial Coarse And Fine Focusing Knobs,
Travel Range: 25mm, Scale: 2µm

Illumination Reflect Light 5W LED
Koehler Illumination, Wide Voltage 100V~240V, Field Diaphragm
A56.2612-5W
Reflect Light 12V50W Halogen
Koehler Illumination, Wide Voltage 100V~240V, Field Diaphragm
A56.2613-12V50W
Transmit Light 5W LED
Koehler Illumination, Wide Voltage 100V~240V, Field Diaphragm
A56.2612-5W
Transmit Light 6V30W Halogen
Koehler Illumination, Wide Voltage 100V~240V, Field Diaphragm
A56.26513-6V30W
Polarizing Analyzer + Polarizer For Reflect Light A5P.2603-BKR
Analyzer + Polarizer For Transmit Light A5P.2603-BKT
Filter Ground Glass Slider A56.2620-F
Blue Filter Switch Handle A56.2620-B
Adapter C-Mount 0.5x, Focus Adjustable A55.2601-05
C-Mount 0.75x, Focus Adjustable A55.2601-75
C-Mount1.0x, Focus Adjustable A55.2601-10
Digital Eyepiece Camera Adapter, Dia. 23.2mm/25mm A55.2610
Package Carton Size 570*275*450mm, 1 Unit/Ctn
Weight Gross Weight 10.5kgs, Net Weigth 8.0kgs
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.



A13.2604-B Metallurgical Optical Microscope Trinocular High Precision

A13.2604-B Metallurgical Optical Microscope Trinocular High Precision



A13.2604-B Metallurgical Optical Microscope Trinocular High Precision
