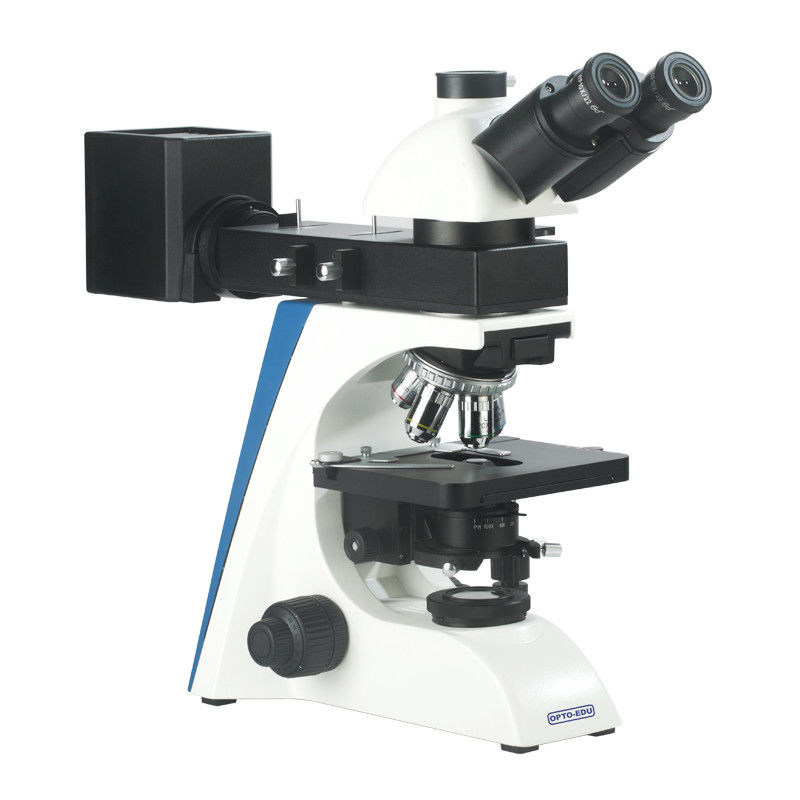

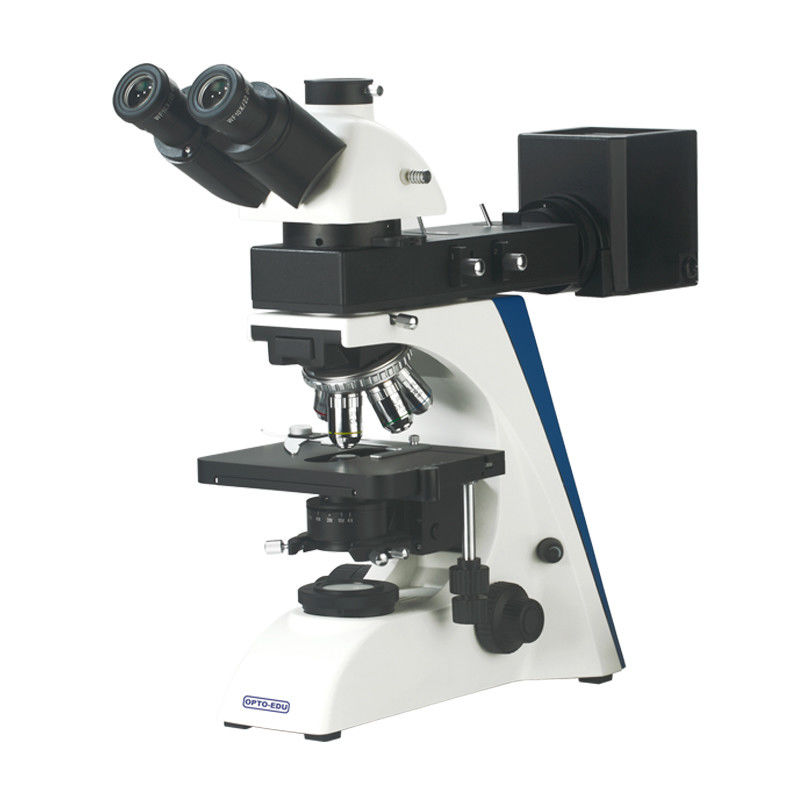

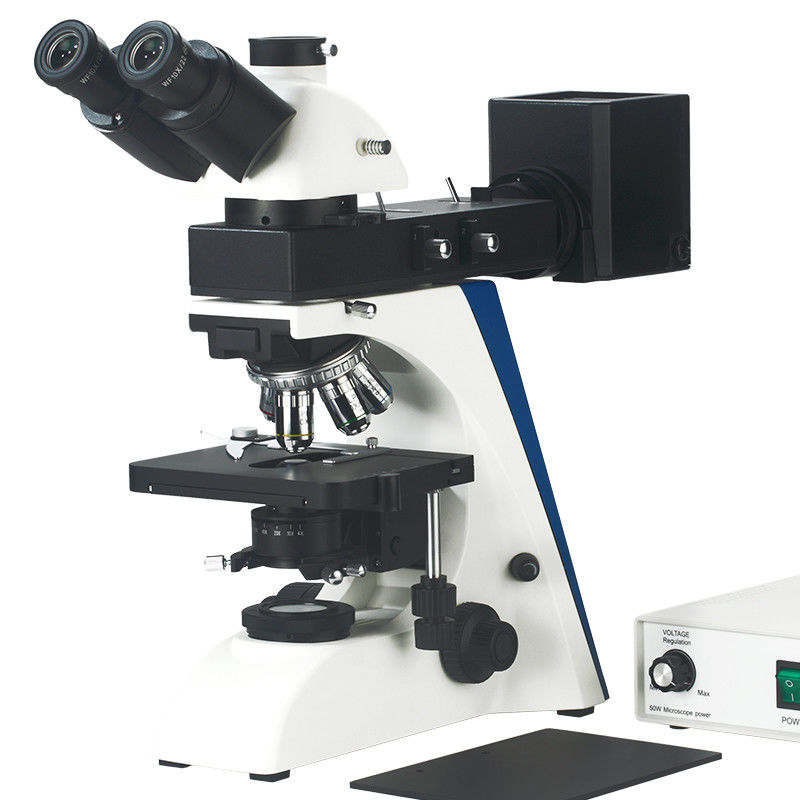

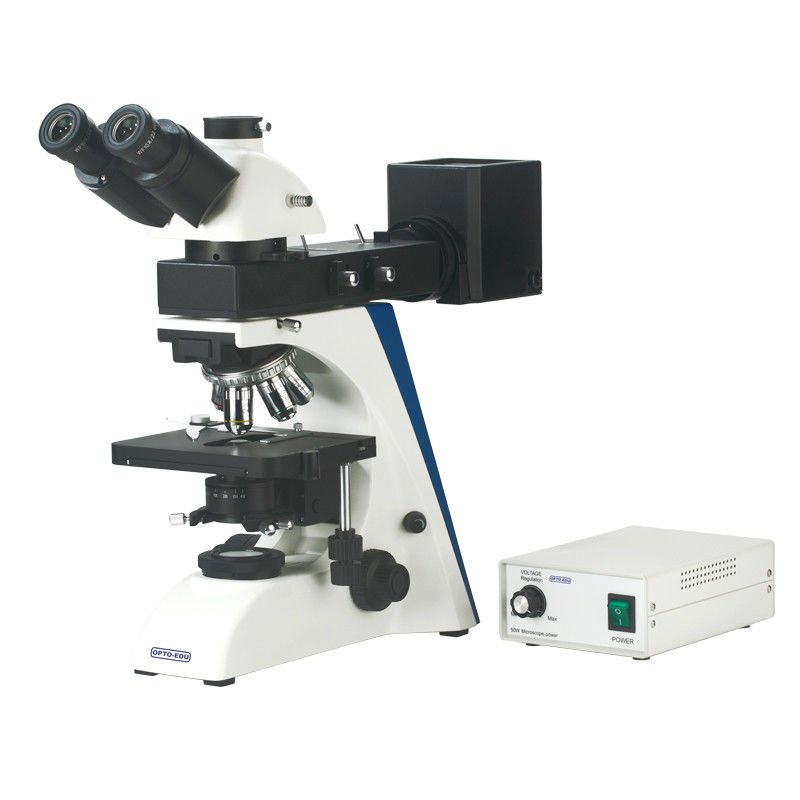

50 - 1000X Metallurgical Optical Microscope A13.2604-B Trinocular With Halogen Lamp

50 - 1000X Metallurgical Optical Microscope A13.2604-B Trinocular With Halogen Lamp

Products - Metallurgical Optical Microscope
  • Highlight

    reflected light microscope

    ,

    halogen lamp microscope

  • Application
    Research|Learning|Metallurgical
  • Certification
    CE|Rohs
  • Drawtube
    Trinocular
  • Illumination
    Halogen Lamp
  • Magnification
    50x - 1000x
  • Theory
    Metallurgical Optical Microscope
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A13.2604-B
  • Document
    Product Brochure PDF
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

50 - 1000X Metallurgical Optical Microscope A13.2604-B Trinocular With Halogen Lamp

  • 50 - 1000X Metallurgical Optical Microscope A13.2604-B Trinocular With Halogen Lamp
  • 50 - 1000X Metallurgical Optical Microscope A13.2604-B Trinocular With Halogen Lamp
  • 50 - 1000X Metallurgical Optical Microscope A13.2604-B Trinocular With Halogen Lamp
  • 50 - 1000X Metallurgical Optical Microscope A13.2604-B Trinocular With Halogen Lamp
Get Price Contact Now

Learning Infinity Plan Microscope Trinocular Compound Microscopes Rohs A13.2604

Description:

A13.2604 Metallurgical Microscope

--Infinity optical system for metallurgical observing
--Stress Free Long working distance objective
--Reflecting & transmitting light source available
--Polarizing Set Included
--Kohler illumination collector with field diaphragm

Items A13.2604 Series Metallurgical Microscope,
Reflect/Transmit, BF/DF		 -A -AD -B -BD Cata. No.
Head Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-76mm, Light Split Switch E100:P0/E20:P80, Eyepiece Tube Dia.30mm ● ● ● ● A53.2623-T
Eyepiece WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable ● ● ● ● A51.2621-1022
WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable,
With Micrometer X-0.1mm*180 Div / Y-Single Line		 ● ● ● ● A51.2622-1022
Nosepiece Quintuple, Backward ● 　 ● 　 A54.2610-N01
Quarduple, Backward, Special Design For BF/DF Observe 　 ● 　 ● A54.2610-N924
Metallurgical
LWD Infinity Plan Semi-APO
Objectives		 LMPLan FL 5x/0.15, W.D.=21.0mm ● 　 ● 　 A5M.2635-5
LMPLan FL 10x/0.3, W.D.=20.0mm ● 　 ● 　 A5M.263510
LMPLan FL 20x/0.40 W.D.=15.0mm ● 　 ● 　 A5M.2635-20
LMPLan FL 50x/0.55 W.D.=10.0mm ● 　 ● 　 A5M.2635-50
LMPLan FL 50x/0.75 W.D.=4.25mm ○ 　 ○ 　 A5M.2635-50a
LPL80x/0.80(S) W.D.=0.85mm ○ 　 ○ 　 A5M.2633-80
LMPLan FL 100x/0.90(S,Dry) W.D.=3.00mm ○ 　 ○ 　 A5M.2635-100
Metallurgical
LWD Infinity Plan BF/DF
Objectives		 M PLAN BD5x/0.13, W.D.=16.04mm 　 ● 　 ● A5M.2634-5
M PLAN BD10x/0.25 W.D.=18.48mm 　 ● 　 ● A5M.263410
M PLAN BD20x/0.40 W.D.=8.35mm 　 ● 　 ● A5M.2634-20
M PLAN BD50x/0.70(S) W.D.=1.95mm 　 ● 　 ● A5M.2634-50
Working Stage Double Layer Mechanical Size 200×150mm, Travel Range 77x52mm, Stage Quick Drop-Down Device For Extra 50mm Up/Down Range ● ● 　   A54.2601-S01T
Double Layer Mechanical Size 182×140mm,
Travel Range 77×52mm		 　 　 ● ● A54.2601-S01T3
Condenser Abbe N.A.1.25 , With Iris Diaphragm 　 　 ● ● A56.2614-C01d
Focusing Coaxial Coarse And Fine Focusing Knobs,
Travel Range: 25mm, Scale: 2µm		 ● ● ● ● 　
Illumination Reflect Light 5W LED
Koehler Illumination, Field Diaphragm
Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use		 ● 　 ● 　 A56.2612-5W
Reflect Light 12V50W Halogen
Koehler Illumination, Field Diaphragm, Wide Voltage 100V~240V		 ○ ● ○ ● A56.2613-12V50W
Transmit Light 5W LED
Koehler Illumination, Field Diaphragm
Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use		 - - ● ● A56.2612-5W
Transmit Light 6V30W Halogen
Koehler Illumination, Field Diaphragm, Wide Voltage 100V~240V		 - - ○ ○ A56.26513-6V30W
Polarizing Analyzer + Polarizer For Reflect Light ● ● ● ● A5P.2603-BKR
Analyzer + Polarizer For Transmit Light - - ● ● A5P.2603-BKT
Filter Ground Glass Slider ● ● ● ● A56.2620-F
Blue Filter Switch Handle ● ● ● ● A56.2620-B
Adapter C-Mount 0.5x, Focus Adjustable ○ ○ ○ ○ A55.2601-05
C-Mount 0.75x, Focus Adjustable ○ ○ ○ ○ A55.2601-75
C-Mount1.0x, Focus Adjustable ○ ○ ○ ○ A55.2601-10
Digital Eyepiece Camera Adapter, Dia. 23.2mm/25mm ○ ○ ○ ○ A55.2610
Package Carton Size 570*275*450mm, 1 Unit/Ctn
Weight Gross Weight 10.5kgs, Net Weigth 8.0kgs
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.

50 - 1000X Metallurgical Optical Microscope A13.2604-B Trinocular With Halogen Lamp 0

50 - 1000X Metallurgical Optical Microscope A13.2604-B Trinocular With Halogen Lamp 1

50 - 1000X Metallurgical Optical Microscope A13.2604-B Trinocular With Halogen Lamp 2

50 - 1000X Metallurgical Optical Microscope A13.2604-B Trinocular With Halogen Lamp 3

50 - 1000X Metallurgical Optical Microscope A13.2604-B Trinocular With Halogen Lamp 4

50 - 1000X Metallurgical Optical Microscope A13.2604-B Trinocular With Halogen Lamp 5

Super Wide Field Eyepiece
SWF10x/22mm, Eyepiece Dia.30mm Diopter Adjustable
50 - 1000X Metallurgical Optical Microscope A13.2604-B Trinocular With Halogen Lamp 6

The Eyepiece Tube Has Fix Screw
To Prevent Eyepiece Falling Damage During Move
50 - 1000X Metallurgical Optical Microscope A13.2604-B Trinocular With Halogen Lamp 7

Trinocular Head Light Split Optional Between Switch E100:P0/E0:P100 And Fixed E80:P20
In Fixed Light Split, Eyepiece 80% : Photo 20% User Can View Image At Same Time In Both Path
In Switch Light Split, Eyepiece 100%:Photo 0% / Eyepiece 0%:Photo 100%, Camera Can Have 100% Light For Photo Capture.

50 - 1000X Metallurgical Optical Microscope A13.2604-B Trinocular With Halogen Lamp 8
50 - 1000X Metallurgical Optical Microscope A13.2604-B Trinocular With Halogen Lamp 9

Nosepiece
Quintuple, Backward, Metallurgical LWD Infinity Plan Objectives: 5x, 10x, 20x, 50x; Optional 80x, 100x
50 - 1000X Metallurgical Optical Microscope A13.2604-B Trinocular With Halogen Lamp 10
50 - 1000X Metallurgical Optical Microscope A13.2604-B Trinocular With Halogen Lamp 11

Condenser For A13.2604-B
Abbe N.A.1.25 , With Iris Diaphragm
50 - 1000X Metallurgical Optical Microscope A13.2604-B Trinocular With Halogen Lamp 12

5W LED Light Source, Powered By Safety Low Voltage Charger
Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use


50 - 1000X Metallurgical Optical Microscope A13.2604-B Trinocular With Halogen Lamp 13
50 - 1000X Metallurgical Optical Microscope A13.2604-B Trinocular With Halogen Lamp 14

Items A13.2604-B Metallurgical Microscope, Reflect & Transmit -A -B Cata. No.
Head Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-76mm, Light Split Switch E100:P0/E20:P80,
Eyepiece Tube Dia.30mm		 ● ● A53.2623-T
Eyepiece WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable ● ● A51.2621-1022
WF10x/22mm, Dia.30mm,With Micrometer X-0.1mm*180 Div / Y-Single Line, Diopter Adjustable ● ● A51.2622-1022
Nosepiece Quintuple, Backward ●● ●● A54.2610-N01
Metallurgical LWD Infinity Plan Objectives LPL 5x/0.13, W.D.=16.04mm ● ● A5M.2633-5
LPL10x/0.25, W.D.=18.48mm ● ● A5M.263310
LPL 20x/0.40, W.D.=8.35mm ● ● A5M.2633-20
LPL 50x/0.70, W.D.=1.95mm ● ● A5M.2633-50
LPL 80x/0.80, W.D.=0.85mm ○ ○ A5M.2633-80
LPL 100x/0.90(Dry), W.D.=1.00mm ○ ○ A5M.2633-100
Working Stage Double Layer Mechanical Size 200×150mm, Travel Range 77x52mm, Stage Quick Drop-Down Device For Extra 50mm Up/Down Range ●   A54.2601-S01T
Double Layer Mechanical Size 182×140mm,
Travel Range 77×52mm		 　 ● A54.2601-S01T3
Condenser Abbe N.A.1.25 , With Iris Diaphragm 　 ● A56.2614-C01d
Focusing Coaxial Coarse And Fine Focusing Knobs,
Travel Range: 25mm, Scale: 2µm		 ● ● 　
Illumination Reflect Light 5W LED
Koehler Illumination, Field Diaphragm
Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use		 ● ● A56.2612-5W
Reflect Light 12V50W Halogen
Koehler Illumination, Field Diaphragm, Wide Voltage 100V~240V		 ○ ○ A56.2613-12V50W
Transmit Light 5W LED
Koehler Illumination, Field Diaphragm
Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use		 - ● A56.2612-5W
Transmit Light 6V30W Halogen
Koehler Illumination, Field Diaphragm, Wide Voltage 100V~240V		 - ○ A56.26513-6V30W
Polarizing Analyzer + Polarizer For Reflect Light ● ● A5P.2603-BKR
Analyzer + Polarizer For Transmit Light - ● A5P.2603-BKT
Filter Ground Glass Slider ○ ○ A56.2620-F
Blue Filter Switch Handle ○ ○ A56.2620-B
Adapter C-Mount 0.5x, Focus Adjustable ○ ○ A55.2601-05
C-Mount 0.75x, Focus Adjustable ○ ○ A55.2601-75
C-Mount1.0x, Focus Adjustable ○ ○ A55.2601-10
Digital Eyepiece Camera Adapter, Dia. 23.2mm/25mm ○ ○ A55.2610
Package Carton Size 570*275*450mm, 1 Unit/Ctn
Weight Gross Weight 10.5kgs, Net Weigth 8.0kgs
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.

50 - 1000X Metallurgical Optical Microscope A13.2604-B Trinocular With Halogen Lamp 15
50 - 1000X Metallurgical Optical Microscope A13.2604-B Trinocular With Halogen Lamp 16
50 - 1000X Metallurgical Optical Microscope A13.2604-B Trinocular With Halogen Lamp 17
