WF10x/18 Eyepiece Halogen Lamp Microscope Trinocular Metallurgical Microscope

China WF10x/18 Eyepiece Halogen Lamp Microscope Trinocular Metallurgical Microscope supplier
WF10x/18 Eyepiece Halogen Lamp Microscope Trinocular Metallurgical Microscope supplier WF10x/18 Eyepiece Halogen Lamp Microscope Trinocular Metallurgical Microscope supplier WF10x/18 Eyepiece Halogen Lamp Microscope Trinocular Metallurgical Microscope supplier WF10x/18 Eyepiece Halogen Lamp Microscope Trinocular Metallurgical Microscope supplier

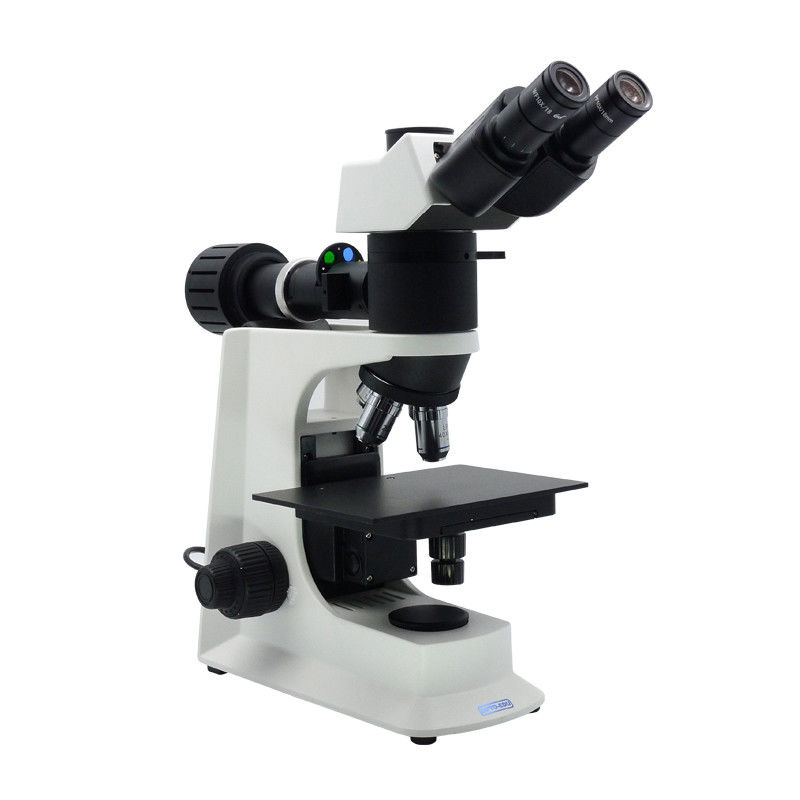

Large Image :  WF10x/18 Eyepiece Halogen Lamp Microscope Trinocular Metallurgical Microscope

Product Details:

Place of Origin: China
Brand Name: CNOEC, OPTO-EDU
Certification: CE, Rohs
Model Number: A13.2605-A

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: FOB $1~1000, Depend on Order Quantity
Packaging Details: Carton Packing, For Export Transportation
Delivery Time: 5~20 Days
Payment Terms: T/T, West Union, Paypal
Supply Ability: 5000 pcs/ Month
Contact Now
Detailed Product Description
Eyepiece: WF10x/18 Nosepiece: 3 Holes
Objective: LWD Plan 5x,10x,50x Working Stage: Plain Stage
Condenser: Abbe N.A.1.25 Focusing: Coaxial Coarse & Fine
Light Source: Halogen 6V30W Power Supply: 100~240V

OPTO-EDU A13.2605-A 50X-500X Binocular Metallurgical Microscope



A13.2605 metallurgical microscope is designed for material surface observation and mechanical state detection. It can accurately display the color of different metals and easy to use for analysing the internal structure of electronic products. One of the main part of the microscope is metallurgical epi illumination, the light source is reflect 6V30W Halogen Lamp.



Parameter



A13.2605 -A -B
Head Binocular Trinocular
Seidentopf Head, Inclined 30°, Rotatable 360°, Interpupillary Distance 48-75mm, Left Eyepiece Tube Diopter Adjustable +/-5°, Trinocular Head Light Split 0:100/20:80.
Eyepiece WF10x/18mm, 1 pc
WF10x/18mm, With Micrometer 0.1mm Div, 1 pc
Nosepiece Quadruple
Objective Long Working Distance Infinity Plan Objective (no cover glass)
LPL 5x/0.13, W.D.=24.23mm
LPL 10x/0.25, W.D.=18.48mm
LPL 40x/0.65, W.D.=3.90mm
Stage Mechanical Stage Size 200X140mm, 76mmX52mm
Condenser Abbe N.A.1.25, With iris Diaphragm
Focusing Coaxial Coarse and Fine Focusing Knob
Illumination Reflect Light Source 6V30W Halogen Lamp
With Five Holes Filter Disc (Blue, Green, Amber, Grey, Empty)
Power 110V~240V Wide Range Voltage

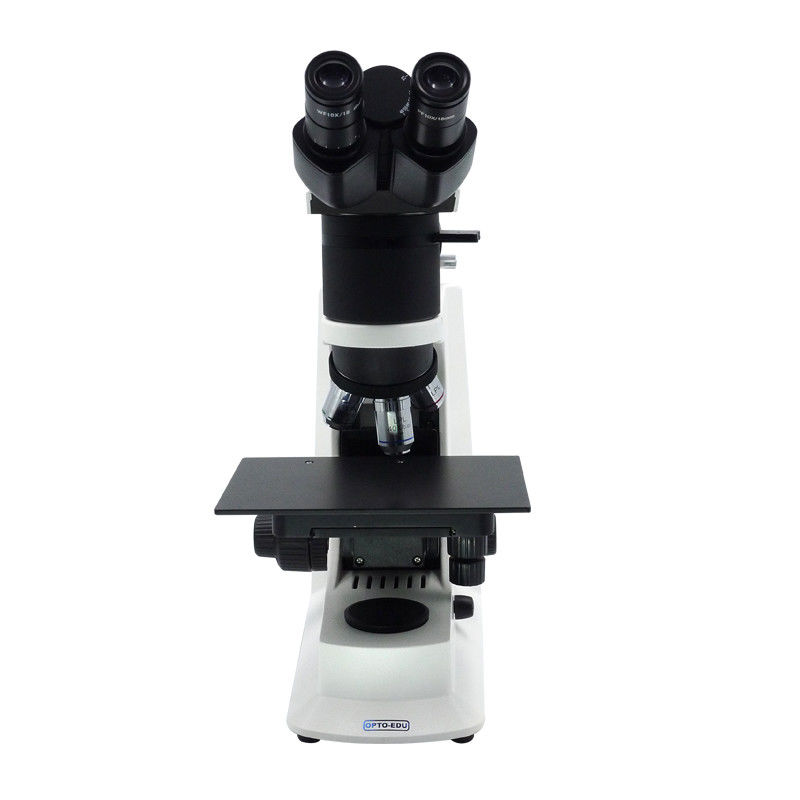

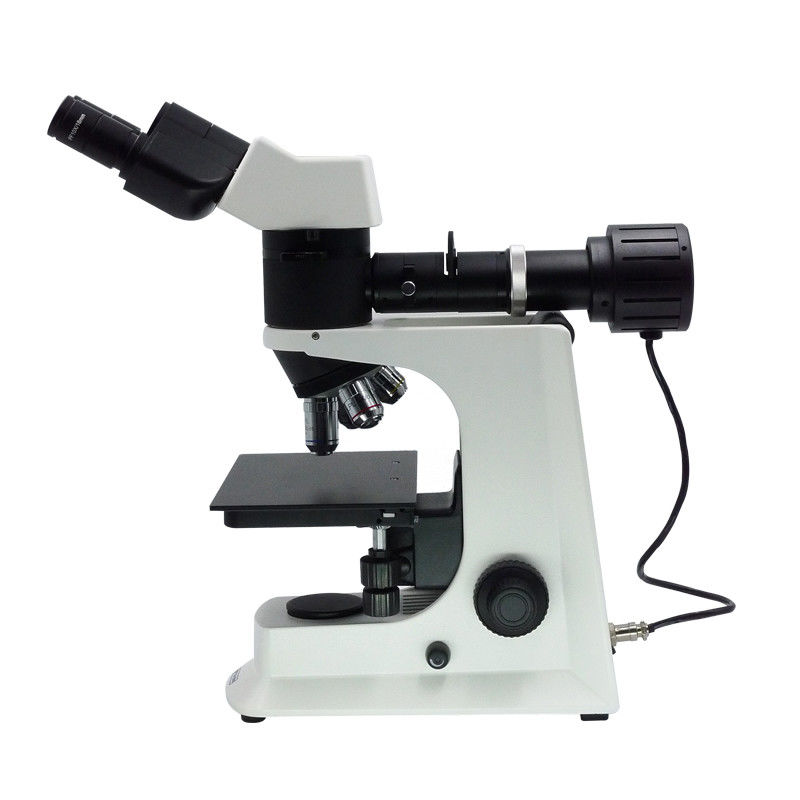

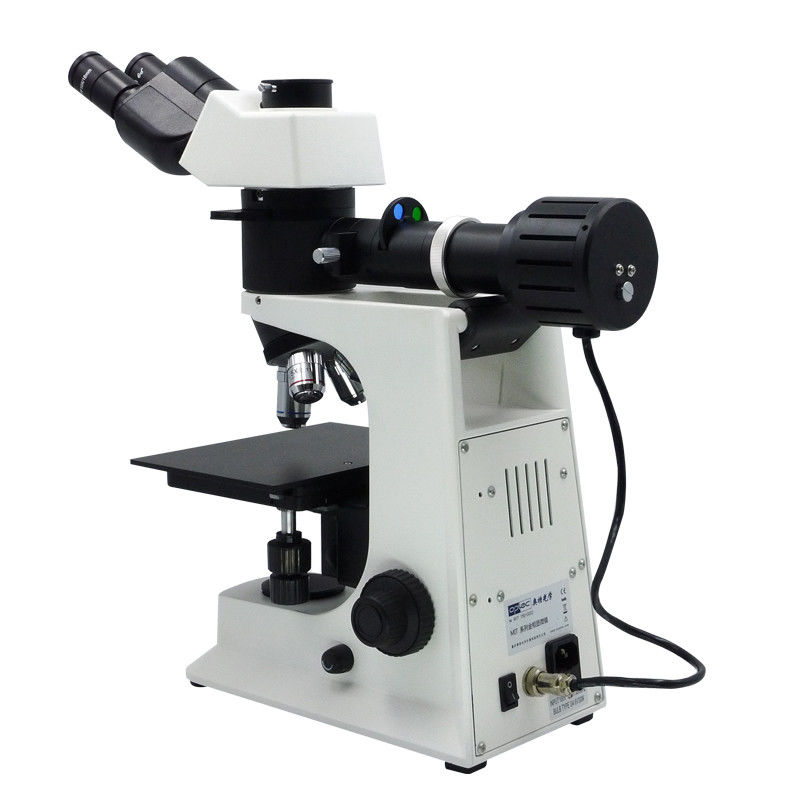

Product Display
WF10x/18 Eyepiece Halogen Lamp Microscope Trinocular Metallurgical Microscope




Product Details

WF10x/18 Eyepiece Halogen Lamp Microscope Trinocular Metallurgical Microscope

Related Products

WF10x/18 Eyepiece Halogen Lamp Microscope Trinocular Metallurgical Microscope

Number Specification Cata. No.
01 Metallurgical LWD Infinity Plan Objectives: 5x, 10x, 50x; Optional 20x, 80x, 100x A5M.2633
02 Double Layer Mechanical Size 200×150mm A54.2601-S04T
03 Reflect Light Source, 6V/30W Halogen Lamp A56.2613-6V30W



Product Application

WF10x/18 Eyepiece Halogen Lamp Microscope Trinocular Metallurgical Microscope

WF10x/18 Eyepiece Halogen Lamp Microscope Trinocular Metallurgical Microscope



Items A13.2605 Metallurgical Microscope Specification A B Cata. No.
Head Seidentopf Binocular Head Inclined 30°, Rotatable 360°, Interpupilary Distance 48-75mm   A53.2621-B
Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm, Light Split Fixed P20/E80   A53.2621-T
Eyepiece WF10x/18mm, High Eyepoint, A51.2602-1018
WF10x/18mm, With Micrometer X-0.1mm*180 Div / Y-Single Line, Diopter Adjustable A51.2605-1018D
Nosepiece Quadruple, Backward ●● ●● A54.2610-N734
Metallurgical LWD Infinity Plan Objectives LPL 5x/0.13, W.D.=16.04mm A5M.2633-5
LPL10x/0.25, W.D.=18.48mm A5M.263310
LPL 20x/0.40, W.D.=8.35mm A5M.2633-20
LPL 50x/0.70, W.D.=1.95mm A5M.2633-50
LPL 80x/0.80, W.D.=0.85mm A5M.2633-80
LPL 100x/0.90(Dry), W.D.=1.00mm A5M.2633-100
Working Stage Double Layer Mechanical Stage Size 200×150mm, Travel Range 76×52mm A54.2601-S04T
Focusing Coaxial Coarse And Fine Focusing Knobs,
Travel Range: 22mm, Scale: 2µm

Illumination Reflect Light Source, 6V/30W Halogen Lamp, Wide Voltage 100V-240V, With Five Holes Filter Disc (Blue, Green, Amber, Grey, Empty) A56.2613-6V30W
Polarizing Analyzer + Polarizer A5P.2603-BS
Adapter C-Mount 0.5x, Focus Adjustable A55.2601-05
C-Mount 0.75x, Focus Adjustable A55.2601-75
C-Mount1.0x, Focus Adjustable A55.2601-10
Digital Eyepiece Camera Adapter, Dia. 23.2mm/25mm A55.2610
Package Carton Size 570*275*450mm, 1 Unit/Ctn
Weight Gross Weight 10.5kgs, Net Weigth 8.0kgs
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.



WF10x/18 Eyepiece Halogen Lamp Microscope Trinocular Metallurgical Microscope

WF10x/18 Eyepiece Halogen Lamp Microscope Trinocular Metallurgical Microscope



Number Specification Cata. No.
01 Analyzer + Polarizer For Reflect Light A5P.2603
02 Seidentopf Binocular Head A53.2621-B
03 Seidentopf Trinocular Head A53.2621-T
04 C-Mount 0.5x, Focus Adjustable A55.2601-05
05 C-Mount 0.75x, Focus Adjustable A55.2601-75
06 C-Mount 1.0x, Focus Adjustable A55.2601-10
07 Digital Eyepiece Camera Adapter A55.2610



Metallurgical microscope is used to observe the surface of metal samples.It is widely used in electronics, metallurgy, chemical, instrumentation and other industries, and is the first choice of metallographic, lithofacies, ore phase, crystal and other aspects of the experiment and analysis. Apply to factories and mines enterprises, institutions of higher learning and scientific research etc.
