Double Layer Mechanical Laboratory Optical Microscope OPTO-EDU A12.1303 40X - 1000X

Double Layer Mechanical Laboratory Optical Microscope OPTO-EDU A12.1303 40X - 1000X

  • High Light

    binocular compound microscope


    wide field microscope

  • Eyepiece
  • Nosepiece
    4 Holes
  • Objective
    Achromatic 4x,10x,40x,100x
  • Working Stage
    Double Layer Mechnical
  • Condenser
    Abbe N.A.1.25
  • Focusing
    Coaxial Coarse & Fine
  • Light Source
    1W LED
  • Power Supply
  • Place of Origin
  • Brand Name
  • Certification
    CE, Rohs
  • Model Number
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

Double Layer Mechanical Laboratory Optical Microscope OPTO-EDU A12.1303 40X - 1000X

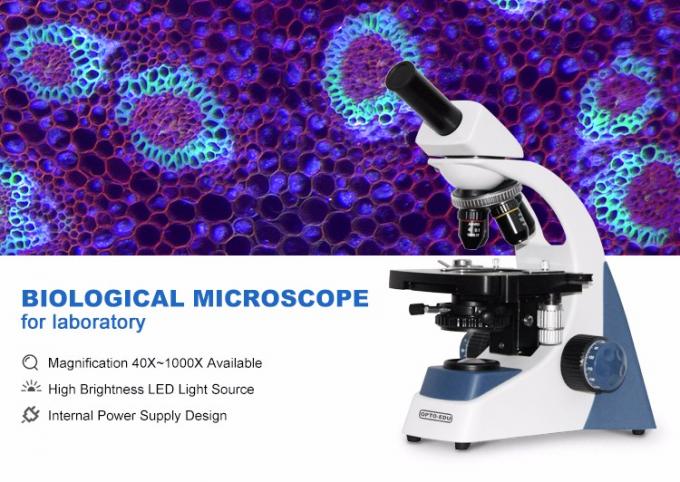

OPTO-EDU A12.1303 Binocular Laboratory Biological Optical Microscope for Hospital Laboratory
A12.1303 is a type of professional biological microscope for laboratory or hospital, so its cost is a little higher than student microscope. Five models can be choosing according to your needs. What’s more, A12.1303 can be customized with wooden color protection board and focusing knob if you like. All models are equipped with an integrated X-Y mechanical stage are supplied with an Abbe N.A. 1.25 condenser. CCD adapter 1.0x is optional.

A12.1303 Biological MicroscopeMBTVS
HeadMonocular Head, 30° Inclinedo
Seidentopf Binocular Head, 30° Inclined, Interpupillary Distance 55~75mm o
Seidentopf Trinocular Head, 30° Inclined, Interpupillary Distance 50~75mm, With Digital Eyepiece Adapter, Height Adjustable  o
Dual Observation Head, 30° Inclined / Vertical   o
Dual Observation Head, 45° Inclined    o
NosepieceBackward, Quadruple Nosepiece
Objective45mm DIN Achromatic 4x,10x,40x(S),100x(O,S)
Working StageDouble Layer Mechanical Stage, Size 125*125mm, Moving Range X-Y 50*40mm
CondenserAbbe N.A.1.25, With Dia.2-Dia.30mm Iris Diaphragm,
FocusingLow Position Designed, Coaxial Coarse & Fine Focusing, Coarse Focusing Range 25mm, Fine Focusing Scale 0.002mm, With Tension Adjustment, With Upper Safety Stop
Light SourceLED Lamp
Package2 Sets/Carton


Optional Accessories
-1.jpgCCD Adapter 1.0xA55.1303-A

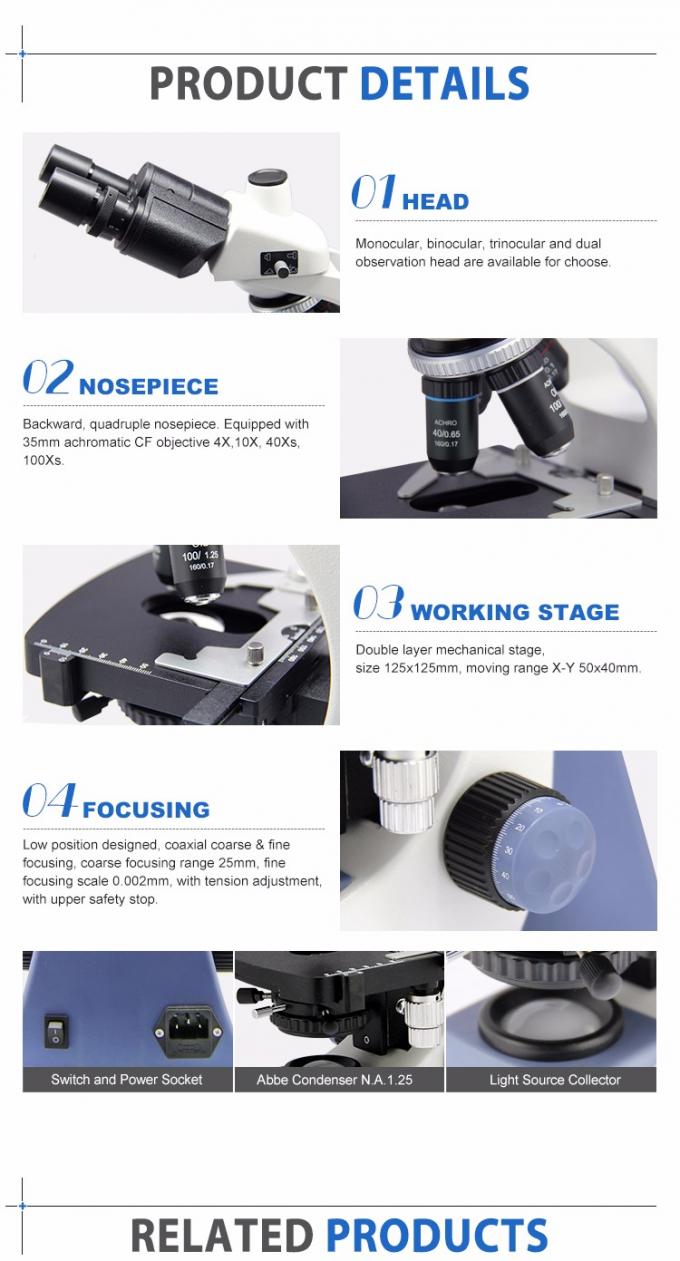

1. Monocular, binocular, trinocular and dual observation head are available for choose.
2. Backward, quadruple nosepiece. Equipped with 35mm achromatic CF objective 4X,10X, 40Xs, 100Xs.
3. Double layer mechanical stage, size 125x125mm, moving range X-Y 50x40mm.
4. Low position designed, coaxial coarse & fine focusing, coarse focusing range 25mm, fine focusing scale 0.002mm, with tension adjustment, with upper safety stop.
Biological microscope is widely used to observe biological slices, biological cells, bacteria and living tissue culture, fluid precipitation observation and research, while observing other transparent or translucent objects and powder, fine particles and other objects.
