40x - 1000x A12.1010 Binocular Biological Microscope Laboratory Biological Microscope

40x - 1000x A12.1010 Binocular Biological Microscope Laboratory Biological Microscope

  • High Light

    binocular compound microscope

    ,

    wide field microscope

  • Optical System
    Infinity Optical System
  • Magnification
    40x~1000x
  • Eyepiece
    Wide Field WF10x/22mm, Eyepiece Tube Dia.30mm
  • Nosepiece
    Backward Quadruple Nosepiece
  • Objective
    Infinity Plan Achromatic 4x/0.10, 10x/0.25, 40xs/0.65, 100xs/1.25(Oil)
  • Stage
    Double Layer Mechanical Stage, 216*150mm, Mvoing Range 54*78mm, Double Slide Holder, Low Position X/Y Coaxial Control Knob, With Travel Guide To Avoid Scratch
  • Condenser
    N.A.1.25 Abbe Condenser, Iris Diaphargm, With Filter Holder, Up/Down Range 25mm, Center Adjustable, With Filter Holder
  • Filter
    Green
  • Light Source
    Halogen Lamp 12V20W , Brightness Adjustable
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A12.1010
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

40x - 1000x A12.1010 Binocular Biological Microscope Laboratory Biological Microscope

A12.1010 Laboratory Biological Microscope, Newly designed with comfortable operating with ergonomic structure, with better illumination, convenient replacement of attachment with sliding-in center adjustable condenser.

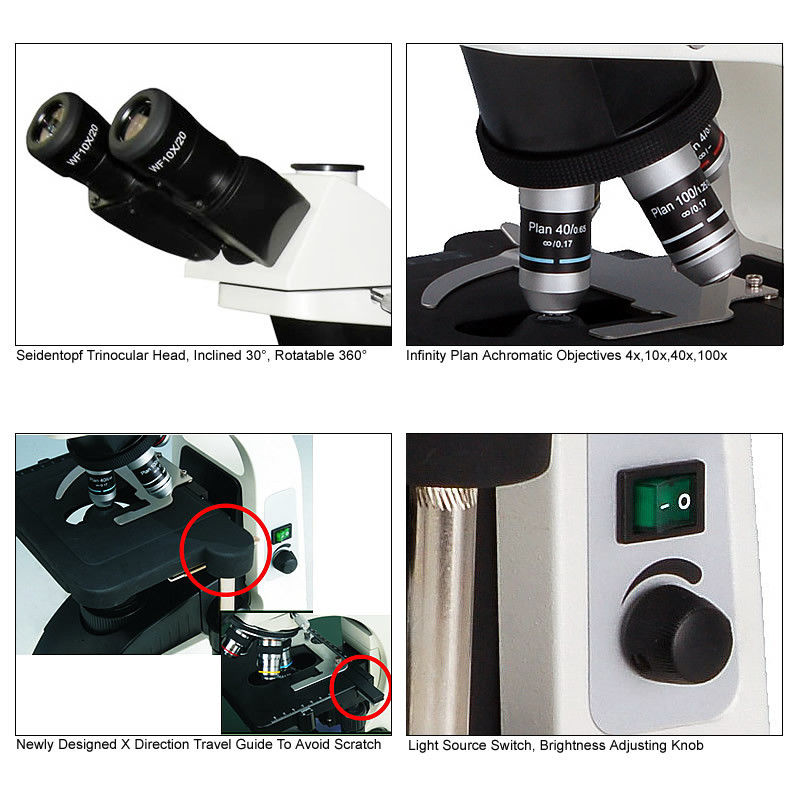

--Infinity Optical System
--Seidentopf Binocular Head, 30° Inclined, 360° Rotatable
--Infinity Achromatic Objective 4x,10x,40x,100x
--Abbe Condenser N.A.1.25, Center Adjustable
--Halogen Lamp 12V20W, Brightness Adjustable
--Low Position Coaxial Coarse & Fine Focus System



40x - 1000x A12.1010 Binocular Biological Microscope Laboratory Biological Microscope 0

40x - 1000x A12.1010 Binocular Biological Microscope Laboratory Biological Microscope 1

40x - 1000x A12.1010 Binocular Biological Microscope Laboratory Biological Microscope 2

40x - 1000x A12.1010 Binocular Biological Microscope Laboratory Biological Microscope 3

40x - 1000x A12.1010 Binocular Biological Microscope Laboratory Biological Microscope 4

40x - 1000x A12.1010 Binocular Biological Microscope Laboratory Biological Microscope 5

40x - 1000x A12.1010 Binocular Biological Microscope Laboratory Biological Microscope 6

40x - 1000x A12.1010 Binocular Biological Microscope Laboratory Biological Microscope 7

40x - 1000x A12.1010 Binocular Biological Microscope Laboratory Biological Microscope 8

Items A12.1010 Laboratory Biological Microscope B T
Head Seidentopf Binocular Head, 30° Inclined, 360°Rotatable,Interpulillary Distance 48-75mm
Seidentopf Trinocular Head, 30° Inclined, 360°Rotatable,Interpulillary Distance 48-75mm
Eyepiece Wide Field WF10x/20mm, Eyepiece Tube Dia.30mm, 2 pcs
Nosepiece Backward Quadruple Nosepiece
Optical System Infinity Optical System
Objective Infinity Plan Achromatic 4x/0.10, 10x/0.25, 40x/0.65(S),100x/1.25(S,Oil)
Magification 40x-1000x
Stage Double Layer Mechnical Stage, 216x150mm, Moving range 54x78mm, Double Slide Holder, Low PositionX/Y Coaxial Control Knob, With Travel Guide To Aviod Scratch
Focusing Low Position Coaxial Coarse & Fine Focusing.
Fine Focusing Scale 0.002mm, Moving Range 25mm, With Safety Stop
Condenser N.A.1.25 Abbe Condense, Iris Diaphargm,With Filter Holder,Up/Down Range 25mm, Center Adjustable,With Filter Holder
Filter Green
Light Source Halogen Lamp 12V/20W, Brightness Adjustable
Note: "●"In Table Is Standard Outfits

Items A12.1010 Laboratory Biological Microscope Optional Accessories
Eyepiece Wide Field WF15x/16mm, Eyepiece Tube Dia.30mm A51.1002-15B
Wide Field WF20x/12mm, Eyepiece Tube Dia.30mm A51.1002-20B
Objective Infinity Plan Achromatic 20x A52.1008-20
Infinity Plan Achromatic 60x A52.1008-60
Nosepiece Backward Quintuple Nosepiece A54.1001-5
Illumination Kohler Illmination A56.1005-5
Adapter Photo Adapter A55.1008
C-Mount 0.4x A55.1009-04
C-Mount 0.5x A55.1009-05
Dark Field Dark Field Condense, Dry A5D.1012-D
Dark Field Condense, Immersion A5D.1012-I
Polarizing Simple Polarizing Kit A5P.1005
Phase Contrast Phase Contrast Set A5C.1006
Fluorescent EPI-Fluorescent Kit A5F.1005
