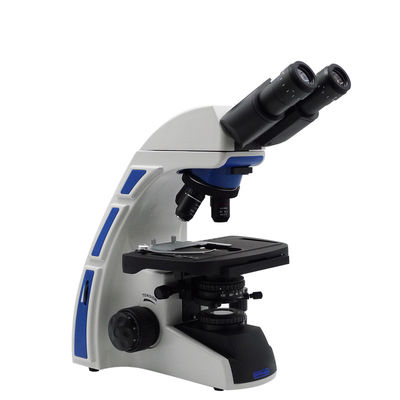

OPTO-EDU A12.1305 Compound Optical Microscope WF10x Eyepiece For Hospital

OPTO-EDU A12.1305 Compound Optical Microscope WF10x Eyepiece For Hospital

  • High Light

    binocular compound microscope

    ,

    wide field microscope

  • Eyepiece
    WF10x
  • Objective
    Plan /Infinity Plan /Achromatic 4X 10x 40x100x
  • Nosepiece
    4 Holes
  • Condenser
    Abbe N.A.1.25
  • Working Stage
    Round Stage Diameter Φ174mm, For Transmit Light, Rotatable 360°, Division 1', Vernier Division 6', Can Be LockedAbbe N.A.1.25
  • Light Source
    3W LED
  • Power Supply
    Power Supply
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A12.1305
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

OPTO-EDU A12.1305 Compound Optical Microscope WF10x Eyepiece For Hospital

Wholesale Biological Microscope For Hospital



A12.1305 is a type of professional biological microscope for laboratory or hospital, so its cost is a little higher than student microscope. Two colors can be choosing just up to you. What’s more, all models are equipped with an integrated X-Y mechanical stage and are supplied with an Abbe N.A. 1.25 condenser. There are 3 types of objective to choose, 3W LED Kohler illumination is very bright.





Parameter



Specification A12.1305 Laboratory Microscope
Head Seidentopf Binocular Head, 30° Inclined, 360° Rotatable, Interpupillary Distance 50-75mm Seidentopf Trinocular Head, 30° Inclined, 360° Rotatable, Interpupillary Distance 50-75mm
Eyepiece WF10x/23mm, Dia.30mm, High Eyepoint, Dioper Ajustment -/+5
Objective A12.1305-B A12.1305-T
Achromatic Objectives 4x, 10x, 40x & 100x (oil)
A12.1305-B1 A12.1305-T1
Plan Achromatic Objectives 4x,10x, 40x & 100x (oil)
A12.1305-B2 A12.1305-T2
Infinity Plan Achromatic Objectives 4x,10x, 40x & 100x (oil)
Adapter   1xC-Mount
Nosepiece Backward Quadruple Nosepiece
Focus System Coaxial Coarse And Fine Adjustment, Fine Division 0.002mm
Stage Double Layer Mechanical Stage 220x148mm/76x50mm, Precision 0.1mm, Double Slide Clamp (Steel Wire Transmission)
Condenser Abbe N.A.1.25 With Slot For DF,PH & Pol
Light Source 3W LED With Kohler Illumination System, Brightness Adjustable
Product Display





A12.1305 Laboratory Microscope Optional Accessories Item No.
Dark Field DF Condenser, Immersion A5D.1301-I
DF Condenser, Dry A5D.1301-D
Phase Contrast Set Turret Type A5C.1303-T
Slider Type A5C.1303-S
Polarzing Set Analyzer & Polarizer A5P.1301-2
Condenser Swing-Out Type A56.1308
Adapter C-Mount A55.1305-1.0
Objective Achromatic Objectives 4x, 10x, 40x & 100x (oil)
Plan Achromatic Objectives 4x,10x, 40x & 100x (oil)
Infinity Plan Achromatic Objectives 4x,10x, 40x & 100x (oil)



Product Details


Related Products


Product Application



Biological microscope is widely used to observe biological slices, biological cells, bacteria and living tissue culture, fluid precipitation observation and research, while observing other transparent or translucent objects and powder, fine particles and other objects.


Packaging & Shipping
Package 1 Set/Carton, 36x31x47CM
Gross Weight 8KG
Packing Polyfoam Protection And Strong Carton
Shipping Time 5~20 Days After Receive The Deposit
Company Information


OPTO-EDU, as one of the most professional manufacturer and supplier of microscope in China, our sub-brand CNOPTEC series high end biological, laboratory, polarizing, metallurgical, fluorescene microscopes, CNCOMPARISON series forensic microscope, A63 series SEM microscope, and .49 series digital camera, LCD camera are very popular in the world market.
