Mechanical Binocular Biological Microscope OPTO-EDU A11.1535-B LED Double Layer

Mechanical Binocular Biological Microscope OPTO-EDU A11.1535-B LED Double Layer

  • High Light

    high powered microscope

    ,

    binocular biological microscope

    ,

    biological compound microscope

  • Eyepiece
    WF10x
  • Nosepiece
    4 Holes
  • Objective
    Achromatic 4x,10x,40x,100x
  • Working Stage
    Double Layer Mechnical
  • Condenser
    Abbe N.A.1.25
  • Focusing
    Coaxial Coarse & Fine
  • Light Source
    1W LED
  • Power Supply
    110/220V
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A11.1535
  • Minimum Order Quantity
    1 pc
  • Price
    Negotiation
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

Mechanical Binocular Biological Microscope OPTO-EDU A11.1535-B LED Double Layer

OPTO-EDU A11.1535-B LED double layer mechanical binocular biological microscope

A11.1535 is a very good choice for student, especially appreciated when budget is limited. All models are equipped with an integrated X-Y mechanical stage are supplied with an Abbe N.A. 1.25 condenser. Optional WF10X, WF16X, WF20X eyepiece enable utmost 2000X optical magnification, which can clearly observe biological slices, biological cells, bacteria and living tissue culture etc. And the curved handle is portable for users.




A11.1535_02

Parameter



A11.1535 Student Microscope
Model V M B T
Head Teaching Head Monocular Head Binocular Head Trinocular Head
Inclined at 30º, Interpupillary 48-75mm, Left Eye Tube Diopter Adjustable+/-5°
Eyepiece WF10X/18mm
Nosepiece Quadruple Nosepiece
Objective Achromatic Objectives 4x, 10x, 40x, 100x
Condenser Abbe Condenser NA1.25 with Diaphragm, with Filter Holder
Focusing Coaxial Coarse and Fine Adjustments, Moving Range 22mm
Working Stage Double Layer Mechanical Rectangular Stage 142X132mm, Moving Range 75X55mm
Light Source 1W LED, Brightness Adjustable
Adapter 1.0x C-Mount N/A N/A 1.0x C-Mount
Product Display

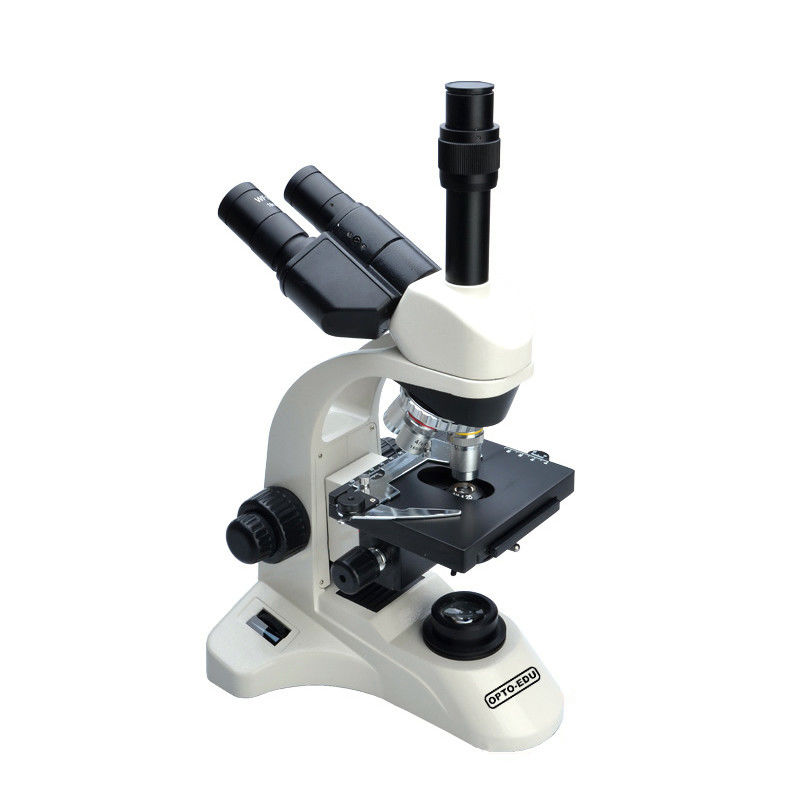

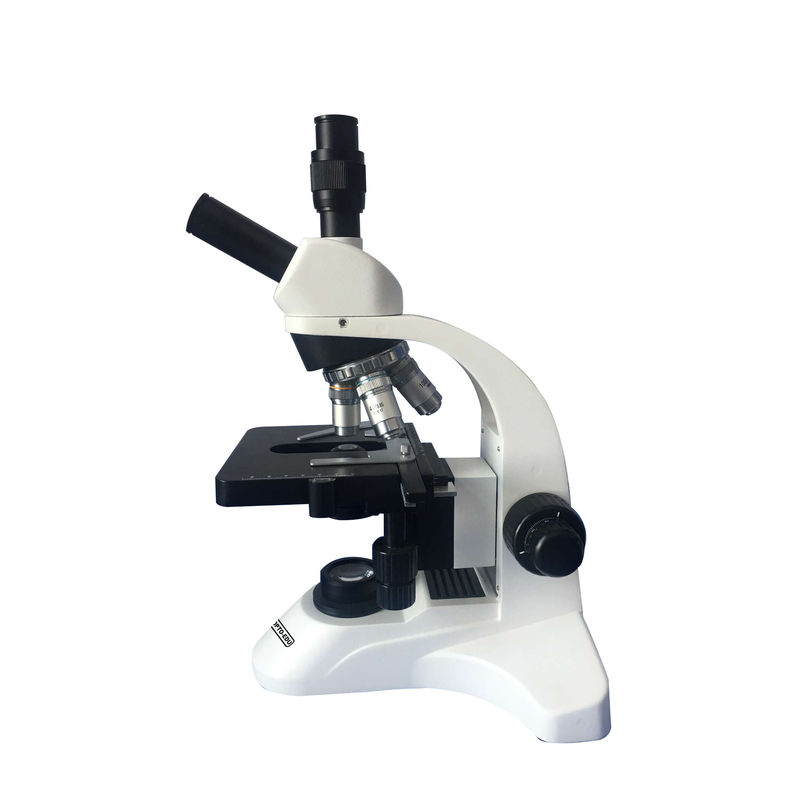

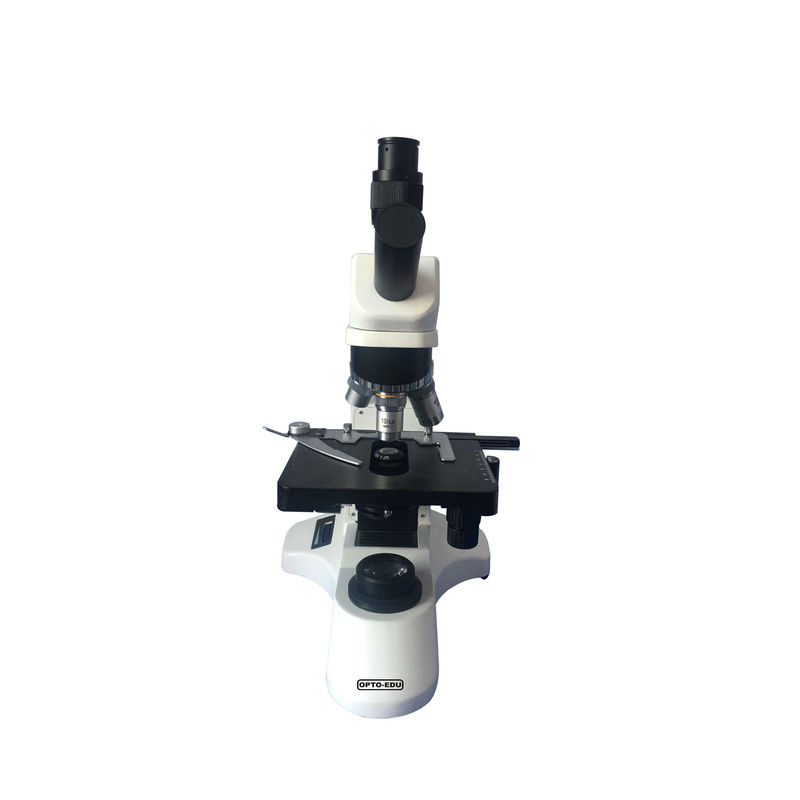

A11.1535-T Trinocular Head Student Microscope A11.1535-M Monocular Head Student Microscope

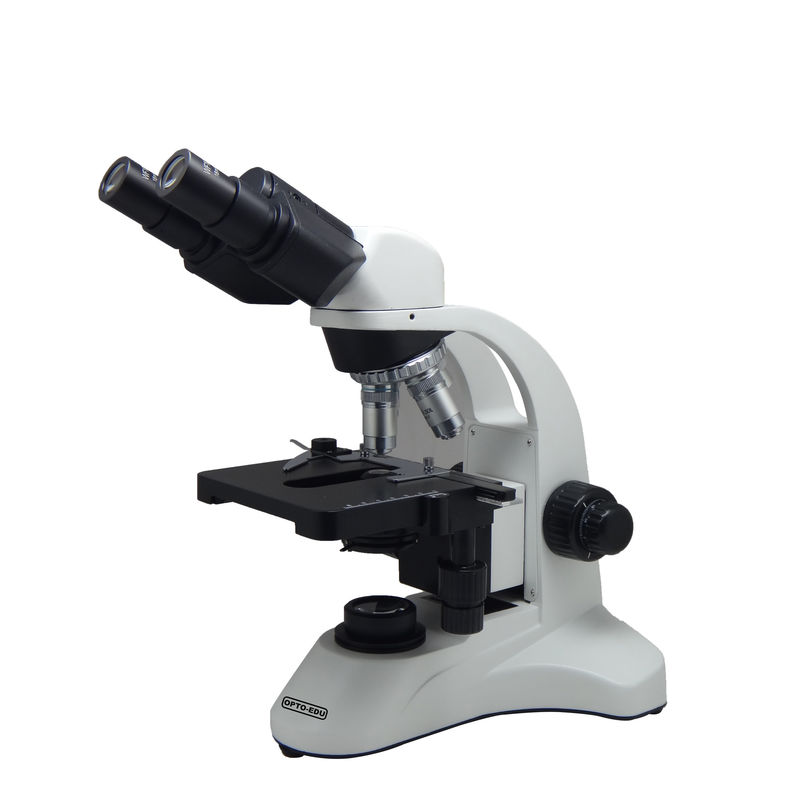

A11.1535-B Binocular Head Student Microscope A11.1535-V Teaching Head Student Microscope








Optional Accessories
Eyepiece WF16X/13mm A51.1503-16
WF20X/11mm A51.1503-20
WF10X/18mm Pointer Eyepiece A51.1505
Objective Achromatic Objectives 20x A52.1505-20
Achromatic Objectives 60x A52.1505-60
Plan Achromatic Objectives 4x, 10x, 40xs, 100xs(oil) A52.1510

Light



6V/20W Halogm Lamp, Brightness Adjustable A56.1504
Upgrade to 3W LED, Brightness Adjustable A56.1510
CCD Adapter Eyepiece Tube Adapter A55.1535-E
0.5x A55.1535-05


Product Details

A11.1535_02

Related Products


Product Application



Student microscope is designed for tertiary institutions and primary and secondary schools, which convenient to observe biological slices, biological cells, bacteria and living tissue culture, fluid precipitation observation and research. It is widely used in teaching demonstration, biochemical experiments, clinical research ect.
