Opto Edu A62.4503 Atomic Force Microscope with 50μm Scan Range 0.2nm Resolution and 0.6Hz~4.34Hz Scan Rate for Laboratory Research

Opto Edu A62.4503 Atomic Force Microscope with 50μm Scan Range 0.2nm Resolution and 0.6Hz~4.34Hz Scan Rate for Laboratory Research

Products - Scanning Microscope
  • Highlight

    compound scanning optical microscope

    ,

    laboratory scanning optical microscope

    ,

    atomic force scanning optical microscope

  • Operation Modes
    Contact Mode, Tapping Mode,phase,friction, MFM,EFM
  • Sample Size
    Radius≤90mm,H≤20mm
  • Max. Scan Range
    X/Y: 50μm, Z: 5μm
  • Resolution
    X/Y: 0.2 Nm, Z: 0.05nm
  • Scan Rate
    0.6Hz~4.34Hz
  • Scanning Control
    XY: 18-bit D/A, Z: 16-bit D/A
  • Data Sampling
    One 14-bit A/D And Double 16-bit A/D Multiple-channel Simultaneously
  • Windows
    USB2.0, Compatible With Windows 98/2000/XP/7/8
  • Name
    Laboratory Research New Atomic Force Scanning Electron Microscope
  • Features
    All-in-one Design, Smart Structure And Shape.
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A62.4503
  • Document
    Product Brochure PDF
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T,West Union,Paypal
  • Supply Ability
    5000 pcs/ Month

Opto Edu A62.4503 Atomic Force Microscope with 50μm Scan Range 0.2nm Resolution and 0.6Hz~4.34Hz Scan Rate for Laboratory Research

  • Opto Edu A62.4503 Atomic Force Microscope with 50μm Scan Range 0.2nm Resolution and 0.6Hz~4.34Hz Scan Rate for Laboratory Research
Get Price Contact Now

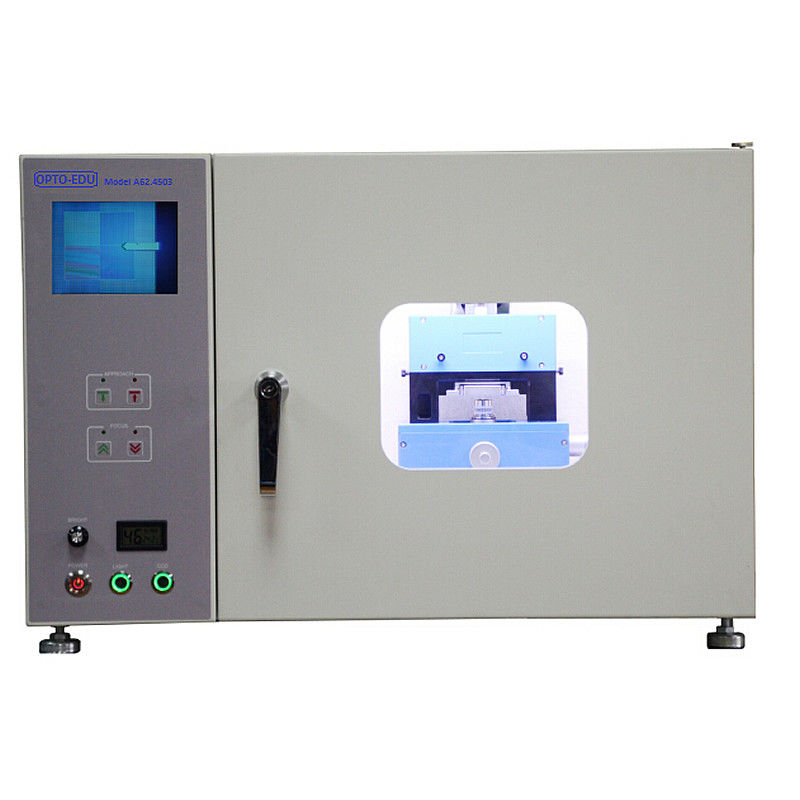

Opto Edu A62.4503 Compound Scanning Optical Microscope Atomic Force For Laboratory
Key Features

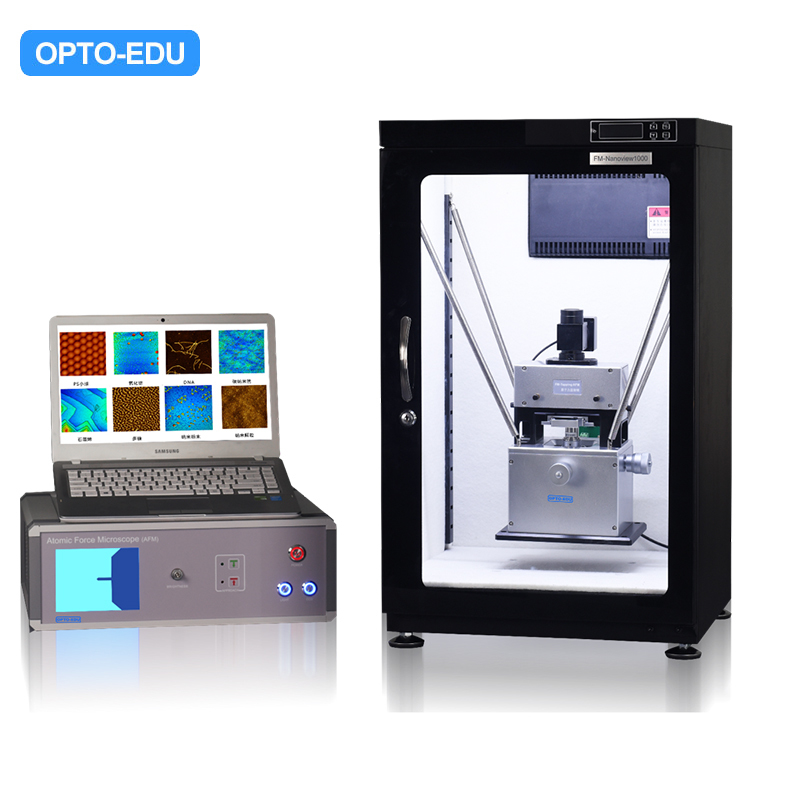

  • Basic Level, Separate Controller & Main Body Design
  • Contact Mode and Tapping Mode operation
  • Scan Range: XY 50×50μm, Z 5μm
  • Scan Resolution: XY 0.2nm, Z 0.05nm
  • Sample Size: Diameter <90mm, Height <20mm
  • Stage Moving: 25×25mm
  • Optical Objective: APO 10x with 1μm resolution
  • Scan Speed: 0.6~30Hz
  • Scan Angle: 0-360°
  • Output: USB3.0 compatible with Win7/8/10/11
  • Optional Work Modes: Friction Mode, Phase Mode, Magnetic Mode, Electrostatic Mode
Opto Edu A62.4503 Atomic Force Microscope with 50μm Scan Range 0.2nm Resolution and 0.6Hz~4.34Hz Scan Rate for Laboratory Research 0 Opto Edu A62.4503 Atomic Force Microscope with 50μm Scan Range 0.2nm Resolution and 0.6Hz~4.34Hz Scan Rate for Laboratory Research 1

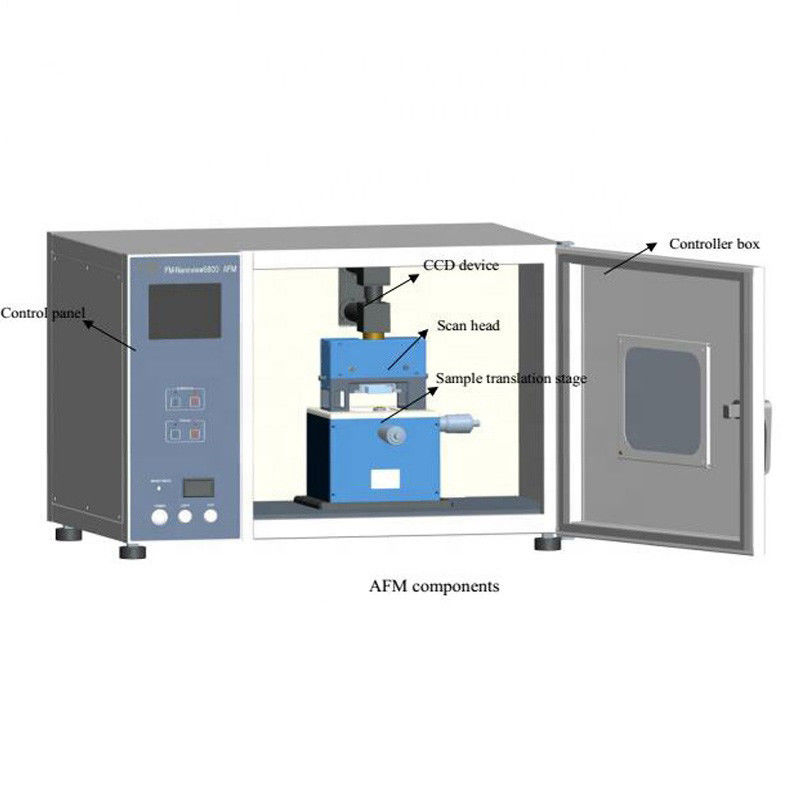

Integrated laser detection head and sample scanning stage for stable structure and strong anti-interference

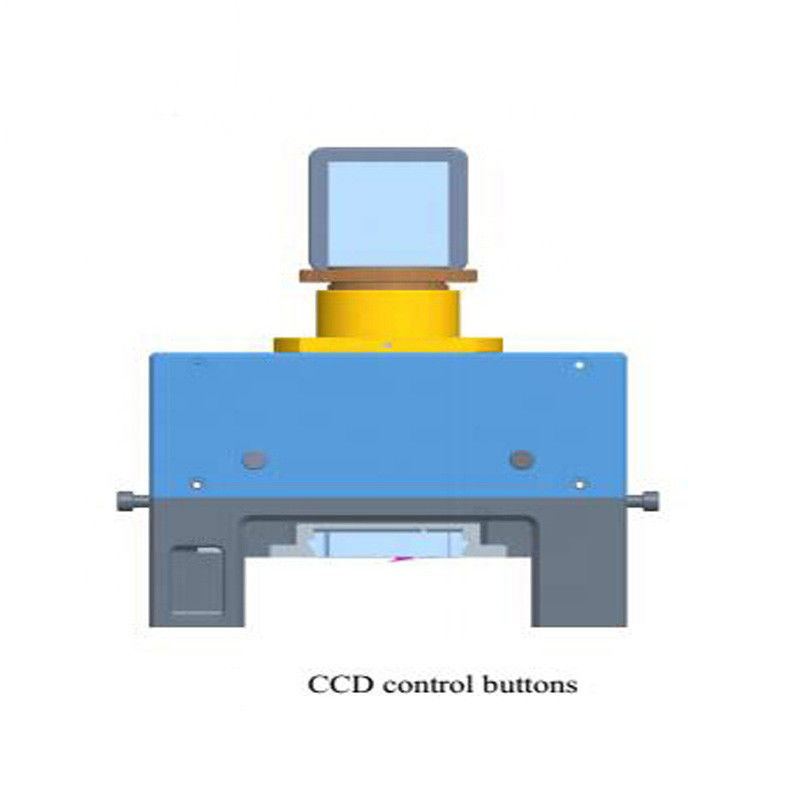

Precision probe positioning device with easy laser spot alignment adjustment
Single-axis drive sample automatically approaches probe vertically for perpendicular needle tip alignment
Motor-controlled pressurized piezoelectric ceramic automatic detection protects probe and sample
High-precision, wide-ranging piezoelectric ceramic scanners available
High-magnification objective lens with automatic optical positioning for real-time observation
Spring suspension shockproof method for effective vibration damping
Metal shielded soundproof box with built-in temperature and humidity sensor
Integrated scanner nonlinear correction editor with nanometer characterization accuracy better than 98%
Opto Edu A62.4503 Atomic Force Microscope with 50μm Scan Range 0.2nm Resolution and 0.6Hz~4.34Hz Scan Rate for Laboratory Research 2 Opto Edu A62.4503 Atomic Force Microscope with 50μm Scan Range 0.2nm Resolution and 0.6Hz~4.34Hz Scan Rate for Laboratory Research 3
Technical Specifications
Specification A62.4500 A62.4501 A62.4503 A62.4505
Work Mode Tapping Mode
【Optional】 Contact Mode, Friction Mode, Phase Mode, Magnetic Mode, Electrostatic Mode		 Contact Mode, Tapping Mode
【Optional】 Friction Mode, Phase Mode, Magnetic Mode, Electrostatic Mode		 Contact Mode, Tapping Mode
【Optional】 Friction Mode, Phase Mode, Magnetic Mode, Electrostatic Mode		 Contact Mode, Tapping Mode
【Optional】 Friction Mode, Phase Mode, Magnetic Mode, Electrostatic Mode
Current Spectrum Curve RMS-Z Curve
【Optional】 F-Z Force Curve		 RMS-Z Curve, F-Z Force Curve RMS-Z Curve, F-Z Force Curve RMS-Z Curve, F-Z Force Curve
XY Scan Range 20×20μm 20×20μm 50×50μm 50×50μm
XY Scan Resolution 0.2nm 0.2nm 0.2nm 0.2nm
Z Scan Range 2.5μm 2.5μm 5μm 5μm
Y Scan Resolution 0.05nm 0.05nm 0.05nm 0.05nm
Scan Speed 0.6Hz~30Hz 0.6Hz~30Hz 0.6Hz~30Hz 0.6Hz~30Hz
Scan Angle 0~360° 0~360° 0~360° 0~360°
Sample Size Φ≤90mm
H≤20mm		 Φ≤90mm
H≤20mm		 Φ≤90mm
H≤20mm		 Φ≤90mm
H≤20mm
XY Stage Moving 15×15mm 15×15mm 25×25μm 25×25μm
Shock-Absorbing Design Spring Suspension Spring Suspension, Metal Shielding Box Spring Suspension, Metal Shielding Box -
Optical System 4x Objective
Resolution 2.5μm		 4x Objective
Resolution 2.5μm		 4x Objective
Resolution 2.5μm		 Eyepiece 10x
Infinity Plan LWD APO 5x10x20x50x
5.0M Digital Camera
10" LCD Monitor, With Measuring
LED Kohler Illumination
Coaxial Coarse & Fine Focusing
Output USB2.0/3.0 USB2.0/3.0 USB2.0/3.0 USB2.0/3.0
Software Win XP/7/8/10 Win XP/7/8/10 Win XP/7/8/10 Win XP/7/8/10
Opto Edu A62.4503 Atomic Force Microscope with 50μm Scan Range 0.2nm Resolution and 0.6Hz~4.34Hz Scan Rate for Laboratory Research 4
Microscope Comparison
Resolution Working Condition Working Temperature Damage to Sample Inspection Depth
SPM
Atom Level 0.1nm		 Normal, Liquid, Vacuum Room or Low Temperature None 1~2 Atom Level
TEM
Point 0.3~0.5nm
Lattice 0.1~0.2nm		 High Vacuum Room Temperature Small Usually <100nm
SEM
6-10nm		 High Vacuum Room Temperature Small 10mm @10x
1μm @10000x
FIM
Atom Level 0.1nm		 Super High Vacuum 30~80K Damage Atom Thickness
Microscope Optical Microscope Electron Microscope Scanning Probe Microscope
Max Resolution (μm) 0.18 0.00011 0.00008
Remark Oil immersion 1500x Imaging diamond carbon atoms Imaging high-order graphitic carbon atoms
Image Opto Edu A62.4503 Atomic Force Microscope with 50μm Scan Range 0.2nm Resolution and 0.6Hz~4.34Hz Scan Rate for Laboratory Research 5 Opto Edu A62.4503 Atomic Force Microscope with 50μm Scan Range 0.2nm Resolution and 0.6Hz~4.34Hz Scan Rate for Laboratory Research 6 Opto Edu A62.4503 Atomic Force Microscope with 50μm Scan Range 0.2nm Resolution and 0.6Hz~4.34Hz Scan Rate for Laboratory Research 7
Probe-Sample Interaction Measure Signal Information
Force Electrostatic Force Shape
Tunnel Current Current Shape, Conductivity
Magnetic Force Phase Magnetic Structure
Electrostatic Force Phase charge distribution
Opto Edu A62.4503 Atomic Force Microscope with 50μm Scan Range 0.2nm Resolution and 0.6Hz~4.34Hz Scan Rate for Laboratory Research 8 Opto Edu A62.4503 Atomic Force Microscope with 50μm Scan Range 0.2nm Resolution and 0.6Hz~4.34Hz Scan Rate for Laboratory Research 9 Opto Edu A62.4503 Atomic Force Microscope with 50μm Scan Range 0.2nm Resolution and 0.6Hz~4.34Hz Scan Rate for Laboratory Research 10 Opto Edu A62.4503 Atomic Force Microscope with 50μm Scan Range 0.2nm Resolution and 0.6Hz~4.34Hz Scan Rate for Laboratory Research 11
