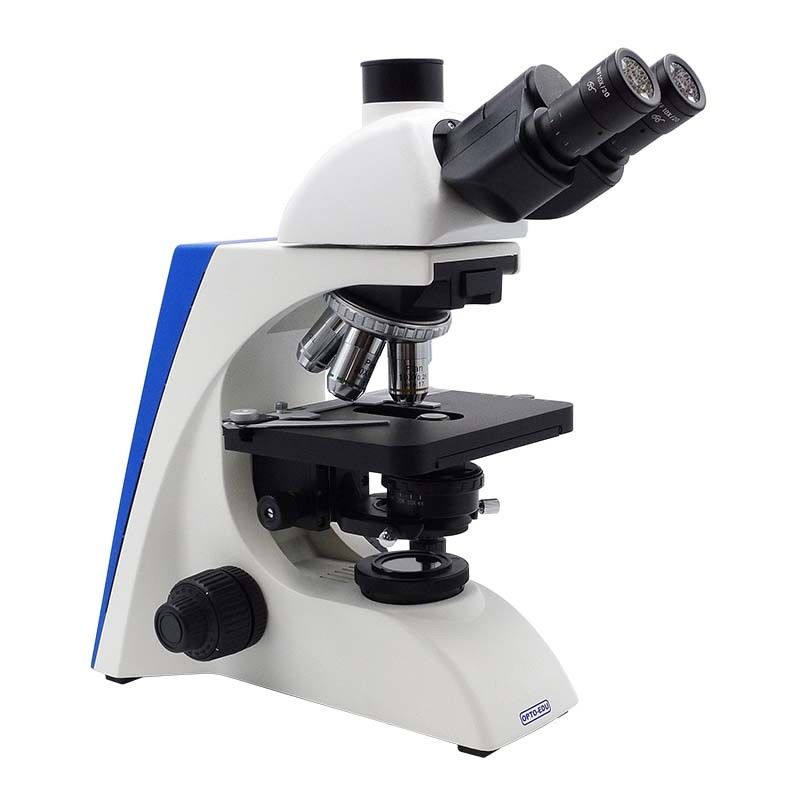

Mechanical Trinocualr Laboratory Metal Microscope Double Layer LED OPTO-EDU A12.2602 400X

China Mechanical Trinocualr Laboratory Metal Microscope Double Layer LED OPTO-EDU A12.2602 400X supplier
Mechanical Trinocualr Laboratory Metal Microscope Double Layer LED OPTO-EDU A12.2602 400X supplier Mechanical Trinocualr Laboratory Metal Microscope Double Layer LED OPTO-EDU A12.2602 400X supplier Mechanical Trinocualr Laboratory Metal Microscope Double Layer LED OPTO-EDU A12.2602 400X supplier Mechanical Trinocualr Laboratory Metal Microscope Double Layer LED OPTO-EDU A12.2602 400X supplier Mechanical Trinocualr Laboratory Metal Microscope Double Layer LED OPTO-EDU A12.2602 400X supplier Mechanical Trinocualr Laboratory Metal Microscope Double Layer LED OPTO-EDU A12.2602 400X supplier

Large Image :  Mechanical Trinocualr Laboratory Metal Microscope Double Layer LED OPTO-EDU A12.2602 400X

Product Details:

Place of Origin: China
Brand Name: CNOEC, OPTO-EDU
Certification: CE, Rohs
Model Number: A12.2602

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: FOB $1~1000, Depend on Order Quantity
Packaging Details: Carton Packing, For Export Transportation
Delivery Time: 5~20 Days
Payment Terms: T/T, West Union, Paypal
Supply Ability: 5000 pcs/ Month
Contact Now
Detailed Product Description
Eyepiece: WF10x/20 Nosepiece: 5 Holes
Objective: Infinity Plan 4x10x40x100x Working Stage: Double Layer Mechanical
Condenser: Abbe N.A.1.25 Focusing: Coaxial Coarse & Fine
Light Source: LED Power Supply: 100~240V
Magnification: 40x,100x,200x,400x,1000x

OPTO-EDU A12.2602 40X~1000X Trinocular Laboratory Biological Microscope With Double Layer Mechanical



A12.2602 is a type of laboratory biological microscope, it is designed for college teaching and hospital. It is the original style which can upgrade to A12.2603 microscopes. The features of steady structure, convenient operation and clear image is suitable for observing various biological specimens, and mostly applied in college and hospital.



Mechanical Trinocualr Laboratory Metal Microscope Double Layer LED OPTO-EDU A12.2602 400X

Mechanical Trinocualr Laboratory Metal Microscope Double Layer LED OPTO-EDU A12.2602 400X



Mechanical Trinocualr Laboratory Metal Microscope Double Layer LED OPTO-EDU A12.2602 400X

Trinocular Head Light Split Optional Between Switch E100:P0/E0:P100 And Fixed E80:P20.
In Fixed Light Split, Eyepiece 80% : Photo 20% User Can View Image At Same Time In Both Path
In Switch Light Split, Eyepiece 100%:Photo 0% / Eyepiece 0%:Photo 100%, Camera Can Have 100% Light For Photo Capture.

Mechanical Trinocualr Laboratory Metal Microscope Double Layer LED OPTO-EDU A12.2602 400X

Large Size High Precision Quintuple Nosepiece, With Polarizing Analyzer Slot, Innfinity Plan Objective 4x,10x,20x,40x,100x Available
Creative 100X Water Objective (Optional) Instead Of 100X Oil Objective, More Convenient For Using & Cleaning After Use

Mechanical Trinocualr Laboratory Metal Microscope Double Layer LED OPTO-EDU A12.2602 400X

Abbe Condenser N.A.1.25, Iris Diaphragm, Rack & Pinion Up/Down, With Filter Holder, With Iris Scale For 4x10x20x40x100x Marked On Condenser.

Mechanical Trinocualr Laboratory Metal Microscope Double Layer LED OPTO-EDU A12.2602 400X

High Brightness Transmit Light 3W LED, Koehler Illumination, With Field Diaphragm

Mechanical Trinocualr Laboratory Metal Microscope Double Layer LED OPTO-EDU A12.2602 400X

Mechanical Trinocualr Laboratory Metal Microscope Double Layer LED OPTO-EDU A12.2602 400X

Mechanical Trinocualr Laboratory Metal Microscope Double Layer LED OPTO-EDU A12.2602 400X

Mechanical Trinocualr Laboratory Metal Microscope Double Layer LED OPTO-EDU A12.2602 400X

Items A12.2602 Laboratory Biological Microscope Specification -B -T Cata. No.
Head Seidentopf Binocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm A53.2622-B
Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm, Light Split Switch E100:P0/E0:P100 A53.2622-T
Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm, Light Split Fixed E80:P20   A53.2622-Ta
Eyepiece WF10X/20mm (High Eyepoint) ●● ●● A51.2602-1020
Nosepiece Quintuple, Backward A54.2610-N01
Infinity Plan Objective PLAN 2.5X/0.07,W.D.=8.47mm A52.2606-2.5
PLAN 4X/0.10,W.D.=12.10mm A52.2606-4
PLAN 10X/0.25,,W.D.=4.64mm A52.2606-10
PLAN 20X/0.40(S),W.D.=2.41mm A52.2606-20
PLAN 40X/0.66(S),W.D.=0.65mm A52.2606-40
PLAN 60X/0.80(S),W.D.=0.33mm A52.2606-60
PLAN 100X/1.25(S,Oil),W.D.=0.12mm A52.2606-100
PLAN 100X/1.15(S,Water),W.D.=0.19mm A52.2606-100W
Working Stage Mechanical Stage Size 175 mm×145mm, Travel 76mmX52mm, Scale: 0.1mm, Double Slide Holder A54.2601-S01
Rackless (Integrated) Mechanical Stage, Size 182×140mm, Travel Range 77×52mm, Double Slide Holder A54.2601-S10
Focusing Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 22mm, Fine Focusing Div. 0.002mm
Condenser Abbe Condenser N.A.1.25, Iris Diaphragm, Rack & Pinion Up/Down A56.2614-01d
Swing-out Condenser,N.A.0.9/0.13,Iris Diaphragm A56.2614-07a
Illumination Transmit Light 3W LED
Koehler Illumination, Wide Voltage 100V~240V, Field Diaphragm
A56.2612-3W
Transmit Light 12V20W Halogen
Koehler Illumination, Wide Voltage 100V~240V, Field Diaphragm
A56.2650-20W
Transmit Light 6V30W Halogen
Koehler Illumination, Wide Voltage 100V~240V, Field Diaphragm
A56.2650-30W
Field Diaphragm For Kohler Illumnation A56.2615-BK
Power ECO, Auto Power Off System.
Power Off Automatically Upon User Leaving 10 Minutes,
Power On Automatically Upon User Approaching Detected,
This Function Can Be Shut Down Manually
A56.2660
Filter Dia.45mm, Blue A56.2616-45B
Dia.45mm, Green A56.2616-45G
Dia.45mm, Yellow A56.2616-45A
Dark Field Dark Field Condenser, Dry, N.A.0.83-0.91, For 4x10x40x Objective A5D.2610-BK
Dark Field Condenser, Immersion, N.A.1.3, For 100x Objective     A5D.2610-BKW
Polarizing Analyzer + Polarizer Set A5P.2601-BK
Phase Contrast Infinity Plan Phase Contrast Objective 10x + Phase Contrast Slide 10x + Phase Contrast Condenser + Telescope 11x + Green Filter A5C.2602-10
Infinity Plan Phase Contrast Objective 20x + Phase Contrast Slide 20x + Phase Contrast Condenser + Telescope 11x + Green Filter A5C.2602-20
Infinity Plan Phase Contrast Objective 40x + Phase Contrast Slide 40x + Phase Contrast Condenser + Telescope 11x + Green Filter A5C.2602-40
Infinity Plan Phase Contrast Objective 100x + Phase Contrast Slide 100x + Phase Contrast Condenser + Telescope 11x + Green Filter A5C.2602-100
Turret Phase Contrast Attachment
Infinity Plan Phase Contrast Objective 10x20x40x100x, Turret Phase Contrast Condenser 5-Holes, Telescope 11x, Green Filter
A5C.2603-BK
Fluorescence Upgrade to A16.2602-T2 Fluorescence Microscope With A5F.2601-2:
B,G China Fluorescent Set
100W Mercury Lamp House
100W Mercury Power Box, Digital Disp.
6 Holes Disc Fluorescent Unit
Ultraviolet Protection Barrier
Centering Objective
China 100W Mercury Lamp 2 pcs
  A5F.2601-2
Upgrade to A16.2602-T4 Fluorescence Microscope With A5F.2601-4:
B,G,U,UV China Fluorescent Set
100W Mercury Lamp House
100W Mercury Power Box, Digital Disp.
6 Holes Disc Fluorescent Unit
Ultraviolet Protection Barrier
Centering Objective
China 100W Mercury Lamp 2 pcs
  A5F.2601-4
Upgrade to A16.2602-LT2 Fluorescence Microscope With A5F.2602-2:
B,G China Fluorescent Set
6 Holes Disc Fluorescent Unit
5W LED Lamp House
5W LED Power Box
Ultraviolet Protection Barrier
  A5F.2602-2
Upgrade to A16.2602-LT4 Fluorescence Microscope With A5F.2602-4:
B,G,U,UV China Fluorescent Set
6 Holes Disc Fluorescent Unit
5W LED Lamp House
5W LED Power Box
Ultraviolet Protection Barrier
  A5F.2602-4
Adapter C-Mount 0.5x, Focus Adjustable A55.2601-05
C-Mount 0.75x, Focus Adjustable A55.2601-75
C-Mount 1.0x, Focus Adjustable A55.2601-10
Digital Eyepiece Camera Adapter, Dia. 23.2mm/25mm A55.2610
Package Carton Size 542×265×350mm, 1 Unit/Ctn
Weight Gross Weight: 12 kgs, Net Weight: 10 kgs
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories



Mechanical Trinocualr Laboratory Metal Microscope Double Layer LED OPTO-EDU A12.2602 400X

Mechanical Trinocualr Laboratory Metal Microscope Double Layer LED OPTO-EDU A12.2602 400X

Number Specification Cata. No.
01 WF10X/20mm (High Eyepoint) A51.2602-1020
02 Infinity Plan Objective A52.2606
03 Rackless (Integrated) Mechanical Stage A54.2601-S10
04 ECO, Auto Power, Off System A56.2660
05 Dark Field Condenser, Dry A5D.2610-BK
06 Dark Field Condenser, Immersion A5D.2610-BKW
07 Swing-out Condenser A56.2614-07a
08 C-Mount 0.5x, Focus Adjustable A55.2601-05
09 C-Mount 0.75x, Focus Adjustable A55.2601-75
10 C-Mount 1.0x, Focus Adjustable A55.2601-10
11 Digital Eyepiece Camera Adapter A55.2610



Mechanical Trinocualr Laboratory Metal Microscope Double Layer LED OPTO-EDU A12.2602 400X
