|Nosepiece:||4 Holes||Objective:||LWD Metallurgical Infinity Plan BF 5x10x20x50x|
|Working Stage:||Three Layer Mechanical Stage||Focusing:||Coaxial Coarse & Fine|
|Light Source:||12V50W Halogen||Power Supply:||100~240V|

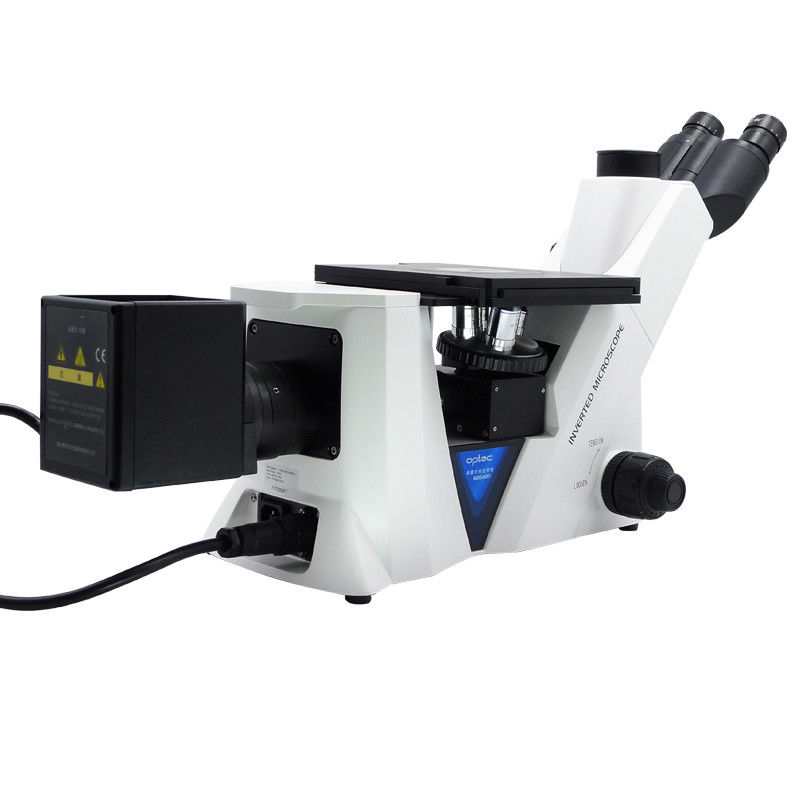

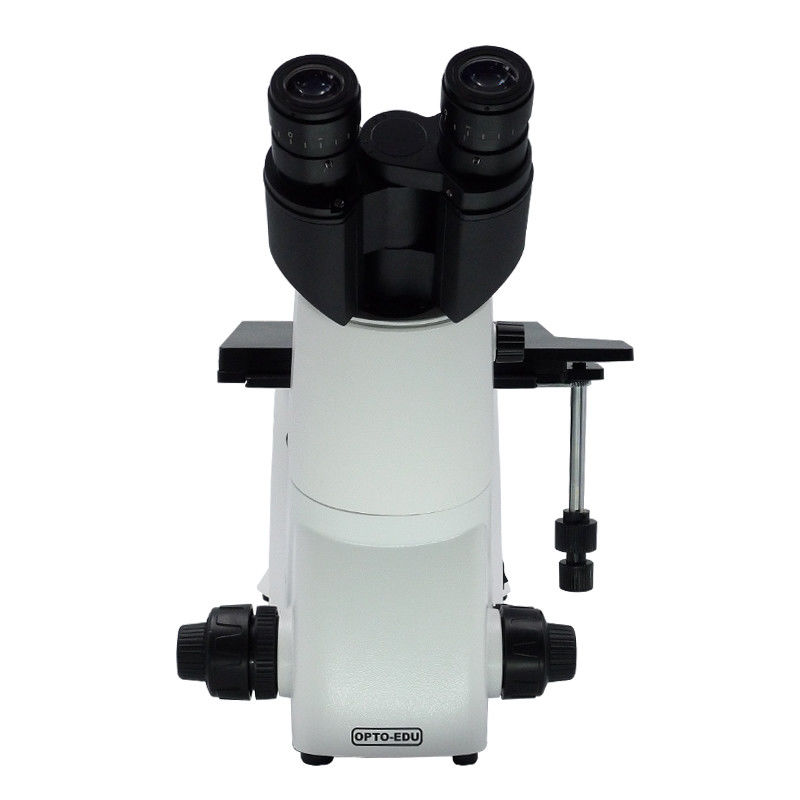

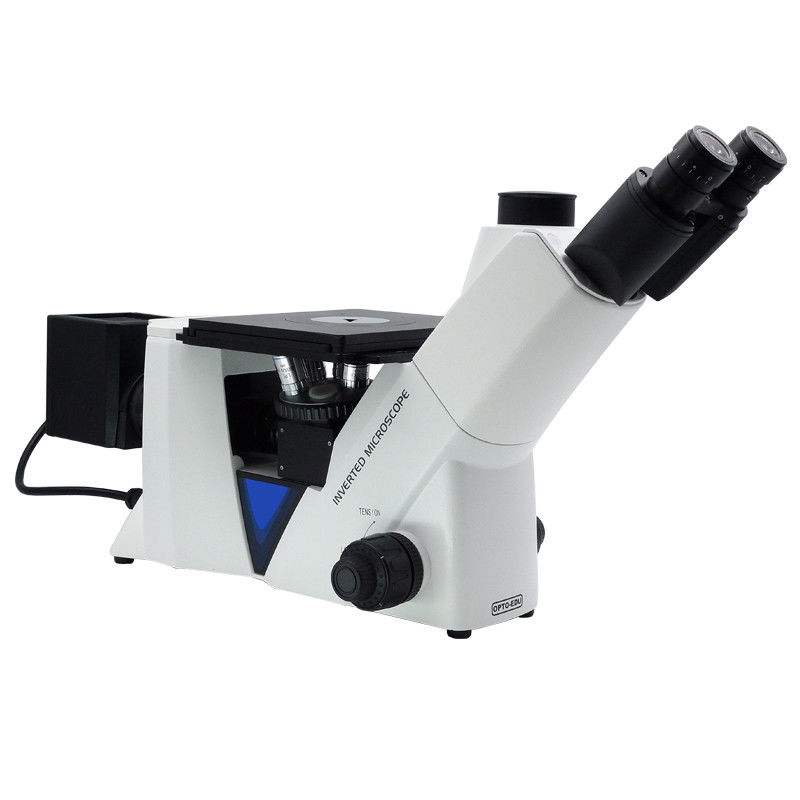

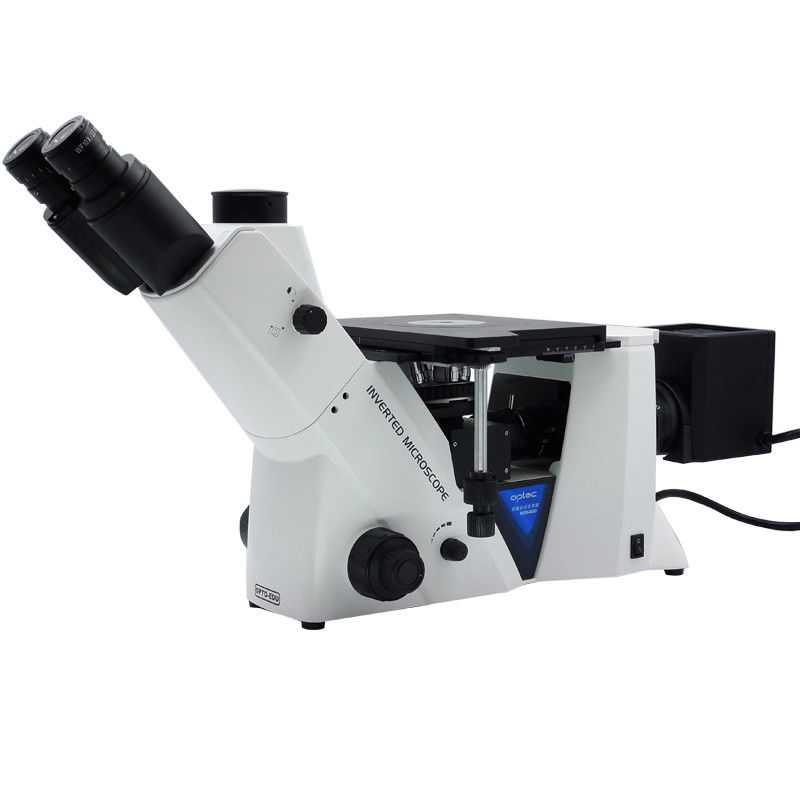

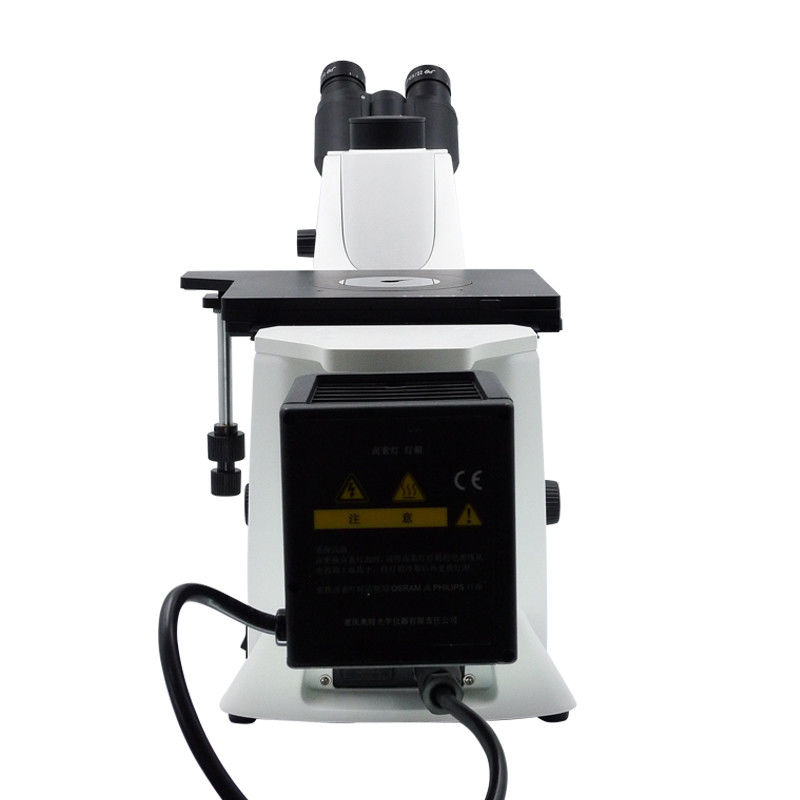

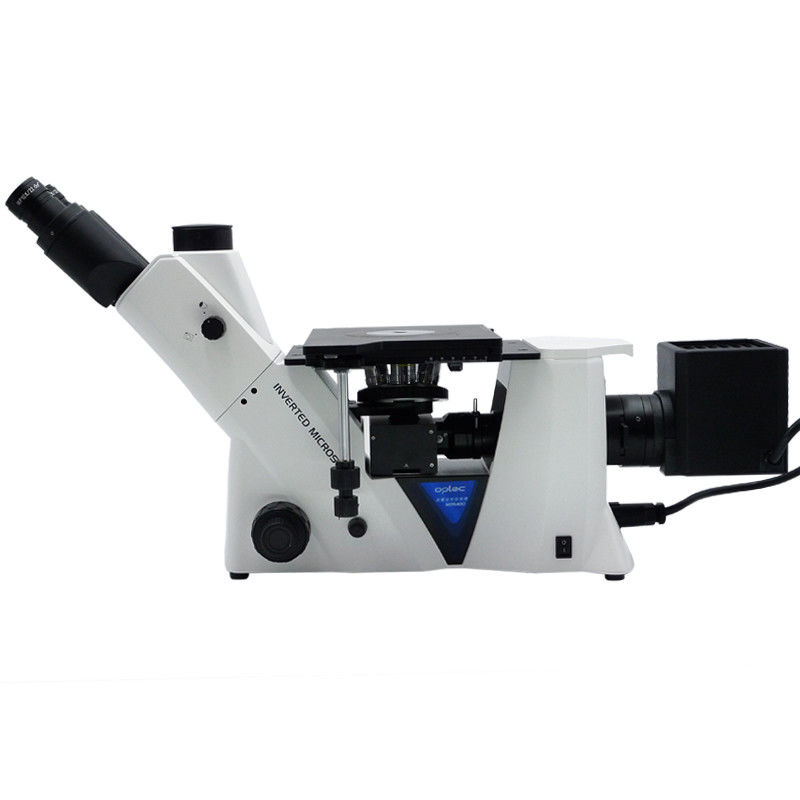

OPTO-EDU A13.2606-A Trinocular Inverted Metallurgical Microscope
A13.2606 Inverted Metallurgical Microscope is a kind of metallurgical microscope whose objective is under the stage. The special design is for observing and operating specimen more convenient, especially for specimen of height. Metallurgical microscope is used for material surface observation and mechanical state detection. It can accurately display the color of different metals and easy to use for analysing the internal structure of electronic products.
|A13.2606 Inverted Metallurgical Microscope Specification||A||B|
|Head||Seidentopf Trinocular Head, Eyepiece Tube Dia.30.5mm, Inclined 45°, Interpupillary Distance 48~76mm, Light Split Both 100: 0 and 80:20|
|Eyepiece||WF10x/22mm, Diopter Adjustable|
|WF10x/22mm, Diopter Adjustable, With Micrometer 0.1mm/Div|
|Metallurgical LWD Infinity Plan Objective For Bright Field||LPL5x/0.13, W.D.=24.23mm||.||O|
|Metallurgical LWD Infinity Plan Objective For Bright & Dark Field||M PLAN BD5x/0.13, W.D.=24.23mm||.|
|M PLAN BD10x/0.25, W.D.=18.48mm||.|
|M PLAN BD20x/0.40, W.D.=8.35mm||.|
|M PLAN BD50x/0.70(S), W.D.=1.95mm||.|
|Focus System||Low Positioned, Coaxial Coarse & Fine Focusing System, Coarse Stroke:10mm, Fine Stroke 0.2mm/rot, Minimum Reading 2μm|
|Quadruple, For Bright & Dark Field Objectives||.|
|Stage||Three Layers Mechanical Stage, Size 210x180mm, Moving Range 50x50mm, Scale 0.1mm|
|Polarizing Unit||Polarizer & Analyzer|
|Illumination||12V/50W Halogen Lamp|
|Power Supply||Wide Range Voltage 110~240V|
|Packing||1 pc/ctn, Carton Size 66x59x33cm, Weight 17/14 Kg|
|Remark||Note: "."In Table Is Standard outfits, "O" Is Optional Accessories.|
A13.2606 Inverted Metallurgical Microscope General Layout Diagram
|Optional Accessory||Item No.|
|Metallurgical LWD Infinity Plan Objective For Bright Field||LPL40x/0.65 W.D.=3.90mm||A5M.2633-40|
|Metallurgical LWD Infinity Plan Objective For Bright & Dark Field||M PLAN BD80x/0.80(S) W.D.=0.85mm||A5M.2634-80|
|Adapter||C-Mount Adapter 0.5x (Focus Adjustable)||A55.2601-05A|
|C-Mount Adapter 1.0x||A55.2601-10|
Inverted Metallurgical microscope is used to observe the surface of metal samples.It is widely used in electronics, metallurgy, chemical, instrumentation and other industries, and is the first choice of metallographic, lithofacies, ore phase, crystal and other aspects of the experiment and analysis. Apply to factories and mines enterprises, institutions of higher learning and scientific research etc.
