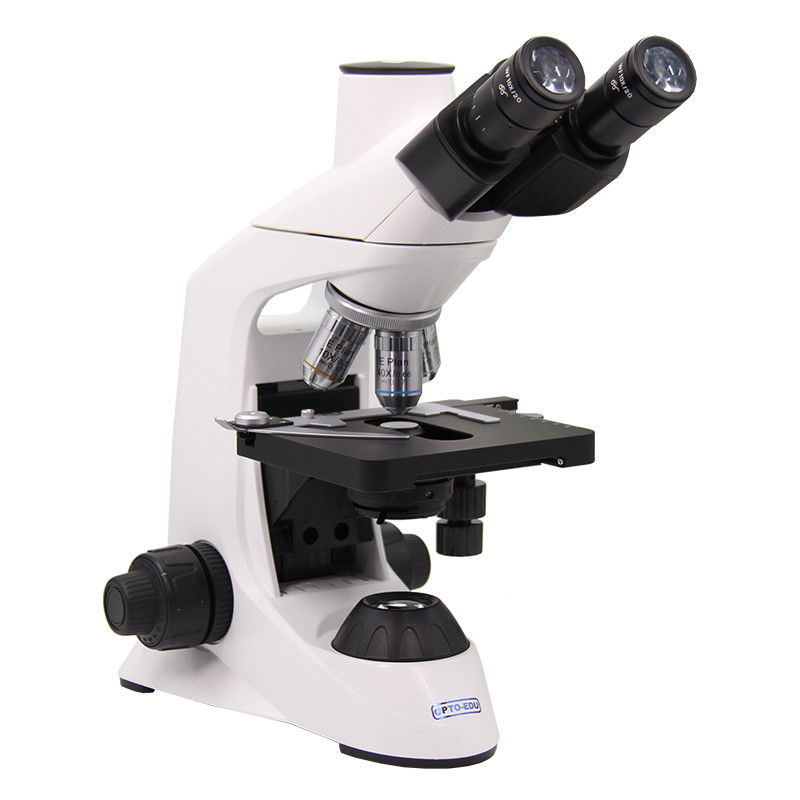

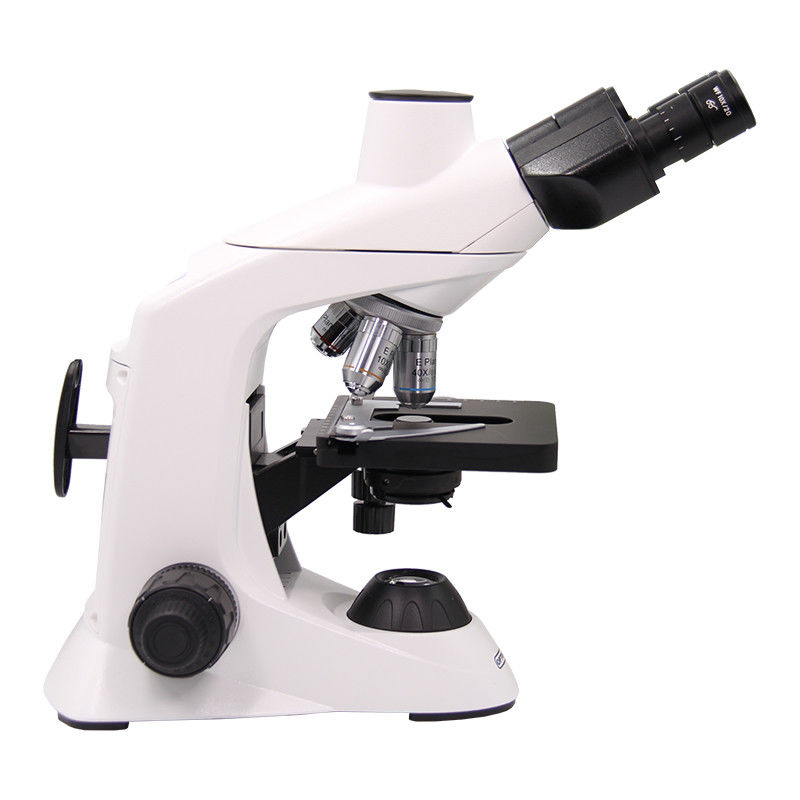

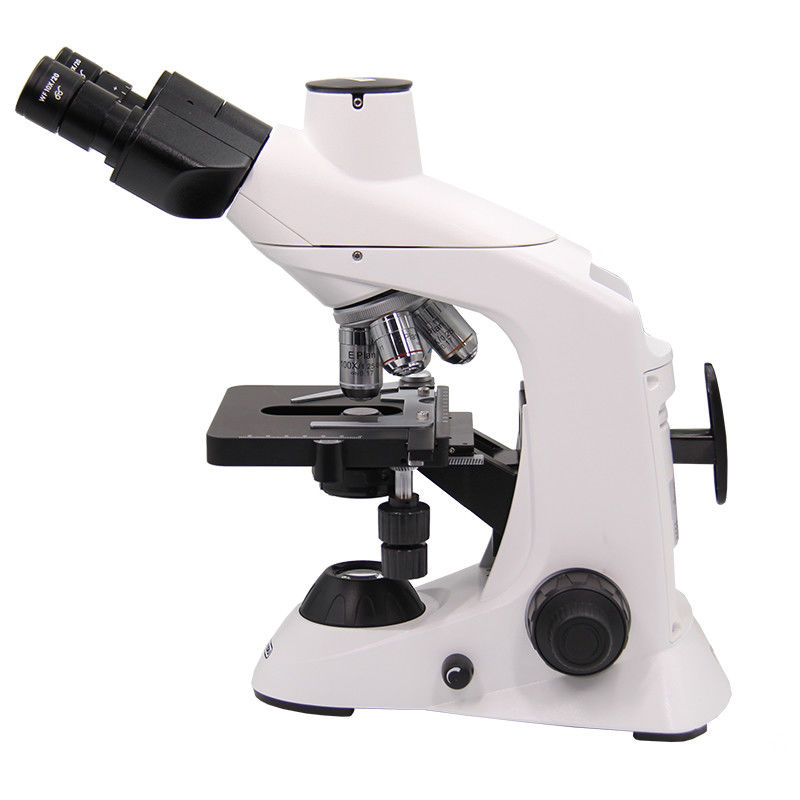

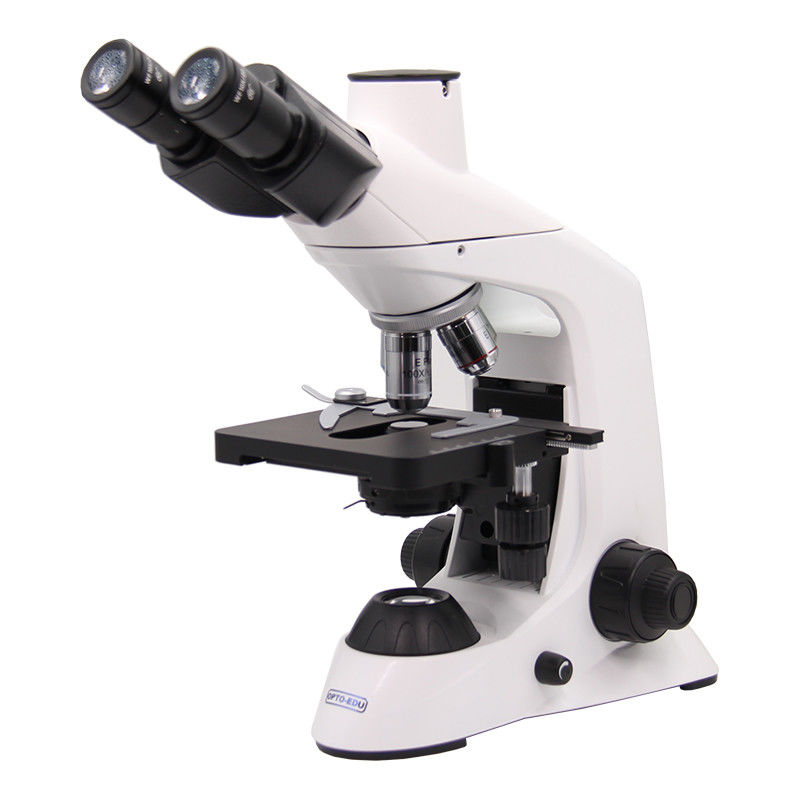

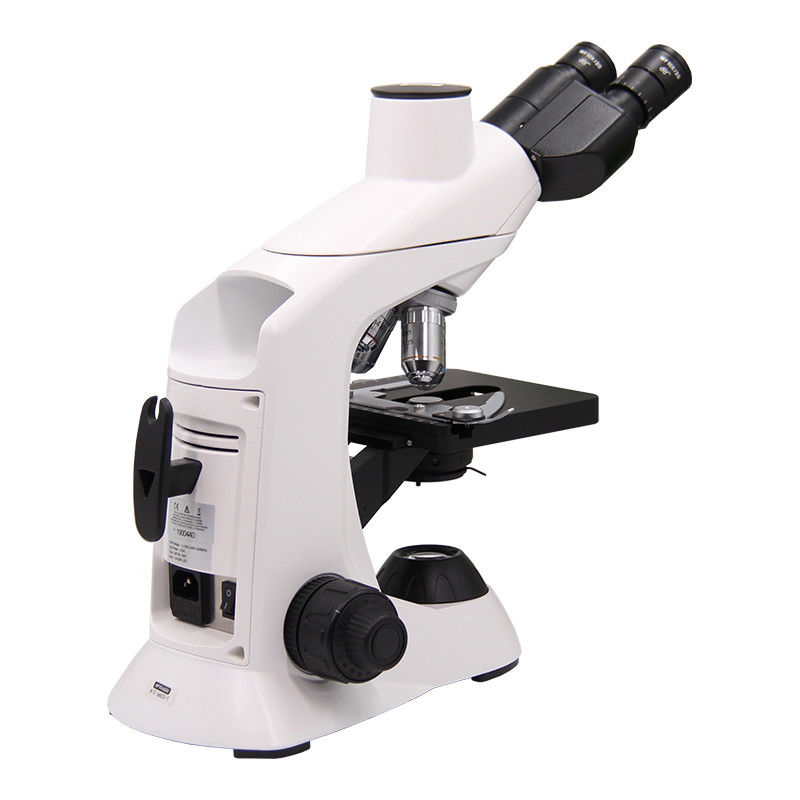

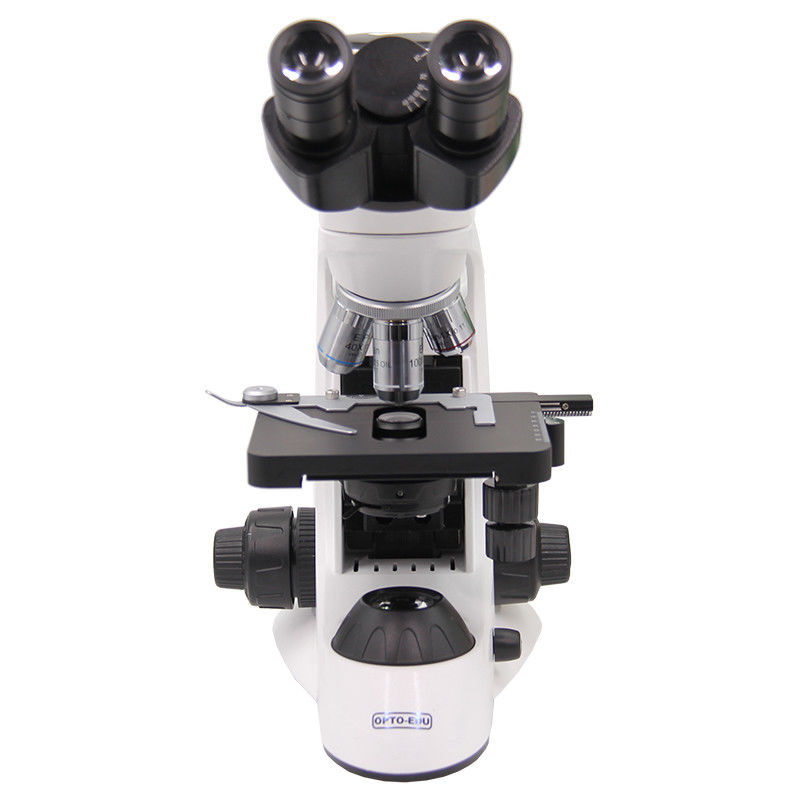

OPTO-EDU A12.6603-T Compound Optical Microscope Biological High Precision

China OPTO-EDU A12.6603-T Compound Optical Microscope Biological High Precision supplier
OPTO-EDU A12.6603-T Compound Optical Microscope Biological High Precision supplier OPTO-EDU A12.6603-T Compound Optical Microscope Biological High Precision supplier OPTO-EDU A12.6603-T Compound Optical Microscope Biological High Precision supplier OPTO-EDU A12.6603-T Compound Optical Microscope Biological High Precision supplier OPTO-EDU A12.6603-T Compound Optical Microscope Biological High Precision supplier OPTO-EDU A12.6603-T Compound Optical Microscope Biological High Precision supplier

Large Image :  OPTO-EDU A12.6603-T Compound Optical Microscope Biological High Precision

Product Details:

Place of Origin: China
Brand Name: CNOEC, OPTO-EDU
Certification: CE, Rohs
Model Number: A12.6603-T

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: FOB $1~1000, Depend on Order Quantity
Packaging Details: Carton Packing, For Export Transportation
Delivery Time: 5~20 Days
Payment Terms: T/T, West Union, Paypal
Supply Ability: 5000 pcs/ Month
Contact Now
Detailed Product Description
Head: Seidentopf Trinocular Head, Inclined 30°,Rotatable 360°, Interpupilary Distance: 48-75mm, Light Split Fixed P20:E80 Eyepiece: WF10X/20mm (High Eyepoint)
Objective: Achromatic, Plan, Infintiy EPlan, Infinity Plan Objectives Optional, 100X Water Objective(Optional) Instead Of 100X Oil Objective, More Be Convenient For Using Nosepiece: High Precision Backward Quadruple Nosepiece
Working Stage: Double Layers Mechanical Stage Size 145×140mm, Travel Range 76×52mm, Scale 0.1mm, With Double Slide Holder Condenser: Abbe Condenser N.A.1.25, Iris Diaphragm, Spiral Up/Down, With Filter Holder
Attachment: Newly Designed Wire Winding Device For Easily Store Power Cord Light Source: High Brightness 3W LED Illumination With Aspheric Collector, Brightness Adjustable
Holding Hole On Back: For Easy Carrying And Moving Microscope To View Objective Changing From Back

OPTO-EDU A12.6603-T China Trinocular Lab Microscope Price Of Operating Microscope



A12.6603 Laboratory biological microscope is a type of professional biological microscope for laboratory or school, equipped with high quality infinity optical system, provides excellent optical performance.

-Infinity Correct Optical System Supply High Resolution And Perfect Definition
-Aspheric 3W LED Light Source
-Drop-Style Integrated Appearance Design, Looks Elegant
-High Rigidity Body Struction Design Supply High Steady
-Low Position Operation For Convenient Using
-New Cable Holder For Easy Keeping Cable
-Holding Hole On Back For Easy Carrying And Watching





Parameter



A12.6603 Laboratory Microscope B B2 B3 B4 T T2 T3 T4
Viewing Head Seidentopf Binocular Head, Inclined 30°, Rotatable 360°, Interpupillary Distance: 48-75mm, Diopter Adjustable o
Seidentopf Trinocular Head, Inclined 30°, Rotatable 360°, Interpupillary Distance: 48-75mm, Diopter Adjustable, Light Distribution 20:80   o
Eyepiece WF10x/20mm, High Eyepoint o   o
WF10x/18mm, High Eyepoint   o   o
Nosepiece Quadruple
Objective Infinity E-Plan Achromatic Objective o       o
4x,/0.10 W.D.=12.1mm
10x,/0.25 W.D.=2.10mm
40x,/0.65 (S) W.D.=0.58mm
100x,/1.25 (S,Oil) W.D.=0.19mm
Infinity Plan Achromatic Objective   o       o
4x/0.10 W.D.=12.1mm
10x/0.25 W.D.=4.64mm
40x/0.66(S) W.D.=0.65mm
100x/1.25(S, Oil) W.D.=0.12mm
Achromatic Objective     o       o
4x/0.10, W.D.=18.6mm
10x/.0.25, W.D.=6.5mm
40x/0.65, W.D.=0.47mm
100x/1.25, W.D.=0.07mm
Plan Achromatic Objective       o       o
4x,/0.10
10x,/0.25
40x,/0.65 (S)
100x,/1.25 (S,Oil)
Stage Mechanical Stage Size 125mmX125mm, Travel Range:76mmX35mm, Scale: 0.1mm
Condenser Abbe N.A.1.25, With Iris Diaphragm
Focusing Coaxial Coarse & Fine Focusing System, Coarse Focusing Travel Range: 25mm, Fine Focusing Travel Range: 2µm / division
Illumination 3W LED, Voltage 110V-240V
Attachment Wire Winding Device
Product Display


Product Details


Related Products


Product Application



Biological microscope is widely used to observe biological slices, biological cells, bacteria and living tissue culture, fluid precipitation observation and research, while observing other transparent or translucent objects and powder, fine particles and other objects. It is also an ideal tools in hospital, teaching and academy field.A12_15.jpg
