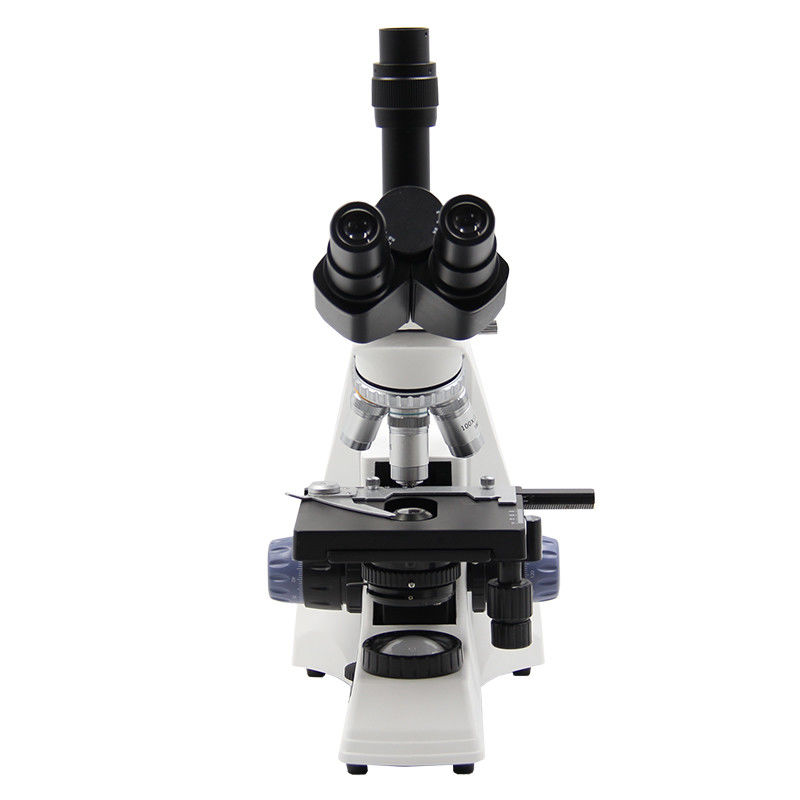

4 Holes Trinocular Student Compound Microscope OPTO-EDU A11.1530-T 40X-2000X

4 Holes Trinocular Student Compound Microscope OPTO-EDU A11.1530-T 40X-2000X

  • High Light

    binocular compound microscope

    ,

    wide field microscope

  • Eyepiece
    WF10X
  • Nosepiece
    4 Holes
  • Objective
    Achromatic 4x,10x,40x,100x
  • Working Stage
    Double Layer Mechnical
  • Condenser
    Abbe N.A.1.25
  • Focusing
    Coaxial Coarse & Fine
  • Light Source
    3W LED
  • Power Supply
    110/220V
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A11.1530
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

4 Holes Trinocular Student Compound Microscope OPTO-EDU A11.1530-T 40X-2000X

OPTO-EDU A11.1530-T Low Cost 40X-2000X Available Trinocular Biological Microscope For Student

Biological microscope is widely used to observe biological slices, biological cells, bacteria and living tissue culture, fluid precipitation observation and research, while observing other transparent or translucent objects and powder, fine particles and other objects.

A11.1530 is the best value entry level biological microscope, especially appreciated when budget is limited. All models are equipped with an integrated X-Y mechanical stage are supplied with an Abbe N.A. 1.25 condenser. Optional WF16X, WF20X eyepiece enable utmost 2000X optical magnification. The built-in rechargeable batteries enable cordless operation.


A11.1530 is the best value entry level biological microscope, especially appreciated when budget is limited. All models are equipped with an integrated X-Y mechanical stage are supplied with an Abbe N.A. 1.25 condenser. Optional WF16X, WF20X eyepiece enable utmost 2000X optical magnification. The built-in rechargeable batteries enable cordless operation.




A11.1531 Student Biological Microscope
Model A11.1531-V A11.1531-M A11.1531-B A11.1531-T
Optical System Finity Optical System
Head Teaching Head Monocular Head Binocular Head Trinocular Head
Inclined at 30º, 360ºRotatable, Interpupillary Distance 54~75 mm, Diopter Adjustable ± 5 On Left Tube
Eyepiece Wide Field Eyepiece WF10X/18mm
Objective Achromatic Objectives 4X 10X 40Xs 100Xs(oil)
Nosepiece Quadruple Nosepiece
Condenser Abbe Condenser N.A. 1.25 With Iris Diaphragm And Filter Holder
Focusing System Coaxial Coarse and Fine Adjustments, Fine Division 0.002mm, Coarse Stroke 36mm Supplied With An Adjustable Rack Stop To Prevent Damage To Sample And Objectives, The Coarse Adjustment Are Equipped With Friction Control
Stage Double Layer Mechanical Stage 110X125mm, Moving Range 30X75mm
Illumination 3W LED Brightness Adjustment
Optional: Power By Battery
Optional: Power By Rechargeable Battery With External 100-240V Mains Adapter
Adapter Eyepiece Tube Adapter N/A N/A Eyepiece Tube Adapter




A11.1531 Biological Microscope Optional Accessories
Eyepiece Wide Field Eyepiece WF16X/13mm A51.1503-16
Wide Field Eyepiece WF20X/11mm A51.1503-20
Objective Plan Achromatic CF Objectives 4X 10X 40Xs 100Xs (oil) A52.1510
CCD Adapter 1.0X A55.1530-10
0.5X A55.1530-05




4 Holes Trinocular Student Compound Microscope OPTO-EDU A11.1530-T 40X-2000X 7


Biological microscope is widely used to observe biological slices, biological cells, bacteria and living tissue culture, fluid precipitation observation and research, while observing other transparent or translucent objects and powder, fine particles and other objects.
