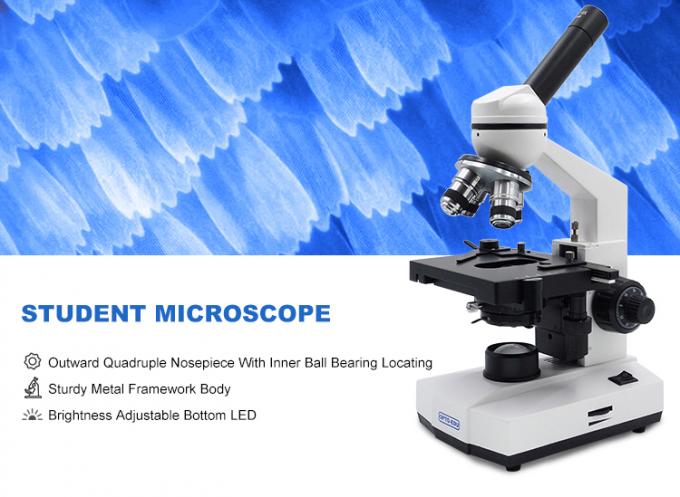

OPTO-EDU A11.1521-M Economical Monocular Biological Student Microscope
A11.1521 is a kind of professional student microscope, monocular head, binocular head and trinocular head are available. The left eyepiece tube of binocular head and trinocular head can adjust diopter. Bottom LED is brightness adjustable. Achromatic 4x, 10x, 40x(s), 100x(s, oil) objective enable utmost 1000X optical magnification, which can clearly observe biological slices, biological cells, bacteria and living tissue culture etc.
Biological microscope is a kind of precision optical instrument used to observe biological slices, biological cells, bacteria and living tissue culture, liquid precipitation, etc., and other transparent or translucent objects as well as powders, fine particles and the like. The biological microscope is used for observation of microorganisms, cells, bacteria, tissue culture, suspensions, sediments, etc. by medical and health units, universities, and research institutes, and can continuously observe the process of cell and bacteria in the culture solution to multiply and divide. Wait. It is widely used in the fields of cytology, parasitology, oncology, immunology, genetic engineering, industrial microbiology, and botany. Its optical technical parameters include: numerical aperture, resolution, magnification, depth of focus, field of view width, coverage difference, working distance and so on. These parameters are not all higher, the better, they are mutually connected and mutually constrained. In practical applications, the relationship between parameters should be coordinated according to the purpose and actual situation of the microscopic examination on the basis of ensuring the resolution.
|A11.1521 Biological Microscope||M||B||T|
|Head||Monocular Head, 45° Inclined, 360° Rotatable||o|| || |
|Binocular Head, 30° Inclined, 360° Rotatable, Interpupillary 54-75mm, Left Eyepiece Tube Diopter Adjustable|| ||o|| |
|Trinocular Head, 30° Inclined, 360° Rotatable, Interpupillary 54-75mm, Left Eyepiece Tube Diopter Adjustable|| || ||o|
|Nosepiece||Quadruple Nosepiece, Outward, Ball Bearing Inner Locating|
|Objective||Achromatic 4x, 10x, 40x(s), 100x(s, oil)|
|Working Stage||Double Layer Mechanical Stage 110x125mm, Moving Range 18x65mm|
|Focusing||Coaxial Coarse & Fine Focus Knob, Coarse Focusing Range 28mm|
|Condenser||Abbe Condenser N.A.1.25, Iris Diaphragm, With Filter Holder|
|Light Source||LED, Brightness Adjustable|
|A11.1521 Laboratory Biological Microscope Optional Accessories|
Student microscope is designed for tertiary institutions and primary and secondary schools, which convenient to observe biological slices, biological cells, bacteria and living tissue culture, fluid precipitation observation and research. It is widely used in teaching demonstration, biochemical experiments, clinical research etc.
Packaging & Shipping
|Package||2 Sets/Carton, 45x27x41CM|
|Packing||Polyfoam Protection And Strong Carton|
|Shipping Time||5~20 Days After Receive The Deposit|
