Monocular Biological Student Microscope

Monocular Biological Student Microscope

  • High Light

    high powered microscope

    ,

    binocular biological microscope

    ,

    biological compound microscope

  • Total Magnification
    40X~1000X
  • Eyepiece
    WF10X/16mm
  • Head
    Monocular,Binocular,Trinocular, 45° Inclined,360° Rotatable
  • Objectives
    4x,10x,40x,100x
  • Nosepiece
    Quadruple
  • Focusing
    Coaxial Coarse And Fine Focus Adjustment, Range:28mm
  • Stage
    Double Layer Mechanical Stage 110mmx125mm, Moving Range : 75mmx35mm
  • Condenser
    Abbe N.A.1.25 Condenser
  • Illuminator
    LED, Brightness Adjustable
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A11.1521
  • Minimum Order Quantity
    1 pc
  • Price
    Negotiation
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

Monocular Biological Student Microscope

OPTO-EDU A11.1521-M Economical Monocular Biological Student Microscope


A11.1521 is a kind of professional student microscope, monocular head, binocular head and trinocular head are available. The left eyepiece tube of binocular head and trinocular head can adjust diopter. Bottom LED is brightness adjustable. Achromatic 4x, 10x, 40x(s), 100x(s, oil) objective enable utmost 1000X optical magnification, which can clearly observe biological slices, biological cells, bacteria and living tissue culture etc.


Biological microscope is a kind of precision optical instrument used to observe biological slices, biological cells, bacteria and living tissue culture, liquid precipitation, etc., and other transparent or translucent objects as well as powders, fine particles and the like. The biological microscope is used for observation of microorganisms, cells, bacteria, tissue culture, suspensions, sediments, etc. by medical and health units, universities, and research institutes, and can continuously observe the process of cell and bacteria in the culture solution to multiply and divide. Wait. It is widely used in the fields of cytology, parasitology, oncology, immunology, genetic engineering, industrial microbiology, and botany. Its optical technical parameters include: numerical aperture, resolution, magnification, depth of focus, field of view width, coverage difference, working distance and so on. These parameters are not all higher, the better, they are mutually connected and mutually constrained. In practical applications, the relationship between parameters should be coordinated according to the purpose and actual situation of the microscopic examination on the basis of ensuring the resolution.

Parameter



A11.1521 Biological MicroscopeMBT
HeadMonocular Head, 45° Inclined, 360° Rotatableo
Binocular Head, 30° Inclined, 360° Rotatable, Interpupillary 54-75mm, Left Eyepiece Tube Diopter Adjustable o
Trinocular Head, 30° Inclined, 360° Rotatable, Interpupillary 54-75mm, Left Eyepiece Tube Diopter Adjustable  o
EyepieceWF10x/16mm
NosepieceQuadruple Nosepiece, Outward, Ball Bearing Inner Locating
ObjectiveAchromatic 4x, 10x, 40x(s), 100x(s, oil)
Working StageDouble Layer Mechanical Stage 110x125mm, Moving Range 18x65mm
FocusingCoaxial Coarse & Fine Focus Knob, Coarse Focusing Range 28mm
CondenserAbbe Condenser N.A.1.25, Iris Diaphragm, With Filter Holder
Light SourceLED, Brightness Adjustable
A11.1521 Laboratory Biological Microscope Optional Accessories
EyepieceWF16xA51.1503-16

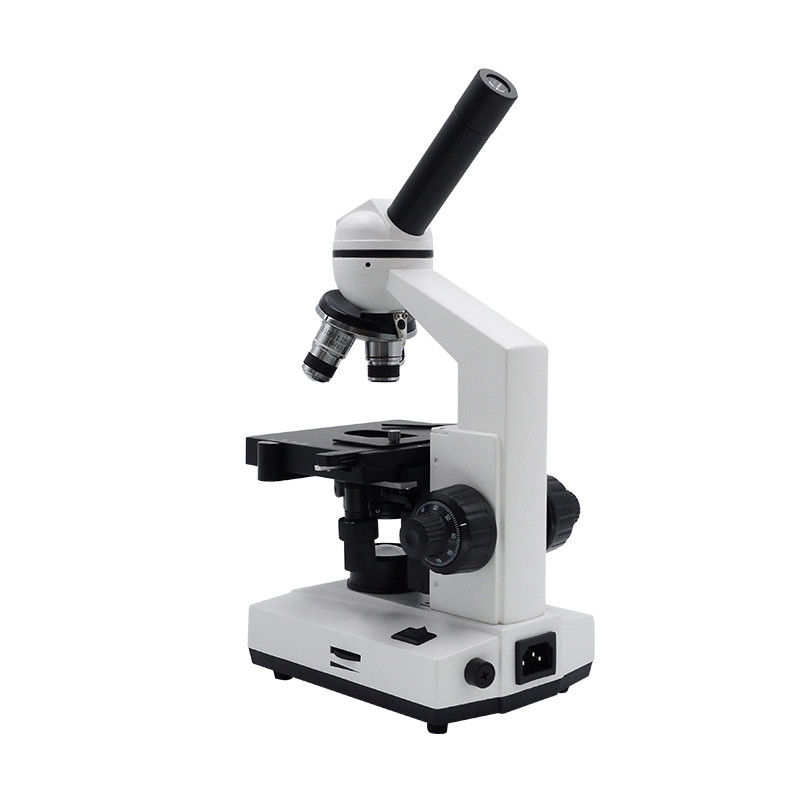

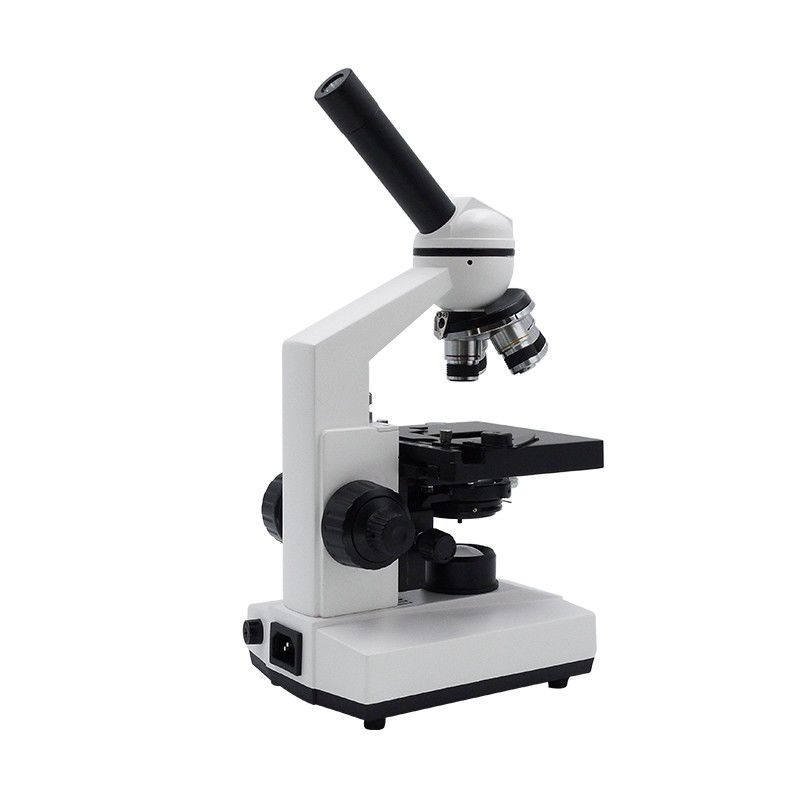

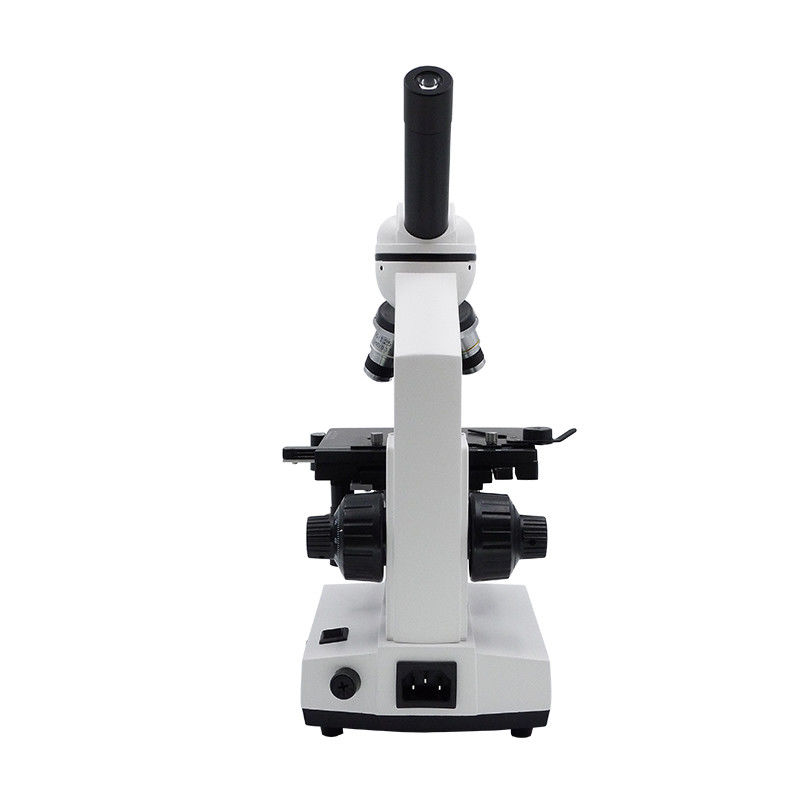

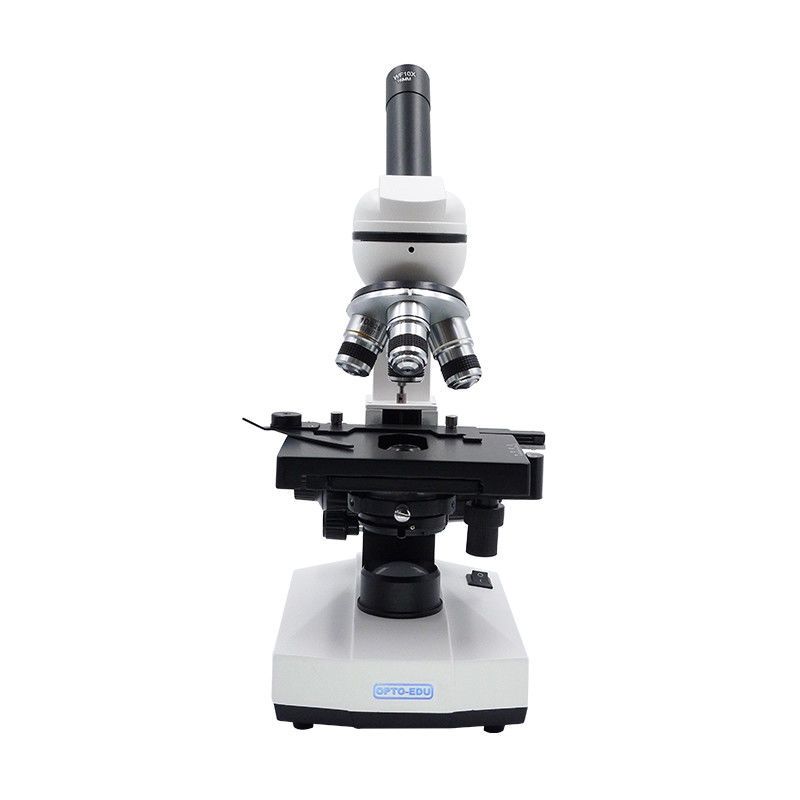

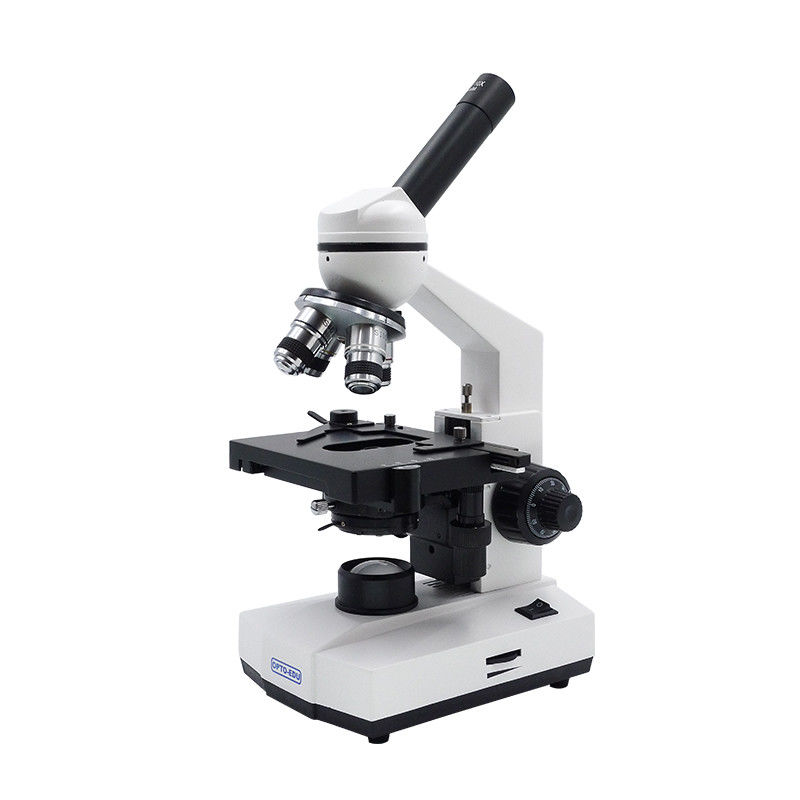

Product Display



Product Details




Product Application

Student microscope is designed for tertiary institutions and primary and secondary schools, which convenient to observe biological slices, biological cells, bacteria and living tissue culture, fluid precipitation observation and research. It is widely used in teaching demonstration, biochemical experiments, clinical research etc.


Packaging & Shipping


Package2 Sets/Carton, 45x27x41CM
Gross Weight7.5KG
PackingPolyfoam Protection And Strong Carton
Shipping Time5~20 Days After Receive The Deposit
