WF10X University Student 9.7" Biological Compound Microscope 40x - 1000x A33.0209 + A59.3503

China WF10X University Student 9.7" Biological Compound Microscope 40x - 1000x A33.0209 + A59.3503 supplier
WF10X University Student 9.7" Biological Compound Microscope 40x - 1000x A33.0209 + A59.3503 supplier WF10X University Student 9.7" Biological Compound Microscope 40x - 1000x A33.0209 + A59.3503 supplier WF10X University Student 9.7" Biological Compound Microscope 40x - 1000x A33.0209 + A59.3503 supplier WF10X University Student 9.7" Biological Compound Microscope 40x - 1000x A33.0209 + A59.3503 supplier WF10X University Student 9.7" Biological Compound Microscope 40x - 1000x A33.0209 + A59.3503 supplier

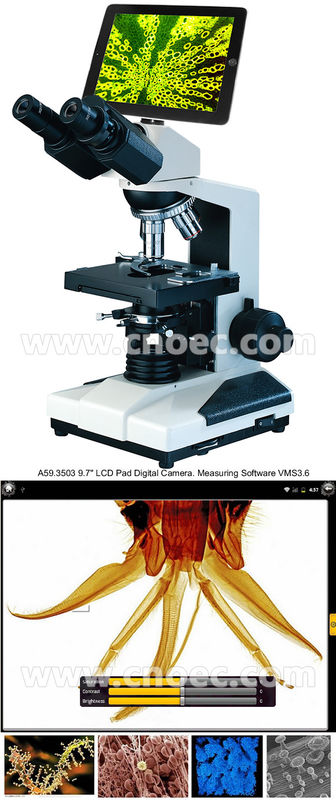

Large Image :  WF10X University Student 9.7" Biological Compound Microscope 40x - 1000x A33.0209 + A59.3503

Product Details:

Place of Origin: China
Brand Name: CNOEC, OPTO-EDU
Certification: CE, Rohs
Model Number: A33.0209 + A59.3503

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: FOB $1~1000, Depend on Order Quantity
Packaging Details: Carton Packing, For Export Transportation
Delivery Time: 5~20 Days
Payment Terms: T/T, West Union, Paypal
Supply Ability: 5000 pcs/ Month
Contact Now
Detailed Product Description
LCD Screen: 9.7" Magnification: WF10X
Certification: CE, Rohs Drawtube: Binocular
Illumination: Halogen Lamp, LED Theory: Digital LCD Microscope



Binocular Biological Compound Microscope 40x - 1000x A33.0209 + A59.3503



Description:


9.7" LCD Pad Digital Biological Microscope

Newly Designed with 9.7" LCD This microscope is the conveniently operated optical instruments with excellent functions and new patternit is very suitable for usage in medical test,teaching and microobservation in hospitals and schools.

--9.7" LCD Pad Display with 2nd Generation HD Screen 1024*768.
--5.0M Digital Camera, max 2592*1936 pixels
--Wifi Supported, Wireless Lan 802.11 b/g
--With high quality achromatic objectives
--Coaxial coarse/fine focusing system with tension adjustable and up stop
--6V 20W halogen lamp with brightness control





Specifications:



Specification



A33.0209 9.7" LCD Pad Digital Biological Microscope

Eyepiece

WF10X(Φ18mm)

Objective

Achromatic 4X/0.10

Achromatic 10X/0.25

Achromatic 40X/0.65(Spring)

Achromatic 100X/1.25(Spring, oil)

Head

Compensation binocular head inclination 30°;

Focus System

Coaxial coarse/fine focus system, Minimum division of fine focusing: 2um

With tensional adjustable and up stop, Base bearing black plastic cap

Nosepiece

Quadruple backward ball bearing inner locating

Stage

Double layer mechanical, size 135x125mm, moving range 75x35mm

Condenser

Abbe N.A.1.25  Rack & pinion adjustment

Filter

Blue filter

Frosted filter

Collector

For halogen lamp

Light source

6V 20W halogen lamp with brightness control



A59.3503 9.7" LCD Pad Digital Camera

9.7" LCD Pad Digital Camera

1/2.5 " CMOS Sensor

5.0 M Pixels, Full Resolution 2592*1936

Image-previewing Rate:30fps at Full Resolution

Video Format:720P/30FPS

White Balance Setting:Manual / Automatic / Preinstall Operation

Programmable Controls:Gain, Frame Rate, Frame Size, Exposure

Pixel Size:2.2um x 2.2um

ADC:12bit

Dynamic Range:71dB

SNRMAX:40.5dB

Shutter Type:Global Reset Release (GRR)

Color Filter Array:RGB Bayer Pattern

Connection: C-mount Interface

Display

G-sensor, Multi-point Capacitance Touch Screen

9.7" 2nd Generation HD LED Backlit LCD Screen (1024*768)

Operating System

Android 2.3

CPU

1.2GHz (ARM Cortex-A8 Core)

RAM

1GB (DDR 3)

Storage Device

Onboard Flash 8GB, Optional:16GB

ESupport External TF Card, Maximum Capacity of 32GB

Application Software

Task Manager, Browser, Calculator, Calendar, Email,

ES File Explorer, Gallery, Photo/Video, Music, Search,

Setting, Sound Recorder, E-book, MSN/Skype Chatting, Game Playing etc.

Buttons

Top Button: Turn on/off, Volume+, Volume -, Reset

Front Main Button: Return, Home, Menu, Search

Battery

3.7V 6400mAh Rechargeable Li-Polymer Battery

Endurance in Tablet Mode: 10hours

Wi-Fi

Support wireless data network, wireless lan 802.11b/g

Bluetooth

V2.1 + EDR

3G Net Work

3G Module is Optional Accessories, External 3G Card Slot ,

 Support WCDMA / EVDO / TDSCDMA

Interface

1* Mini USB2.0, 1*HDMI, 1* Micro-SD Card Slot (Up to 32GB),

 1* 3.5mm Standard Stereo Earphone Slot,1* SIM Card Slot

Sensor Function

Onboard G-sensor, Support X/Y/Z 3axis Gravity Sensor

Onboard Electronic Compass

Audio

2* Built-in Class-D Digital Power Amplifier Loudspeaker, Built-in Microphone

Media File Formats

Video Supported: MPEG-2 Main-High, H.264 BP/MP/HP,

VC1 SP/MP/AP, RV10 8/9/10, MPEG-4/Xvid SP/ASP,

DivX 3/4/5/6, H.263 P0/P3, MJPEG Encode:H.264 BP,

H.263 P0/P3, MPEG-4 SP, MPEG-2 Main-Main, MJPEG,

3D Video Primary Formats

Audio Support: MP3, ACC, ADTS, M4A, WMA

Photo Support: JPG, GIF, BMP, PNG

Language

Multi Languages:English, Czech, Dansk, German, Spanish,

Russian, French, Italian, Dutch, Norwegian, Polski, Portugues,

 Greek, Portuguese, Svenska, Turkey, Korean, Japanese,

Simplified Chinese, Traditional Chinese etc.

Power Switching Adaptor

External Power Adaptor, Input:AC 110V~220V, Output:DC5V 2500mA.
Optional Plug Types:USA , EU, UK and Japan etc.

Accessories

Power Adapter, USB Cable, User Manual

Ambient Condition

Temperature:-30°C to +70°C

Software

Profressional Measurement Software(VMS3.6)

Click to See More Details of A59.3503 9.7" LCD Pad Digital Camera
