OPTO-EDU A33.1019 3W LED 5.0M 1600x Laboratory Biological Microscope

OPTO-EDU A33.1019 3W LED 5.0M 1600x Laboratory Biological Microscope
OPTO-EDU A33.1019 3W LED 5.0M 1600x Laboratory Biological Microscope OPTO-EDU A33.1019 3W LED 5.0M 1600x Laboratory Biological Microscope OPTO-EDU A33.1019 3W LED 5.0M 1600x Laboratory Biological Microscope OPTO-EDU A33.1019 3W LED 5.0M 1600x Laboratory Biological Microscope

Large Image :  OPTO-EDU A33.1019 3W LED 5.0M 1600x Laboratory Biological Microscope

Product Details:
Place of Origin: China
Brand Name: CNOEC, OPTO-EDU
Certification: CE, Rohs
Model Number: A33.1019
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: FOB $1~1000, Depend on Order Quantity
Packaging Details: Carton Packing, For Export Transportation
Delivery Time: 5~20 Days
Payment Terms: T/T, West Union, Paypal
Supply Ability: 5000 pcs/ Month
Detailed Product Description
Magnification: 40x~1600x Objective: Achromatic 4x/0.10, 10x/0.25, 40xs/0.65, 100xs/1.25(Oil)
Stage: Double Layer Mechanical Stage, 140*140mm, Mvoing Range 50*75mm Condenser: N.A.1.25 Abbe Condenser, Iris Diaphargm, With Filter Holder
Resolution: 5.0M CMOS LCD Screen: 9.7"LCD, Resolution 1024x600 High Clearance Screen
Output: USB 2.0 Type-A, TF Card Power Supply: DC 12V/2A Power Adapter, Input 100-240V AC
High Light:

OPTO-EDU laboratory biological microscope

,

3w laboratory biological microscope

,

1600x laboratory biological microscope

OPTO-EDU A33.1019 3W LED 5.0M 1600x Laboratory Biological Microscope 0

OPTO-EDU A33.1019 3W LED 5.0M 1600x Laboratory Biological Microscope 1

A59.3520

5.0M, 9.7" LCD, Resolution 2048*1536, Android 5.1, CPU 4 Core 1.8G,

RAM 2G ROM 8G, HDMI+TF Card Output, Touch Screen USB Mouse Control,

Installed Measure Software, Chinese/English Manual

OPTO-EDU A33.1019 3W LED 5.0M 1600x Laboratory Biological Microscope 2

OPTO-EDU A33.1019 3W LED 5.0M 1600x Laboratory Biological Microscope 3

OPTO-EDU A33.1019 3W LED 5.0M 1600x Laboratory Biological Microscope 4

OPTO-EDU A33.1019 3W LED 5.0M 1600x Laboratory Biological Microscope 5

OPTO-EDU A33.1019 3W LED 5.0M 1600x Laboratory Biological Microscope 6

OPTO-EDU A33.1019 3W LED 5.0M 1600x Laboratory Biological Microscope 7

Nosepiece & Objective

--Quadruple Nosepiece, With Achromatic Objectives : 4x, 10x, 40x(s), 100x(s).

--40x And 100x Objective Lens Has A Spring Design, If The Front Of The Objective Lens Is Automatically Indented, It Will Not Damage The Objective Lens And Sample.

--The 100x Objective Lens Is An Oil Objective Lens. When Used, Cedar Oil Is Used As A Medium For Better Observation.



Working Stage

--Double Layer Mechanical Stage, Size 140x140mm, Moving Range 50x75mm

Medium-sized Large Working Stage, You Can Place Two Microscope Slides For Easy Observation And Comparison.


OPTO-EDU A33.1019 3W LED 5.0M 1600x Laboratory Biological Microscope 8

Condenser

--N.A. 1.25 Abbe Condenser, Iris Diaphragm, With Filter Holder.

OPTO-EDU A33.1019 3W LED 5.0M 1600x Laboratory Biological Microscope 9

Illumination

--Built-in Illumination 6V20W Halogen Lamp, Can Be Replaced By A Plan-concave Mirror

OPTO-EDU A33.1019 3W LED 5.0M 1600x Laboratory Biological Microscope 10

Focusing

--Low Position Coaxial Coarse & Fine

Focusing, Ergonomic, Easier To Operate.



--Fine Focusing Scale 0.002mm.



--With Tension Adjustment, With Up Limit,

Personalized Settings, You Can Adjust The Tension According To Individual Needs.

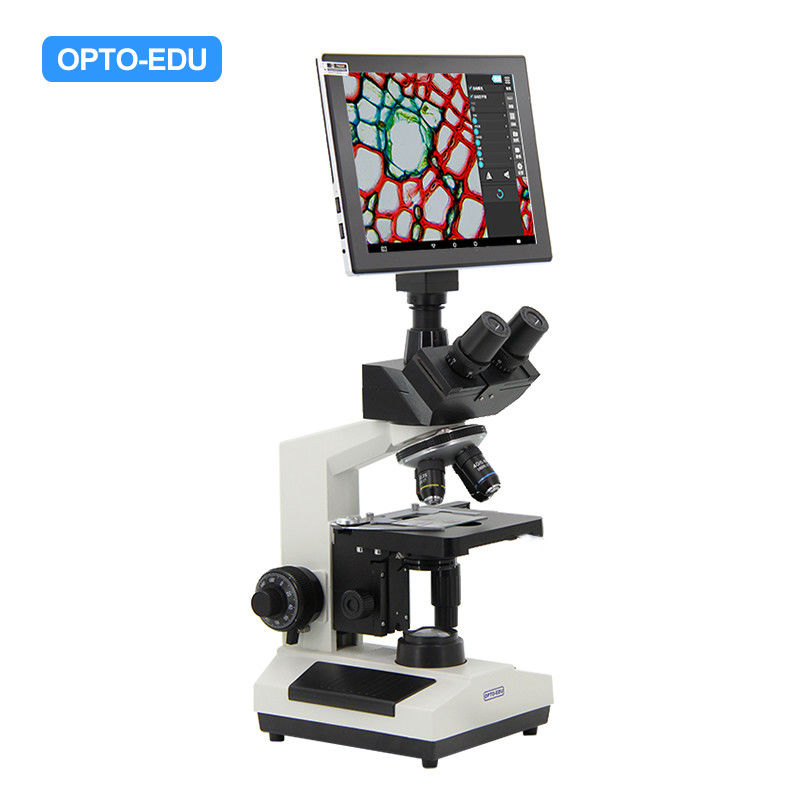

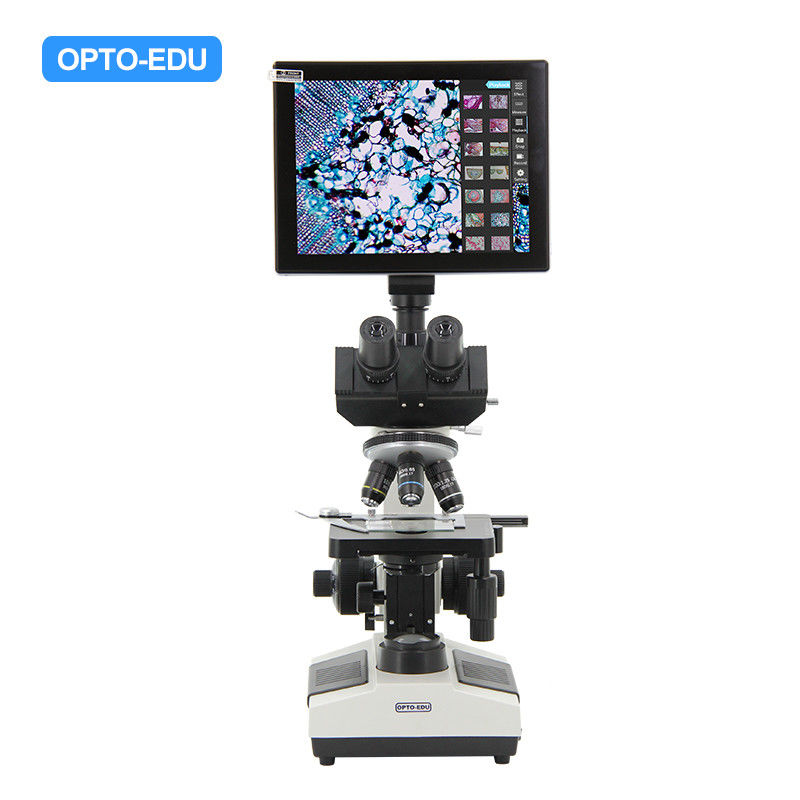

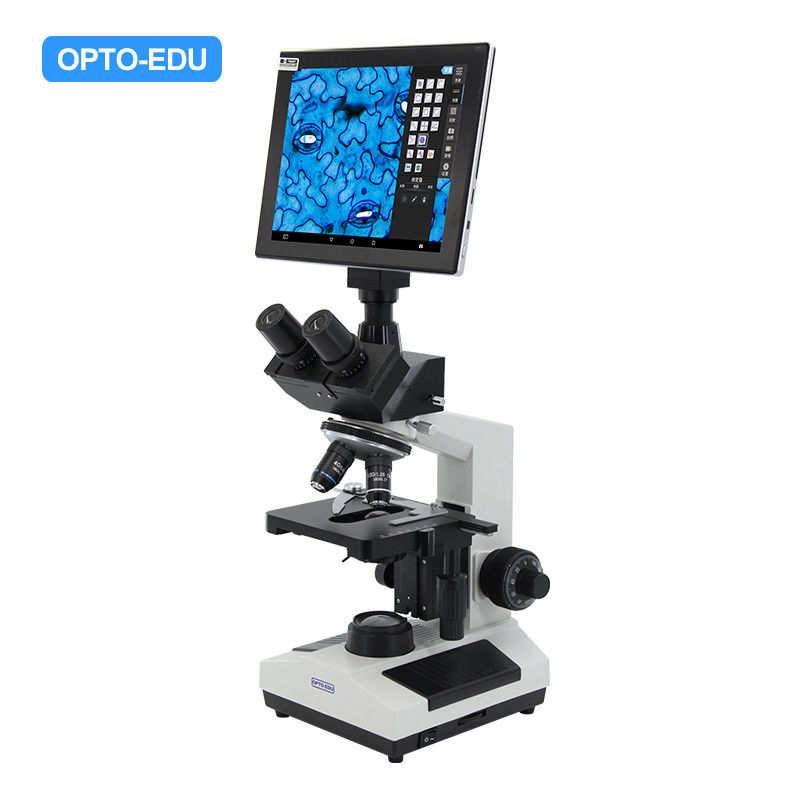

A33.1019 LCD Digital Biological Microscope
Magnification 40x~1600x
Head Sliding Trinocular Black Head, 45° Inclined, 360° Rotatable, With Eyepiece Adapter & 1.0x C-Mount
Eyepiece Wide Field WF10x/18mm
Wide Field WF16x/11mm
Nosepiece Quadruple Nosepiece
Objective Achromatic 4x/0.10, 10x/0.25, 40xs/0.65, 100xs/1.25(Oil)
Stage Double Layer Mechanical Stage, 140*140mm, Mvoing Range 50*75mm
Focusing Low Position Coaxial Coarse & Fine Focusing. Fine Focusing Scale 0.002mm, With Tension Adjustment, With Up Limit
Condenser N.A.1.25 Abbe Condenser, Iris Diaphargm, With Filter Holder
Filter Blue, Yellow, Green
Light Source Plan-Concave Mirror
Built-in Illumination 6V20W Halogen Lamp

OPTO-EDU A33.1019 3W LED 5.0M 1600x Laboratory Biological Microscope 11

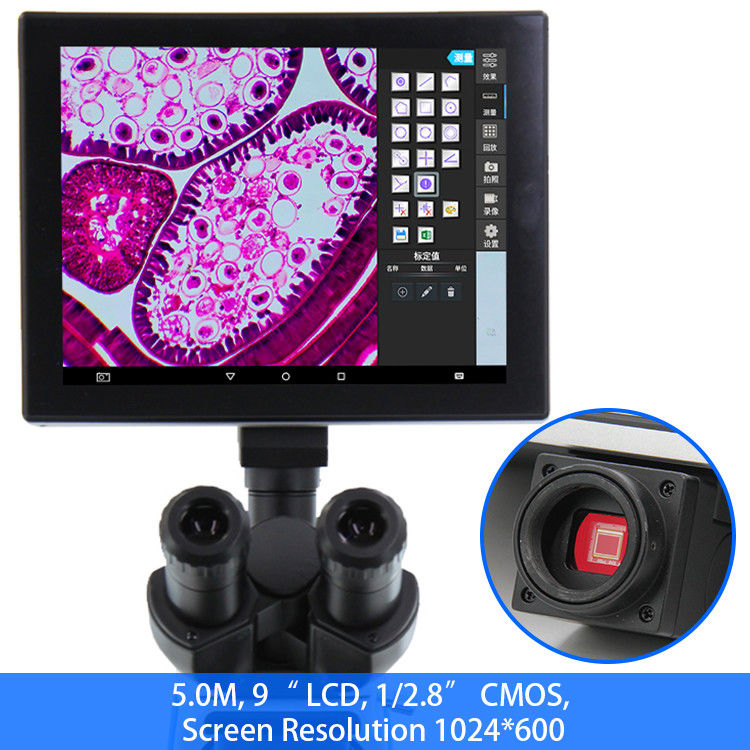

A33.1019 LCD Digital Camera Specification
Screen Size 9.7"HD IPS Touch Screen With Backlight
Camera 5.0M 1/2.5"CMOS Digital Camera
Pixel Size 2.2umx2.2um
Resolution 2048x1536 @15FPS
Data Storage TF Card or Built-in Memory
Data Output USB2.0, HDMI, TF Card
Photo 5.0M .JPEG
Video 1080p Video Record
Cross Hair Support
System Android 5.1 System
90 Languages
Support Mouse + Keyboard Control
Support WIFI
Support Bluetooth
Function S-Eye Software & Instruction Manual Installed
Mark: Point, Crosshair, Coordinate, Text
Length Measure: Straight Line Length, Broken Line Length, Curve Length, Parallel Line Distance, Point To Line Distance
Distance Between 2 Circle Centers: Radius Fixed Circle, Two-point Fixed Circle, Three-point Fixed Circle
Geometric Measure:
Line Segment Length, Radius Fixed Circle, Two-point Fixed Circle, Three-point Fixed Circle, Concentric Circle
Geometric Area Measure: Polygon, Square
Power DC 12V/2A Power Adaptor, AC 100~240V
Size Pad 238x182x12mm, Camera 40x39mm
Package Packing Box 10x24x29cm, 0.6Kg, 1 pc/Box

OPTO-EDU A33.1019 3W LED 5.0M 1600x Laboratory Biological Microscope 12
OPTO-EDU A33.1019 3W LED 5.0M 1600x Laboratory Biological Microscope 13
OPTO-EDU A33.1019 3W LED 5.0M 1600x Laboratory Biological Microscope 14
OPTO-EDU A33.1019 3W LED 5.0M 1600x Laboratory Biological Microscope 15
OPTO-EDU A33.1019 3W LED 5.0M 1600x Laboratory Biological Microscope 16

A33.1019 LCD Digital Biological Microscope Optional Accessories Cata. No.
Adapter 0.45x C-mount With Reduction A55.1002-45
Objective Achromatic 20x/0.4, W.D.=9mm A52.1001-20
Achromatic 60x/085(S) A52.1001-60
Dark Field Dark Field Condenser, N.A. 0.7~0.9, Dry A5D.1006-D
Dark Field Condenser, N.A. 1.25~1.35, Immersion A5D.1006-I
Achromatic 100X with Cone Diaphram for Oil Dark Field Observation A5D.1030-1
Plan 100X with Iris Diaphram for Oil Dark Field Observation A5D.1030-2
Polarizing Simple Polarizing Kit A5P.1001
Phase Contrast Sliding Phase Contrast Set
--Sliding Phase Contrast Condenser
--Achromatic Phase Contrast Objective 10x,40x
--Centering Telescope
--Green Filter
A5C.1002-C3
Fluorescent EPI-Fluorescent Kit
--Power Supplier 220V/110V Interchangeable, Digital Display
--100WHBO Ultra Hi-Voltage Spherical Mercury Lamp
--Barrier To Resist Ultraviolet Light
--Fluorescence Free Oil
--Fluorescent Objective 10x,25x,40x,100x
--Excitation Filter B/G
--Excitation Filter U/V
A5F.1001
A5F.1001-UV
