|Theory:||Polarizing Light Microscope||Condenser:||Abbe N.A.1.25|

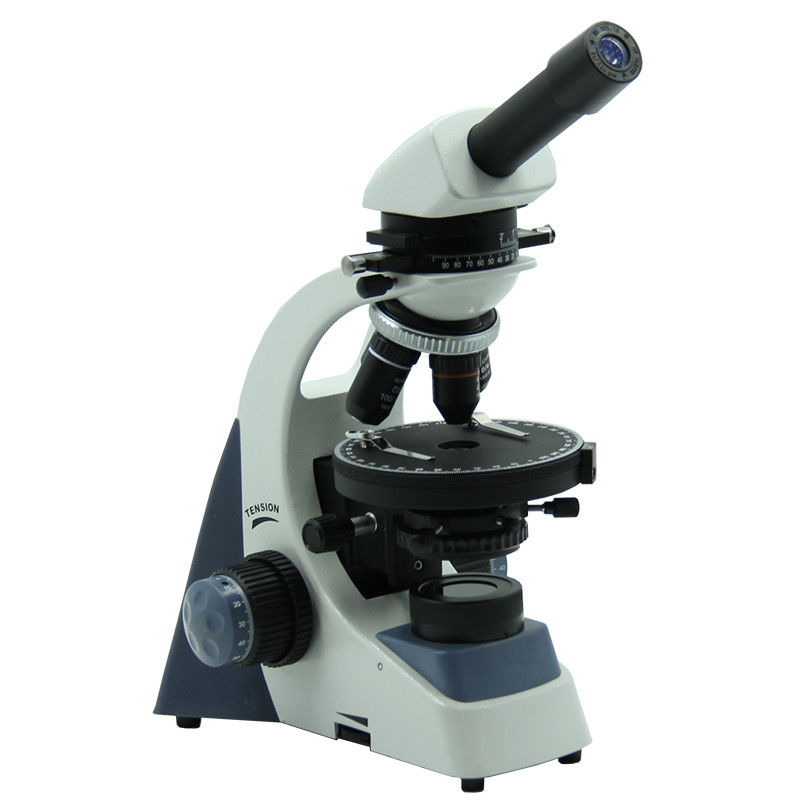

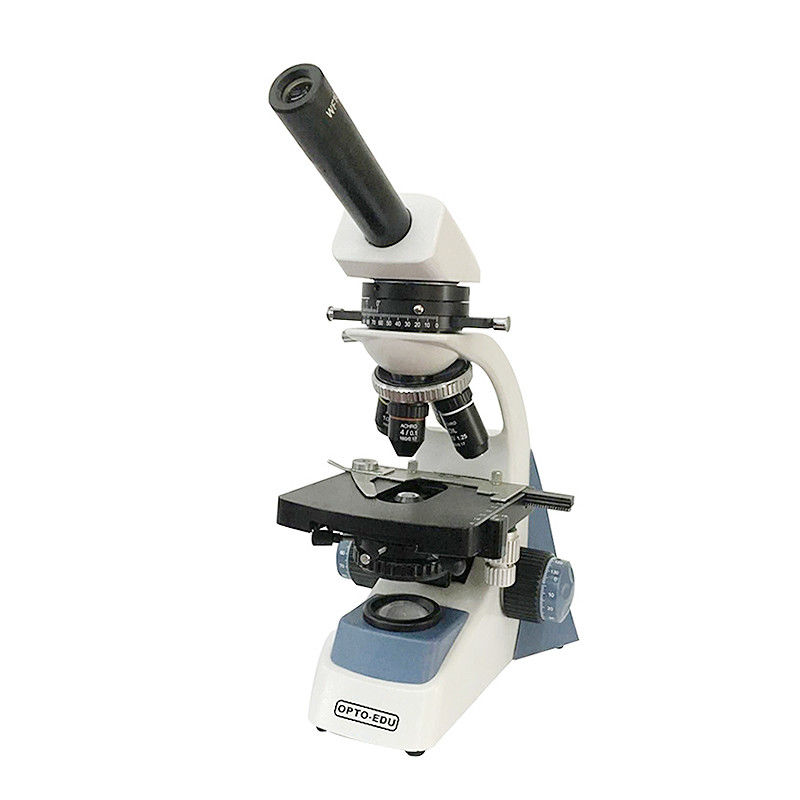

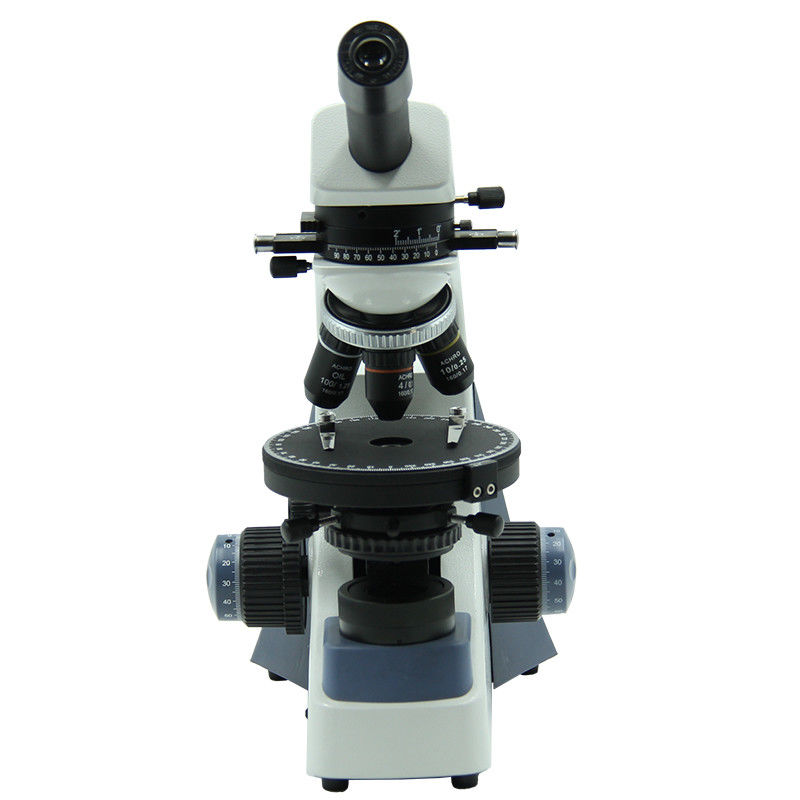

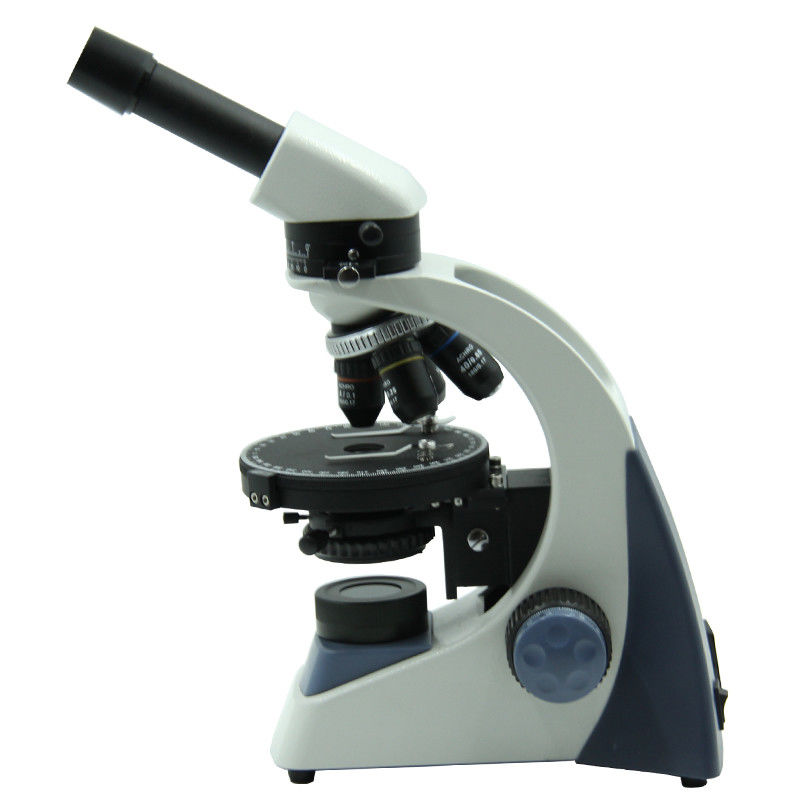

WF10x/18mm Polarized Light Microscope With Abbe N.A.1.25, With Dia 2~30mm Iris Diaphragm A15.1302
A15.1302 Polarizing Microscope, with full polarzing function and competitive price, is the best economic tools for school and student use, newly developed in 2011.
--WF10x/18mm Wide Field High Eyepoint, One With Retical Micrometer
--Round Stage Dia.120mm, 360° Rotatable, Graduation 1° Increment, Minimum Resolution 6'
--Light Source 1W LED
--Polarizer: On Light Collector, 360º Rotatable
--Analyzer: Rotatable With Graduation 0~90º, Sliding Out of Optical Path
--Optical Compensator: λ Slip (First Class Red), 1/4λ Slip
|Head||Monocular Head, 30° Inclined||Binocular Head, 30° Inclined, Interpupillary Distance 55~75mm|
With Retical 0.1mm/Div
WF10x/18mm, High Eyepoint, 1pc
WF10x/18mm, With Retical 0.1mm/Div, 1pc
|Nosepiece||Backward, Quadruple Nosepiece|
|Objective||Achromatic 4x,10x,40x(S),100x(O,S), 45mm DIN|
|Working Stage||Round Stage Dia 120mm, 360° Rotatable, Graduation 1° Increment, Minimum Resolution 6', When Using Venire Scale Center Adjustable|
|Condenser||Abbe N.A.1.25, With Dia 2~30mm Iris Diaphragm, With Filter Dia.32mm|
|Focusing||Coarse & Fine Focusing Knob, Range 14mm, Minimum Division Of Fine Focusing 0.01mm|
|Light||Build-in LED, 3.5V/1W, Brightness Adjustable.|
|Polarizer: On Light Collector, 360º Rotatable|
|Analyzer: Rotatable With Graduation 0~90º, Can Be Slided Out of Optical Path|
|Optical Compensator :
-- λ Slip (First Class Red)
A15.1302 series is a simple polarizing microscope with advanced multifunction. It can observe mineral crystal figure, color and interference color and also identify its optical performance. It is a good microscope used in geology, petroleum, coal, Chemical fiber, medical treatment and physic inspection. It is also widely used in academic demonstration and research.
Eyepiece: Wide field WF10x/18mm
Focus System: Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 0.002mm
Stage: Rotatable stage, Diameter Φ150mm, 360° graduated (in 1degree increments), minimum retardation resolution 6' center adjustable and with tightener
Head: Seidentopf Head, Inclined 30°, Rotatable 360°, Interpupillary Distance 48-75mm, Left Eyepiece Tube Diopter Adjustable +/-5°, Trinocular Head Light Split 20:80.
Eyepiece: WF10x/18mm, 1 pc， WF10x/18mm, With Micrometer 0.1mm Div., 1 pc
Nosepiece: Quadruple, Center Adjustable
Objective: 4x, 10x, 20x, 40x
