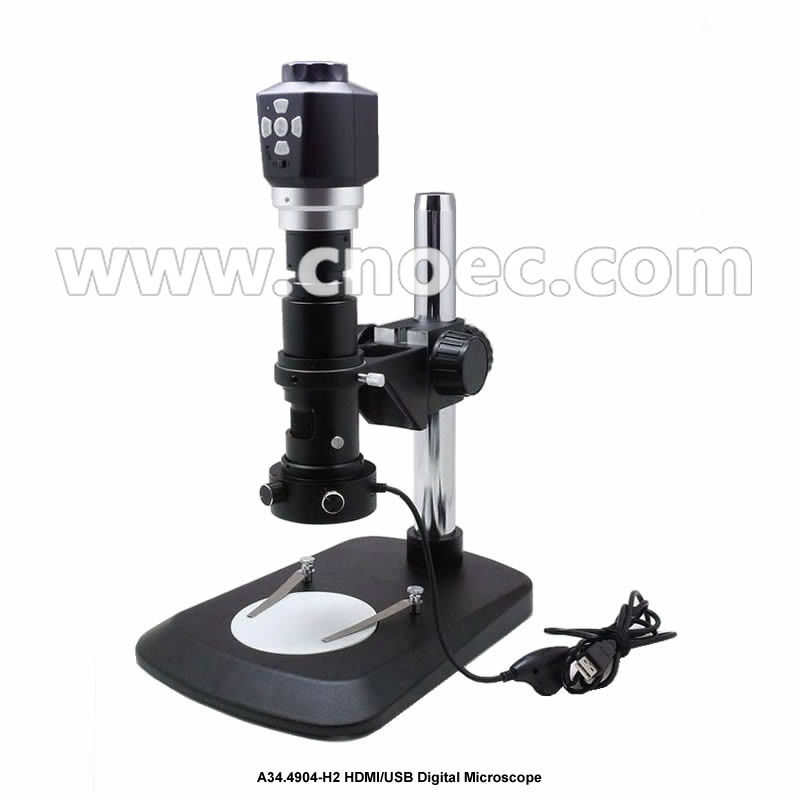

3.5M /1080P Monocular HDMI Digital USB Microscope A34.4904 - H2 Dual Coaxial LED Light Source
Introduction
A34.4904-H2 Microscope combines traditional optical microscope with digital imaging system. 3.5 million pixel HD color image sensor makes progressive scanning to realize high-definition imaging and color rendition display, low noisy point and High-speed dynamic image without trailing smear. A34.4904-H2 adopts the newest 0.7-5X zoom camera for clearer image, larger depth of field, High-speed 30 frame/second, zero trailing smear, HD detail display, high-quality image display and built-in SD card to support photography, recording and playback.
Features
1. Fresh structure to display the best resolution and real color image.
2. Large depth of field, wide field of view, long operation distance and real vertical optical path.
3. Wide zoom range for different sample size.
4. Dual output HDMI&USB to support photograph/record and real time storage of SD card image, with USB 3.5M, HDMI 1080p/30fps.
5. Avoid tedious adjustment work and directly change the operation distance through eye-height adjustment ring (eye height effective value BFL: 11.6~36mm) and expand the original magnification ratio of the microscope.
6. Exclusive external coaxial lighting source without reflection to control light brightness conveniently.
7. HDMI high definition output, high-speed 30 frame without trailing smear, clear and fluent image.

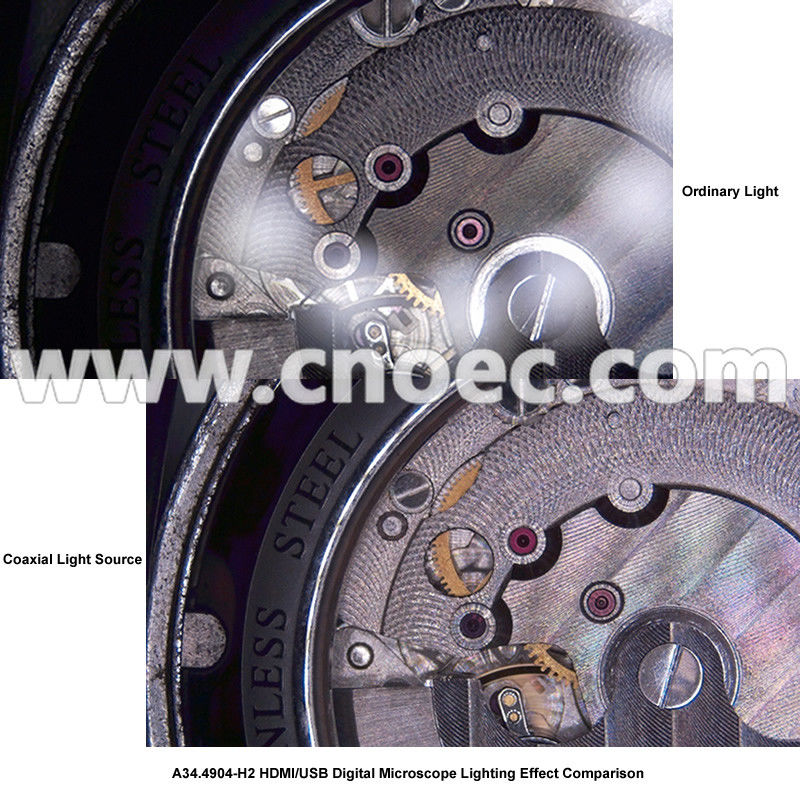

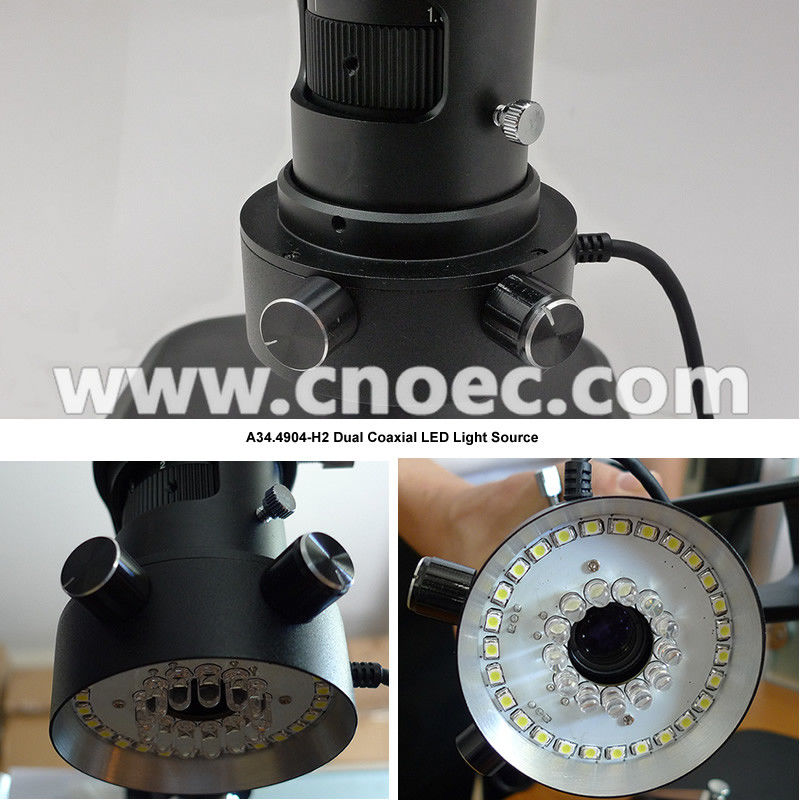

8. Dual coaxial LED light source--inner fixed coaxial LED light and outer brightness adjustable coaxial LED light.Turnning on Inner fixed coaxial LED light to observe ordinary objects,and the outer brightness adjustable coaxial LED light for metal objects can eliminate reflective effect.
9. Focusing knob on top, supply large distance manual focusing range.
Specification
|
A34.4904-H2 HDMI/USB Digital Microscope |
||
|---|---|---|
|
Hardware Configuration
|
||
| Output | Dual Output : USB 3.5M, HDMI 1080p/30fps | |
| Focus | Focusing Knob On Top, Supply Large Distance Manual Focusing Range | |
| Dual Coaxial LED Light Source | Inner Fixed Coaxial LED Light, Outer Brightness Adjustable Coaxial LED Light | |
| Image Sensor | Aptina AR0330 CMOS Sensor | |
| Scan Mode | Scan Line By Line | |
|
Maximum Resolution
|
3.5M, 2304*1536 (3,538,944 Pixels) | |
| Sensor Optical Format | 1/3'' (5.07mm(H)*3.38mm(V), Diagonal 6.09mm) | |
| Pixel Size | 2.2μm*2.2μm | |
| Dynamic Range |
69.5dB
|
|
| SNR(Signal Noise Ratio) | 39dB | |
|
Spectral Characteristics
|
380-650nm | |
| HDMI Output Resolution | 1920*1080I60,1920*1080P30,1280*720P60,640*480P60 | |
|
Video Mode Resolution
|
1920*1080@30FPS, 1280*720P@30FPS, 800*480@30FPS | |
| Snapshot Mode Resolution | 2304*1536 ,2304*1296,1920*1080,1280*720,800*480 | |
| Exposure Capability | Real-time Auto, Single Auto, Manual Adjustment | |
| White Balance | Real-time Auto, Single Auto, Manual Adjustment | |
| Software Interface | DirectShow | |
| Capture Modes |
Picture Resolution:22304*1536 ,2304*1296,1920*1080,1280*720,800*480 Format:JPG |
|
| Record Route | The Local And TF Card(Maximum Support 64G) | |
|
Optical Parameters
|
||
| Optical Magnification | 0.7-5.0x | |
| Total Magnification | 6-365x | |
| Object Distance(mm) |
24-252(When In 0.7x)
|
|
|
27-155(When In 1x)
|
||
|
81-117(When In 2x)
|
||
|
94-111(When In 3x)
|
||
|
101-110(When In 4x)
|
||
|
103-109(When In 5x)
|
||
|
Focusing Bracket Adjustment Range(mm)
|
230mm | |
| Focusing Hand Wheel Height Range(mm) | 50mm | |
| Field Of View(mm) | 0.5-10(When In 0.7x) Adjustable | |
| 0.5-0.4.5(When In 1x) Adjustable | ||
| 0.4-0.6(When In 2x) Adjustable | ||
| 0.3(When In 3x) Adjustable | ||
| 0.2(When In 4x) Adjustable | ||
| 0.1(When In 5x) Adjustable | ||
| Resolution(um) |
16.78(When In 0.7x)
|
|
| 11.18(When In 1x) | ||
| 8.39(When In 2x) | ||
| 6.10(When In 3x) | ||
| 4.79(When In 4x) | ||
| 4.79(When In 5x) | ||
| Observation Range | 29.6*16.6mm~2.1*1.2mm Continuous Adjustment | |
|
Software Environment
|
||
|
USB Mode
|
Operation System | Microsoft® Windows® XP/ 7 / 8 /8.1/10(32 & 64 Bit) |
| Computer Configuration |
CPU: Equal Or More Than The Second Generation Intel Core 2.8GHz
|
|
| Memory :2G Or More | ||
| USB Port:USB2.0 High Speed Port Or Compatible Port | ||
| Displayer :Suggest 17 Inches Or Larger | ||
| HDMI Mode |
Displayer: Recommend 16:9 , At Least 1080P Full HD Displayer
|
|
| Power Supply: DC5.0V Power Adapter, Electronic Current 500mA Or Higher | ||
|
Operating Environment
|
||
| Operating Temperature | 0℃~ 40℃ | |
| Storage Temperature | -20℃~ 60℃ | |
| Operating Humidity | 30~80%RH | |
| Storage Humidity | 10~60%RH | |
