Binocular 40x - 400x Polarizing Light Microscope LED Light A15.0012

Binocular 40x - 400x Polarizing Light Microscope LED Light A15.0012

  • High Light

    student compound microscope

    ,

    compound light microscope

  • Application
    Educational
  • Certification
    CE
  • Drawtube
    Binocular
  • Illumination
    LED Lamp
  • Nosepiece
    Triple
  • Stage
    Round Stage
  • Place of Origin
    China
  • Brand Name
    OPTO-EDU
  • Certification
    CE
  • Model Number
    A15.0012
  • Minimum Order Quantity
    1
  • Price
    Negotiation
  • Packaging Details
    Carton
  • Delivery Time
    1month
  • Payment Terms
    T/T,West Union and Paypal
  • Supply Ability
    10000

Binocular 40x - 400x Polarizing Light Microscope LED Light A15.0012



Binocular 40x - 400x Polarizing Light Microscope LED Light A15.0012

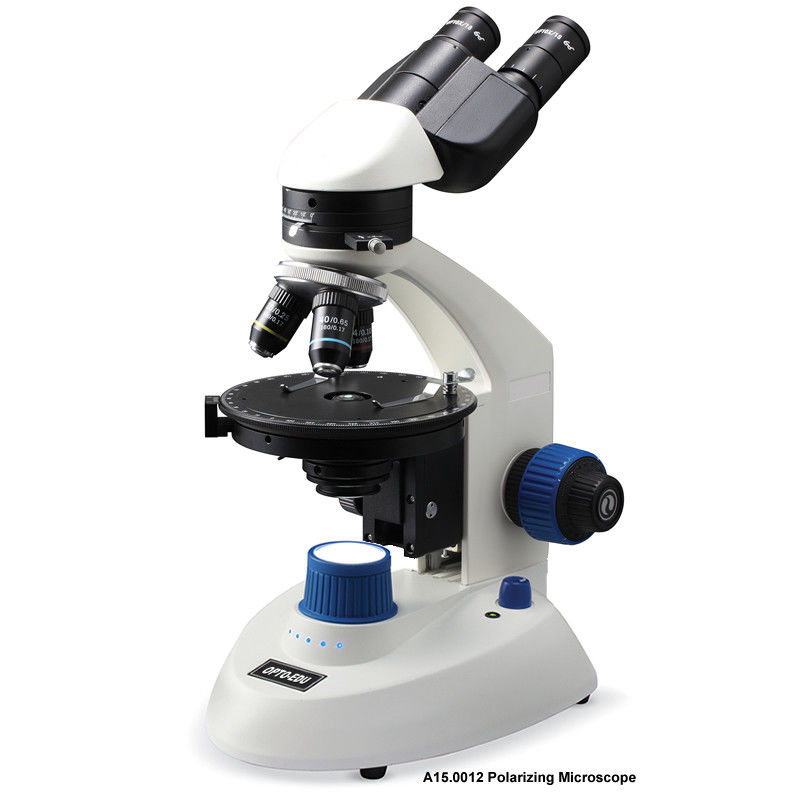

A15.0012 Polarizing Microscope, newly developed in 2015, with modern deisgn and high optical quality, is ideal tools in educational field.

--Binocular Head
--Triuple Nosepiece
--Round Double Layer Mechnical Working Stage
--N.A.1.25 Condenser, Iris Diaphragm

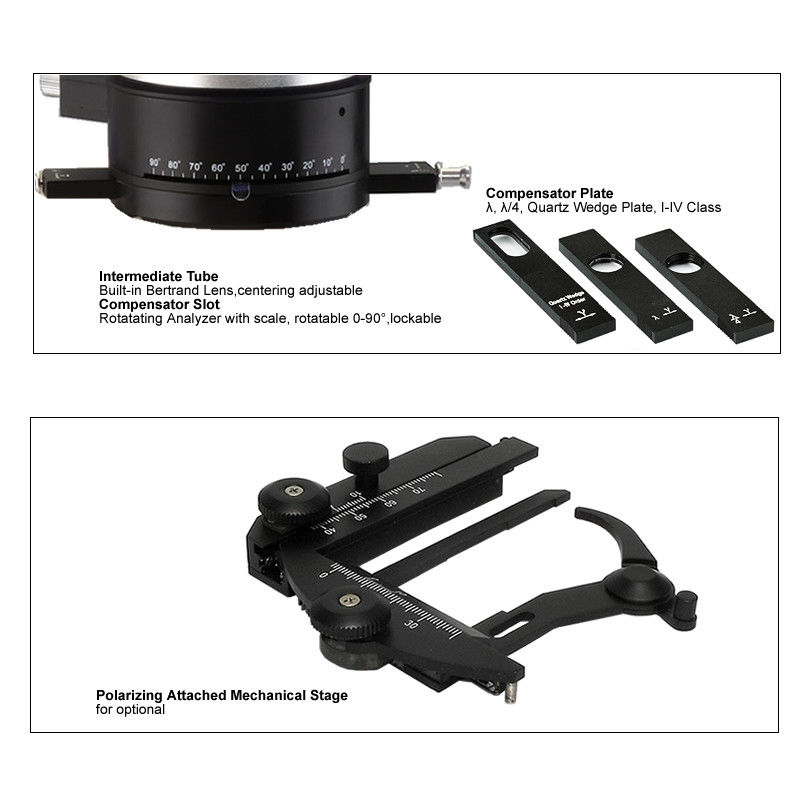

--Polarizer & Analyzier, Built-in Bertrand Lens, Compensator
--Colorful Focusing Knob, Light Collector and Power Switch
--LED Power On/Off Indicator
--LED Brightness Adjustment Indicator
--Cordless Rechargeable Battery Built-in



Specification

A15.0012 Polarizing Microscope
Head
Binocular Head, 30° Inclined, 360° Rotatable
Eyepiece

WF10x/18mm, WF15x/13mm

Nosepiece Triple Nosepiece, Ball Bearing Inner Locating
Objective

Achromatic Objective 4x, 10x, 40x (S)

Working Stage Round, Diameter 142mm, Rotatable 360°, Division 1°, Vernier division 6, Lockable
Focusing Coaxial Coarse & Fine Focus Knob, With Tension Adjustable And Limit Stopper, Minimum Division 0.002mm
Condenser N.A. 1.25 Condenser, Iris Diagraphm, Filter
Polarizing

Analyzer :
0-90° Rotatable,Can Be Moved Out Of Optical Path For Single Polarizing Observe
Betrand Lens Built-in
Compensator : λ Slip (First Class Red) , 1/4λ Slip, Quartz Wedge Plate
Polarizer :
Mounted Under Abbe Condenser, 360° Rotatable, With Scale, Lockable

Light Source High Light LED, Brightness Adjustable, With LED Indicator
Power Cordless Built-in Rechargeable Battery
100~240V Wide Range Voltage
Power On/Off LED Indicator
Packing Net Weight 4.80Kgs/pc,
Packing 2 pcs/Carton, G.W. 10Kgs, Size 34*48*43cm
