OPTO-EDU A59.3506 4K HDMI+USB Digital Camera, 8M, Mouse Measure+USB Measure
-
Highlight
4K HDMI digital microscope camera
,8MP USB microscope camera
,mouse measure microscope camera
-
Place of OriginChina
-
Brand NameCNOEC, OPTO-EDU
-
CertificationCE, Rohs
-
Model NumberA59.3506
-
Document
-
Minimum Order Quantity1 pc
-
PriceFOB $1~1000, Depend on Order Quantity
-
Packaging DetailsCarton Packing, For Export Transportation
-
Delivery Time5~20 Days
-
Payment TermsT/T,West Union,Paypal
-
Supply Ability5000 pcs/ Month

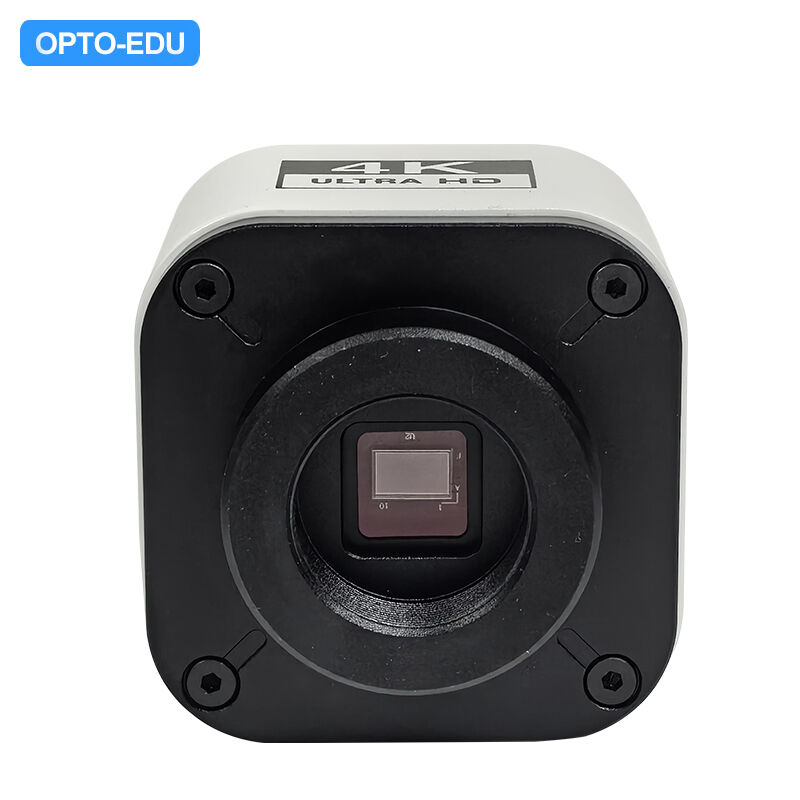

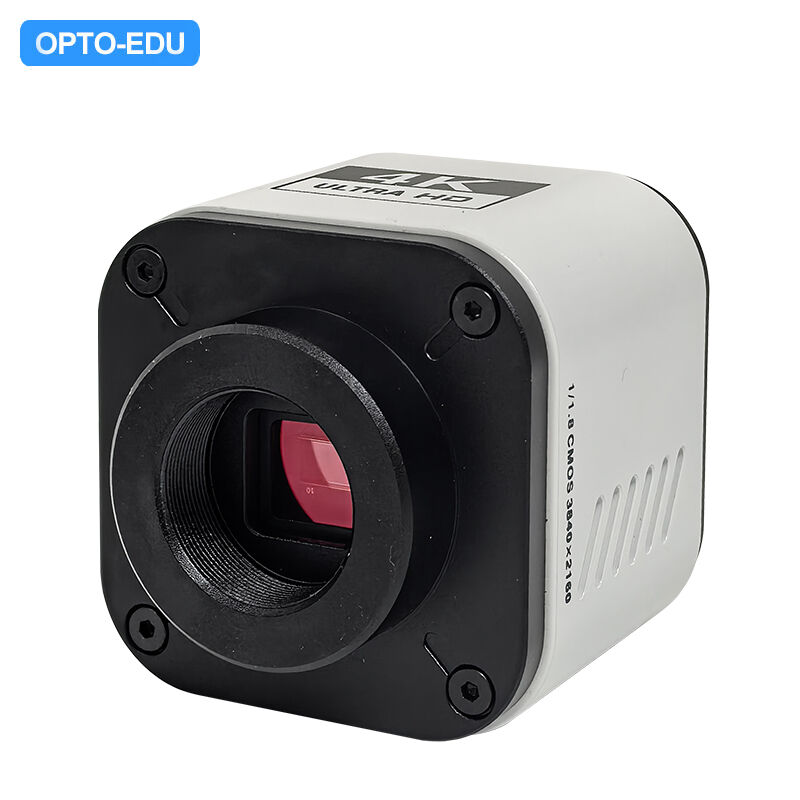

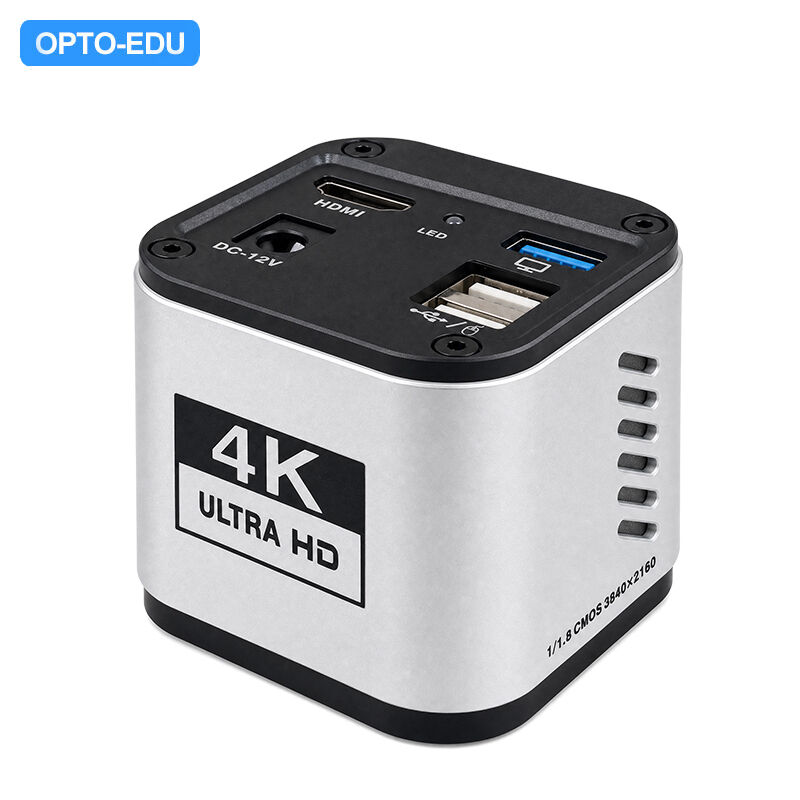

OPTO-EDU A59.3506 4K HDMI+USB Digital Camera, 8M, Mouse Measure+USB Measure
OPTO-EDU A59.3506 4K HDMI+USB Digital Camera, 8M, Mouse Measure+USB Measure
Product Overview
- 4K 8MP resolution with 1/1.8" Sony IMX678 CMOS sensor
- Triple output capability: HDMI + USB + USB Disk
- HDMI interface with built-in user interface menu supporting USB mouse control
- HDMI software supports photo & video capture, measurement, and calibration
- Ratio setting: Input objective, eyepiece, and monitor size to show real-time magnification
- USB UVC output to computer with S-Eye Measure software for Windows
Technical Specifications
| Items | A59.3506 4K 8M HDMI+USB Digital Camera |
|---|---|
| Camera | 8.0M 4K Digital Camera |
| Sensor | 1/1.8" Sony IMX678 CMOS |
| Resolution | 3840x2160@30fps |
| Pixel Size | 2umx2um |
| Exposure Capability | Auto or Manual |
| Exposure Time | 1~999ms |
| White Balance | Auto, One-Push, or Manual RGB Adjustment |
| Power Supply | Power Adaptor DC 12V 1A |
| Digital Zoom | 1~10x |
| Data Output |
HDMI Output x1 to Monitor 4K @ 30fps USB 2.0 Output x3 to: -- PC 4K @ 30fps -- USB Disk -- Connect USB Mouse Support USB+HDMI Sync Output |
| Software |
[HDMI Output] Built-in Software Support Mouse Control, With NO NEED For Computer: -- Ratio Setting (Automatic Calculation of Magnification) -- Photo, Video Capture & Store (.jpg or .avi) -- All Kinds Measure, Mark, Analysis Functions -- Mark & Measure Results Capture & Store (.jpg or .xlsx) -- Calibration -- Auto Edge Detection -- Settings [USB Output] S-EYE 2.0 Support Windows System -- Support All Above Functions Language Supported: English, Simplified Chinese, Traditional Chinese, Japanese, Korean |
| Interface | Standard C-Mount Port |
| Packing List |
-- Digital Camera x1 -- 12V1A Power Adaptor x1 -- HDMI Cable x1 -- USB Cable x1 -- USB Mouse x1 |
| Product Size & Weight | 6(W)x6(L)x6.7(H)cm, 0.2Kg |
| Package Size & Weight | 17.5x19x9cm, 0.5Kg |
