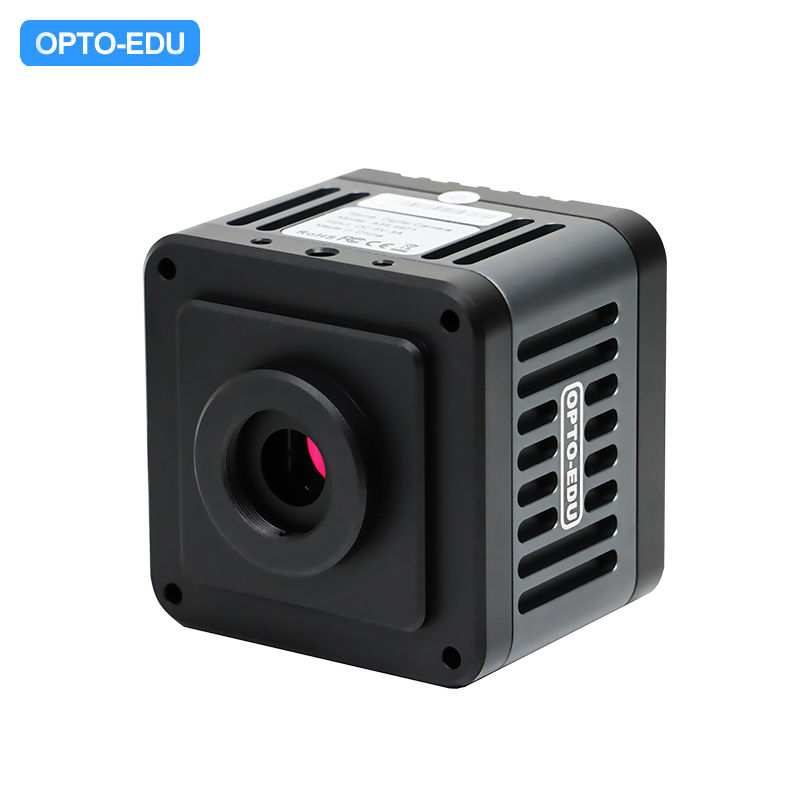

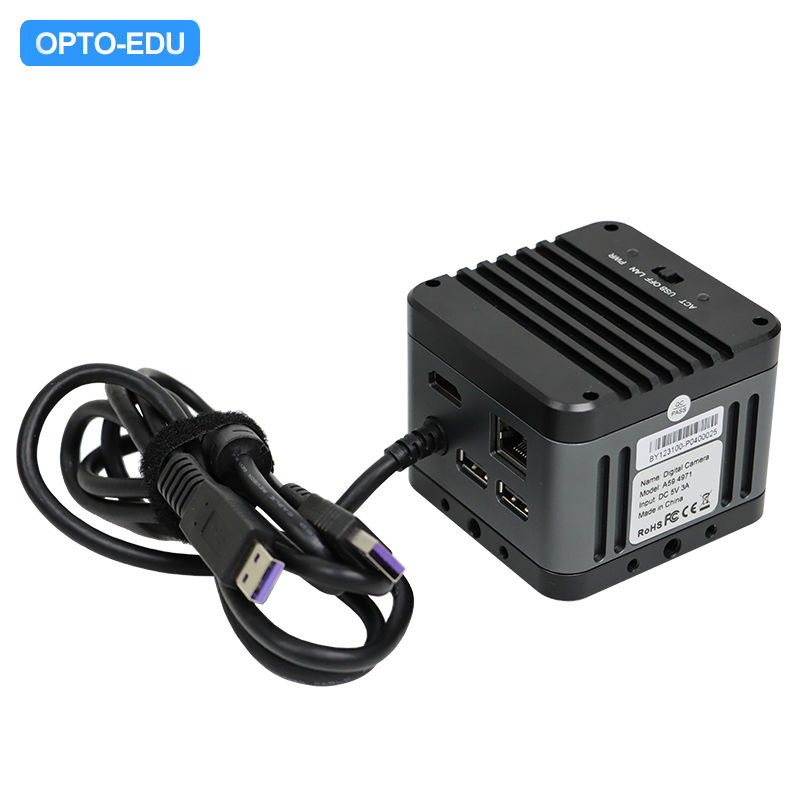

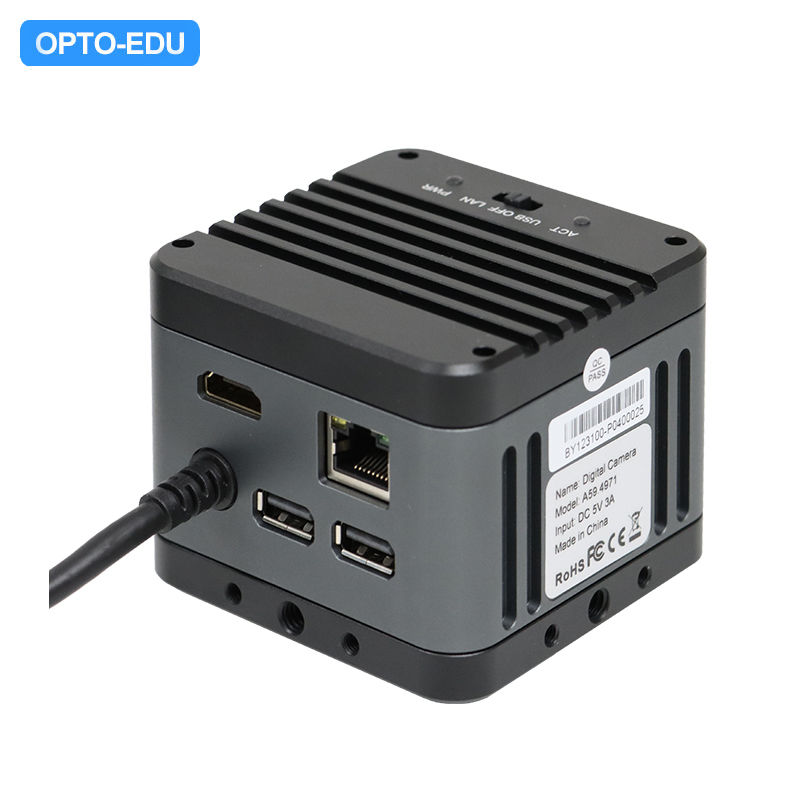

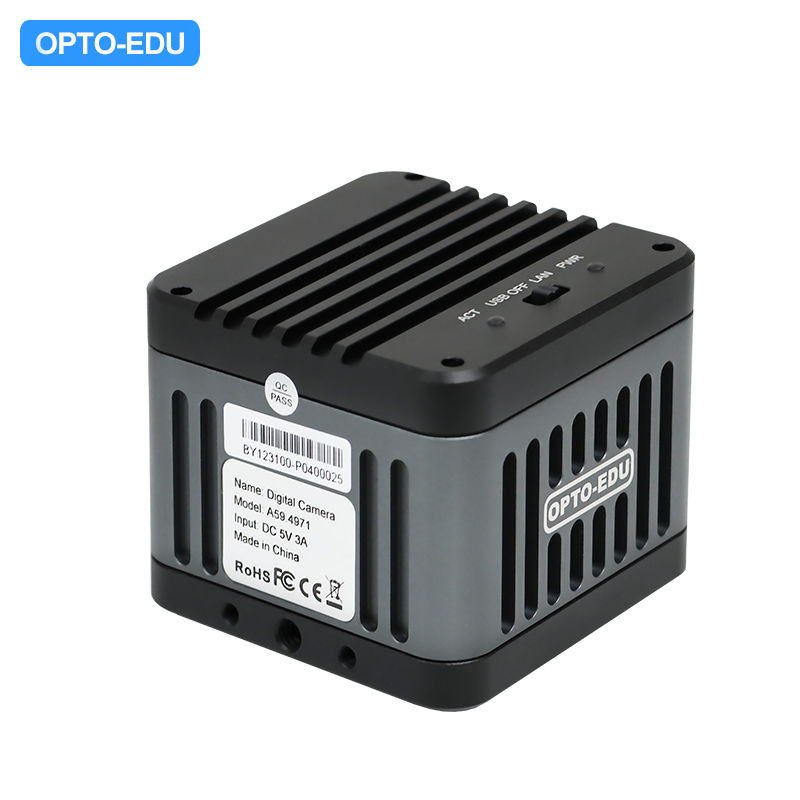

OPTO-EDU A59.4971 Auto Focus EDF 4K HDMI USB LAN Digital Microscope Camera 8.3M Flourescent
-
Highlight
Auto Focus 4K HDMI digital microscope
,8.3M fluorescent USB microscope camera
,LAN digital microscope with auto focus
-
Place of OriginChina
-
Brand NameCNOEC, OPTO-EDU
-
CertificationCE, Rohs
-
Model NumberA59.4971
-
Document
-
Minimum Order Quantity1 pc
-
PriceFOB $1~1000, Depend on Order Quantity
-
Packaging DetailsCarton Packing, For Export Transportation
-
Delivery Time5~20 Days
-
Payment TermsT/T,West Union,Paypal
-
Supply Ability5000 pcs/ Month
OPTO-EDU A59.4971 Auto Focus EDF 4K HDMI USB LAN Digital Microscope Camera 8.3M Flourescent
| A59.4971 Auto Focus 4K HDMI+USB+LAN Digital Camera, 8.3M, Fluorescent | |
| Camera | 8.3M 4K Auto Focus Digital Camera |
| Sensor | 1/1.8” SONY IMX678 CMOS |
| Resolution | 3840×2160 @60fps |
| Pixel Size | 2μm×2μm |
| Exposure Mode | Rolling Shutter |
| ISO Sensitivity | Equivalent to 100-12800 |
| Spectral Response | 400-650nm |
| Exposure Capability | Real-time Auto & Manual Adjustment |
| Exposure Time | 10μs-10s |
| White Balance | Real-time Auto & Manual RB Adjustment |
| Power Supply | DC5V 2A |
| Bit Depth | 12bit A/D Convertsion Bit Depth |
| Auto Focus | Built-in Motor Moving Support Auto Focus, Including |
| --One Click Auto Focus | |
| --Real Time Auto Focus | |
| --Manual Focus Controlled By Mouse Wheel | |
| Viewing Mode | Preset 3 Mode With Special Adjusted Parameters For: |
| --Biological, For Prepare Slides Viewing | |
| --Industry, For Stereo Industry Inspection | |
| --Fluorescent, Cooling Free Long Time Watching Weak Fluorescent Image | |
| Data Interface & Output | --HDMI x1 Output To Monitor 4Kx2K @60Fps |
| --USB3.0 x1 Output To PC (Fixed Dual USB Cable) 4Kx2K @60Fps | |
| --USB2.0 x2 Save To USB Disk, Connect USB Mouse & Keyboard | |
| --LAN RJ45 x1 Output To PC or Router4Kx2K @60Fps | |
| USB+HDMI Sync Output | |
| LAN+HDMI Sync Output | |
| Software & Control | 【Micro View】 Built-in Software For HDMI Output, Control By Mouse + Keyboard, Support Function With NO NEED For Computer: |
| --Setting | |
| --Calibration | |
| --All Kinds Measure, Mark, Analysis Function | |
| --Photo, Video Capture & Store | |
| --Switch View Mode Among Biological/ Industry / Fluorescent | |
| --Auto Focus Drive By Built-in Motor, 3 Modes: One Time, Manual, Continous. | |
| --Auto EDF (Extended Depth of Field Fusion) | |
| --Auto Edge Detection | |
| 【Micro Capture Pro】 Professional Software For PC Win11, Control By Mouse + Keyboard, Support All Above Functions, Plus: | |
| --Large Image Stitching, 3 Modes: Auto, Manual, Extend Column | |
| Interface | Standard C-Mount Port, Work With Microscope 0.35x~0.55x C-Mount |
| Packing List | --Digital Camera |
| --Fixed Dual USB Cable (1 For USB3.0 Data Transfer, 1 For Power Supply) | |
| --Euro/USA Dual Port 5V3A Power Adapter | |
| --Opto-Edu USB Disk 8G | |
| --Opto-Edu Stage Micrometer | |
| --HDMI Cable | |
| --USB Mouse | |
|
♦ Calibration Function Use USB mouse & keyboard to easily create calibration for each objective! |
|
♦ Measurement Function All kinds measuring tools available, measure result can be shown by customized color & font text. |
|
♦ Automatic Edge Detection Auto enlarge and detect the edge to draw a fully complained shape easily |
|
♦ Grid Measurement Draw grid with customized color, line width to assist measure work |
|
♦ Auto Focus With built-in motor, support real time Auto Focus, 3 modes: Continues, One Time, Manual |
|
♦ Illumination Controller Software can control illumination angle and intensity. |
|
♦ EDF Function Extended Depth of Field function and stack multi layers image to get a fully focused and clear image easily. |
|
♦ Large Image Stitching Support Auto Stitching, Manual Stitching, Extend Column Stitching to create large image |
|
♦ Combined Color Images Combine different fluorescent bands images to merge in one image. |
