OPTO-EDU A59.5122 Microscope Digital Camera with 2K Resolution 4.0M CMOS Sensor and 7/9/10.1 Inch LCD Screen

OPTO-EDU A59.5122 Microscope Digital Camera with 2K Resolution 4.0M CMOS Sensor and 7/9/10.1 Inch LCD Screen

Products - Microscope Accessories
  • Highlight

    2K Resolution Microscope Digital Camera

    ,

    4.0M CMOS Sensor LCD Digital Camera

    ,

    7/9/10.1 Inch LCD Screen Microscope Camera

  • Resolution
    Photo 2M/5M/8M/12M Video 1080p
  • Sensor
    2K 4.0M CMOS 1/3"
  • Pixel Size
    2µm X 2µm
  • Basic Function
    Capture Photo, Record Video, Output To Computer +TF Card
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A59.5122
  • Document
    Product Brochure PDF
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T,West Union,Paypal
  • Supply Ability
    5000 pcs/ Month

OPTO-EDU A59.5122 Microscope Digital Camera with 2K Resolution 4.0M CMOS Sensor and 7/9/10.1 Inch LCD Screen

  • OPTO-EDU A59.5122 Microscope Digital Camera with 2K Resolution 4.0M CMOS Sensor and 7/9/10.1 Inch LCD Screen
  • OPTO-EDU A59.5122 Microscope Digital Camera with 2K Resolution 4.0M CMOS Sensor and 7/9/10.1 Inch LCD Screen
Get Price Contact Now
OPTO-EDU A59.5122 7"/9"/10.1" 2K Button LCD Digital Camera
Key Features

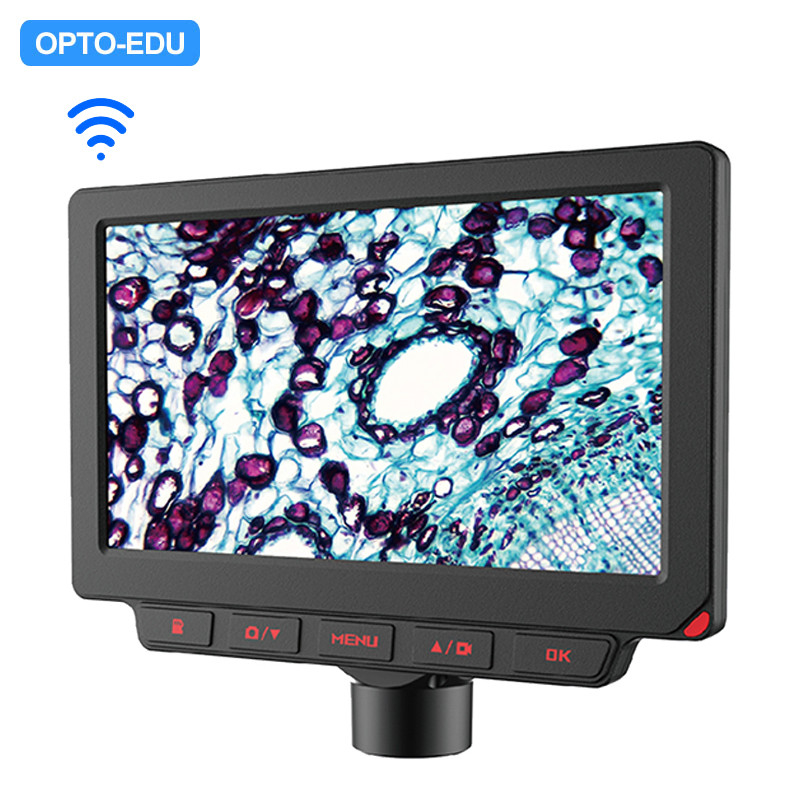

  • 7"/9"/10.1" 2K LCD Screen with Button Control & Mouse Control
  • 4.0M CMOS 1/3" sensor for high-quality imaging

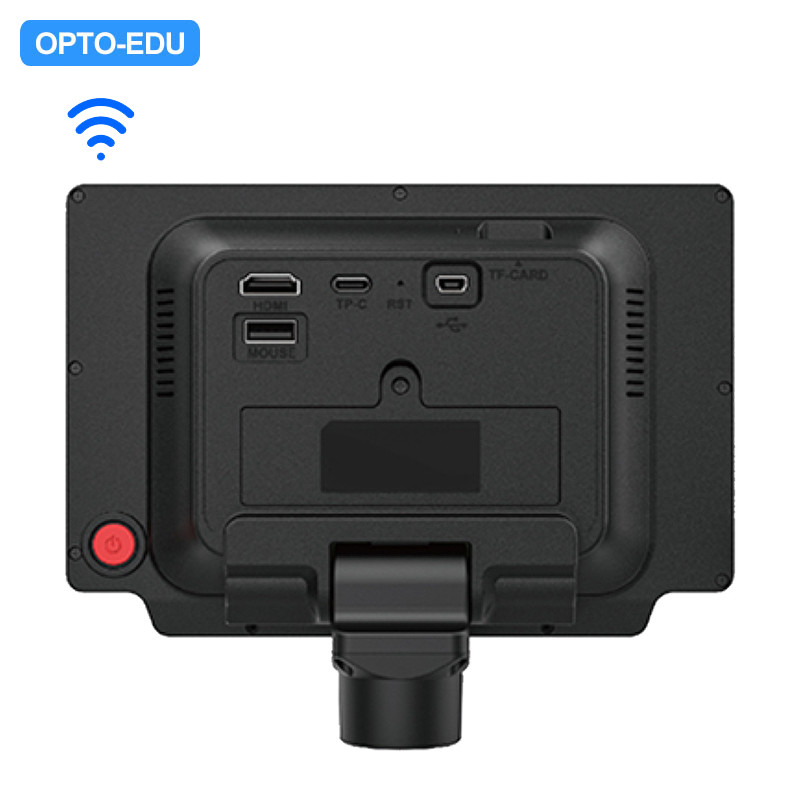

  • Multiple output options: Type-C UVC, HDMI, 2.4G WIFI, and TF card
  • PC Software StrangeView and Android/iOS APP T-Cam compatibility
  • Photo resolutions: 2M/5M/8M; Video resolution: 1080p
  • Includes 18650 rechargeable battery (not for air shipment) & 8G TF card
  • Optional adapters: Eyepiece Adapter (-E) or C-Mount Adapter (-C)
OPTO-EDU A59.5122 Microscope Digital Camera with 2K Resolution 4.0M CMOS Sensor and 7/9/10.1 Inch LCD Screen 0 OPTO-EDU A59.5122 Microscope Digital Camera with 2K Resolution 4.0M CMOS Sensor and 7/9/10.1 Inch LCD Screen 1 OPTO-EDU A59.5122 Microscope Digital Camera with 2K Resolution 4.0M CMOS Sensor and 7/9/10.1 Inch LCD Screen 2
Model Comparison
Model Button LCD Camera 2K Button LCD Camera 4K Touch LCD Camera
Model Number A59.5121- A59.5122- A59.5124-
Available Sizes 7E/7C 9E/9C, 10E/10C 7E/7C, 10E/10C
LCD Size 7" 9", 10.1" 7", 10.1"
LCD Resolution 1024*600 Touch Screen 1280*800 Touch Screen 1280*800
Resolution Photo: 2M/5M/8M
Video: 1080p		 Photo: 2M/5M/8M/12M
Video: 1080p		 Photo: 5M/8M/12M
Video: 1080p
Sensor 2.0M CMOS1/2.8" 2K 4.0M CMOS 1/3" 4K 8.0M CMOS 1/2.8"
Pixel Size 2.9µm x 2.9µm 2µm x 2µm 1.45µm x 1.45µm
Basic Function Capture Photo, Record Video, Output To Computer +TF Card
WIFI - 2.4G, App T-Cam 2.4G/5G, App T-Cam
HDMI - 1080P-HDMI To Monitor 4K-HDMI To Monitor
Mouse Control - Built-in Built-in
Measure Menu Built-in Adv. Measure Menu Adv. Measure Menu
Type-C Type-C Power In / USB-UVC Output To Computer, Measure Software Strange View
USB - USBx1 USBx2
TF Card 8G TF Card
Support Max 64G		 32G TF Card
Support Max 64G		 32G TF Card
Support Max 64G
Battery 18650-3.7V/2000MAH
MINI USB - Connect AHD External Lens -
Adapter -E = Eyepiece Adapter (Dia.23.2mm), -C = C-Mount Adapter (1" 32UN Screw)
Power Type-C Power In DC5V-2A
OPTO-EDU A59.5122 Microscope Digital Camera with 2K Resolution 4.0M CMOS Sensor and 7/9/10.1 Inch LCD Screen 3 OPTO-EDU A59.5122 Microscope Digital Camera with 2K Resolution 4.0M CMOS Sensor and 7/9/10.1 Inch LCD Screen 4 OPTO-EDU A59.5122 Microscope Digital Camera with 2K Resolution 4.0M CMOS Sensor and 7/9/10.1 Inch LCD Screen 5 OPTO-EDU A59.5122 Microscope Digital Camera with 2K Resolution 4.0M CMOS Sensor and 7/9/10.1 Inch LCD Screen 6 OPTO-EDU A59.5122 Microscope Digital Camera with 2K Resolution 4.0M CMOS Sensor and 7/9/10.1 Inch LCD Screen 7
Note: The included 18650 rechargeable battery is not approved for air shipment.
