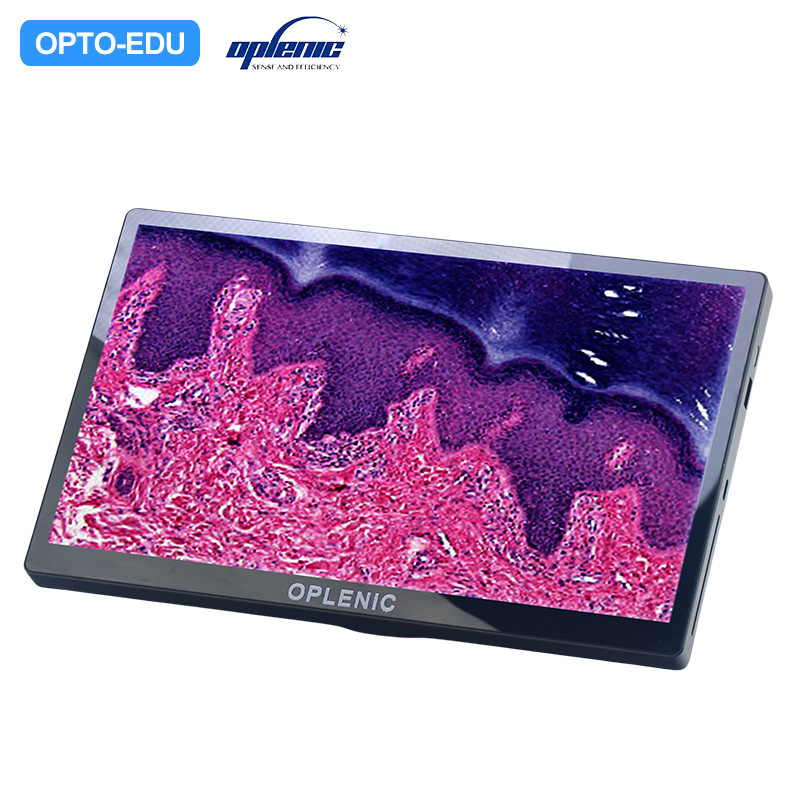

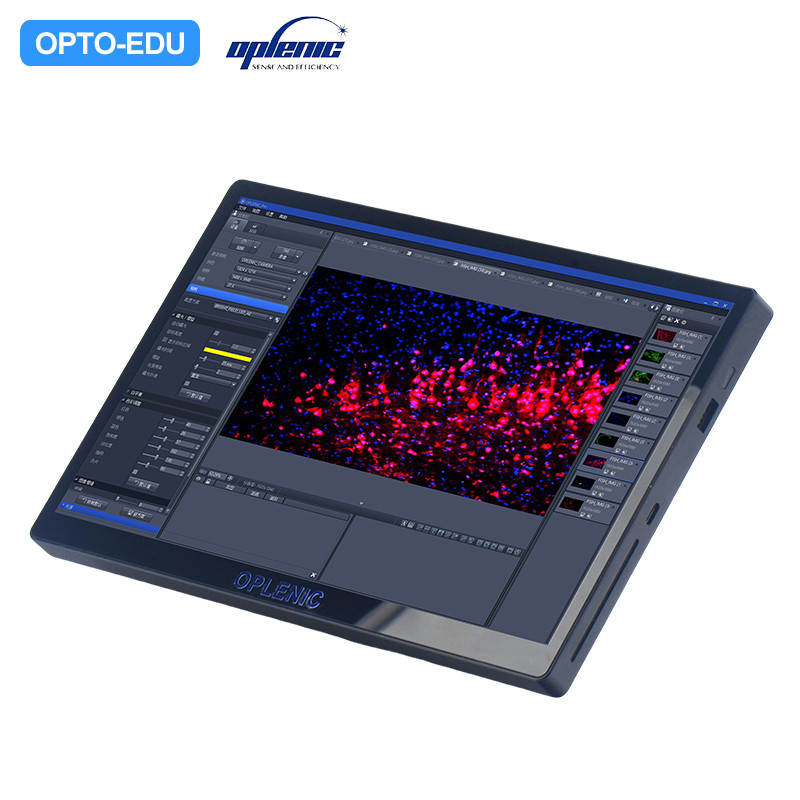

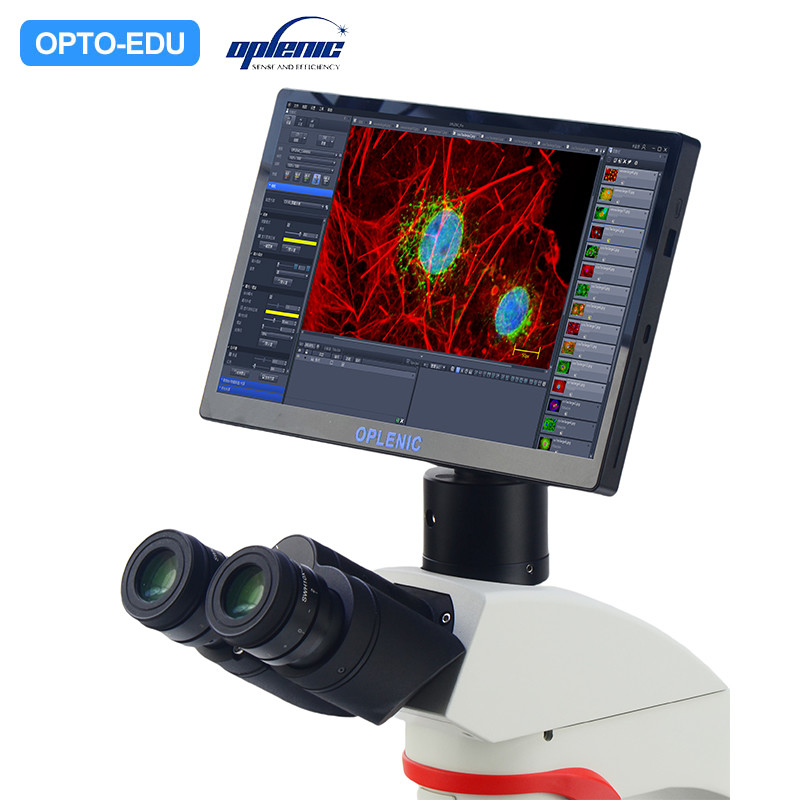

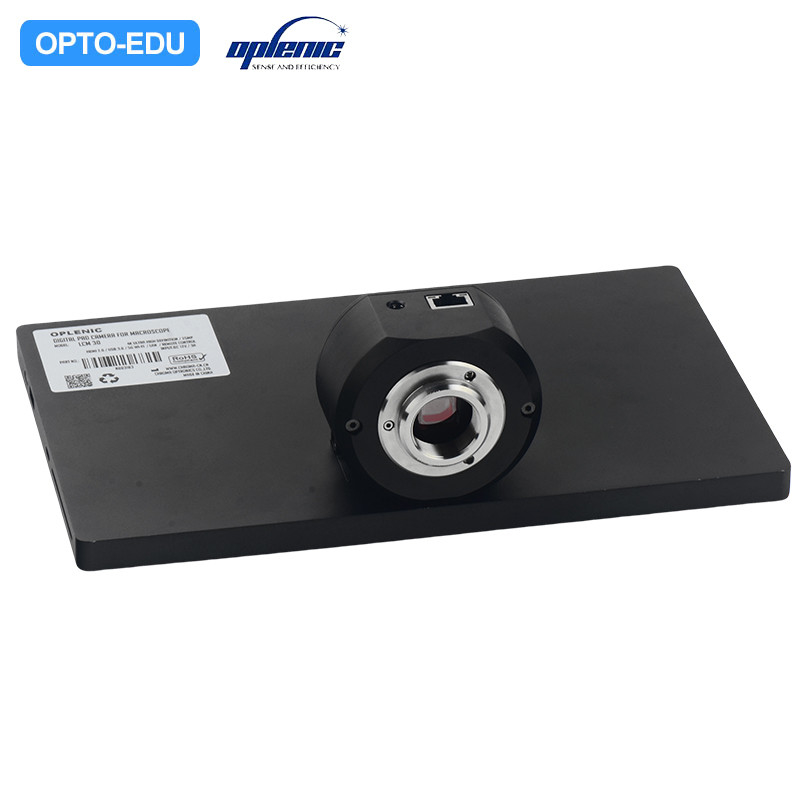

OPTO-EDU A59.2280 13.3" LCD Digital Camera, 4K HDMI+USB3.0+WIFI, 25M 4K, Mouse Measure

Photosensitive Chip

High-sensitivity Transillumination BSI Color Sensor
Pixel Level

25M
Frame Format

16:9
Output Method

USB3, HDMI, 5G Wi-Fi, LAN
Scanning Method

Progressive Scan
Video Display

60 Frames Per Second @ 1080P, 30 Frames Per Second @ 4k
Place of Origin

China
Brand Name

CNOEC, OPTO-EDU
Certification

CE, Rohs
Model Number

A59.2280
Document

Product Brochure PDF
Minimum Order Quantity

1 pc
Price

FOB $1~1000, Depend on Order Quantity
Packaging Details

Carton Packing, For Export Transportation
Delivery Time

5~20 Days
Payment Terms

T/T, West Union, Paypal
Supply Ability

5000 pcs/ Month

OPTO-EDU A59.2280 13.3" LCD Digital Camera, 4K HDMI+USB3.0+WIFI, 25M 4K, Mouse Measure

button button

Get Price Contact Now

13.3" 4K LCD Touch Screen High Resolution 3840*2160 Pixels 4K Image
25M Digital Camera CMOS Sensor, Support 60FPS@1080p, 30FPS@4K
Built-in Win 11 System, SSD Hard Disk, Installed Software For All Setting & Measuring
4K HDMI + USB3.0 + 5G WIFI + LAN Output Real Time Micro Image
One Key Reset Default Setting, Support Remote Photo & Video Recording

Chip Parameters
Photosensitive Chip	High-sensitivity Transillumination BSI Color Sensor
Pixel Level	25M
Frame Format	16:9
Output Method	USB3, HDMI, 5G Wi-Fi, LAN
Scanning Method	Progressive Scan
Optical Parameters
Spectral Response Capability	VIS~NIR Visible Range Full Spectrum Band Response (Filtering Out Infrared Interference Above 650nm)
Optical Anti-reflection Technology	The Sensor Window Uses Multi-layer AR Anti-reflection Technology
Optical Interface	C-Mount With Adjustable Focal Length
Electrical Parameters
Dynamic Range	75dB/14-bit Analog-to-digital Conversion
Video Display	60 Frames Per Second @ 1080P, 30 Frames Per Second @ 4k
Display and Resolution	13.3" Ultra-thin Metal Structure IPS Wide-angle Wide Color Gamut Integrated Camera Integrated Screen
Exposure Control	Automatic Tracking/Manual Dual Mode
White Balance	Using Instrument Light D65/D50 Light Source Dedicated Color Temperature Calibration Mode
Color Reconstruction	OPLENIC® UItron™ Second-generation Color Engine, Color Reconstruction Engine For Microscope Color Gamut
Wireless Screen	Can Use HDMI High-definition Output or W-FI to Connect to The Network, Use Mobile Phone APP to Control
Data Transmission	HDMI High-definition Output Interface, USB3 Interface, 5GWi-Fi, LAN
Storage Media	SSD Memory Hard Disk Card
Control Parameters
Brightness Setting	Manual Lock/Auto, Target Value Setting, Brightness Gain Setting
Color Setting	Global Automatic Calibration, D65 Color Temperature Automatic Compensation, RGB Channel Saturation Correction
Image Quality Setting	Brightness Correction, Saturation Correction, HDR Correction
Anti-flicker Function	Built-in Anti-strobe Exposure Algorithm, Adaptive Recognition
Image Setting	Video Clarity Dynamic Sharpening, Saturation, Wide Dynamic
Image Noise Reduction	Built-in Video Dynamic Noise Reduction Algorithm
Remote Control Photography	Communication Infrared Remote Control Controls The Camera To Take Pictures, Which Can Avoid Jitter Interference When Operating The Device
Accessibility
Image Processing	Horizontal Mirror, Vertical Mirror, Measurement, Etc.
Auxiliary Cursor	Supports Multi-color Crosshairs
Time Setting	Supports Recording Date And Time
Language Switching	Supports Chinese And English
Camera Initialization Button	One-click Reset, Return To Factory Settings
