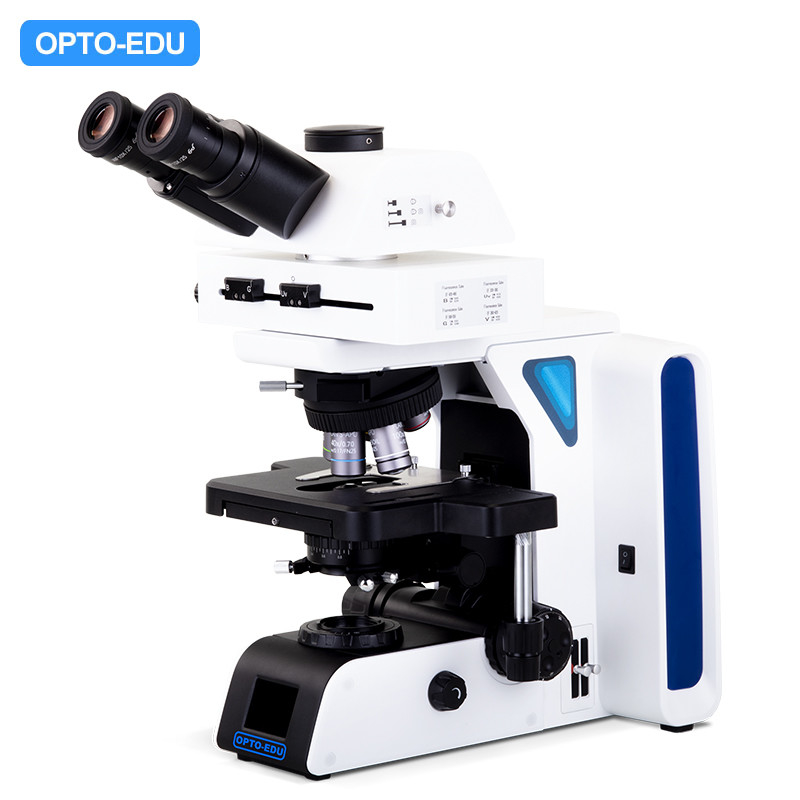

OPTO-EDU A16.2610 Trinocular 1000X Ultra LED Fluorescent Microscope

Application

Research|Learning
Certification

CE|Rohs
Drawtube

Trinocular
Illumination

High Brightness 5W LED Koehler Illumination
Magnification

40x - 1000x
Theory

Fluorescence Microscope
Place of Origin

China
Brand Name

CNOEC, OPTO-EDU
Certification

CE, Rohs
Model Number

A16.2610
Document

Product Brochure PDF
Minimum Order Quantity

1 pc
Price

Negotiation
Packaging Details

Carton Packing, For Export Transportation
Delivery Time

5~20 Days
Payment Terms

T/T, West Union, Paypal
Supply Ability

5000 pcs/ Month

OPTO-EDU A16.2610 Trinocular 1000X Ultra LED Fluorescent Microscope

button button

Get Price Contact Now

Ultra LED High Brightness Fluorescent Reflect Illumination Microscope With Modular Structure Design
Large View Field 25mm Trinocular Head With 0.5x C-Mount, Light Split E100:P0/E20:P80/E0:P100
Super Wide Field SWF10x/25mm Eyepiece Dia.30mm Diopter Adjustable
Rackless Large Mechanical Stag 280x160mm/80x52m With Double Slide Holder
Swing Out Condenser N.A. 0.9/0.13 + High Brightness 5W LED Koehler Illumination

Research Laboratory Ultra LED Fluorescent Microscope		A16.2610	Cata. No.
Eyepiece	WF10x/25mm, High Eyepoint, Diopter Adjustable	●●	A51.2621-1025
Eyepiece	WF10x/23mm, High Eyepoint, Diopter Adjustable	○○	A51.2621-1023
Infinity Plan Objective (F.N.25)	PLAN 4X /0.11, W.D.12.1mm	○	A52.2610-4
	PLAN 10X /0.25, W.D.10.0mm	○	A52.2610-10
	PLAN 20X /0.45, W.D.3.33mm	○	A52.2610-20
	PLAN 40X /0.70 (S), W.D.2.61mm	○	A52.2610-40
	PLAN 100X /1.25 (S,Oil), W.D.0.25mm	○	A52.2610-100
	PLAN 2X /0.06, W.D.7.2mm	○	A52.2606-2
Infinity Plan Semi-APO Objective (F.N.25)	PLAN S-APO 4X /0.10, W.D.16.2mm	●	A52.2611-4
	PLAN S-APO 10X /0.30, W.D.9.6mm	●	A52.2611-10
	PLAN S-APO 20X /0.45, W.D.2.8mm	●	A52.2611-20
	PLAN S-APO 40X /0.70 (S), W.D.0.55mm	●	A52.261140
	PLAN S-APO 100X /1.25 (S,Oil), W.D.0.21mm	●	A52.2611-100
Head	Trinocular Head, Inclined 30°, Rotatable 360°, Interpupillary Distance 48-76mm, 3 Light Split Ratio: E100:P0, E80:P20, E0:P100	●	A53.2610-T18
Head	Trinocular Head, Inclined 30°, Rotatable 360°, Interpupillary Distance 48-76mm, 2 Light Split Ratio: E100:P0, E80:P20	○	A53.2610-T13
Nosepiece	6 Holes Nosepiece, Inward	●	A54.2610-N6
Working Stage	Double Layer Rackless Mechanical Stage, Size 280x160mm, Moving 80x52mm, Double Slide Holder	●	A54.2601-AT280
Condenser	Swing-out Condenser N.A.0.9/0.13, With Scale, Can Be Locked,	●	A56.2614-C11
Polarizing	Analyzer, Put In Slide Insert To Hole On Nosepiece Polarizer, Put On Stand Light Collector	○	A5P.2601-BK
Dark Field	Dry Dark Field Condenser, Apply For 4x - 40x Objective	○	A5D.2610+BK
Dark Field	Immersion Dark Field Condenser, Apply For 100x Objective	○	A5D.2610-BKW
Phase Contrast	5 Holes Phase Contrast Conenser, With Infinity Plan Phase Contrast Objective 10x,20x,40x,100x, Centering Telescope 10x	○	A5C.2603-BS
LED Fluorescence	Newly Design 2025! Ultra LED Inverted Fluorescent Microscope With All-in-One Filter + 5W LED System The LED Fluorescent Light Source And The Fluorescent Filter Are Fixed as One Unit And Move Together, Switch Easily And Providing An Ultra-high Brightness Fluorescent Light Source. A16.2610-UL2 B,G China Fluorescent Filters A16.2610-UL3 B,G,UV China Fluorescent Filters A16.2610-UL4 B,G,U,UV China Fluorescent Filters	●	A5F.2610-2 A5F.2610-3 A5F.2610-4
Koehler Illumination	5W-LED Illumination	●	A56.2612-5WL
	12V/50W Halogen Lamp	○	A56.2613-12V50WL
	12V/100W Halogen Lamp	○	A56.2613-12V100WL
C-mount	0.5x C-Mount, Focus Adjustable	●	A55.2601-05
	0.35x C-Mount, Focus Adjustable	○	A55.2601-35
	0.75x C-Mount, Focus Adjustable	○	A55.2601-75
	1.0x C-Mount, Focus Adjustable	○	A55.2601-10
Filter	Forested Glass Filter	●	A56.2616-RSN
	Blue/ Green/ Yellow	○	A56.2616-RSB
	Green Filter	○	A56.2616-RSG
	Yellow Filter	○	A56.2616-RSY
LCD Screen ECO (Optional Only For LED Stand)	LCD Screen Optional For A12.2610 LED Stand, Function: 1,Show Customer Logo； 2,Show Objective Magnification； 3,Show & Remember Brightness For Each Objective； 4,Set ECO Timer； 5,Adjust Light Color Temperature 3500K--6000K.	○	A56.2661
