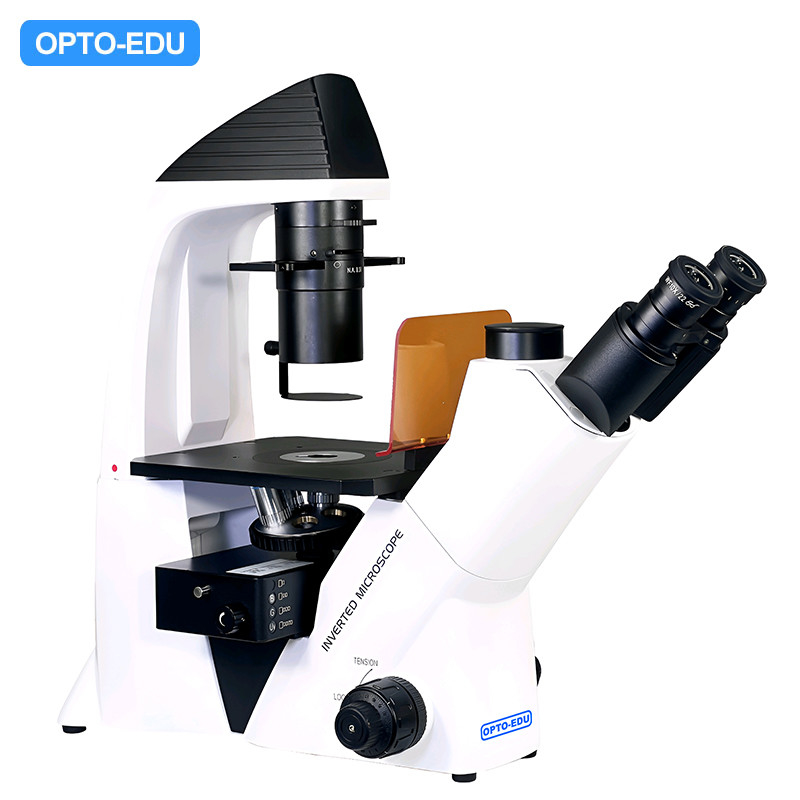

OPTO-EDU A16.2614-UL China Supplier High Brightness Inverted Ultra LED Fluorescent Microscope Price

OPTO-EDU A16.2614-UL China Supplier High Brightness Inverted Ultra LED Fluorescent Microscope Price

Products - Fluorescence Microscope
  • Application
    Research|Learning
  • Certification
    CE|Rohs
  • Drawtube
    Trinocular
  • Illumination
    Transmit Light 6V30W Halogen
  • Magnification
    40x - 1000x
  • Theory
    Fluorescence Microscope
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A16.2614-UL
  • Document
    Product Brochure PDF
  • Minimum Order Quantity
    1 pc
  • Price
    Negotiation
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

OPTO-EDU A16.2614-UL China Supplier High Brightness Inverted Ultra LED Fluorescent Microscope Price

  • OPTO-EDU A16.2614-UL China Supplier High Brightness Inverted Ultra LED Fluorescent Microscope Price
Get Price Contact Now
  • Ultra LED High Brightness Fluorescent Reflect Illumination Inverted Microscope
  • Seidentopf Trinocular Head, Light Split Switch E100:P0 / E20:P80
  • Infinity Plan LWD Semi-APO BF+PH Objective 10x20x40x, Infinity Plan Fluorescent 10x,20x,
  • LWD Condenser N.A.0.3 Working Distance 72mm, Up To 195mm Without Condenser
  • Transmit Halogen 6V30W Koehler Illumination, 5W LED Optional For Choice
OPTO-EDU A16.2614-UL China Supplier High Brightness Inverted Ultra LED Fluorescent Microscope Price 0

OPTO-EDU A16.2614-UL China Supplier High Brightness Inverted Ultra LED Fluorescent Microscope Price 1

OPTO-EDU A16.2614-UL China Supplier High Brightness Inverted Ultra LED Fluorescent Microscope Price 2

OPTO-EDU A16.2614-UL China Supplier High Brightness Inverted Ultra LED Fluorescent Microscope Price 3

Head & Eyepiece

Seidentopf Trinocular Head Inclined 45°Interpupillary Distance 48~76mm, Light Split Switch E100:P0 / E20:P80; WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable


OPTO-EDU A16.2614-UL China Supplier High Brightness Inverted Ultra LED Fluorescent Microscope Price 4

Condenser & Light Source

Condenser & Light Source With Filters: Blue, Dia.34mm; Green, Dia.34mm

Koehler Illumination Halogen 6V/30W For A14.2603

Koehler Illumination 5W LED For A14.2603-TR


OPTO-EDU A16.2614-UL China Supplier High Brightness Inverted Ultra LED Fluorescent Microscope Price 5

Long Working Distance

Working Distance 72mm (With Condenser), 195mm (Without Condenser)


OPTO-EDU A16.2614-UL China Supplier High Brightness Inverted Ultra LED Fluorescent Microscope Price 6

OPTO-EDU A16.2614-UL China Supplier High Brightness Inverted Ultra LED Fluorescent Microscope Price 7

OPTO-EDU A16.2614-UL China Supplier High Brightness Inverted Ultra LED Fluorescent Microscope Price 8

A5F.2603 Epi Fluorescent System For A16.2614

3 Holes Fluorescent Slide Unit, With Field Diaphragm, Center Adjustable
100W Mercury Lamp House, 100W Mercury Power Box, Digital Disp. Ultraviolet Protection Barrier


OPTO-EDU A16.2614-UL China Supplier High Brightness Inverted Ultra LED Fluorescent Microscope Price 9

A5F.2604 Epi LED Fluorescent System For A16.2614-L

3 Holes Fluorescent Slide Unit, With Field Diaphragm, Center Adjustable
5W LED Lamp House, 5W LED Power Box. Ultraviolet Protection Barrier


OPTO-EDU A16.2614-UL China Supplier High Brightness Inverted Ultra LED Fluorescent Microscope Price 10

A5F.2606 Ultra LED Fluorescent System For A16.2614-UL

5W LED + Fluorescent Filter Fix & Move Together

Providing Ultra-high Brightness Fluorescent Light Source


OPTO-EDU A16.2614-UL China Supplier High Brightness Inverted Ultra LED Fluorescent Microscope Price 11
Items A14.2603 Inverted Biological Microscope
A16.2614 Inverted Fluorescent Microscope		 A14.2603 A16.2614 Cata. No.
　 -TR 　 -L -UL 　
Head Seidentopf Trinocular Head Inclined 45°,  Interpupilary Distance 48~76mm, Light Split Switch E100:P0 / E20:P80 ● ● ● ● ● A53.2643
Eyepiece WF10x/22mm, Dia.30mm, High Eyepoint,, Diopter Adjustable ● ● ● ● ● A51.2621-1022
WF15X/16mm, Dia.30mm, High Eyepoint, Diopter Adjustable ○ ○ ○ ○ ○ A51.2621-1516
WF20X/12mm, Dia.30mm, High Eyepoint, Diopter Adjustable ○ ○ ○ ○ ○ A51.2621-2012
Nosepiece Quintuple ● ● ● ● ● A54.2610-N925
LWD Infinity Plan
FL Semi-APO
Objectives		 Plan FL 2x/0.06 W.D.=7.2mm ○ ○ ○ ○ ○ A5F.2635-2
L Plan FL 4x/0.11 W.D.=12.1mm ○ ○ ○ ○ ○ A5F.2635-4
L Plan FL 10x/0.25 W.D.=10.3mm ○ ○ ○ ○ ○ A5F.2635-10
L Plan FL 20x/0.45 W.D.=5.8mm ○ ○ ○ ○ ○ A5F.2635-20
L Plan FL 40x/0.65 W.D.=5.1mm ○ ○ ○ ○ ○ A5F.2635-40
LWD Infinity Plan
FL Semi-APO
BF+PH
Objectives		 L Plan FL PHP 4x/0.10 W.D.=9.2mm ○ ○ ○ ○ ○ A5C.2635-4
L Plan FL PHP 10x/0.25 W.D.=10.3mm ● ● ● ● ● A5C.2635-10
L Plan FL PHP 20x/0.45 W.D.=5.8mm ● ● ● ● ● A5C.2635-20
L Plan FL PHP 40x/0.65 W.D.=5.1mm ● ● ● ● ● A5C.2635-40
LWD Infinity Plan
Fluorescent
Objectives		 New Update 2024 Specialized For Fluorescent Observation! 　 　 　 　 　 　
L PLAN Fluor 10x, N.A.0.3,W.D.=14.0mm - - ● ● ● A5F.2636-10
L PLAN Fluor 20x, N.A.0.45,W.D.=6.6mm - - ● ● ● A5F.2636-20
L PLAN Fluor 40x, N.A.0.65,W.D.=3.9mm - - ○ ○ ○ A5F.2636-40
Phase Contrast  Centering Telescope 11x ○ ○ ○ ○ ○ A5C.2610
Annular Spot 4x ○ ○ ○ ○ ○ A5C.2611-4
Annular Spot 20x/ 40x ● ● ● ● ● A5C.2611-10
Annular Spot 10x ● ● ● ● ● A5C.2611-20/40
Working Stage Mechanical Stage Size 210x241mm, Round Slide Size Φ110mm ● ● ● ● ● A54.2601-D4
Attachable Mechanical Stage For 96 Holes Plate Moving Range 128x80mm ○ ○ ○ ○ ○ A54.2605
Culture Dish Holder  65mm ○ ○ ○ ○ ○ A54.2606-65
Culture Dish Holder  54mm ○ ○ ○ ○ ○ A54.2606-54
Culture Dish Holder  35mm ○ ○ ○ ○ ○ A54.2606-35
Holder For Blood Cell Counter ○ ○ ○ ○ ○ A54.2606-BC
Universal Holder (New Accessory 2021) ○ ○ ○ ○ ○ A54.2606-UH
Round Glass Holder (New Accessory 2021) ○ ○ ○ ○ ○ A54.2606-GL
Condenser Long Working Distance, Quickly Detachable, N.A.0.3, Working Distance 72mm (With Condenser), 195mm (Without Condenser). ● ● ● ● ● A56.2614-D4
Tranmist Illumination Koehler Illumination Halogen 6V/30W, Input Voltage 100V~240V ● ○ ● ● ● A56.2650-6V30WH
Koehler Illumination 5W LED, Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use ○ ● ○ ○ ○ A56.2650-5WLED
Reflect Illumination Koehler Illumination 5W LED,
Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use		 - ● - - - A56.2650-5WLED
Polarizing Set - ● - - - 　
Power ECO, Auto Power Off System.
Power Off Automatically Upon User Leaving 10 Minutes,
Power On Automatically Upon User Approaching Detected,
This Function Can Be Shut Down Manually		 ○ ○ ○ ○ ○ A56.2660
Filter Blue, Dia.34mm ● ● ● ● ● A56.2616-34B
Green, Dia.34mm ● ● ● ● ● A56.2616-34G
Amber, Dia.34mm ○ ○ ○ ○ ○ A56.2616-34A
Grey, Dia.34mm ○ ○ ○ ○ ○ A56.2616-34N
Adapter C-Mount 0.35x, Focus Adjustable ○ ○ ○ ○ ○ A55.2601-35
C-Mount 0.5x, Focus Adjustable ○ ○ ○ ○ ○ A55.2601-05
C-Mount 0.75x, Focus Adjustable ○ ○ ○ ○ ○ A55.2601-75
C-Mount1.0x, Focus Adjustable ○ ○ ○ ○ ○ A55.2601-10
Epi Fluorescence Illumination  A16.2614 Inverted Fluorescence Microscope With:
3 Holes Fluorescent Slide Unit, With Field Diaphragm, Center Adjustable
100W Mercury Lamp House
100W Mercury Power Box, Digital Disp.
Ultraviolet Protection Barrier

A16.2614-2  B,G China Fluorescent Filters
A16.2614-4  B,G,U,UV China Fluorescent Filters		 ○ - ● - - A5F.2603
A16.2614-L Inverted LED Fluorescence Microscope With:
3 Holes Fluorescent Slide Unit, With Field Diaphragm, Center Adjustable
5W LED Lamp House
5W LED Power Box
Ultraviolet Protection Barrier

A16.2614-L2  B,G China Fluorescent Filters
A16.2614-L4  B,G,U,UV China Fluorescent Filters		 ○ - - ● - A5F.2604
Most Recommended 2025!
A16.2614-UL Ultra LED Inverted Fluorescent Microscope With
All-in-One Filter + 5W LED System
The LED Fluorescent Light Source And The Fluorescent Filter Are Fixed as One Unit And Move Together, Switch Easily And Providing An Ultra-high Brightness Fluorescent Light Source.

A16.2614-UL2  B,G China Fluorescent Filters
A16.2614-UL3  B,G,UV China Fluorescent Filters
A16.2614-UL4  B,G,U,UV China Fluorescent Filters		 ○ - - - ● A5F.2606
Package Microscope Packing Size: 660mmx590mmx325mm  Fluorescence Carton Size: 520x470x235mm
Weight Gross Weight: 18 kgs, Net Weight: 13.5 kgs
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.
