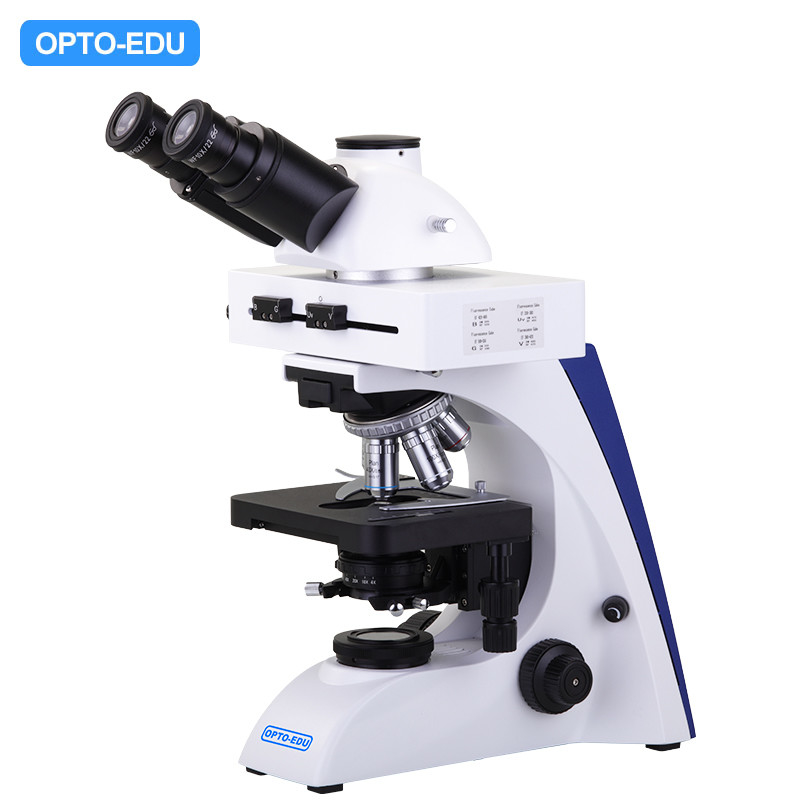

OPTO-EDU A16.2603-UL LED Fluorescent Light Microscopy 6V 30W Halogen Ultra LED Fluorescent Microscope

OPTO-EDU A16.2603-UL LED Fluorescent Light Microscopy 6V 30W Halogen Ultra LED Fluorescent Microscope

Products - Fluorescence Microscope
  • Application
    Research|Learning
  • Certification
    CE|Rohs
  • Drawtube
    Trinocular
  • Illumination
    Transmit Light 6V30W Halogen
  • Magnification
    40x - 1000x
  • Theory
    Fluorescence Microscope
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A16.2603-UL
  • Document
    Product Brochure PDF
  • Minimum Order Quantity
    1 pc
  • Price
    Negotiation
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

OPTO-EDU A16.2603-UL LED Fluorescent Light Microscopy 6V 30W Halogen Ultra LED Fluorescent Microscope

  • OPTO-EDU A16.2603-UL LED Fluorescent Light Microscopy 6V 30W Halogen Ultra LED Fluorescent Microscope
Get Price Contact Now
  • Upgradeable to Semi-APO Fluorescent Objectives & 100x Water Objective
  • 5W LED Fluorescent Light Source For Observe In Pathology, Clinical Lab Use
  • Large Head Eyepiece Tube Dia.30mm + Super Wide Field SWF10x/22mm Eyepiece
  • Rackless Large Mechanical Stag 182x140mm/77x52m With Double Slide Holder
  • Swing Out Condenser N.A. 0.9/0.13 + High Brightness 6V30W Halogen Koehler Illumination
OPTO-EDU A16.2603-UL LED Fluorescent Light Microscopy 6V 30W Halogen Ultra LED Fluorescent Microscope 0

OPTO-EDU A16.2603-UL LED Fluorescent Light Microscopy 6V 30W Halogen Ultra LED Fluorescent Microscope 1

OPTO-EDU A16.2603-UL LED Fluorescent Light Microscopy 6V 30W Halogen Ultra LED Fluorescent Microscope 2

OPTO-EDU A16.2603-UL LED Fluorescent Light Microscopy 6V 30W Halogen Ultra LED Fluorescent Microscope 3

OPTO-EDU A16.2603-UL LED Fluorescent Light Microscopy 6V 30W Halogen Ultra LED Fluorescent Microscope 4

Items A16.2603-UL LED Fluorescent Microscope Specification 　 Cata. No.
Head Seidentopf Binocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-76mm,
Eyepiece Tube Dia.30mm		 ● A53.2623-B
Seidentopf Trinocular  Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-76mm, Light Split Switch E100:P0/E20:P80,
Eyepiece Tube Dia.30mm		 ○ A53.2623-T
Eyepiece WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable ●● A51.2621-1022
Nosepiece Quintuple ● A54.2610-N01
Infinity Plan Objective PLAN 2.5X/0.07,W.D.=8.47mm ○ A52.2606-2.5
PLAN 4X/0.10,W.D.=12.10mm ● A52.2606-4
PLAN 10X/0.25,,W.D.=4.64mm ● A52.2606-10
PLAN 20X/0.40(S),W.D.=2.41mm ● A52.2606-20
PLAN 40X/0.66(S),W.D.=0.65mm ● A52.2606-40
PLAN 60X/0.80(S),W.D.=0.33mm ○ A52.2606-60
PLAN 100X/1.25(S,Oil),W.D.=0.12mm ● A52.2606-100
PLAN 100X/1.15(S,Water),W.D.=0.19mm ○ A52.2606-100W
Infinity Plan
Semi-APO Fluorescent Objective		 UplanFLN 4x, N.A.0.16,W.D.=17.151mm ○ A5F.2611-4
UplanFLN 10x, N.A.0.30,W.D.=7.68mm ○ A5F.2611-10
UplanFLN 20x, N.A.0.50,W.D.=1.96mm ○ A5F.2611-20
UplanFLN 40x, N.A.0.75,W.D.=0.78mm ○ A5F.2611-40
UplanFLN 100x(Oil), N.A.1.30,W.D.=0.15mm ○ A5F.2611-100
Working Stage Rackless (Integrated) Mechanical Stage, Size 182×140mm, Travel Range 77×52mm, Double Slide Holder ● A54.2601-S10
Focusing Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 22mm, Fine Focusing Div. 0.002mm ● 　
Condenser Swing-out Condenser,N.A.0.9/0.13,Iris Diaphragm ● A56.2614-07a
Illumination Transmit Light 6V30W Halogen
Koehler Illumination, Wide Voltage 100V~240V, Field Diaphragm		 ● A56.2650-6V30WH
Transmit 3W LED Koehler Illumination, Field Diaphragm
Powered By Safety Low Voltage Charger, Input Wide Voltage 100V240V, Output 5V1A, Support Power Bank Supply For Outdoor Use		 ○
A56.2650-
3WLED
Field Diaphragm For Kohler Illumnation ● A56.2615-BK
Filter Dia.45mm, Blue  ● A56.2616-45B
Dia.45mm, Green ○ A56.2616-45G
Dia.45mm, Yellow ○ A56.2616-45A
Dark Field Dark Field Condenser, Dry, N.A.0.83-0.91, For 4x10x40x Objective ○ A5D.2610-BK
Dark Field Condenser, Immersion, N.A.1.3, For 100x Objective 　 A5D.2610-BKW
Polarizing Analyzer + Polarizer Set ○ A5P.2601-BK
Phase Contrast Infinity Plan Phase Contrast Objective 10x + Phase Contrast Slide 10x + Phase Contrast Condenser + Telescope 11x + Green Filter ○ A5C.2602-10
Infinity Plan Phase Contrast Objective 20x + Phase Contrast Slide 20x + Phase Contrast Condenser + Telescope 11x + Green Filter ○ A5C.2602-20
Infinity Plan Phase Contrast Objective 40x + Phase Contrast Slide 40x + Phase Contrast Condenser + Telescope 11x + Green Filter ○ A5C.2602-40
Infinity Plan Phase Contrast Objective 100x + Phase Contrast Slide 100x + Phase Contrast Condenser + Telescope 11x + Green Filter ○ A5C.2602-100
Turret Phase Contrast Attachment
Infinity Plan Phase Contrast Objective 10x20x40x100x, Turret Phase Contrast Condenser 5-Holes, Telescope 11x, Green Filter		 ○ A5C.2603-BK
Fluorescence Newly Design 2025!
Ultra LED Inverted Fluorescent Microscope With
All-in-One Filter + 5W LED System
The LED Fluorescent Light Source And The Fluorescent Filter Are Fixed as One Unit And Move Together, Switch Easily And Providing An Ultra-high Brightness Fluorescent Light Source.

A16.2603-UL2  B,G China Fluorescent Filters
A16.2603-UL3  B,G,UV China Fluorescent Filters
A16.2603-UL4  B,G,U,UV China Fluorescent Filters		 ● A5F.2610-2
A5F.2610-3
A5F.2610-4
Adapter C-Mount 0.5x, Focus Adjustable ○ A55.2601-05
C-Mount 0.75x, Focus Adjustable ○ A55.2601-75
C-Mount 1.0x, Focus Adjustable ○ A55.2601-10
Digital Eyepiece Camera Adapter, Dia. 23.2mm/25mm ○ A55.2610
Package Microscope 55*27*36cm, 11kg, Fluorescent Unit 52*47*24cm, 5kg
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories

OPTO-EDU A16.2603-UL LED Fluorescent Light Microscopy 6V 30W Halogen Ultra LED Fluorescent Microscope 5

OPTO-EDU A16.2603-UL LED Fluorescent Light Microscopy 6V 30W Halogen Ultra LED Fluorescent Microscope 6

OPTO-EDU A16.2603-UL LED Fluorescent Light Microscopy 6V 30W Halogen Ultra LED Fluorescent Microscope 7
