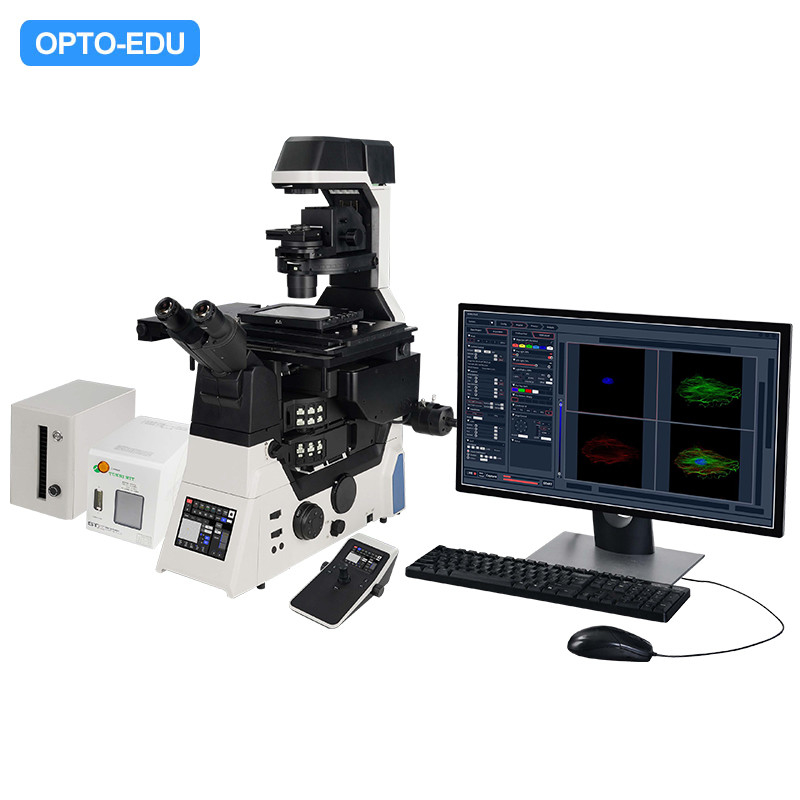

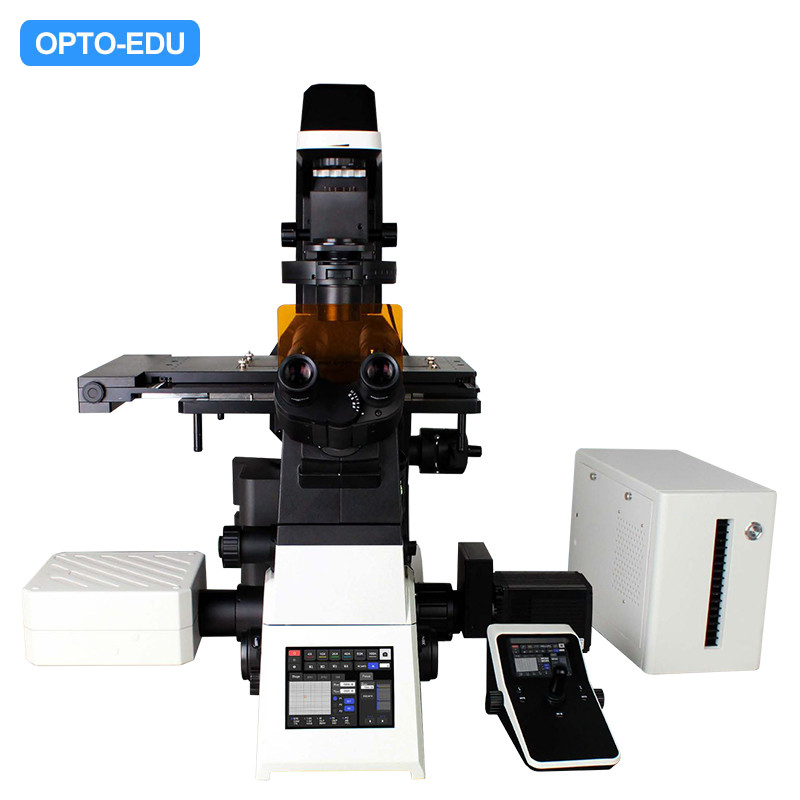

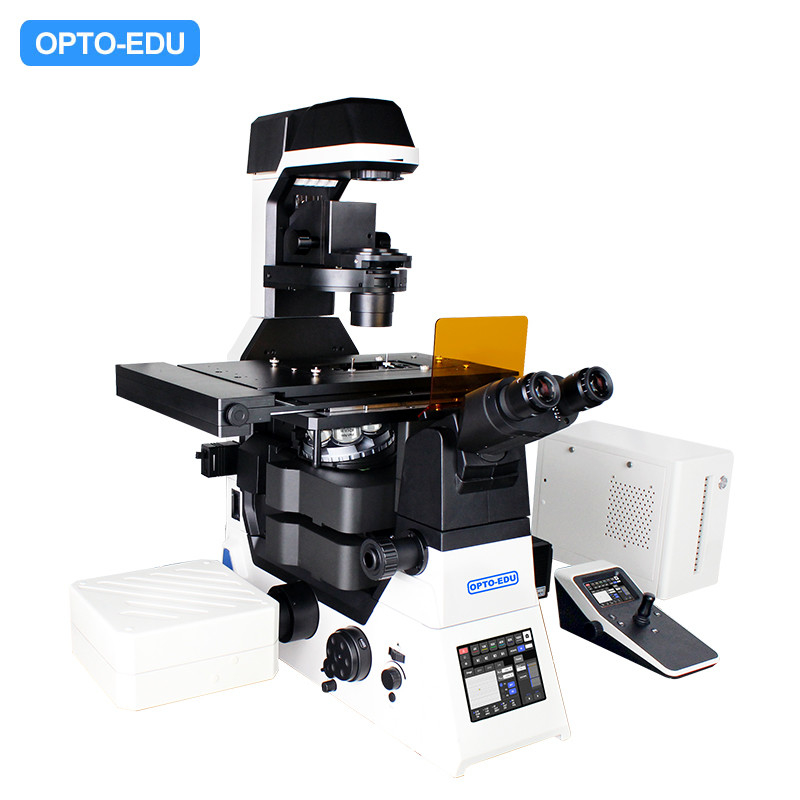

OPTO EDU A64.1010 Full Auto Semi APO Laser Confocal Microscope with Motorized Z Axis and High Speed Hardware Control

This system provides unprecedented operational convenience, enabling digital management and precise control of multiple microscope components including objective lens switching, focusing, condenser lens changing, and fluorescence module transitions.

The system memorizes custom observation modes and supports combined X, Y, Z, λ, and T scanning functions. It offers flexible shooting modes including multi-channel fluorescence imaging, time-lapse scanning, multi-position acquisition, Z-axis stacking, and panoramic stitching for diverse experimental scenarios.

Enhanced operation speeds for objectives, filter blocks, XY stage, and observation modules create an effortless workflow. The intuitive joystick control makes the microscope an extension of the researcher's hands.

Precisely regulates platform temperature, humidity, and CO2 concentration for ideal long-term cell cultivation conditions.

Independent focusing design minimizes mechanical impact on Z-axis. The Adaptive Focus System intelligently eliminates drift, delivering crisp images across techniques including super-resolution, confocal, and TIRF microscopy.

4-channel LED system offers high compatibility with common dyes, concentrated excitation energy, and reduced photobleaching. Instant-on capability and long lifespan make it superior to mercury lamps.

5.6-inch touch screen enhances interface convenience while retaining traditional controls for intuitive operation in dark environments.

• Brightfield, Phase Contrast, Fluorescence, DIC
• Field of View up to 66μm x 66μm at 100X
• Lateral Resolution (2D-SIM) improved 2-fold to 86nm
• Axial Super-Resolution (3D-SIM) to 270nm
• Real-time super-resolution imaging at video rate
