Inverted Microscope Micromanipulator
,OPTO-EDU Micromanipulator
,Micromanipulator for Inverted Microscope
-
Single Axis Moving Distance≥20mm
-
Weights3.5 Kg
-
Movement Speed0~13000 Um/s
-
Mechanical Adjustment Distance0~105 Mm
-
Rotary Axis Offset Angle'-45°~110°
-
Speed ControlProportional And Dynamic Force Feedback Control
-
Place of OriginChina
-
Brand NameCNOEC, OPTO-EDU
-
CertificationCE, Rohs
-
Model NumberA54.0720
-
Document
-
Minimum Order Quantity1 pc
-
PriceFOB $1~1000, Depend on Order Quantity
-
Packaging DetailsCarton Packing, For Export Transportation
-
Delivery Time5~20 Days
-
Payment TermsT/T, West Union, Paypal
-
Supply Ability5000 pcs/ Month

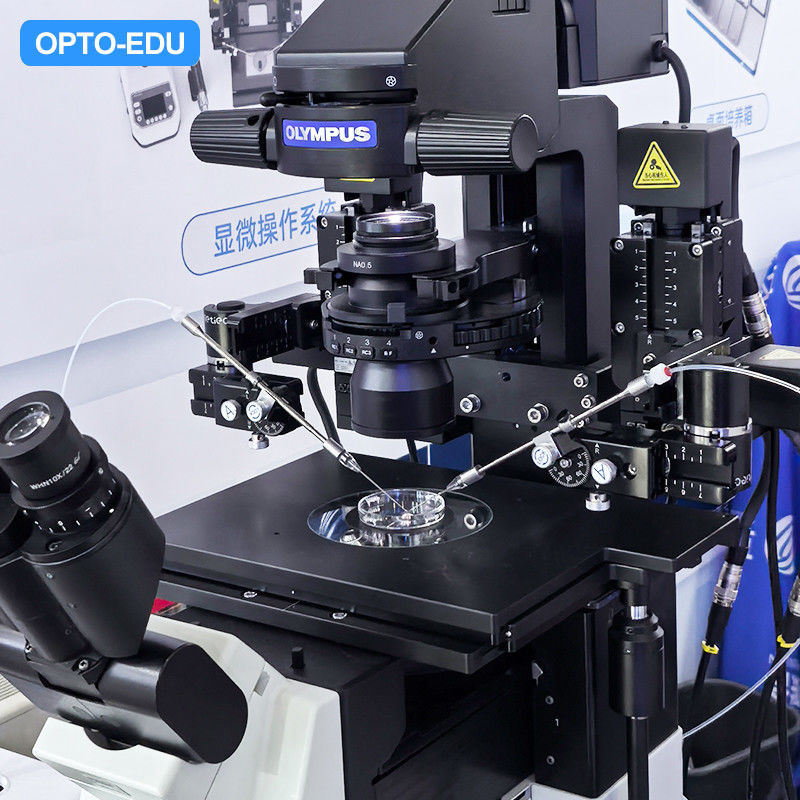

OPTO-EDU A54.0720 Micromanipulator for Inverted Microscope
|
The A54.0720 micromanipulation operating system has a Chinese/English bilingual interface. By controlling the rocking bar, cell microinjection operations can be carried out accurately and quickly, maximumly improving the success rate. A54.0720 is equipped with single-axis motion and three-axis locking functions, providing greater flexibility and convenience for Intracytoplasmic Sperm Injection (ICSI)
● Equipped with a Chinese/English bilingual interface. ● Good stability, no vibration during operation ● Adjustable microscope needle pitch and horizontal angle by knob ● The attachment functions can be selected and set.(Single-axis motion or locking, step injection) ● The Z-axis limit position can be set to prevent capillary breakage |
|
▶ Suspension cell injection
Prokaryotic or cytoplasmic injection Assisted Reproductive Technology ICSI operations (intracytoplasmic single sperm injection) |
▶ Suspension cell manipulation
Cell transplantation Single-cell separation
|
|
|

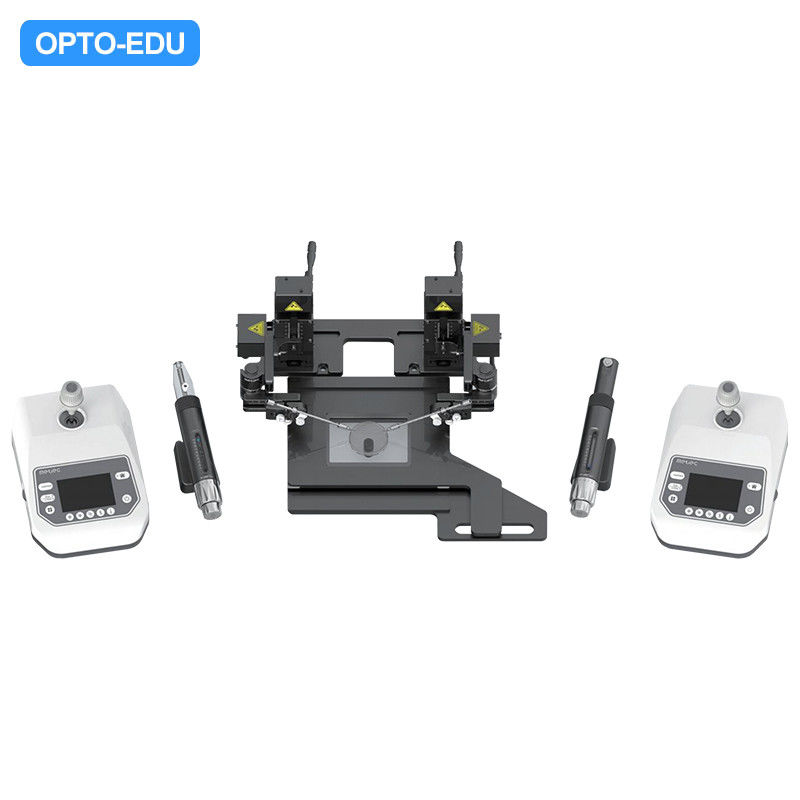

▶ A54.0720 Micromanipulation Controller
Buttons, display, joystick and side dial are included. The movement direction and speed of the joystick are transmitted to the micromanipulation side through the control board. The movement speed and working range size can be predefined in the software. The working scope can be selected and changed individually on the control panel. |
| Micromanipulation controller | A joystick can be moved to control the movementdistance and direction of the X,Y, and Z axes |
| Speed control | Proportional and dynamic force feedback control |
| Work mode | Coarse/Fine /X-Fine |
| Size (L*W*H) | 200*290*145 mm |
|
Micromanipulation manipulator: X. Y, Z three-axis motion mechanism, rotating connector and angle adjustment are included which is used to move and position the micromanipulation side in three-dimensional space. |
| Single axis moving distance | ≥20mm |
| Weights | 3.5 kg |
| Movement speed | 0~13000 um/s |
| Mechanical adjustment distance | 0~105 mm |
| Size(L*W*H) | 140*100*240 mm |
| Rotary axis offset angle | -45°~110° |
|
With good sealing performance, operations such as suspension positioning and cell removal of embryos can be carried out using air and oil.
Oil pressure microinjector and air pressure microinjector: for manual micro-volume high-precision injection, micro-volume liquid distribution injection and gas pressure control. 0l pressure microinjector is applied in complex scenarios with high resolution and high sensitivity (embryo biopsy and cell implantation, etc. Air pressure microinjector is a micro-transfer pneumatic micro-syringe, which is widely applied in scenarios like suspending cells, embryo maintenance, or transferring smaller volumes of liquid. |
| Oil pressure microinjector | |
| Function | Aspiration and dispensing of microcells Manual microinjection Cell removal |
| Medium | Paraffin oil |
| Volume change per revolution | 1uL/10uL |
| Maximum volume | 1000uL |
| Injection tube | 1.3 meters long, inner diameter 1.0 mm, outer diameter 2.0 mm |
| Air pressure microinjector | |
| Function | Microcell suspension maintenance Aspiration and dispensing of microcell Small volumes of liquids trace dispensing |
| Pressure generation | Air |
| Volume change per revolution | 60uL/600uL |
| Maximum volume | 10mL |
| Injection tube | 1.3 meters long, inner diameter 1.0 mm, outer diameter 2.0 mm |
