Highlight
4K Digital Camera
,13.3" LCD Digital Camera
,8.0M Digital Camera
-
Interface Or ButtonFunction Description
-
USB 2.0Connect USB Mouse For Easy Operation With Embedded XCamView Software
-
USB VideoConnect PC Or Other Host Device To Realize Video Image Transmission
-
ON/OFFPower Switch (Short Press To Turn On, Long Press To Turn Off)
-
LEDLED Status Indicator
-
MENUDisplay Menu Key
-
Video Output InterfaceFunction Description
-
Place of OriginChina
-
Brand NameCNOEC, OPTO-EDU
-
CertificationCE, Rohs
-
Model NumberA59.2268
-
Document
-
Minimum Order Quantity1 pc
-
PriceFOB $1~1000, Depend on Order Quantity
-
Packaging DetailsCarton Packing, For Export Transportation
-
Delivery Time5~20 Days
-
Payment TermsT/T, West Union, Paypal
-
Supply Ability5000 pcs/ Month

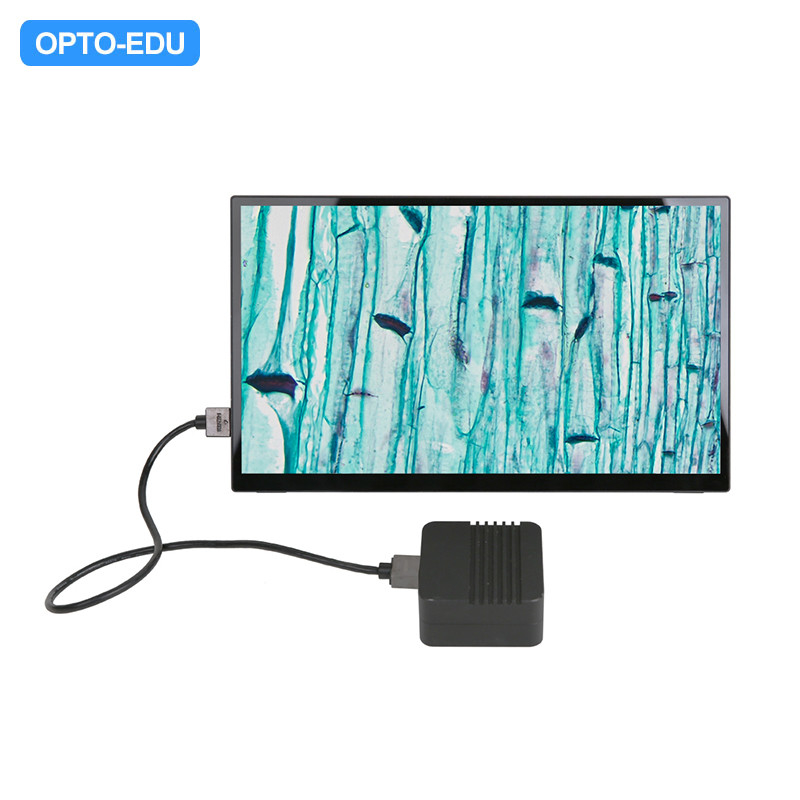

OPTO EDU A59.2268 13.3" LCD Digital Camera 8.0M 4K
|
A59.2268 Camera Intelligent Control Platform(CICP) help manual ,Please click the left connection to download!!
A59.2268 is a SoC Camera intelligent control platform launched by ToupTek Photonics that integrates powerful computing power and Camera control functions. The HCMOS series cameras developed by ToupTek Photonics only need a standard HDMI cable to connect with the A59.2268 Camera intelligent control platform and complete the functions of Camera control, video display, image capture, video recording and measurement.
The A59.2268 Camera intelligent control platform is equipped with multi-touch TFT-LCD displays of different sizes and resolutions, which can get rid of the user's dependence on the keyboard and mouse during operation, and use finger touch operation to realize the control of HCMOS cameras or other peripherals manipulation.
The combination of A59.2268 series Camera intelligent control platforms and HCMOS series cameras are expected to be used in various products such as intelligent detection, processing, analysis and control, covering public security criminal investigation, precision agriculture and forestry, water quality monitoring, remote sensing and telemetry, industrial inspection, cultural relics identification, medical treatment, etc. This combination has extremely high commercial prospects and value. |
| Model | Processor/th> | Memory/Storage | Display | Computing Power | System Version |
| CamPI2K133A | RK3399 | 2G LPDDR3/32GEMMC | 1080P multi-touch display | NA | Android 10.0 |
|
Modular high scalability:The core board and the interface board are designed independently, while focusing on the core Camera functions, it has the characteristics of high scalability and embeddability;
Simple image transmission:Only one HDMI cable is needed to connect with HCMOS series cameras, which can perfectly realize the control of the camera, the transmission, display and processing of image and video data, eliminating the trouble of hardware compatibility and Camera driver problems, seamlessly integrated with the camera, providing users with worry-free mobile image acquisition solutions;
Openness of product development:Users can develop and run their own image processing applications through the supplied SDK, realize on-site industrial control through standard user interfaces, process image and video data according to preferences and needs, and finally submit scientific reports, completely liberated from camera hardware problems and image or video data capture problems, focus on problem-oriented image processing and analysis, and quickly develop user own target equipment;
Portability of product use/integration:Compact size ensures portability for product use and integration;
Versatility of product application:It can be applied to various scenarios, such as microscope observation, biological image analysis, industrial inspection and various intelligent image analysis equipment, to meet different development needs. |
| A59.2268 13.3" LCD Digital Camera, HDMI + Mouse Measure, USB3.0, WIFI, 8.0M 4K Specification | |
| Interface or Button | Function Description |
| USB 2.0 | Connect USB mouse for easy operation with embedded XCamView software |
| USB Video | Connect PC or other host device to realize video image transmission |
| USB3.0 | Connect USB flash drive to save pictures and videos |
| Connect 5G WiFi module to transfer video wirelessly in real time | |
| Connect USB microphone for audio and video recording | |
| ON/OFF | Power switch (Short press to turn on, long press to turn off) |
| HDMI OUT | Comply with HDMI2.0 standard. Used to extend 4K/1080P format video output and supporting automatic switch between 4K and 1080P format according to the connected monitors |
| LED | LED status indicator |
| +/- | Display brightness adjustment button |
| MENU | Display menu key |
| DC 12V2A | Power adapter connection (12V/2A) |
| Video Output Interface | Function Description |
| HDMI Interface | Synchronize video output through HDMI OUT interface, comply with HDMI2.0 standard; 60fps@4K Or 60fps@1080P |
| WiFi Interface | Connecting 5G WiFi adapter (USB3.0 slot) in AP/STA mode |
| USB Video Interface | Connecting USB Video port of PC for video transfer |
| H264/MJPEG format video | |
| Other Function | Function Description |
| Video Saving | Video format:8M (3840*2160) H264/H265 encoded MP4 file |
| Video saving frame rate: 60fps in Low Delay mode; 30fps in WDR mode | |
| Image Capture | 8M (3840*2160) JPEG/TIFF image in USB flash drive |
| Measurement Saving | Measurement information saved in different layer with image content |
| Measurement information is saved together with image content in burn in mode | |
| ISP | Exposure(Automatic / Manual Exposure) / Gain, White Balance(Manual / Automatic / ROI Mode), Sharpening, 3D Denoise, Saturation Adjustment, Contrast Adjustment, Brightness Adjustment, Gamma Adjustment, Hue Adjustment, Color to Gray, 50HZ/60HZ Anti-flicker Function |
| Image Operation | Zoom In/Zoom Out (Up to 10X), Mirror/Flip, Freeze, Video EDF, Cross Line, Overlay, PIP, Browser (including Picture Browsing, Video Playback, Video Compare, Picture Compare, Picture EDF, Image Processing), Measurement Function |
| Embedded RTC(Optional) | To support accurate time on board |
| Restore Factory Settings | Restore camera parameters to its factory status |
| Multiple Language Support | English / Simplified Chinese / Traditional Chinese / Korean / Thailand / French / German / Spanish / Japanese / Italian / Russian / Dutch / Portuguese |
| Software Environment under WiFi/USB Video Output | |
| White Balance | Auto White Balance |
| Color Technique | Ultra-Fine Color Engine |
| Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK (Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) |
| Recording System | Still Picture or Movie |
| Operating System | Microsoft® Windows® 8 / 8.1 / 10 / 11(32 & 64 bit) |
| OSx(Mac OS X) | |
| Linux | |
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher |
| Memory: 4GB or More | |
| Ethernet Port: RJ45 Ethernet Port | |
| Display:19” or Larger | |
| CD-ROM | |
| Operating Environment | |
| Operating Temperature | -10°~ 50° |
| (in Centidegree) | |
| Storage Temperature (in Centidegree ) | -20°~ 60° |
| Operating Humidity | 30~80%RH |
| Storage Humidity | 10~60%RH |
| Power Supply | DC 12V/2A Adapter |
| Model | Sensor & Size | Pixel (μm) | G Sensitivity/Dark Signal | FPS | FPS | Exposure |
| 8.3MPA | 8.3M/IMX678© 1/1.8”(7.68x4.32) |
2.0x2.0 | 3541(mV/lx/s) 0.15mv with 1/30s |
42@1920x1080 | 3840x2160 | 0.02ms~15s |
| 8.3MPB | 8.3M/IMX585 1/1.2”(11.2x6.3) |
2.9x2.9 | 5970mv with 1/30s 0.15mv with 1/30s |
42@1920x1080 | 3840x2160 | 0.02ms~15s |
| 20MPA | 20M/IMX283 1” (13.2x8.9) |
2.4x2.4 | TBD | TBD | TBD | TBD |
| 45MPA | 45M/IMX294 4/3”(17.26x13.03) |
4.6x4.6 | 108mv with 1/30s 0.03mv with 1/30s |
42@1920x1080 | 8160*5616 | 0.02ms~15s |
| 4.2MMB-RAW | 4.2M/GSENSE2020BSI (M,UV, RS)1.2”(13.31x13.31) |
6.5x6.5 | 1.1x108 (e-/((W/m2).s)) QE93.7%@550nm 80(e-/s/pix) |
18@2048x2048 18@1024x1024 |
2048x2048 1024x1024 |
0.15ms-15s |
| 4.2MMB-YUV | 4.2M/GSENSE2020BSI (M,UV, RS) 1.2”(13.31x13.31) |
6.5x6.5 | 1.1x108 (e-/((W/m2).s)) QE93.7%@550nm 80(e-/s/pix) |
18@2048x2048 18@1024x1024 |
2048x2048 1024x1024 |
0.15ms-15s |
| 1.3MMA | 1.3M/IMX990(M) 1/2”(6.40x5.12) |
5.0x5.0 | 121mV with 1/30s 1.0mV with 1/30s |
35@1280x1024 35@640x512 |
1280x1024 640x512 |
50us~3600s |
