Highlight
CMOS Digital Microscope Camera
,OPTO EDU CMOS Digital Microscope Camera
,USB3.0 CMOS Digital Microscope Camera
-
ApplicationsMicroscope
-
CertificationCE|Rohs
-
OutputUSB 3.0
-
Product NameMicroscope Accessories
-
Resolution10M Pixels
-
SenserCMOS
-
Spectral Range380-650nm (with IR-filter), For Monochromatic Camera, AR Is Used
-
Recording SystemStill Picture And Movie
-
Place of OriginChina
-
Brand NameCNOEC, OPTO-EDU
-
CertificationCE, Rohs
-
Model NumberA59.2210
-
Document
-
Minimum Order Quantity1 pc
-
PriceFOB $1~1000, Depend on Order Quantity
-
Packaging DetailsCarton Packing, For Export Transportation
-
Delivery Time5~20 Days
-
Payment TermsT/T, West Union, Paypal
-
Supply Ability5000 pcs/ Month

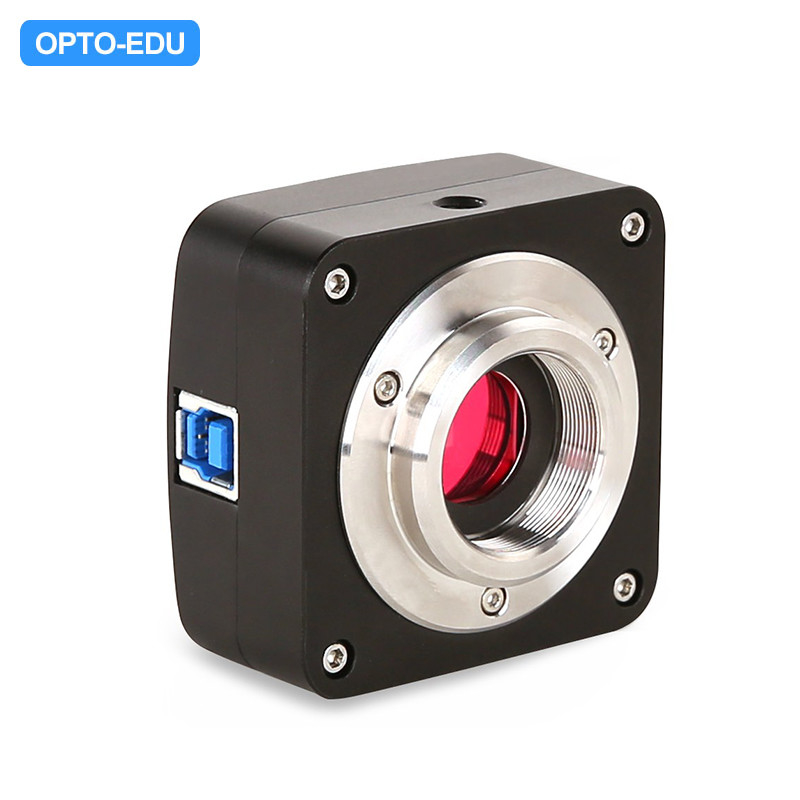

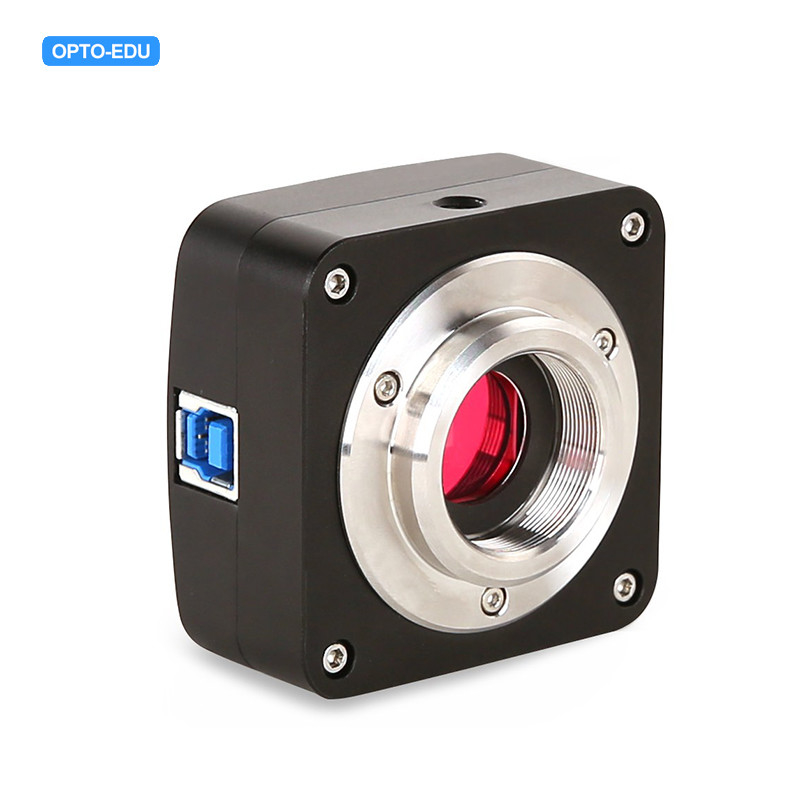

OPTO EDU A59.2210 USB3.0 CMOS Digital Microscope Camera
| Order Code | Sensor & Size | Pixel(μm) | G Responsivity Dynamic range SNRmax | FPS/Resolution | Binning | Exposure |
| 12MPA | 12M/IMX577© 1/2.1“ (5.95x4.71) |
1.55x1.55 | 250mv with 1/30s 0.25mv with 1/30s |
7.5@3840x3040 43@1920x1516 122@960x758 |
1x1 2x2 4x4 |
0.1ms~2000ms |
| 10MPA | 10M/IMX577© 1/2.3“ (5.68x4.26) |
1.55x1.55 | 250mv with 1/30s 0.25mv with 1/30s |
8.5@3664x2748 49@1832x1374 137@912x686 |
1x1 2x2 4x4 |
0.1ms~2000ms |
| 5.1MPA | 5.1M/AR0521© 1/2.5“ (5.70x4.28) |
2.2x2.2 | 18.8ke-/lux 73dB 40dB |
15.5@2592x1944 49.5@1296x972 97.5@648x486 |
1x1 2x2 4x4 |
0.1ms~2000ms |
| 5.1MPB | 5.1M/IMX335© 1/2.8“ (5.18x3.89) |
2.0x2.0 | 505mV 70dB 43dB |
25@2592x1944 40@1296x972 |
1x1 2x2 |
0.1ms~2000ms |
| 4.1MPA | 4.1M/IMX347© 1/1.8“ (7.795x4.408) |
2.9x2.9 | 2376mv with 1/30s 0.15mv with 1/30s |
20@2688x1536 30@2048x1536 40@1536x1536 100@1344x768 |
1x1 1x1 1x1 1x1 |
0.1ms~5000ms |
| 3.5MPA | 3.5M/SC4236© 1/2.6“ (5.76x3.84) |
2.5x2.5 | 3.0v/lux-sec 72dB 37dB |
30@2304x1536 30@1152x768 |
1x1 2x2 |
0.1ms~2000ms |
| Other Specification | |
| Spectral Range | 380-650nm (with IR-cut Filter) |
| White Balance | ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor |
| Color Technique | Ultra-Fine Color Engine/NA for Monochromatic Sensor |
| Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) |
| ADC | 8 Bit |
| Recording System | Still Picture and Movie |
| Cooling System* | Natural |
| Operating Environment | |
| Operating Temperature(in Centidegree) | -10~ 50 |
| Storage Temperature(in Centidegree) | -20~ 60 |
| Operating Humidity | 30~80%RH |
| Storage Humidity | 10~60%RH |
| Power Supply | DC 5V over PC USB Port |
| Software Environment | |
| Operating System | Microsoft® Windows® XP / Vista / 7 / 8 /10 /11 (32 & 64 bit) OSx(Mac OS X) Linux |
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher Memory:2GB or More USB Port: USB3.0 High-speed Port Display:17” or Larger CD-ROM |
| Standard Camera Packing List | |||
| A | Carton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photo | ||
| B | Gift box L:15cm W:15cm H:10cm (0.67~0.7Kg/ box) | ||
| C | One C3CMOS series camera | ||
| D | High-speed USB3.0 A male to B male gold-plated connectors cable /2.0m | ||
| E | CD (Driver & utilities software, Ø12cm) | ||
| Optional Accessory | |||
| F | Adjustable lens adapter | C-mount to Dia.23.2mm eyepiece tube (Please choose 1 of them for your microscope) | 108001/AMA037 |
| 108002/AMA050 | |||
| 108003/AMA075 | |||
| C-mount to Dia.31.75mm eyepiece tube (Please choose 1 of them for your telescope) | 108008/ATA037 | ||
| 108009/ATA050 | |||
| 108010/ATA075 | |||
| G | Fixed lens adapter | C-mount to Dia.23.2mm eyepiece tube (Please choose 1 of them for your microscope) | 108005/FMA037 |
| 108006/FMA050 | |||
| 108007/FMA075 | |||
| C-Mount to Dia.31.75mm eyepiece tube (Please choose 1 of them for your telescope) | 108011/FTA037 | ||
| 108012/FTA050 | |||
| 108013/FTA075 | |||
| Note: For F and G optional items, please specify your Camera type(C-mount, microscope camera or telescope camera) , ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application; | |||
| H | 108015(Dia.23.2mm to 30.0mm ring)/Adapter rings for 30mm eyepiece tube | ||
| I | 108016(Dia.23.2mm to 30.5mm ring)/ Adapter rings for 30.5mm eyepiece tube | ||
| J | 108017(Dia.23.2mm to 31.75mm Ring)/ Adapter rings for 31.75mm eyepiece tube | ||
| K | Calibration kit | 106011/TS-M1(X=0.01mm/100Div.); | |
| 106012/TS-M2(X,Y=0.01mm/100Div.); | |||
| 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.) | |||
