OPTO-EDU A18.1862 Rugged Tenprint Enrollment Scanner With Comparison Software FBI's Appendix-F Certified

OPTO-EDU A18.1862 Rugged Tenprint Enrollment Scanner With Comparison Software FBI's Appendix-F Certified

  • Highlight

    OPTO-EDU tenprint enrollment scanner

    ,

    Rugged tenprint enrollment scanner

    ,

    tenprint enrollment scanner

  • Image Types
    Single Flats, Rolls, 4-fingers And 2-thumbs Slaps
  • Image Resolution
    500 Dpi, 256 Levels Of Gray
  • Image Quality
    FBI’s IAFIS IQS Appendix-F Certified
  • Image/Template Format
    BMP, WSQ, ISO 19794-4, ISO 19794-2
  • Acquisition Mode
    Auto Capture And Manual Mode
  • Visual Indicators
    Intuitive 12 LEDs For Visual Operation
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A18.1862
  • Document
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

OPTO-EDU A18.1862 Rugged Tenprint Enrollment Scanner With Comparison Software FBI's Appendix-F Certified

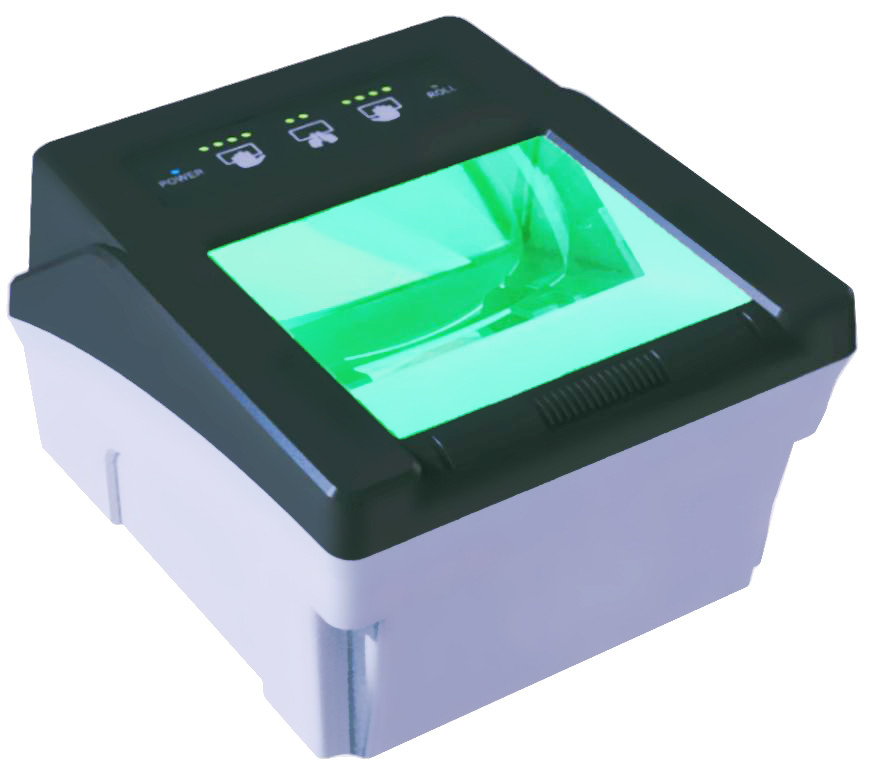

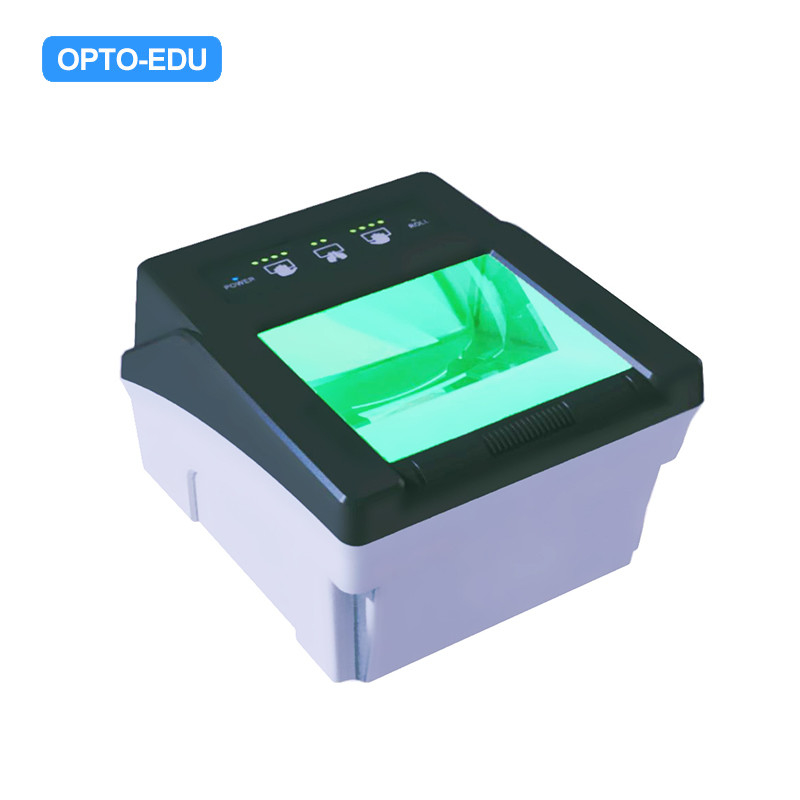

OPTO-EDU A18.1862 Rugged Tenprint Enrollment Scanner With Comparison Software FBI's Appendix-F Certified 0

OPTO-EDU A18.1862 Rugged Tenprint Enrollment Scanner With Comparison Software FBI's Appendix-F Certified 1

OPTO-EDU A18.1862 Rugged Tenprint Enrollment Scanner With Comparison Software FBI's Appendix-F Certified 2

OPTO-EDU A18.1862 Rugged Tenprint Enrollment Scanner With Comparison Software FBI's Appendix-F Certified 3


A18.1861 Palm + Finger Scanner



A18.1862 is the compact and lightest ten print scanner fully certified with FBI’s IAFIS Appendix-F specification which enables the scanner to deliver reliable and superior image quality and make it the optimal capturing device for national ID enrollment or background check. The most advanced optical technology and dedicated special lighting source plus the enhanced fingerprint identification algorithm that allow the high speed finger capturing and seamless image processing including rolled prints. The integrated automatic capture functionality ensures rapid capturing of high quality image for biometric data collection and eliminates the possible reprint issues.



KEY FEATURES



• Sliding detection for flat prints capturing

• Latent prints and halo elimination from recent scans

• Automatic device calibration when scanner starts up

• Auto segmentation of slaps into discrete single image

• Automatic sequence and image quality checking

• Robust design with low maintenance required

• Correct finger position and slap completeness check

• Auto capture functionality to eliminate reprint issues

• Visual indicators for intuitive instructions



USE CASES



• Immigration and border control

• Voter registration

• ePassport and Visa issuing

• e-Gate and Kiosk integration

• National ID enrollment


A18.1862 Rugged Ten print Enrollment Scanner
Image Types Single flats, rolls, 4-fingers and 2-thumbs slaps
Capture Area 3.6” x 3.2” (92mm x 81mm)
Image Size 3.2” x 3.0” (1600 x 1500 pixels) for slaps
1.6” x 1.5” (800 x 750 pixels) for rolled fingerprints
Image Resolution 500 dpi, 256 levels of gray
Image Quality FBI’s IAFIS IQS Appendix-F certified
Image/Template Format BMP, WSQ, ISO 19794-4, ISO 19794-2
Acquisition Mode Auto capture and manual mode
Status Indicators Intuitive 12 LEDs for visual operation
Buzzer On board programmable
MTBF In excess of 50,000 hours
Interface USB 2.0 high speed
Weight 1.2 kg
Dimensions (L*W*H) 160mm x 135mm x 90mm
Operating Systems Windows, Android, Linux
Software & SDKs Scan demo, APIs with Java, C++, C#, WebAPI
Operating Temperature 0°C to 50°C
Storage Temperature -20°C to 60°C
Humidity Range 10% to 90%, non-condensing
