APO Objective Infinity Trinocular Fluorescence Microscope with Disc LED  A16.0908-L

APO Objective Infinity Trinocular Fluorescence Microscope with Disc LED A16.0908-L

  • High Light

    epi-fluorescence microscope

    ,

    epifluorescence microscope

  • Max Magnification
    1000x
  • Light
    3W LED
  • Head
    Compensation Free Trinocular Head
  • Opitcal System
    Infinity
  • Condenser
    Abbe NA1.2/0.22
  • Focusing System
    Coaxial Coarse/Fine Focus System
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A16.0908-L
  • Minimum Order Quantity
    1 pc
  • Price
    Negotiation
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

APO Objective Infinity Trinocular Fluorescence Microscope with Disc LED A16.0908-L

APO Objective Infinity Trinocular Fluorescence Microscope with Disc LED  A16.0908-L



■Infinity color corrected optical system, new upgraded Koehler illumination system, presents a clear & bright micro-image under each magnification.
■ Fire-new ergonomic design, steady system structure, easy operation, is suitable for various working environments.
■Widely apply to clinical diagnosis, teaching experiment, pathological test and other micro-fields.





A16.0908-L Fluorescence Microscope, APO Specification

Optical system

Infinity Color Corrected Optical System

Head

Compensation Trinocular Head, 30 Inclined, 360 Rotatable, Interpupillary Distance 54-75mm, Splitting Ratio R:T=100:0 or 0:100; Diopter +/-5 Adjustable.

Eyepiece

High Eye-Point Wide Field Plan Eyepiece PL10x22mm, Reticle Can Be Assembled.

Objective

Infinity Plan Semi-Apochromatic Fluorescence Objectives

4x/0.13, WD=15.13mm

10x/0.3, WD=8.53mm

20x/0.5, WD=2.33mm

40x/0.75 (Spring), WD=0.55mm

100x /1.3(Spring, Oil ), WD=0.21mm

Nosepiece

5 Holes Revolving Nosepiece, Inward

Focusing

Coaxial Focus System With Upper Limited And Tension Adjustment; Coarse Range: 25mm; Fine Precision: 0.002mm; Focus Height Adjustable.

Stage

175x145mm Double Layer mechanical Stage, Rotatable; With Special Ffabrication Processing, Anti-corrosive And Anti-friction; X,Y Moving Hand Wheel Swithable to Right or Left Hand; Moving Range: 76x50mm, Precision : 0.1mm.

Condenser

N.A.1.2/0.22 Swing-out Type Achromatic Condenser

Light Source

6V/30W Halogen, Pre-centered, Intensity Adjustable.

Filter

Color Temperature Conversion Filter, Dia.45mm

Reflected Fluorescence System

Four-channel LED Fluorensent Illumination

External Wide Voltage Transformer . Input:100V-240V .Output: 6V2A

Eye Protecting Board

Center Wavelength 470mm LED Fluorensent Light, Fluorescence Filter System B1(or B2)

Center Wavelength 560mm LED Fluorensent Light, Fluorescence Filter System G1(or G2)

Center Wavelength 385mm LED Fluorensent Light, Fluorescence Filter System UV2(or UV1)

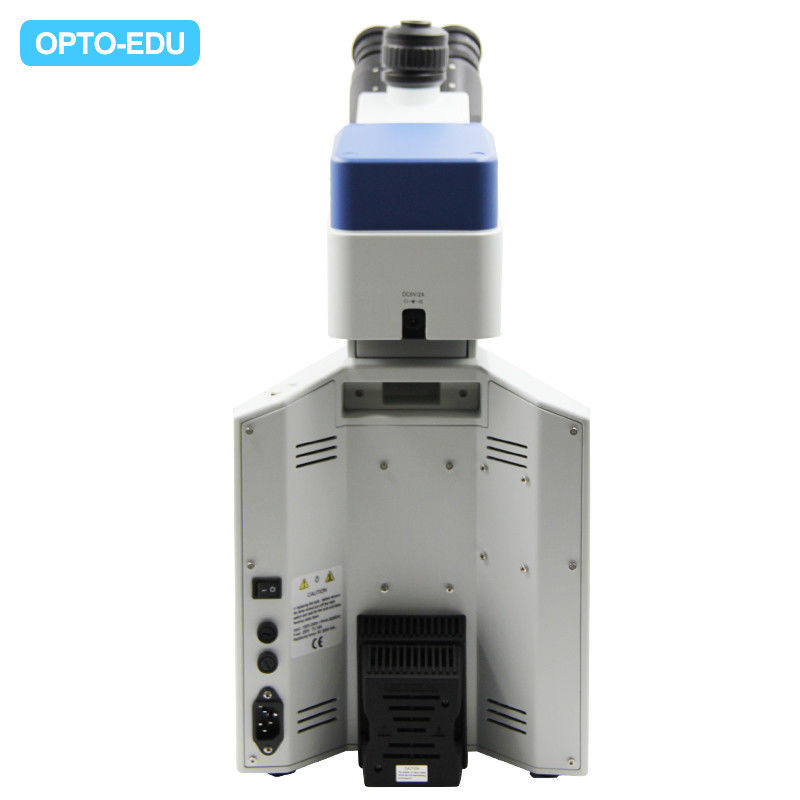

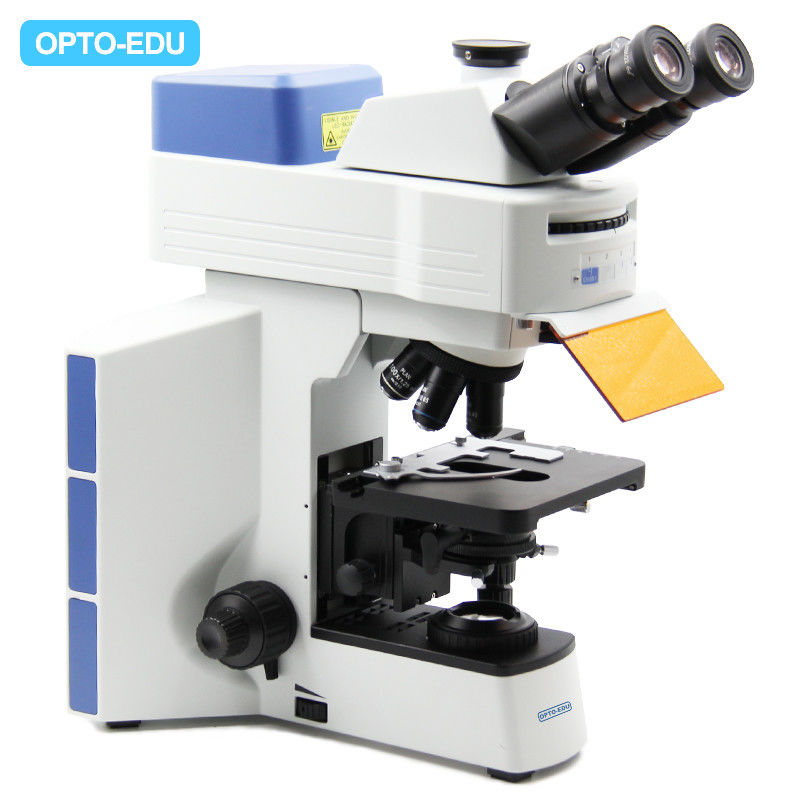

APO Objective Infinity Trinocular Fluorescence Microscope with Disc LED  A16.0908-L 0
