Binocular / Trinocular 1000x Fluorescence Microscope with Halogen Lamp A16.0301
■ Fire-new ergonomic design, steady system structure, easy operation, is suitable for various working environments.
■Widely apply to clinical diagnosis, teaching experiment, pathological test and other micro-fields.
| Specification |
A16.0301 Metallurgical Microscope
|
B
|
T
|
|
Head
|

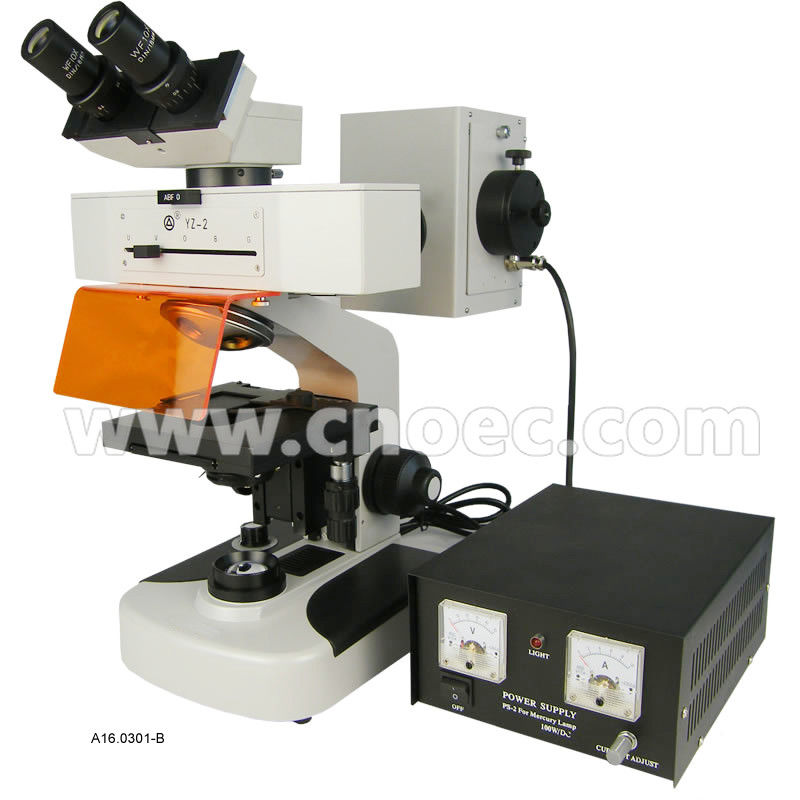

Binocular Head, inclined 30°, interpupillary distance 55-75mm
|
●
|
|

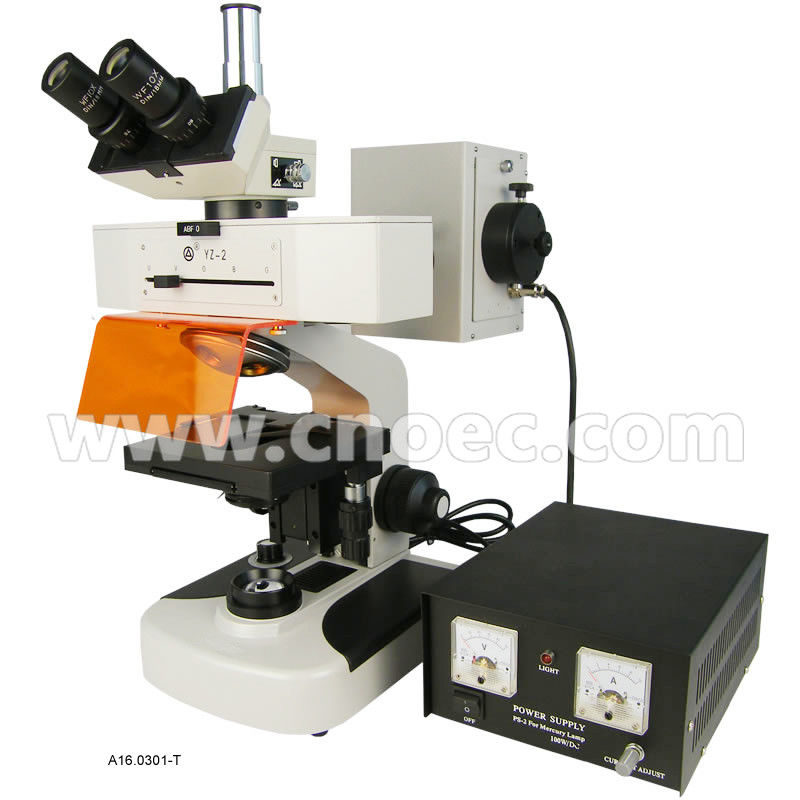

| Trinocular Head, inclined 30°, interpupillary distance 55-75mm |
|
●
|
|
Eyepiece
|
WF10x/18mm
|
| Nosepiece |
Quadruple nosepiece |
| Objective |
Achromatic 4x/0.1 |
| Achromatic 10x/0.25 |
| Achromatic 40x/0.65(S) |
| Achromatic 100x/1.25(O,S) |
| Stage |
Mechanical stage size 140x140mm, moving range 70x50mm, minimum vernier division 0.1mm |
| Condenser |
N.A.1.25 Abbe condenser, up/down range 15mm |
| Focusing |
Coaxial coarse & fine focusing knob, coarse focusing range 20mm, fine focusing division 0.002mm |
|
Fluorescent Unit
|
A57.0302Epi-Fluorescent Unit
--B(Blue), G(Green), U(Ultraviolet), V(Violet) exciting light filter system
--100W super high pressure spherical mercury lamp
--Ultraviolet light resist screen
|
| Filter |
Yellow filter Φ43mm, Green filter Φ43mm |
| Light Source |
12V 50W Halogen lamp, brightness adjustable |
|
Optional Accessories
|
Item No.
|
| Eyepiece |
WF16x |
A51.0301-16 |
| WF20x |
A51.0301-20 |
| Objective |
Achromatic 20x (S) |
A52.0301-20 |
| Achromatic 60x (S) |
A52.0301-60 |
| Plan 4x |
A52.0303-04 |
| Plan 10x |
A52.0303-10 |
| Plan 20x(S) |
A52.0303-20 |
| Plan 40x(S) |
A52.0303-40 |
| Plan 60x(S) |
A52.0303-60 |
| Plan 100x(O,S) |
A52.0303-100 |
| Condenser |
Dark field condenser, dry |
A57.0310-01 |
| Dark field condenser, immersion |
A57.0310-02 |
| Adapter |
CCD adapter |
A55.0302 |
| Photo adapter |
A55.0301 |
| Digital camera adapter |
A55.0303 |
|
