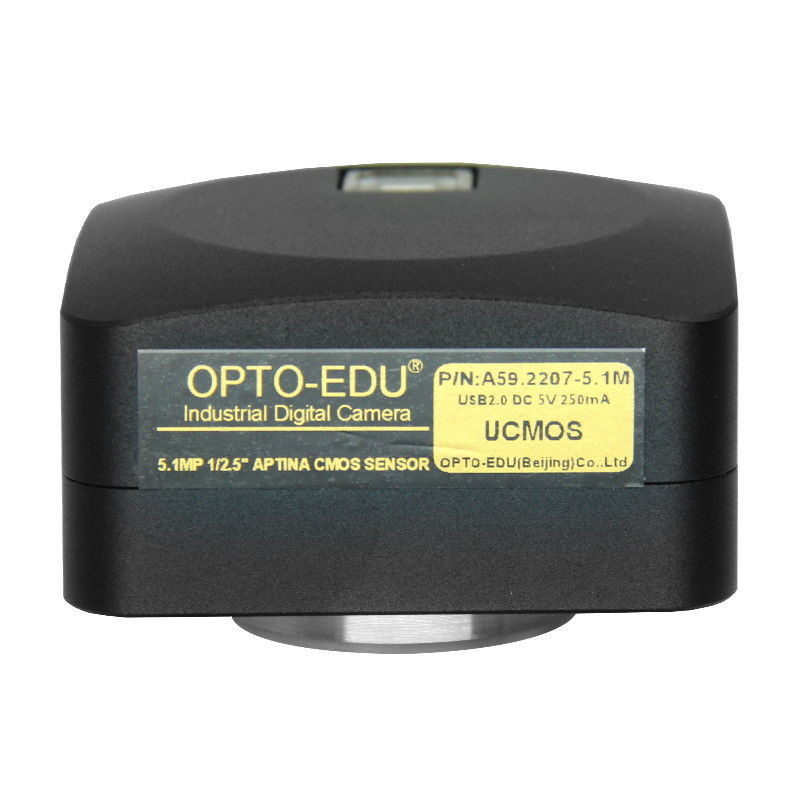

A59.2208 Microscope Accessories Usb 2.0 Cmos Digital Camera 1.3m~14m

A59.2208 Microscope Accessories Usb 2.0 Cmos Digital Camera 1.3m~14m

  • High Light

    1.3m microscope accessories

    ,

    usb microscope accessories

    ,

    usb 2.0 cmos digital camera

  • Applications
    Microscope
  • Certification
    CE|Rohs
  • Output
    USB 2.0
  • Product Name
    Microscope Accessories
  • Resolution
    350K Pixels
  • Senser
    CMOS
  • Spectral Range
    380-650nm (with IR-filter), For Monochromatic Camera, AR Is Used
  • Recording System
    Still Picture And Movie
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A59.2208
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

A59.2208 Microscope Accessories Usb 2.0 Cmos Digital Camera 1.3m~14m

A59.2208 is an ultra-high performance CMOS camera and it adopts ultra-high performance CMOS sensor as the image-picking device. USB2.0 is used as the data transfer interface.

A59.2208 camera hardware resolutions range from 0.35M to 14M and comes with the Integrated zinc aluminum alloy compact housing.

A59.2208 comes with advanced video & image processing software Image View; providing Windows/Linux/macOS/Android multiple platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc);

A59.2208 can be widely used in brightfield light environment and microscope image capture and analysis with moderate frame rate.



● USB2.0 Digital Camera With Aptina CMOS Sensors Resloution 1.3M~14M
● Integrated Zinc Aluminum Alloy Housing, With Ultra-Fine TM Color Engine
● High-speed USB2.0 Interface And High Frame Rate Video Display Keep Screen Smooth
● Auto White Balance, Auto-exposure, Brightness, Contrast, Chroma & Saturation Can Be Adjusted
● With Advanced Video & Image Processing Software Image View, Support SDK For Win/Linux/Mac/Android

A59.2208 Microscope Accessories Usb 2.0 Cmos Digital Camera 1.3m~14m 0



A59.2208 Microscope Accessories Usb 2.0 Cmos Digital Camera 1.3m~14m 1A59.2208 Microscope Accessories Usb 2.0 Cmos Digital Camera 1.3m~14m 2

A59.2208 Microscope Accessories Usb 2.0 Cmos Digital Camera 1.3m~14m 3

Cata. No. Sensor & Size(mm) Pixel(μm) G Sensitivity FPS/Resolution Binning Exposure
Dark Signal
14MPA 14M/MT9F002(C) 1.4x1.4 0.724v/lux-sec 1.8@4096x3288 1x1 0.4ms~2000ms
1/2.3“(5.73x4.60) 65.3dB 10@2048x1644 2x2
  35.5dB 27@1024x822 4x4
12MPA 12M/IMX577(C) 1.55x1.55 250mv with 1/30s 3@3840x3040 1x1 0.4ms~2000ms
1/2.1“ (5.95x4.71) 0.25mv with 1/30s 11@1920x1516 2x2
    47@960x758 4x4
10MPA 10M/IMX577(C) 1.55x1.55 250mv with 1/30s 3.3@3584x2748 1x1 0.4ms~2000ms
1/2.3“ (5.56x4.26) 0.25mv with 1/30s 12@1792x1374 2x2
    53@896x684 4x4
9MPB 9M/Special(C) 1.55x1.55 250mv with 1/30s 3.5@3488x2616 1x1 0.4ms~2000ms
1/2.4“(5.41x4.05) 0.25mv with 1/30s 13@1744x1308 2x2
    55@872x654 4x4
8MPB 8M/Special(C) 1.55x1.55 250mv with 1/30s 4@3264x2448 1x1 0.4ms~2000ms
1/2.5“(5.06x3.79) 0.25mv with 1/30s 15@1600x1200 2x2
    62@800x600 4x4
5.1MPA
Hot
5.1M/AR0521(C) 2.2x2.2 18.8ke-/lux 7.0@2592x1944 1x1 0.2ms~2000ms
1/2.5“ (5.70x4.28) 73dB 27.7@1296x972 2x2
  40dB 100.5@648x486 4x4
3.1MPB 3.1M/IMX123(C) 2.5x2.5 600mv with 1/30s 11.5@2048x1536 1x1 0.2ms~2000ms
1/2.8“ (5.12x3.84) 0.15mv with 1/30s 29.5@1024x768 2x2
1.3MPA 1.23M/SC1235(C) 3.75x3.75 4.5V/lux-sec 15@1280x960 1x1 0.14ms~2000ms
1/3“ (4.80x3.60) 74dB 15@1280x720 1x1
  38dB
Remark: C - Color, M-Monocolor, GS-GS Shutter
OTHER HARDWARE CONFIGURATION
Spectral Range 380-650nm (with IR-filter), for Monochromatic Camera, AR Is Used
White Balance ROI White Balance/ Manual Temp-Tint Adjustment
Color Rendering Tech. Ultra Fine Color Engine
Capture/Control SDK Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc)
Recording System Still Picture and Movie
Cooling System* Two-stage TE-cooling System -42 °C below Camera Body Temperature
OPERATING ENVIRONMENT
Operating Temperature -10 °C~ 50 °C
Storage Temperature -20 °C~ 60 °C
Operating Humidity 30~80%RH
Storage Humidity 10~60%RH
Power Supply DC 5V over PC USB Port
SOFTWARE ENVIRONMENT
Operating System Support Microsoft Windows XP / Vista / 7 /8 /10(32 & 64 bit)
OS X (Mac OS X), Linux
PC Requirements CPU: Equal to Intel Core2 2.8GHz or Higher
Memory: 2GB or More
USB port: USB2.0 High-speed Port
Display: 17" or Larger
CD-ROM
Dimension of A59.2208 Series Camera
A59.2208 Series USB2.0 Camera body, made from tough, CNC alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased life span when compared to other industrial camera solutions.



A59.2208 Microscope Accessories Usb 2.0 Cmos Digital Camera 1.3m~14m 4

A59.2208 Microscope Accessories Usb 2.0 Cmos Digital Camera 1.3m~14m 5

Packing List of A59.2208 Series Camera
Standard Outfit
A arton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photo
B Gift box L:15cm W:15cm H:10cm (0.5~55Kg/ box)
C Digital camera
D High-speed USB2.0 A male to B male gold-plated connectors cable /2.0m
E CD (Driver & utilities software, Ø12cm)
Optional Accessory
F Focus Adjustable Eyepiece Adapter For Microscope 0.37x, C-Mount to Dia.23.2mm   A55.2202-A37
0.50x, C-Mount to Dia.23.2mm   A55.2202-A50
0.75x, C-Mount to Dia.23.2mm   A55.2202-A75
For Telescope 0.37x, C-Mount to Dia.31.75mm   A55.2204-A37
0.50x, C-Mount to Dia.31.75mm   A55.2204-A50
0.75x, C-Mount to Dia.31.75mm   A55.2204-A75
G Focus Fixed
Eyepiece Adapter
For Microscope 0.37x, C-Mount to Dia.23.2mm   A55.2202-F37
0.50x, C-Mount to Dia.23.2mm   A55.2202-F50
0.75x, C-Mount to Dia.23.2mm   A55.2202-F75
For Telescope 0.37x, C-Mount to Dia.31.75mm   A55.2204-F37
0.50x, C-Mount to Dia.31.75mm   A55.2204-F50
0.75x, C-Mount to Dia.31.75mm   A55.2204-F75
H Adaptor Rings Dia.23.2mm to 30.0mm For 30.0mm Microscope Eyepiece Tube   A55.2203-30
I Adaptor Rings Dia.23.2mm to 30.5mm For 30.5mm Microscope Eyepiece Tube   A55.2203-30.5
J Adaptor Rings Dia.23.2mm to 31.75mm For 31.75mm Telescope Eyepiece Tube   A55.2203-31.75
K Calibration
Stage Micrometer
X=0.01mm/100Div.
X,Y=0.01mm/100Div
X=0.01mm/100Div., 0.10mm/100Div
