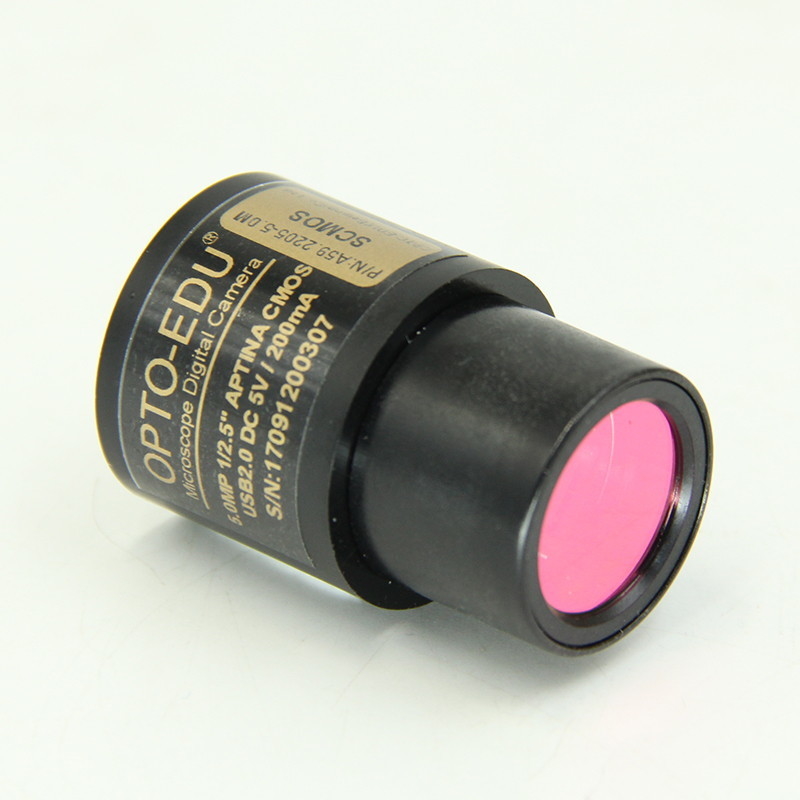

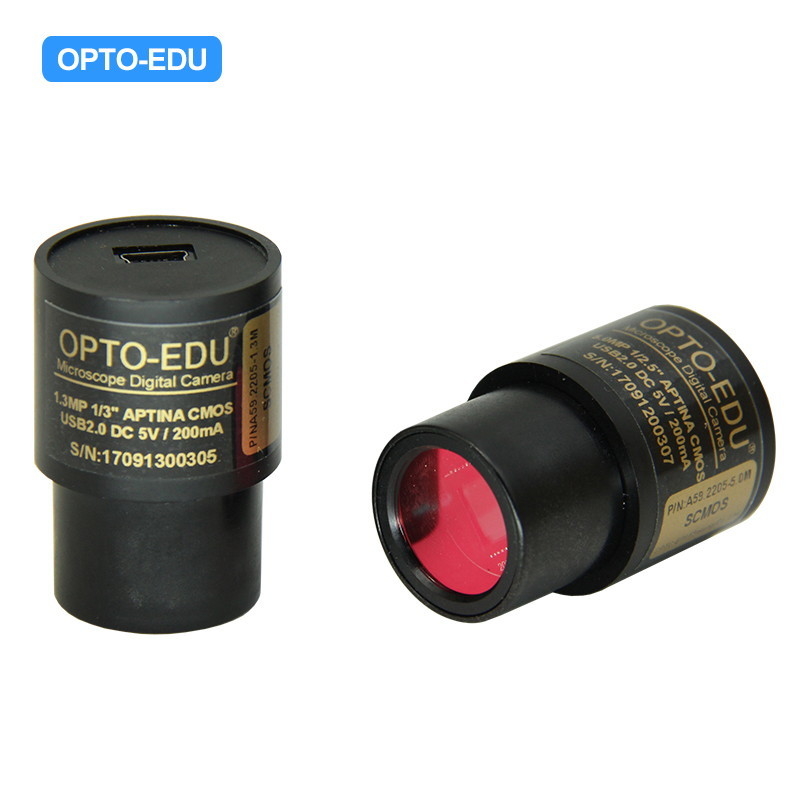

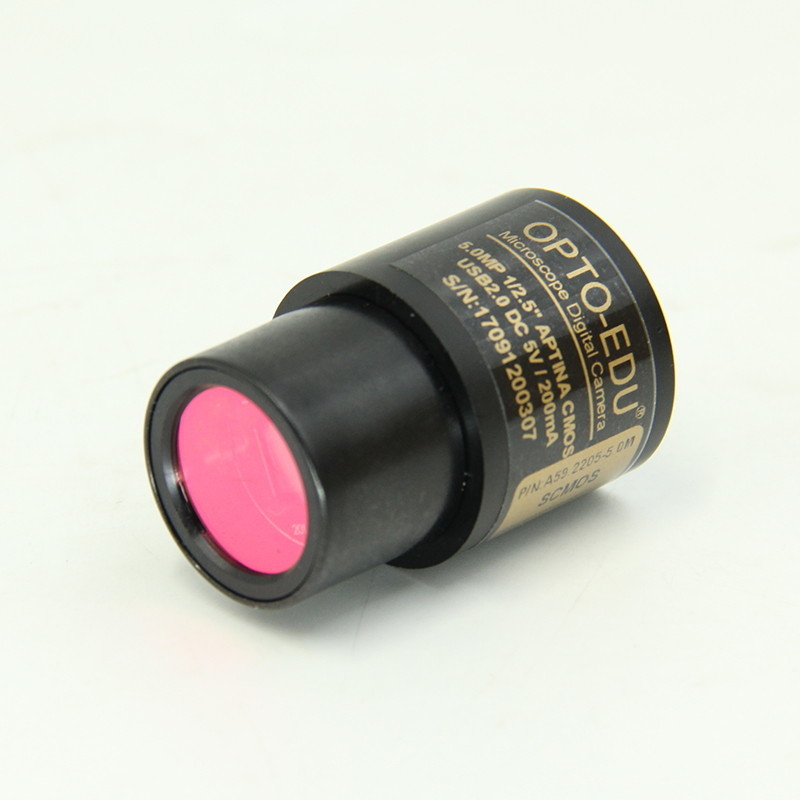

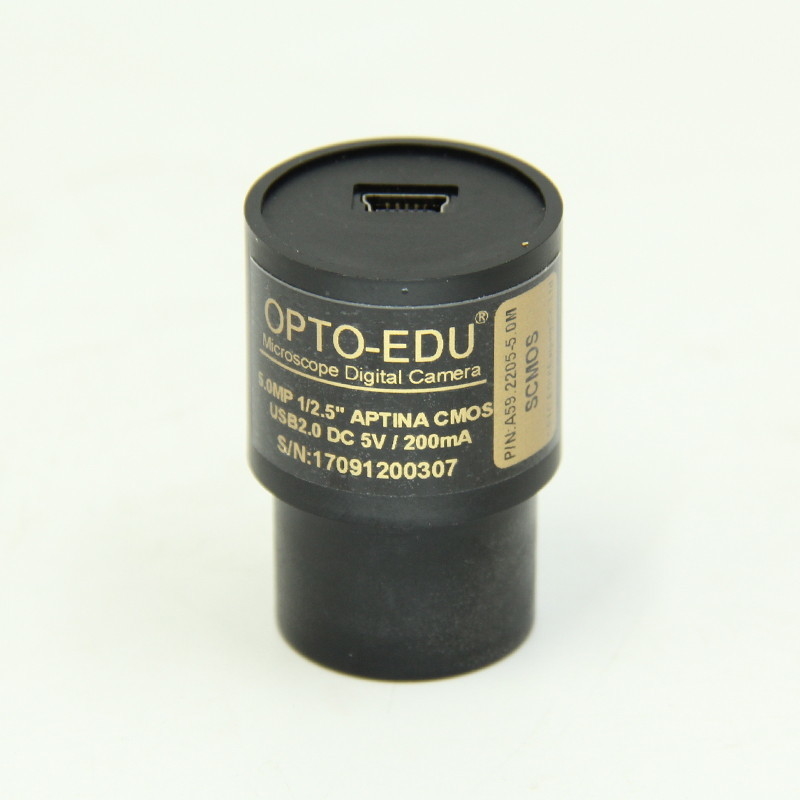

A59.2205 is an economic version with simple and compact structure CMOS eyepiece camera, USB2.0 is used as the data transfer interface.
A59.2205 microscope eyepiece camera with 23.2 diameter and compact size; comes with high-speed USB2.0 interface and high frame rate video display keep the screen smooth without interruption; it works with advanced video & image processing software Image View, can be widely used to transfer the mono or binocular student microscops to digital microscope, which as eyepiece tube of 23.2mm
With 23.2mm to 30mm or 23.2mm to 30.5mm convert ring A55.2002 or A55.2004, A59.2205 camera can also change the stereo microscope to digital stereo microscope, which usually has eyepiece tube Dia.30mm or 30.5mm
● USB2.0 Compact Digital Eyepiece Camera With Aptina CMOS Resloution 0.92M~12M
● Easy To Extend to C or CS- Mount Camera, Works On Microscope Eyepiece Tube or Video Port
● High-speed USB2.0 Interface And High Frame Rate Video Display Keep Screen Smooth
● Auto White Balance, Auto-exposure, Brightness, Contrast, Chroma & Saturation Can Be Adjusted
● With Advanced Video & Image Processing Software Image View, Support SDK For Win/Linux/Mac/Android
| Cata. No. | Sensor & Size(mm) | Pixel(μm) | G Sensitivity | FPS/Resolution | Binning | Exposure |
| Dark Signal | ||||||
| 12MPA | 12M/IMX577(C) | 1.55x1.55 | 250LSB | 20@3840x3040 | 1x1 | 0.1~2000ms |
| 1/2.3"(5.95x4.71) | 70dB | 20@1920x1520 | 1x1 | |||
| 43dB | 20@960x760 | 1x1 | ||||
| 8.3MPA | 8.3M/IMX274(C) | 1.62x1.62 | 236mV | 30@3840x2160 | 1x1 | 0.1~2000ms |
| 1/2.5"(6.22x3.50) | 70dB | 30@1920x1080 | 1x1 | |||
| 43dB | 30@1280x720 | 1x1 | ||||
| 30@960x540 | ||||||
| 8.3MPB | 8.3M/IMX415(C) | 1.45x1.45 | 300mV | 30@3840x2160 | 1x1 | 0.1~2000ms |
| 1/2.8" (5.57x3.13) | 70dB | 30@1920x1080 | 1x1 | |||
| 44dB | 30@1280x720 | 1x1 | ||||
| 30@960x540 | 1x1 | |||||
| 5.1MPA Hot |
5.1M/AR0521(C) | 2.2x2.2 | 18.8ke-/lus | 30@2592x1944 | 1x1 | 0.1~1000ms |
| 1/2.5"(5.70x4.28) | 73dB | 30@1280x960 | 1x1 | |||
| 40dB | 30@640x480 | 1x1 | ||||
| 5.1MPB | 5.1M/IMX335(C) | 2.0x2.0 | 505mV | 26@2592x1944 | 1x1 | 0.1~2000ms |
| 1/2.8"(5.18x3.89) | 73dB | 26@1280x960 | 1x1 | |||
| 43dB | 26@640x480 | 1x1 | ||||
| 3.1MPA | 3.1M/Aptina(C) | 2.8x2.8 | 18.8ke-/lus | 30@2048x1536 | 1x1 | 0.1~1000ms |
| 1/2.5"(5.73x4.30) | 73dB | 30@1024x768 | 1x1 | |||
| 40dB | 1x1 | |||||
| 2.1MPA | 2.1M/IMX307(C) | 2.9x2.9 | 1300mV | 38@1920x1080 | 1x1 | 0.1~2000ms |
| 1/2.8"(5.73x4.30) | 73dB | 38@960x540 | 1x1 | |||
| 43dB | 1x1 | |||||
| 2.1MPB | 2.1M/SC2332(C) | 2.7x2.7 | 4510mV/lux-s | 38@1920x1080 | 1x1 | 0.1~2000ms |
| 1/3" (5.18x2.92) | 74dB | 38@960x540 | 1x1 | |||
| 38.5dB | 1x1 | |||||
| 0.92MPA | 0.92M/OV9732(C) | 3x3 | 2.066V/lux-sec | 30@1280x720 | 1x1 | 0.1~650ms |
| 1/4" (3.888x2.208) | 72dB@8x gain | 30@640x360 | 1x1 | |||
| 39dB | ||||||
| Remark: C - Color, M-Monocolor, GS-GS Shutter | ||||||
| OTHER HARDWARE CONFIGURATION | ||||||
| Spectral Range | 380-650nm (with IR-filter) | |||||
| White Balance | Auto/ROI/Manual White Balance | |||||
| Color Rendering Tech. | N/A | |||||
| Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc); | |||||
| Recording System | Still Picture and Movie | |||||
| Cooling System* | Natural | |||||
| OPERATING ENVIRONMENT | ||||||
| Operating Temperature | -10 °C~ 50 °C | |||||
| Storage Temperature | -20 °C~ 60 °C | |||||
| Operating Humidity | 30~80%RH | |||||
| Storage Humidity | 10~60%RH | |||||
| Power Supply | DC 5V over PC USB Port | |||||
| SOFTWARE ENVIRONMENT | ||||||
| Operating System | Support Microsoft Windows XP / Vista / 7 /8 /10(32 & 64 bit) | |||||
| OS X (Mac OS X), Linux | ||||||
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher | |||||
| Memory: 2GB or More | ||||||
| USB port: USB2.0 High-speed Port | ||||||
| Display: 17" or Larger | ||||||
| CD-ROM | ||||||
| Dimension of A59.2205 Series Camera | ||||||
| A59.2205 series camera body, made from aluminum alloy blackening, ocular ousing:Dia.27.2 X 40mm ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT filter to filter the infrared light and protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions. | ||||||
| Packing List of A59.2205 Series Camera | ||||||
| Standard Outfit | ||||||
| A | Carton L:52cm W:32cm H:33cm (50pcs, 12~17Kg/ carton), not shown in the photo | |||||
| B | Gift box L:14.5cm W:9.5cm H:6.0cm (0.15~0.15Kg/ box) | |||||
| C | Digital eyepiece camera | |||||
| D | High-Speed USB2.0 A male to mini B 5-pin male gold-plated connectors cable /1.5m | |||||
| E | CD (Driver & utilities software, Ø8cm) | |||||
| Optional Accessory | ||||||
| F | C-Mount Adapter Housing | A59.2205-C | ||||
| G | Adaptor Rings Dia.23.2mm to 30.0mm For 30.0mm Microscope Eyepiece Tube | A55.2203-30 | ||||
| H | Adaptor Rings Dia.23.2mm to 30.5mm For 30.5mm Microscope Eyepiece Tube | A55.2203-30.5 | ||||
| I | Adaptor Rings Dia.23.2mm to 31.75mm For 31.75mm Telescope Eyepiece Tube | |||||
| J | Calibration Stage Micrometer |
X=0.01mm/100Div. | ||||
| X,Y=0.01mm/100Div | ||||||
| X=0.01mm/100Div., 0.10mm/100Div | ||||||
