As a research and anatomical tool in zoology, botany, entomology, histology, etc.Testing of raw materials and woollen fabrics in textile industry;In the electronics industry, as a crystal assembly tool;It can be used to make or inspect small precision parts, such as watches and cell phones.

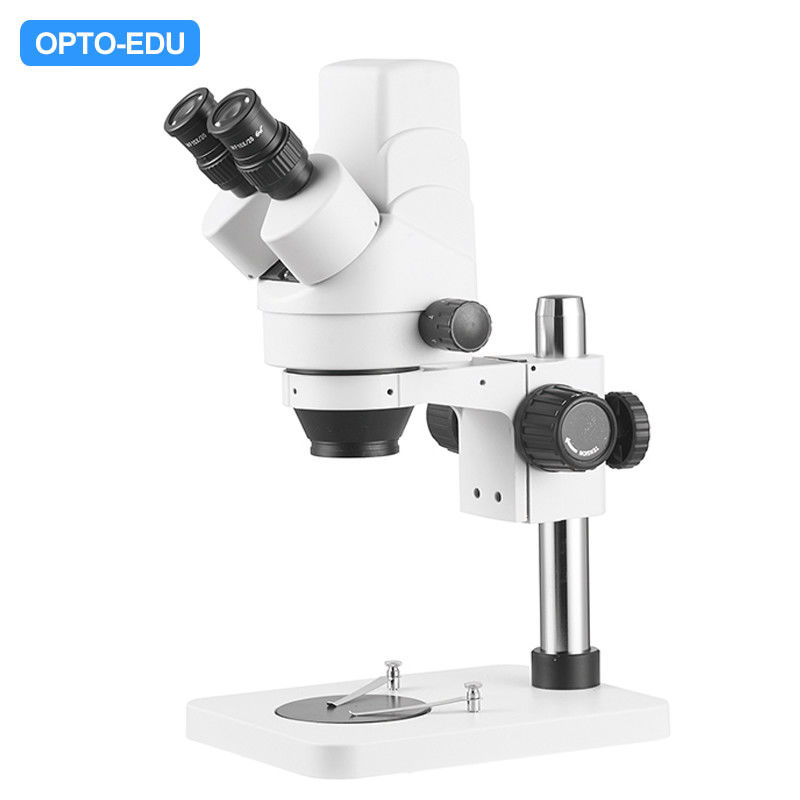

| A32.3645 Series Digital Zoom Stereo Microscope Specification | |||||
| Head | Trinocular Head, 45° Inclined, 360° Rotatable, Interpupillary Adjustment 54-75mm, Both Eyepiece Tube ±5° Diopter Adjustable, With Eyepiece Adapter Focus Adjustable, Light Split Fixed P50:E50, Simul Focal Design To Show Image On Both Eyepiece & Photo Port At Same Time |
||||
| Eyepiece | WF10x/20mm, High Eyepoint, Dia.30mm | ||||
| Zoom Lens | 0.7x~4.5x | ||||
| Zoom Ratio | 1:6.5 | ||||
| Optical Magnification | 7x-45x, Up To 3.5x-270x With Optional Eyepieces & Auxiliary Objectives | ||||
| Working Distance | 100mm, Up To 30~165mm With Auxiliary Objectives | ||||
| Field Of View | 0.9-57.1mm (Detail See Optical Data Sheet) | ||||
| Focusing | Pole Stand Coarse Focusing Range 50mm, Tension Adjustable Track Stand Coarse Focusing Range 74mm, Tension Adjustable |
||||
| Stand | 35 Kinds Stand Optional, Details See A54.3630 Choose Model According To Cata. No. Like: A32.3645-B1 Means Binocular Head With B1 Stand |
||||
| Digital Camera Specification | |||||
| Camera Sensor | 3.0Mpixel 1/2"COMS; 1.3M,5.0M Optional | ||||
| Resolution | 2048*1536 | ||||
| Pixel Size | 3.18um*3.18um | ||||
| Transmission Rate | 7 fps@2048*1536 | ||||
| Sensitivity | 0.9v/lus-secx | ||||
| Scanning Mode | Successive Scans | ||||
| Operation System | Windows 2000/XP | ||||
| Data Interface | USB2.0(480Mbit/sec) | ||||
| Power | USB2.0 | ||||
| A23.3645, A23.3645N Series Zoom Stereo Microscope Optical Data Sheet | |||||
| Zoom Lens | 0.7x~4.5x | ||||
| Auxiliary Lens | 0.5x | 1.0x (Standard ) | 1.5x | 2.0x | |
| Working Distance | 165mm | 100mm | 45mm | 30mm | |
| WF10x/20mm | Magnification | 3.5x-22.5x | 7.0x-45x | 10.5x-67.5x | 14x-90x |
| View Field(mm) | 57.1-8.9 | 28.6-4.4 | 19-3 | 14.3-2.2 | |
| WF15x/15mm | Magnification | 5.25x-33.75x | 10.5x-67.5x | 15.75x-101.25x | 21x-135x |
| View Field(mm) | 42.8-6.7 | 21.1-3.3 | 14.3-2.2 | 10.7-1.7 | |
| WF20x/10mm | Magnification | 7.0x-45x | 14.0x-90x | 21.0x-135x | 28x-180x |
| View Field(mm) | 28.6-4.4 | 14.3-2.2 | 9.5-1.5 | 7.1-1.1 | |
| WF25x/9mm | Magnification | 8.85x-56.3x | 17.5x-112.5x | 26.2x-168.8x | 35x-225x |
| View Field(mm) | 25.4-4.0 | 12.9-2.0 | 8.6-1.3 | 6.4-1.0 | |
| WF30x/8mm | Magnification | 10.5x-67.5x | 21x-135x | 31.5x-202.5x | 42x-270x |
| View Field(mm) | 22.9-3.6 | 11.4-1.8 | 7.6-1.2 | 5.7-0.9 | |
| Optional Accessories | Cata.No. | ||||
| Eyepiece | WF10x/20mm, High Eyepoint, Dia.30mm | A51.3621-1020 | |||
| WF15x/15mm, High Eyepoint, Dia.30mm | A51.3621-1515 | ||||
| WF20x/10mm, High Eyepoint, Dia.30mm | A51.3621-2010 | ||||
| WF25x/9mm, High Eyepoint, Dia.30mm | A51.3621-2509 | ||||
| WF30x/8mm, High Eyepoint, Dia.30mm, Diopter Adjustable | A51.3622-3008 | ||||
| Auxiliary Lens | 0.5x, W.D. 165mm | A52.3621-05 | |||
| 1.5x, W.D. 45mm | A52.3621-15 | ||||
| 2.0x, W.D. 30mm | A52.3621-20 | ||||
