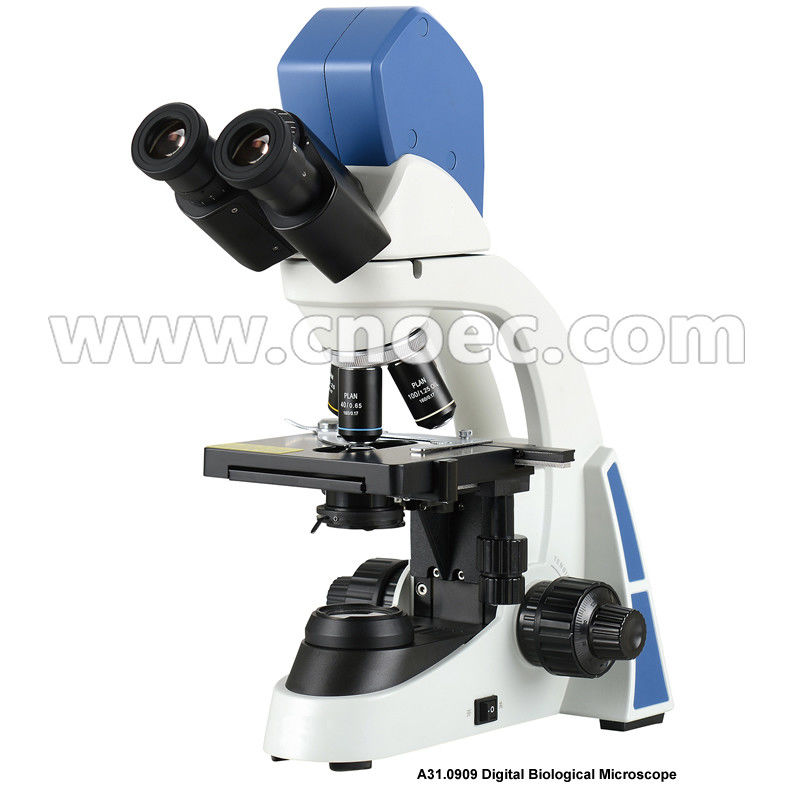

3.0M , 40x - 1000x Digital Biological Student Microscope For Middle School
A31.0909 Biological Microscope
Newly designed in 2014, with compact and solid, innovative frame. High rigid but small series, specially designed for students in middle school and high school, has a light weight but stable structure.
--3.0M CMOS Digital Camera, USB 2.0 Output
--Binocular & Trinocular Head Interpupillary Distance 50~75mm
--Low Position Designed, Coaxial Coarse & Fine Focusing
--Double Layer Mechanical Stage, Size 132*140mm, Moving Range 50*76mm
--Abbe N.A.1.25, With Iris Diaphragm, Fixed But Centeradjustable Avoid Missing
--3W LED High Brightness For Energy Efficiency & Enviromental Protection
|
A31.0909 Biological Microscope
|
|
Head
|
3.0M CMOS Digital Camera, USB 2.0 Output
|
|
Binocular Head, 30° Inclined, Diopter Adjustable +/-5°, Interpupillary Distance 50~75mm
|
|
Eyepiece
|
WF10x/18mm
|
|
Nosepiece
|
Backward, Quarduple Nosepiece
|
|
Objective
|
Plan 4x,10x,40x(S),100x(O,S)
|
|
Working Stage
|
Double Layer Mechanical Stage, Size 132*140mm, Moving Range 50*76mm, Precision 0.1mm
|
|
Condenser
|
Abbe N.A.1.25, With Iris Diaphragm, Fixed But Centeradjustable
|
|
Focusing
|
Low Position Designed, Coaxial Coarse & Fine Focusing, Coarse Focusing Range 25mm, Fine Focusing Scale 0.002mm, With Tension Adjustment, With Upper Safty Stop
|
|
Light Source
|
3W LED High Brightness
|
|
Power
|
Wide Voltage AC100~240V Input, DC 6V1A Output
|
|
