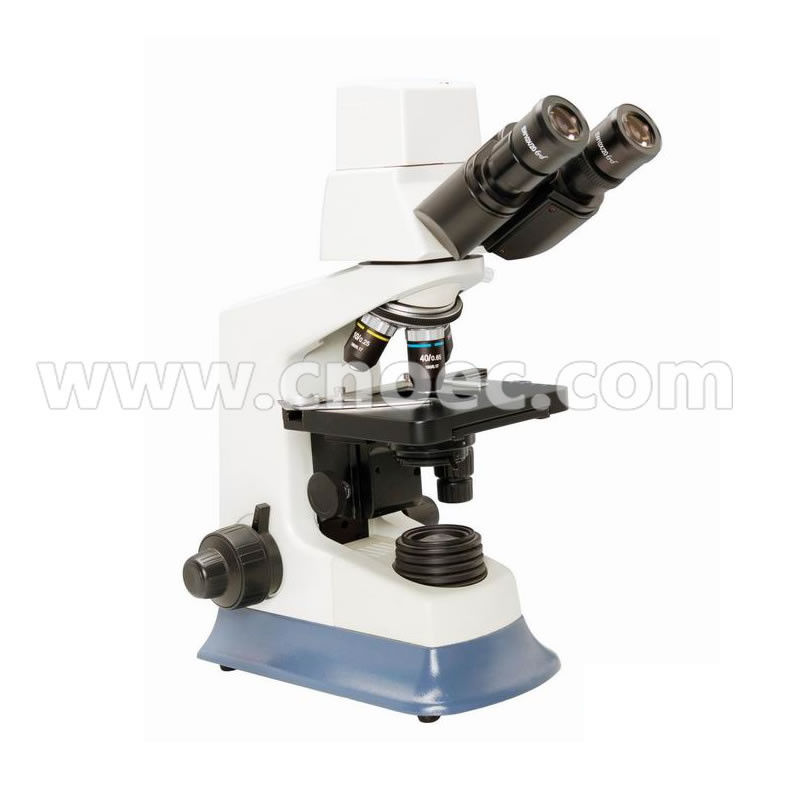

A31.1010 Digital Laboratory Biological Microscope, Newly designed with comfortable operating with ergonomic structure, with better illumination, convenient replacement of attachment with sliding-in center adjustable condenser.
|
A31.1010 Digital Microscope |
A |
B |
|
|
Head |
Compensation Free Binocular Head at 30°, Interpupilary Distance 55-75mm |
● |
- |
|
Compensation Free Binocular Head at 30°, Interpupilary Distance 48-75mm |
- |
● |
|
|
Eyepiece |
High Point and Wide Field EW10/20 |
||
|
Objective |
Semi-plan Achromatic Objective 4x |
||
|
Semi-plan Achromatic Objective 10x |
|||
|
Semi-plan Achromatic Objective 40x |
|||
|
Semi-plan Achromatic Objective 100x |
|||
|
Nosepiece |
Backward Quadruple Nosepiece |
||
|
Stage |
Double Layers Mechanical Stage 140×140mm/ 75×50mm |
||
|
Condenser |
N.A.1.25 Abbe Condenser |
||
|
Audio-video System |
1,3M pixels CMOS digital camera with high-resolution, 1280×1024 digital camera system, USB2.0 output |
||
|
Filter |
Blue Filter |
||
|
Green Filter |
|||
|
Software |
ScopeImaage Advanced Micro-image Process Software |
||
|
Illumination |
Halogen Lamp 6V/20W, Brightness Adjustable |
||
|
A31.1010 Digital Microscope |
|||
|
Objective |
Plan Achromatic Objective 4x |
A52.1003-4 |
|
|
Plan Achromatic Objective 10x |
A52.1003-10 |
||
|
Plan Achromatic Objective 20x |
A52.1003-20 |
||
|
Plan Achromatic Objective 40x |
A52.1003-40 |
||
|
Plan Achromatic Objective 100x |
A52.1003-100 |
||
|
Illumination |
Kohler Illumination |
A56.1005 |
|
|
Dark-field Condenser |
Dark-field Condenser(Dry) |
A5D.1013-D |
|
|
Dark-field Condenser(Immersion) |
A5D.1013-I |
||
|
Polarization Set |
Simple Polarization Attachment |
A5P.1006 |
|
|
Phase Contrast Kit |
Turret Phase Contrast Kit |
A5C.1007 |
|
|
Software |
ScopeImage Analysis |
A30.1004 |
|
|
ScopeImage Advanced |
A30.1005 |
||
Our products are sold all over the world, you can rest assured.
