Corrected Optical System Inverted Flourescence Microscope , Kohler A16.0900

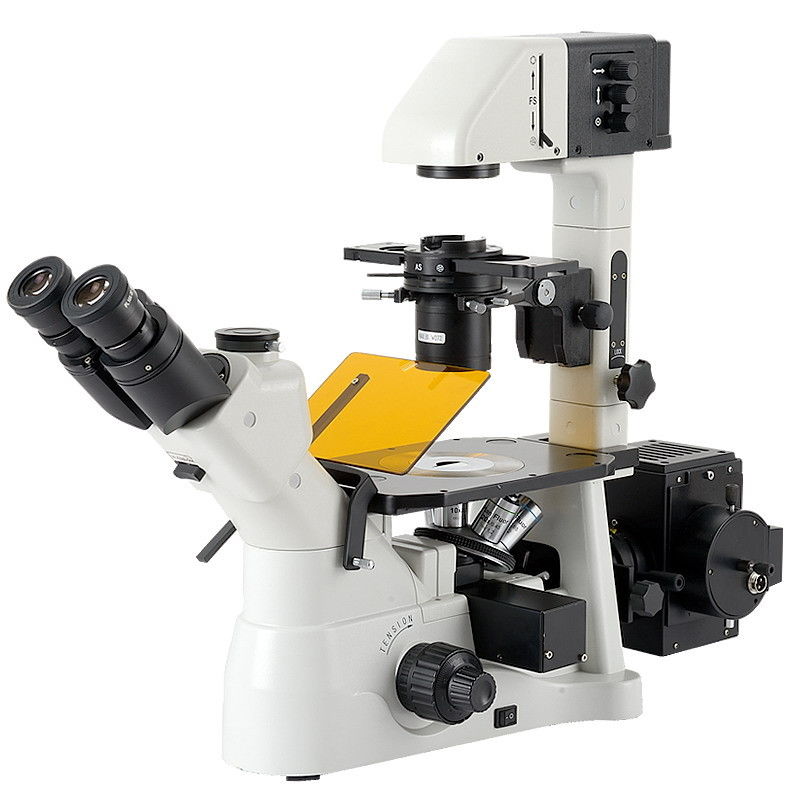

A16.0900 Laboratory Inverted Fluorescence Microscope, Kohler Illumination, designed for cell culture observation, to get details of cell growing process, internal spontaneous fluorescence phenomenon, living cell fluorescence transfection, protein transfer and etc.
--New generation of infinity color corrected optical system, professional plan semi-apochromatic fluorescence objectives, present you sharp and bright fluorescence image.
--Professional fluorescence filter system, imported optical material and broadband multilayer coating, high transmissivity, mould proof, heat insulation and safety protection system, OSRAM brand mercury lam digital power supply control.
--Swallow tail slide switch easy to change filter cubes, three paths for fluorescence and one for bright field, four filter cubes can be mounted.
--Scientific research class cold CCD, high resolution, fast transmission. Intelligence Chinese fluorescence image processing software, meets and request of the most professional picture processing.
--6V30W transmission illuminator, various performances, bright field, dark field, phase contrast, polarization observations
| |
A16.0900
|
A16.0900-CCD
|
|
Optical System
|
Infinity Color Corrected Optical System
|
|
Head
|
Trinocular Head , Gemel Viewing Head, 45 Degree Inclined, Interpupilary Distance 54-75mm, Spliting Ratio 100:0 or 0:100 |
|
Eyepiece
|
PL10x/22mm, High Eyepoint, Wide Field
|
| Nosepiece |
Revolving Quintuple Nosepiece |
| Objective |
Long Working Distance Infinity Plan Achromatic Objectives
LWDPL10X/0.25, W.D.=7.94mm
LWDPL20X/0.40, W.D.=7.66mm
LWDPL40X/0.60, W.D.=3.71mm
Long Working Distance Infinity Plan Phase Contrast Objectives
LWDPH20X/0.40, W.D.=7.66mm |
Long Working Distance Infinity Plan Fluorescent Objectives
LWDPLF4X/0.13, W.D.=18.52mm
LWDPLF10X/0.30, W.D.=7.11mm
Long Working Distance Infinity Plan Semi-Apochrmatic Objectives
LWDPLFPH20X/0.45, W.D.=5.91mm
LWDPLFPH40X/0.65, W.D.=1.61mm
Long Working Distance Infinity Plan Phase Contrast Objectives
LWDPH10X/0.25, W.D.=7.94mm
|
| Stage |
Fixed Stage Size 250*160mm, Slider Clips
--Glass Plate
--Metal Plate
--Petri Dish Holder, Dia.35mm
|
Fixed Stage Size: 250*160mm, Slider Clips, with Extension Plate and Coaxial Moveable Stage, Moving Range120*78mm
--Glass Plate
--Metal Plate with Kidney Slot
--Petri Dish Holder, Dia.35mm
--Slide Holder, Dia.54mm,26.5x76.4mm
--Teraseki Holder, Dia.65mm,56x81.5mm |
| Focusing |
Coaxial Coarse & Fine Focusing System, Coarse Adjustment Range 9mm, Fine Adjustment Precision 0.002mm,with Tension Adjustment, with Safty Stop |
| Condenser |
N.A.0.3 Kohler Illumination Condenser, with Phase Adjustable Slide Plate, Long Working Distance 72mm. The Whole Set Can Be Rotated Down |
| Phase Contrast |
Phase Contrast Plug-board for 10x-40x, Center Adjustable
Centering Telescope Dia. 30mm |
| Filter |
Dia.45mm Green Interference Filter
Dia.45mm Color Temperature Change Filter
Attenuation Plate, Transmission 25%
|
| Reflected Fluorescence illumination System |
--Reflected Kohler Illumination with Iris Field Diaphragm, Centering Adjustable |
| --U-LH100HG Mercury Lamp House, Filament Center and Focal Distance Adjustable, with Mirror, Mirror Center and Focal Distance Adjustable |
| --U1-RFLT100 Digital Power Control Box, Wide Voltage Range 90-240V AC |
| --Imported OSRAM 100W DC Mercury Bulb |
| Centered Objective For Mecury Bulb |
| Band-pass Fluorescent Filter B, G |
Band-pass Fluorescent Filter B, G, UV |
| 30ND25 Attenuation Plate |
| CCD Adapter |
0.67x CCD Adapter, for 2/3" CCD Camera |
| CCD Camera |
|
1.4M, 2/3" CCD, USB 2.0 Cold CCD
Scientific Research Class Cold CCD, |
| Light |
Kohler Illumination, With Iris Aperture, Halogen 6V30W, Pre-centered, Intensity Adjustable |
| Power |
Wide Voltage 90-240V |
|
