7x - 46x Zoom Stereo Digital Optical Microscope Reflected Light Microscopes A32.2601

China 7x - 46x Zoom Stereo Digital Optical Microscope Reflected Light Microscopes A32.2601 supplier
7x - 46x Zoom Stereo Digital Optical Microscope Reflected Light Microscopes A32.2601 supplier 7x - 46x Zoom Stereo Digital Optical Microscope Reflected Light Microscopes A32.2601 supplier

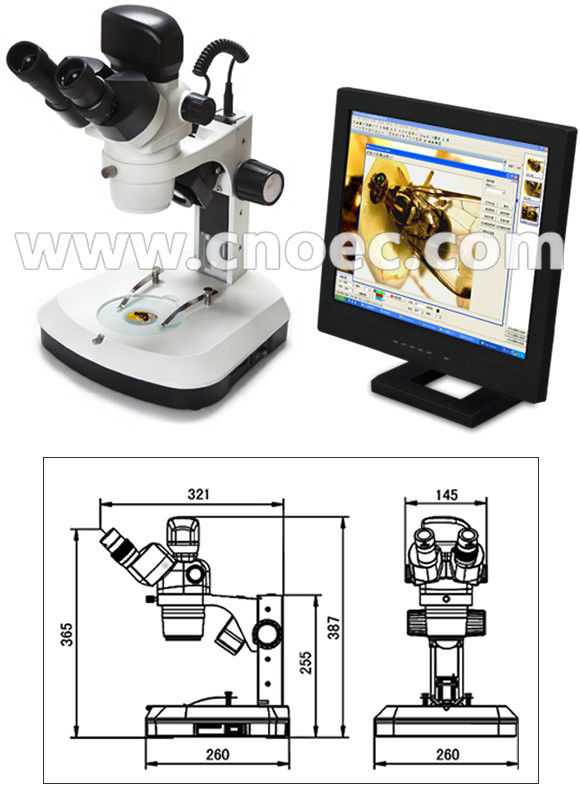

Large Image :  7x - 46x Zoom Stereo Digital Optical Microscope Reflected Light Microscopes A32.2601

Product Details:

Place of Origin: China
Brand Name: CNOEC, OPTO-EDU
Certification: CE, Rohs
Model Number: A32.2601

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: FOB $1~1000, Depend on Order Quantity
Packaging Details: Carton Packing, For Export Transportation
Delivery Time: 5~20 Days
Payment Terms: T/T, West Union, Paypal
Supply Ability: 5000 pcs/ Month
Contact Now
Detailed Product Description
Applications: Student, School Certification: CE, Rohs
Drawtube: Binocular Illumination: LED
Max Magnification: 7x - 46x Theory: Digital Optical Microscope



7x - 46x Digital Optical Microscope Reflected Light Microscopes A32.2601



Specifications:



A32.2601 Digital Series Zoom Stereo Microscope

3M

5M

Eyepiece

WF10x/22mm, high eyepoint, diopter adjustable (with eyecup)

Viewing Head & Zoom Body

Built-in 3MP digital camera system,1/2’’CMOS color sequential scanning , inclined 45°, Interpupillary Distance 54mm-76mm, Zoom Ratio 1:6.6



Built-in 5MP digital camera system,1/2’’CMOS color sequential scanning , inclined 45°, Interpupillary Distance 54mm-76mm, Zoom Ratio 1:6.6



Light Distribution

2:8, eyepiece observation synchronized with digital imaging without switching

Zoom range

 0.7x-4.6x

Objective

Built-in 1x

Magnification

7x-46x

Working Distance

110mm

Focusing

Focus unit

Stand

Arm stand

Illumination

Reflecting lamp 3W LED (optional :12V/15W halogen)

Transmitting lamp 3W LED (optional :12V/15W halogen)

Stage

Black & white plate

Glass plate

Interface

USB2.0

System

Available for WINDOWS 2000 /XP/ 7 /Vista

A32.2601 Series Digital Zoom Stereo Microscope Optical Data

Auxiliary Objectives

0.5x

0.75x

1x(built in)

2x

Working distance (mm)

189mm

122mm

110mm

36mm

Eyepiece
WF10x/22mm

Magnification

3.5~23x

5.3~34.5x

7~46x

14~92x

Field dia. (mm)

62.86~9.57

41.90~6.38

31.43~4.78

15.71~2.39

Eyepiece
WF15x/17mm

Magnification

5.3~34.5x

7.9~51.8x

10.5~69x

21~138x

Field dia.(mm)

48.57~7.39

32.38~4.93

24.29~3.70

12.14~1.85

Eyepiece
WF20x/13mm

Magnification

7~46x

10.5~69x

14~92x

28~184x

Field dia.(mm)

37.145.65

24.76~3.77

18.57~2.83

9.29~1.41

A32.2601 Series Digital Zoom Stereo Microscope Combination List

Item No.

Eyepiece

WF10x/22mm, high eyepoint, diopter adjustable (with eyecup)

A51.2621-10

Digital Viewing Head & Zoom Body

Built-in 3MP digital camera r head & zoom body (1:6.6) without eyepiece

A53.2611-5

Built-in 5MP digital camera head & zoom body (1:6.6) without eyepiece

A53.2612-6

Focus Unit

Focus unit without illumination

A54.2608-1

Focus unit with 3W LED reflecting illumination

A54.2608-2

Stand

Arm stand with focus unit, without Light

A54.2609-01

Arm stand with focus unit and 3W LED illumination

A54.2609-02

Pillar stand without illumination

A54.2609-03

Pillar stand with 3W LED transmitting illumination

A54.2609-04

Stand with mirror

A54.2609-05

Universal stand

A54.2609-06

Rectangular big base,3W-LED transmitting illumination,
base size: 330×300mm

A54.2609-07

Rectangular big base,without illumination,base size:330×300mm

A54.2609-08







Complete set

is composed of Eyepiece + Digtal Head & zoom body + Focus unit + Stand

A32.2601-3M

A51.2621-10 (paired) + A53.2611-5 + A54.2608-2 + A54.2609-02

A32.2601-5M

A51.2621-10 (paired) + A53.2611-6 + A54.2608-2 + A54.2609-02

And More Combinations As Per Your Request



Optional Accessories

Item No.

Eyepiece

WF15x/17mm

A51.2621-15

WF20x/13mm

A51.2621-20

Auxiliary Objective

0.5x W.D.189mm

A52.2621-05

0.75x W.D. 122mm

A52.2621-75

2x W.D. 36mm

A52.2621-20
