Motorized Forensic Comparison Microscope

Motorized Forensic Comparison Microscope

  • High Light

    transmitted light microscope

    ,

    binocular optical microscope

  • Applications
    Laboratory, Research
  • Certification
    CE, Rohs
  • Drawtube
    Binocular
  • Illumination
    LED
  • Magnification
    3.36x - 336x
  • Theory
    Comparison Microscope
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A18.1849
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

Motorized Forensic Comparison Microscope



Description:

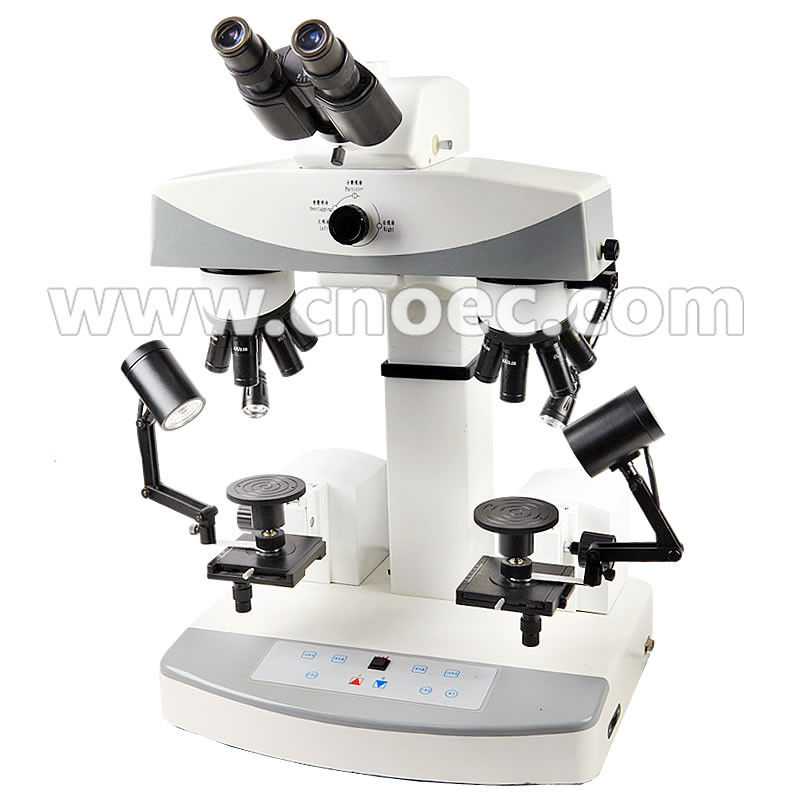

A18.1849 Motorized Digital Forensic Comparison Microscope, newly developed in 2013, is suitable to be used for forensic science laboratory research work, for compare all kinds of bullets, cartidge cases, cutting objects, paper documents and etc. It can be fully controled by manual or computer software. Built-in high resolution digital color camera can output realtime image and video to computer, under professional crime image analysis software, it will be ideal tools for forensic scientists research work. With full comparison system function, and with steady quality at very competitive price, it is your best choice!
★ Total Magnification 3.36x~336x
★ Wide Field Eyepiece WF10x/23mm, WF20x/12mm, High Eyepoint
★ 6 Holes Click Stop Nosepiece
★ LWD Infinity Plan Achromatic Objective 0.6x, 1x, 1.5x, 2.5x, 4x, 6x
★ Auxiliary Lens 0.4x and 2.0x Included

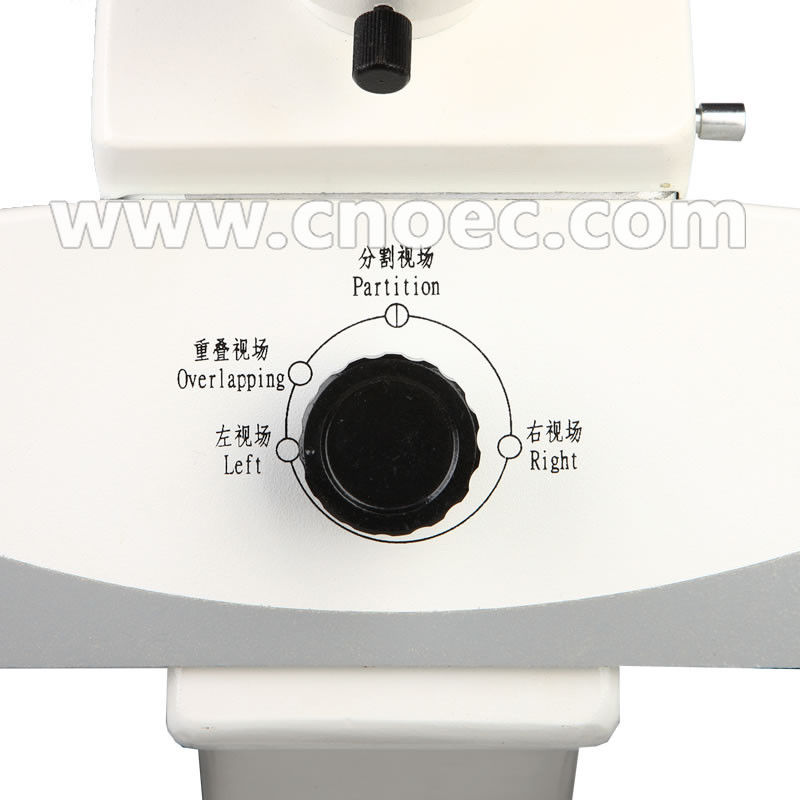

★ Motorized/Manual Control to switch in full left/right, split-image or overlapping image comparision
★ Motorized/Manual Control working stage X/Y/Z 3D movement
★ Motorized/Manual Control round stage rotating in clockwise/counterclockwise direction
★ Motorized/Manual Control nosepiece objectives switch
★ Magnification Correcting System, with Correcting Lens
★ Separation Line Adjusting System, with Special Designed Metal Adjust Driver
★ 12V50W Fan Cooling Strong Halogen Light, Brightness Adjustable
★ 5W LED Cold Light, High Brightness, Brightness Adjustable
★ Touch Panel Switch to Control Halogen & LED Light Source On/Off Separatly or Together
★ All Light Source Brightness Adjustable, Position & Angle Adjustable Freely
★ Full Range Light Source Accessories Included, Coaxial Light, Polarizing Light, Ultraviolet Lens, Red/Blue/Green/Yellow Filters
★ Built-in 3.0M High Resolution Color CCD Camera, USB 2.0 Output,
★ Professional forensic image analysis software
★ 80~240V Wide Range Voltage



Specifications:


A18.1849 Motorized Digital Forensic Comparison Microscope Specification


Magnification

3.36x~336x

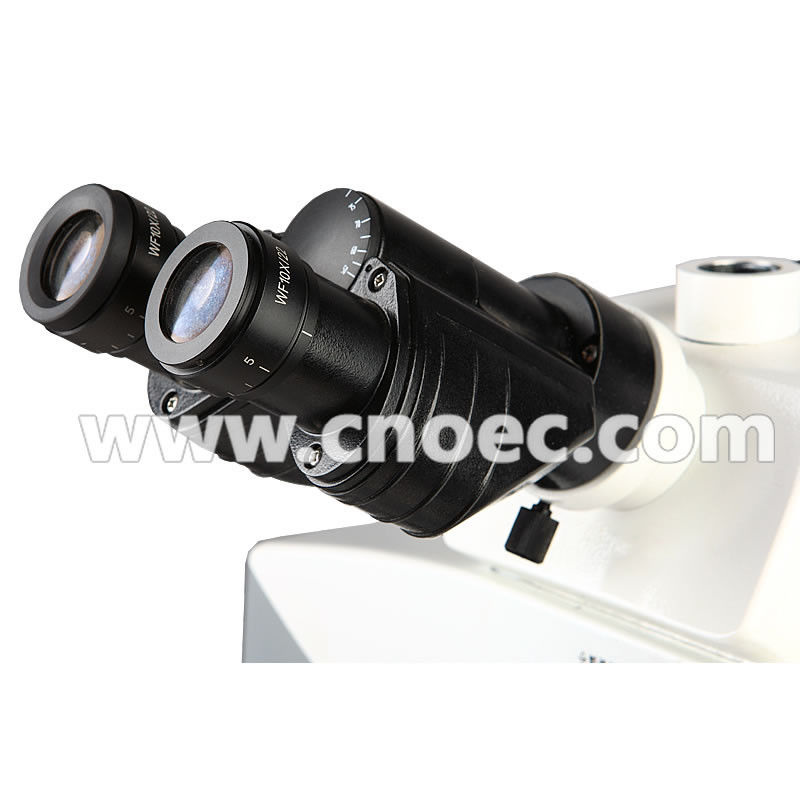

Head

Binocular Head, Interpupilary Distance 50~75mm, Diopter +/-5 Adjustable.

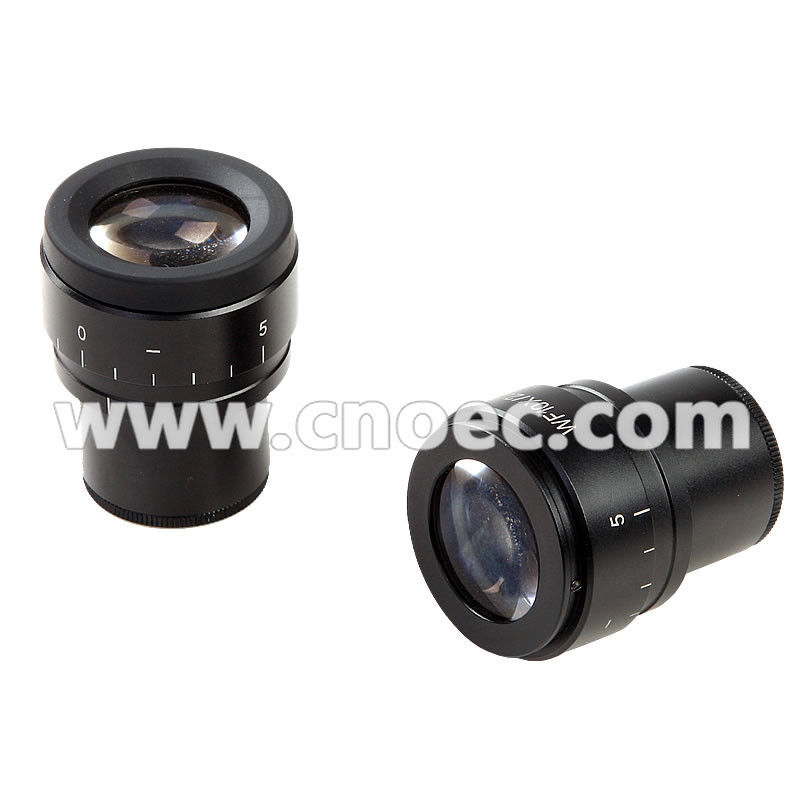

Eyepiece

WF10x/23mm, High Eyepoint

WF20x/12mm, High Eyepoint

Nosepiece

6 Hole Click Stop Nosepiece

Objective

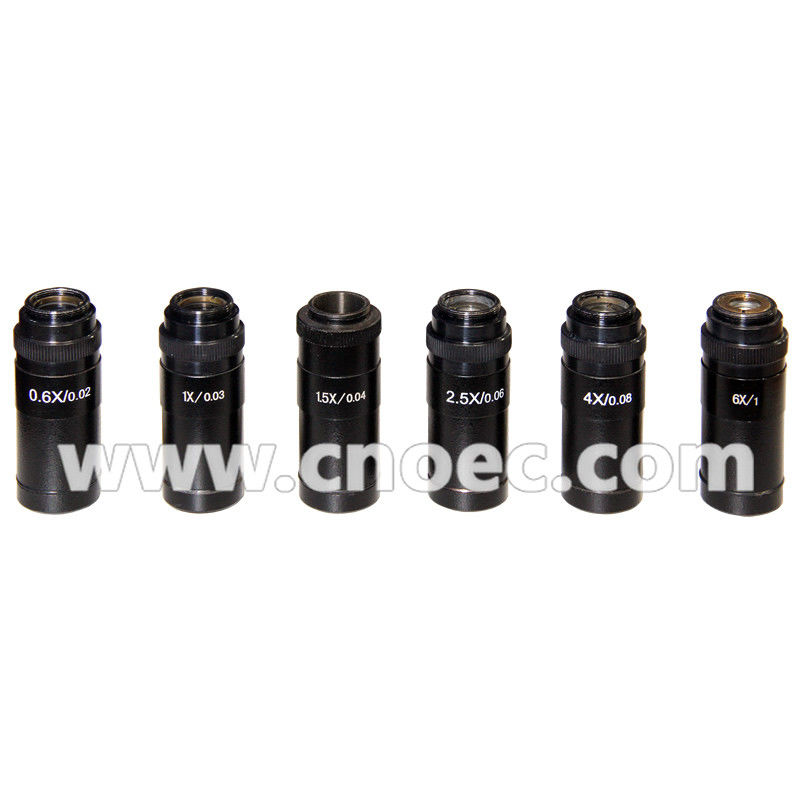

LWD Infinity Plan Achromatic Objective 0.5x, 1x, 1.5x, 2x, 4x, 6x

Auxiliary Lens 0.4x, 2.0x

Working Distance

100mm

View Field

Dia. 1.0~90mm

Magnification Correcting

Magnification Correction System, with Correcting Lens

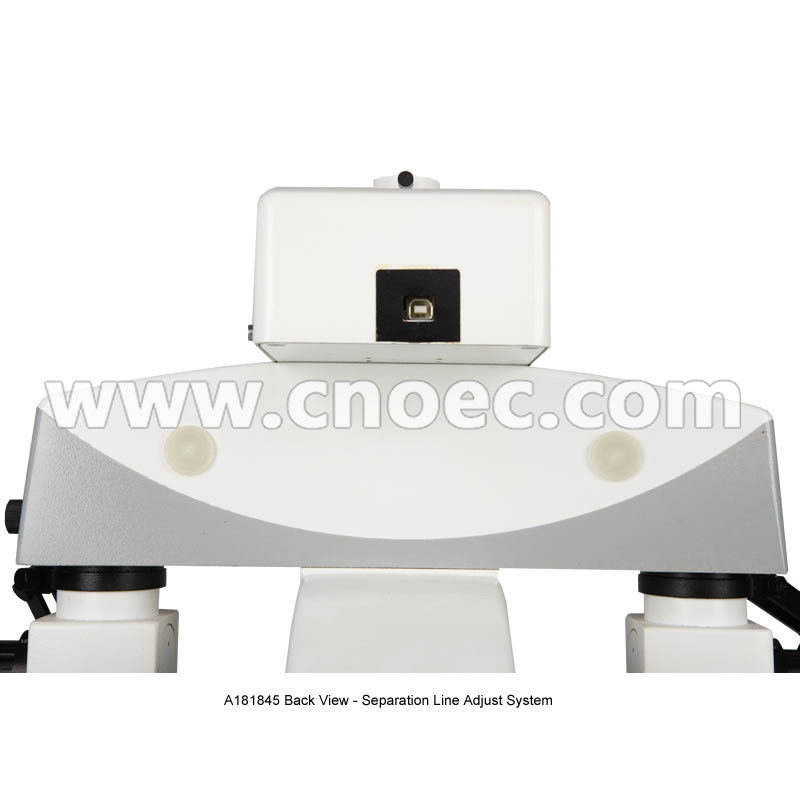

Separation Line Adjusting

Seperation Line Adjust System in Back, with Special Designed Adjust Driver

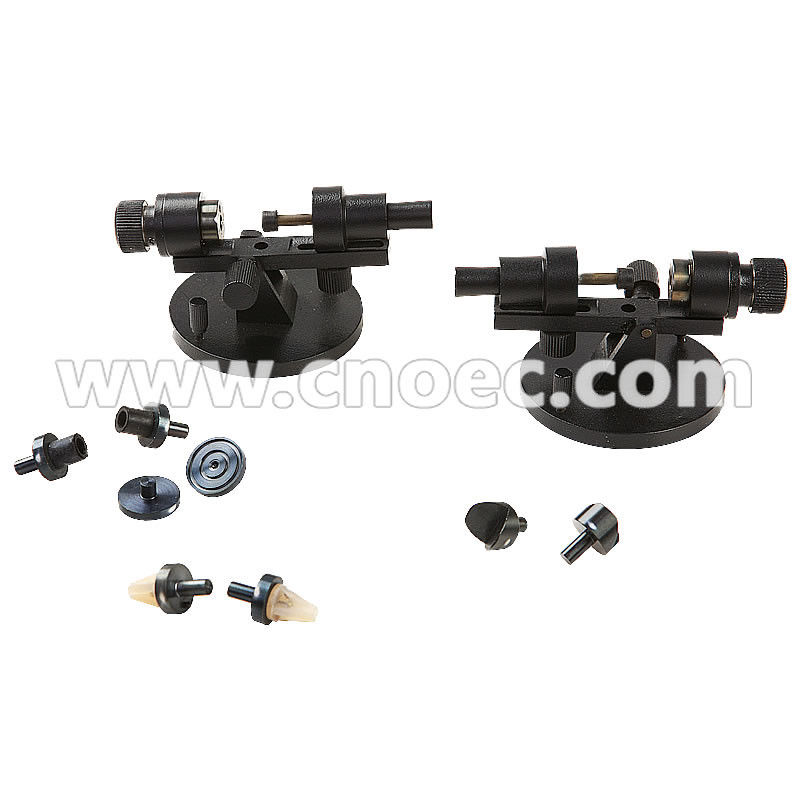

Working Stage

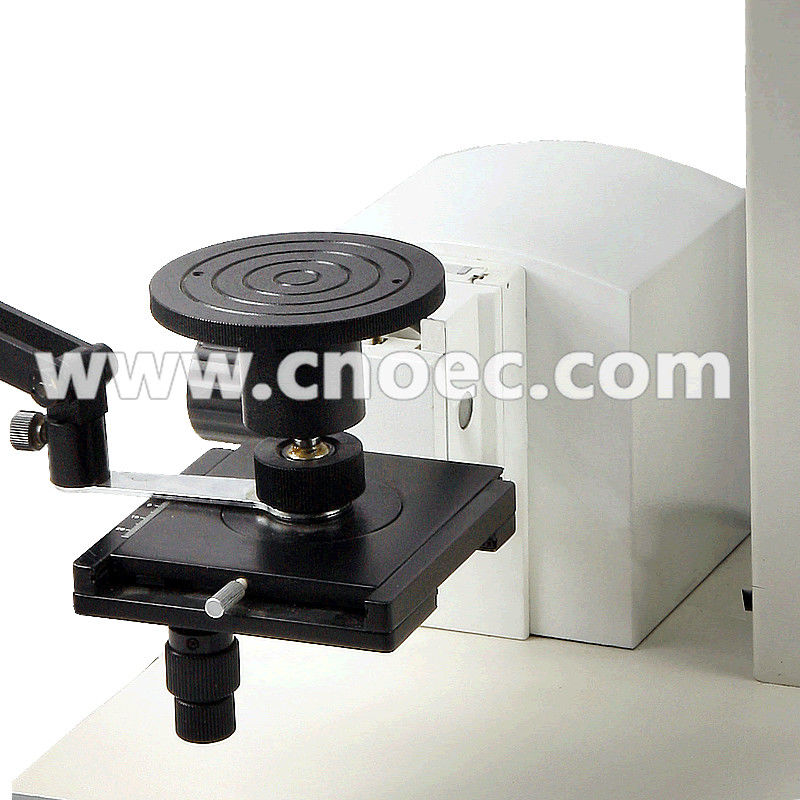

Square Manual Working Stage 100*100mm, Moving Range 80*80*54mm

Round Titable Working Stage Dia. 90mm, 0-45° Inclined, 360° Rotatable

Joint Left/Right Moving Range 54mm, Joint Up/Down Range 0~150mm

Light Source

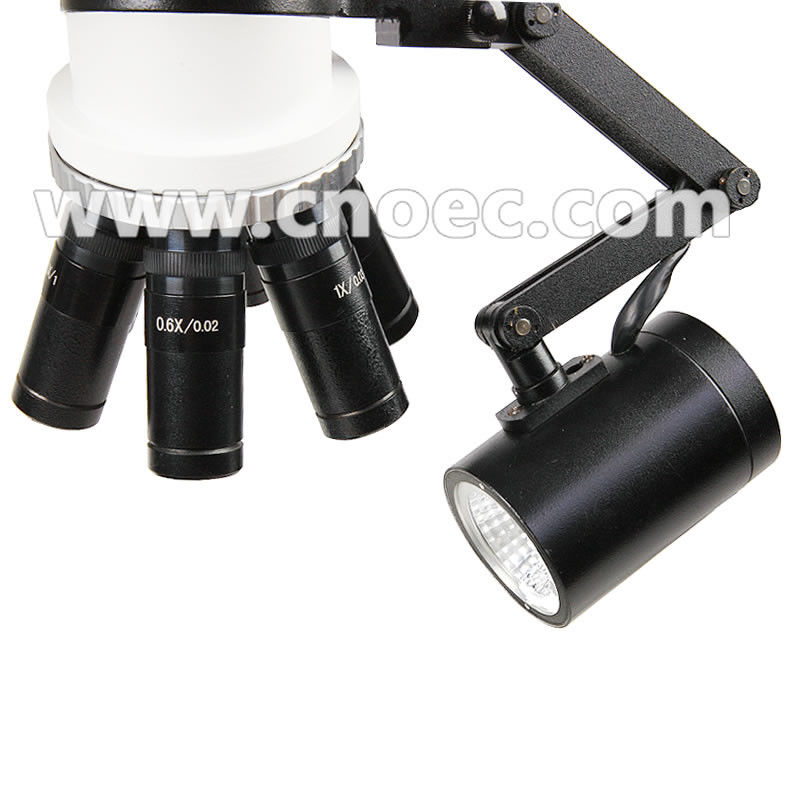

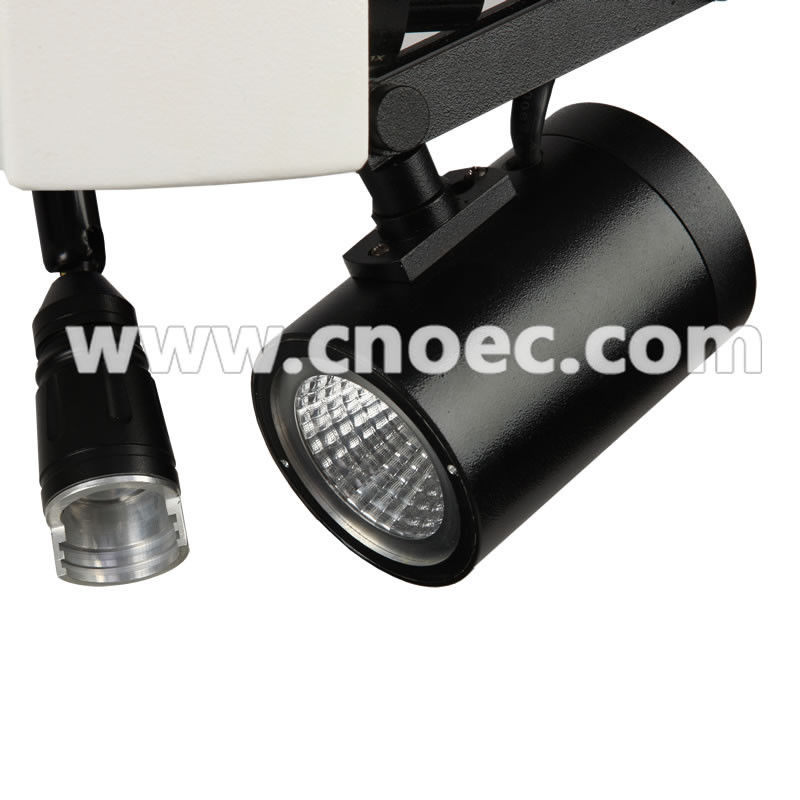

5W LED Warm Light, High Brightness, Brightness Adjustable

5W LED Cold Light, High Brightness, Brightness Adjustable

Coaxial Light Lens, to observe in deep hole, or smooth object surface

Polarizing Light Lens, to eliminate flare lights and dazzling lights;

Transmit Bottom Light (Built-in Working Stage)

Ultraviolet Light Lens

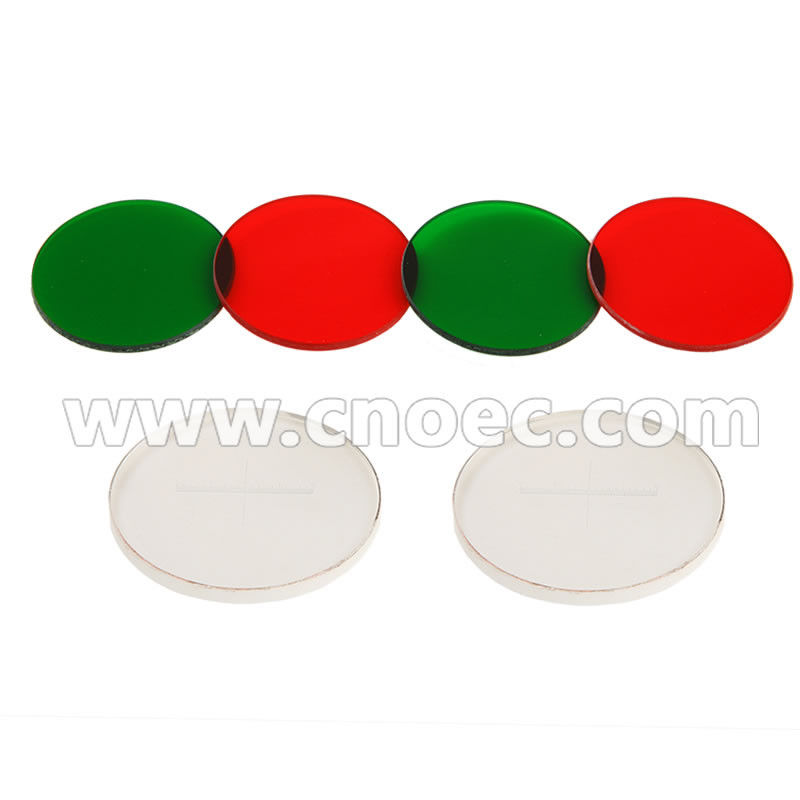

Filters: Red, Blue, Yellow, Green

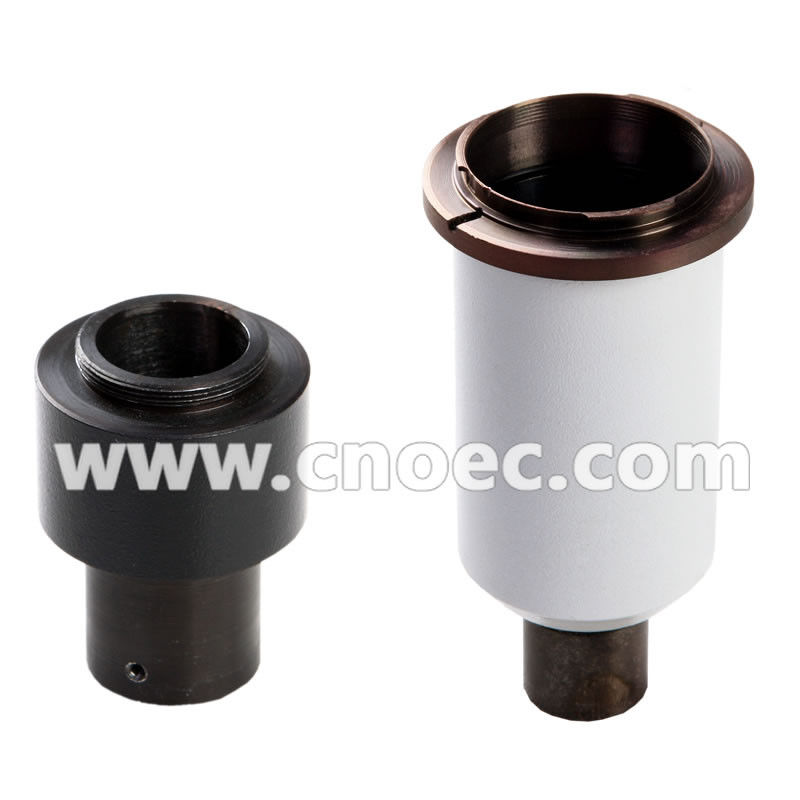

Adapter

CCD Adapter

Photo Adapter for SLR Digital Camera

CCD Camera

Built-in 3.0M High Resolution Color CCD Camera, USB 2.0 Output,

Software & Motorized Control

Professional forensic image analysis software

Motorized/Manual Controlto switch in full left/right, split-image or
overlapping image comparision

Motorized/Manual Control working stage X/Y/Z 3D movement

Motorized/Manual Controlround stage rotating in clockwise/
counterclockwise direction

Motorized/Manual Controlnosepiece objectives switch

Power

80~240V Wide Range Voltage

Dimension

Instrument Size 40*48*71cm
