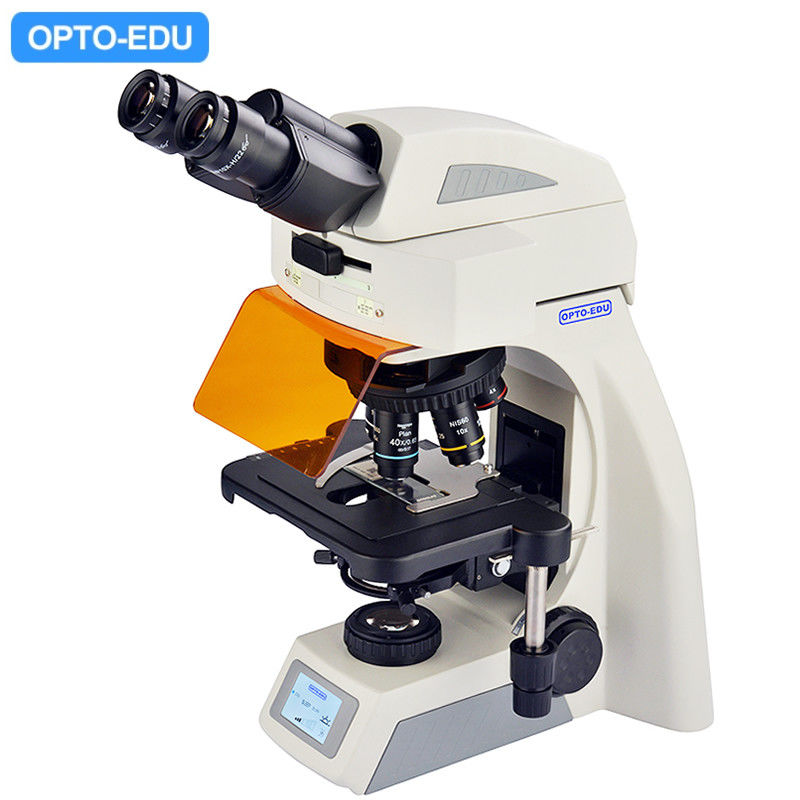

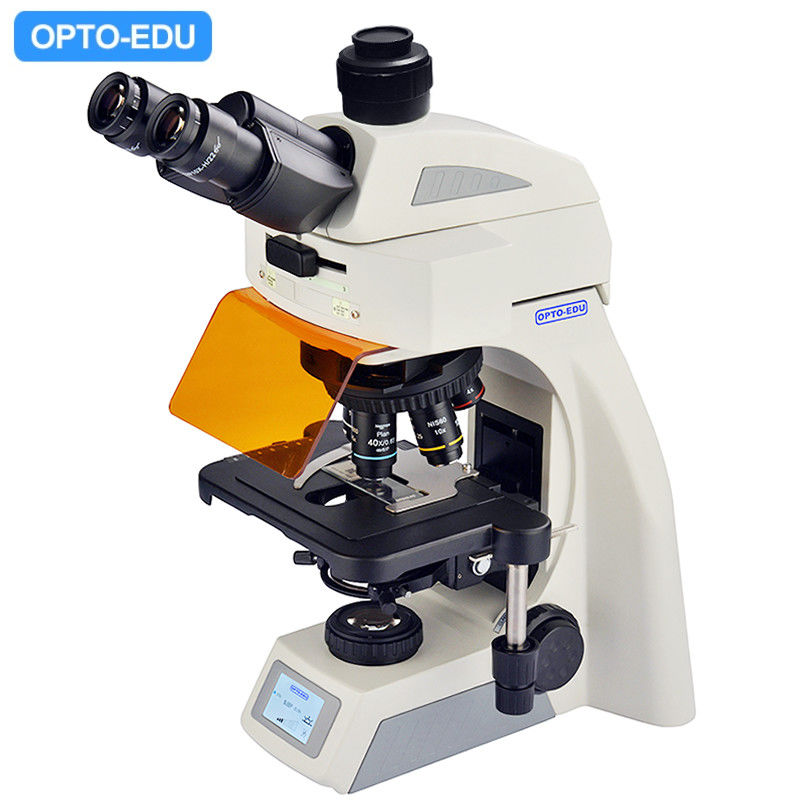

OPTO EDU A16.1062 Infinity Binocular Trinocular Led Fluorescent Microscope BG

OPTO EDU A16.1062 Infinity Binocular Trinocular Led Fluorescent Microscope BG

  • High Light

    usb digital microscope

    ,

    infinity plan microscope

  • Eyepiece
    EW10x/22mm, Diopter Adjustable, Dia.30mm
  • Nosepiece
    Coded Quintuple Nosepiece, Dovetail Interface
  • Objective
    NIS60 Infinity Plan Objective
  • Focusing
    Coaxial Coarse & Fine Adjustment, Tension Adjustable
  • Working Stage
    Double Layer Mechanical Rackless Stage, Size 230x150mm
  • Condenser
    Inserted Abbe Condenser N.A. 1.25
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A16.1062
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

OPTO EDU A16.1062 Infinity Binocular Trinocular Led Fluorescent Microscope BG

  • Brand New Design 2019 For High Level Laboratory Research!
  • Coding Quintuple Nosepiece LCD Screen Base With Brightness Memory Function
  • Large Rackless Safty Working Stage 230x150mm, Moving Range 78x54mm
  • Infinity Plan NIS60 Objective 4x10x40x100x, Water 100x Immersion Available
  • 3W LED Epi-Fluorescence Attachment, Fly-Eye Lens Illumination, B,G Filters

OPTO EDU A16.1062 Infinity Binocular Trinocular Led Fluorescent Microscope BG 0
OPTO EDU A16.1062 Infinity Binocular Trinocular Led Fluorescent Microscope BG 1

OPTO EDU A16.1062 Infinity Binocular Trinocular Led Fluorescent Microscope BG 2

OPTO EDU A16.1062 Infinity Binocular Trinocular Led Fluorescent Microscope BG 3
OPTO EDU A16.1062 Infinity Binocular Trinocular Led Fluorescent Microscope BG 4
OPTO EDU A16.1062 Infinity Binocular Trinocular Led Fluorescent Microscope BG 5
OPTO EDU A16.1062 Infinity Binocular Trinocular Led Fluorescent Microscope BG 6

A12.1061, A12.1602 Laboratory Microscope
A16.1062 LED Fluorescent Microscope
A12.1061 A12.1062 A16.1062 Cata. No.
-B -T -B -T -B -T
Optical System NIS Infinite Optical System
Observation Method Bright Field
Dark Field
Polarizing
Phase Contrast - -
Epi-Fluorscence - -
Head Seidentopf Binocular Head, Inclined At 30° , Interpupillary Distance 47-78mm, Eyepiece Tube Dia.30mm       A53.1061-B
Seidentopf Trinocular Head, Inclined At 30° , Interpupillary Distance 47-78mm, Eyepiece Tube Dia.30mm, Light Path Fixed 50:50       A53.1061-T
Seidentopf Trinocular Head, Inclined At 30° , Interpupillary Distance 47-78mm, Eyepiece Tube Dia.30mm, Light Path Switchable 0:100/100:0 A53.1061-TS
Tilting Binocular Head, Inclined 5°~35° , Interpupillary Distance 47-78mm, Eyepiece Tube Dia.30mm A53.1061-BS
Digital Head, Built-in Digital Camera 5.0M, Support Android, IOS, Windows, Output Image By WIFI In Real Time
Upgrade to A31.1062-5.0M
- - - - A53.1061-5.0M
Digital Head, Built-in Wireless Digital Camera 5.0M, Support Android, IOS, Windows, Output Image By WIFI In Real Time, App Software, By Scanning QR Code On Microscope, Installing App & Identifying Microscope, You Can View Micro Image On Mobile Phone & Tablet.
Upgrade to A31.1062-5.0W
- - - - A53.1061-5.0W
Eyepiece EW10x/22mm, Diopter Adjustable, Dia.30mm A51.1029-1022
EW15x/16mm, Diopter Adjustable, Dia.30mm A51.1029-1516
EW20x/12mm, Diopter Adjustable, Dia.30mm A51.1029-2012
Nosepiece Quintuple Nosepiece, Dovetail Interface - - - -
Coded Quintuple Nosepiece, Dovetail Interface - -
NIS45
Infinity Plan
Objective
4x/0.10, W.D.20.6mm - - - - A52.1045-4
10x/0.25, W.D.17.9mm - - - - A52.1045-10
20x/0.40, W.D.6.40mm - - - - A52.1045-20
40x/0.60, W.D.1.50mm - - - - A52.1045-40
60x/0.80, W.D.0.30mm - - - - A52.1045-60
100x/1.25(Oil), W.D.0.16mm - - - - A52.1045-100
100x/1.10(Water), W.D.0.16mm - - - - A52.1045-100W
NIS60
Infinity Plan
Objective
4x/0.10, W.D.30.0mm - - A52.1060-4
10x/0.25, W.D.10.2mm - - A52.1060-10
20x/0.40, W.D.4.8mm - - A52.1060-20
40x/0.65, W.D.1.5mm - - A52.1060-40
60x/0.80, W.D.0.30mm - - A52.1060-60
100x/1.25(Oil), W.D.0.3mm - - A52.1060-100
100x/1.10(Water), W.D.0.2mm -   A52.1060-100W
NIS60
Infinity Plan
Phase Contrast
Objective
10x/0.25, W.D.10.2mm - - A5C.1060-10
20x/0.40, W.D.12.0mm - - A5C.1060-20
40x/0.65, W.D.0.7mm - - A5C.1060-40
100x/1.25(Oil), W.D.0.2mm - - A5C.1060-100
Focusing Coaxial Coarse & Fine Adjustment, Tension Adjustable, Fine Division 0.002mm, Coarse Focusing Range 28mm
Working Stage Double Layer Mechanical Rackless Stage, Size 230x150mm, Moving Range 78x54mm - - - -
Double Layer Mechanical Rackless Stage, Size 230x150mm, Moving Range 78x54mm, Anti-Scratch Hard Coating Dural Platform - -
Condenser Inserted Abbe Condenser N.A. 1.25, With Slot For Phase Contrast Slide And Dark Field Slide.
Illumination 1W S-LED Critical Illumination - - - -
3W S-LED Kohler Illumination - -
Green Filter
Dark Field Dark Field Slide A5D.1062
Polarizing Simple Polarizing Set A5P.1008
Phase Contrast Phase Slider For 10x-40x A5C.1062-S1040
Phase Slider For 100x A5C.1062-S100
Epi-Fluorescence Attachment 3W LED Epi-Fluorescence Attachment, Fly-Eye Lens Illumination, With 2 Filter Position + Bright Field Position, Switch Quickly, With Attachable UV Shield,
B, G Filters
A5F.1062
Filter U A5F.1062-U
Filter V A5F.1062-V
Photo Adapter 1.0x C-Mount A55.1062-1.0
0.5x C-Mount A55.1062-0.5
Power Supply AC 100-240V,50/60Hz
USB Charging Port, Support To Use Exeternal Rechargeable Battery Power Bank Like Mobile Phone Out Door Freely
LCD Screen LCD Screen On Front Of Body, Display Using State Of Microscope, Including Magnification, Light Intensity, Standby Status, Set Power Off Timer 5 Mins to 8 Hours, And So On. - -
Dimensions 220(W)x290(D)x472(H) mm
Note:""In Table Is Standard Outfits,"" Is Optional Accessories "-" Is Unavailable
